YSP20_KKX_pl - 第45页

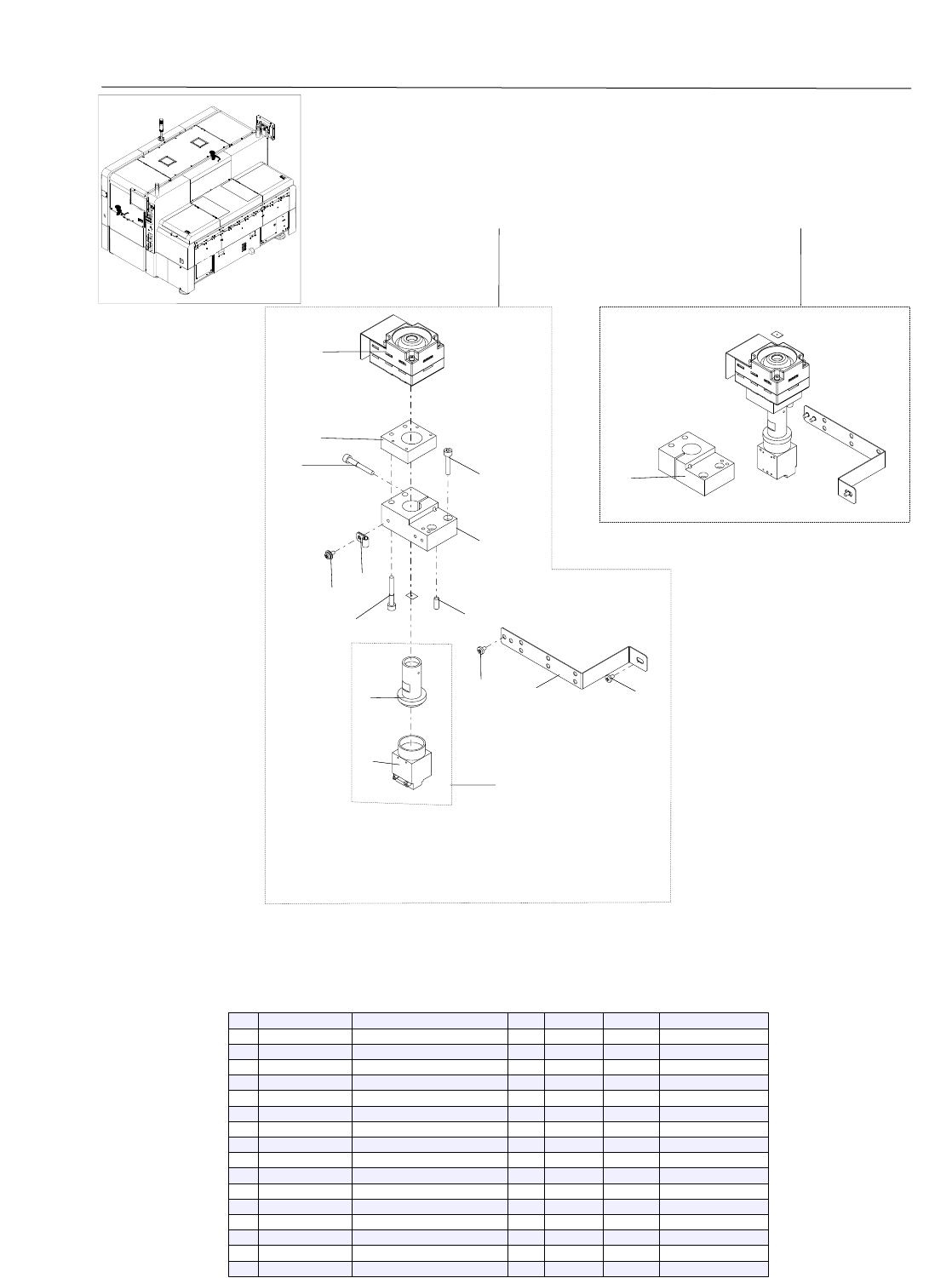

15 14 12 16 10 8 5 5 6 7 13 6 11 1 3 9 4 2 15 14 12 16 10 8 5 5 6 7 13 6 11 1 3 9 4 2 Mask camera camera KKX-1305 7-2 NO Parts_No. Parts_Name Q_ty Remarks Compati Revision_No._date 1 $NK-3N NYLON CLIP 4 2 KHT -M76A0-00 F…
5
12
11
13
2
12
14
1
8
9
7
10
3
6
4
8
PCB Camera
Camera
KKX-1305
7-1
OLD
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
91312-04020
BOLT HEX,SOCKET HEAD
2
2
91312-05010
BOLT HEX,SOCKET HEAD
2
3
91312-05016
BOLT HEX,SOCKET HEAD
2
4
91312-05035
BOLT HEX,SOCKET HEAD
3
4-1
_
1
Delete
MK40082-2013/4/17
5
KHN-M7600-00
FIDUCIAL LIGHT ASSY
1
6
KJX-M7210-00
CCD CAMERA
1
7
KKX-M7801-A0
LENS HOLDER ASSY.
1
8
KKX-M7802-00
HOLDER,LIGHT
1
8-1
KKX-M7802-01
HOLDER,LIGHT
1
NG
MK40082-2013/4/17
9
KKX-M7803-00
BRKT.,HNS.
1
9-1
KKX-M7803-01
BRKT.,HNS.
1
OK
MK40082-2013/4/17
10
KKX-M7804-00
LENS
1
11
90990-28J026
WASHER,PLAIN
2
MK40082-2013/4/17
12
91312-05020
BOLT HEX,SOCKET HEAD
4
NG
MK40082-2013/4/17
13
KKX-M7805-01
PLATE,LIGHT
1
MK40082-2013/4/17
14
KKX-M7810-00
CAMERA ASSY
1
MJ30057-2012/3/14
15
14
12
16
10
8
5
5
6
7
13
6
11
1
3
9
4
2
15
14
12
16
10
8
5
5
6
7
13
6
11
1
3
9
4
2

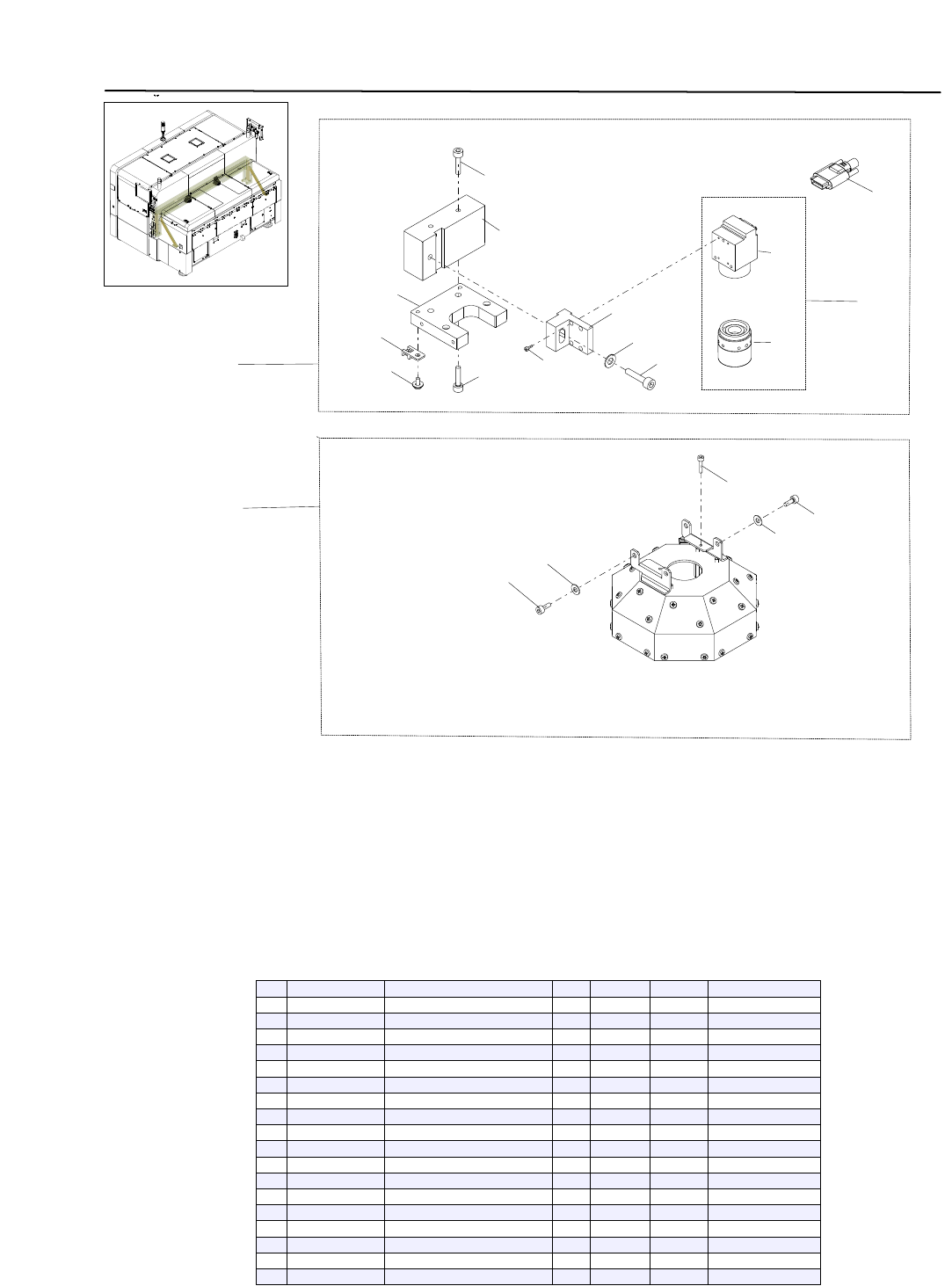

Mask camera
camera
KKX-1305
7-2
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
$NK-3N
NYLON CLIP
4
2
KHT-M76A0-00
FIDUCIAL LIGHT ASSY
2
3
90990-11J003
SCREW, PAN HEAD W/W
4
4
91312-05025
BOLT HEX,SOCKET HEAD
4
5
91312-05035
BOLT HEX,SOCKET HEAD
8
6
98902-04006
SCREW BINDING HEAD
6
7
99480-05014
PIN,PARALLEL
4
8
KHT-M76B0-00
LENS FID.
2
9
KHT-M7802-00
SATY,FID.LIGHT
2
10
KJX-M7210-10
CCD CAMERA
2
11
KKX-M7601-00
HOLDER,CAMERA
1
12
KKX-M7601-50
HOLDER,CAMERA
1
13
KKX-M7602-00
BRKT.,HNS.
2
14
KKX-M7600-00
MASK CAMERA1 ASSY.
1
15
KKX-M7600-50
MASK CAMERA2 ASSY.
1
16
KKX-M7610-00
CAMERA ASSY
1
MJ30057-2012/3/14
1
13
9
5
6
8
10
14
15
5
15
4
14
17
11
12
18
2
16
3
7

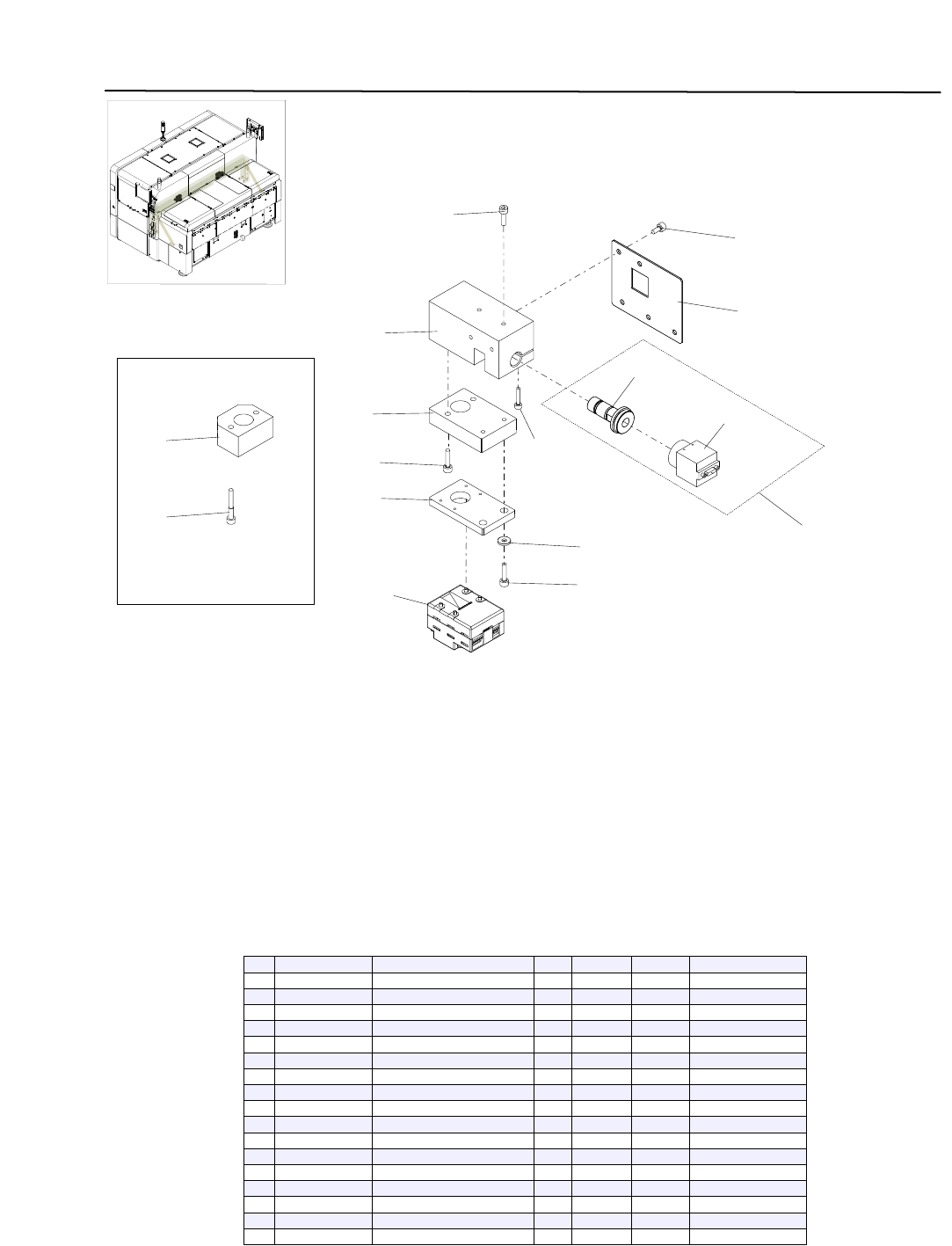

Inspection Camera
Camera
KKX-1305
7-3
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
KKX-M79B0-00
INSP.LIGHT ASSY.
1
2
KKX-M79A0-00
INSP.CAMERA SUBASSY.
1
3
90115-02J006
BOLT, HEX. SOCKET HEAD
4
4
90990-11J003
SCREW, PAN HEAD W/W
2
5
91312-05020
BOLT HEX,SOCKET HEAD
4
6
91312-06025
BOLT HEX,SOCKET HEAD
1
7
92902-06200
WASHER,PLAIN
1
8
91312-03014
BOLT HEX,SOCKET HEAD
2
9
KGY-M7932-00
LENS,INSP.
1
10
KJH-M7210-00
CCD CAMERA
1
11
KJJ-M66K0-00
HNS,S.VIEW CAMERA
1
12
KKX-M7901-00
STAY1,CAMERA
1
13
KKX-M7902-00
STAY2,CAMERA
1
14
91312-04010
BOLT HEX,SOCKET HEAD
4
15
92902-04200
WASHER,PLAIN
4
16
KKX-M7903-00
HOLDER,CAMERA
1
17
$CTAM1
ANCHOR MOUNT
2
18
KKX-M7910-00
CAMERA ASSY
1
MJ30057-2012/3/14
