YSP20_KKX_pl - 第53页

lane 1 lane 2 58 21 40 10 7 54 6 52 3 25 10 9 28 53 16 34 33 17 26 18 21 53 24 37 16 9 49 16 55 51 50 11 31 35 29 38 39 20 42 56 35 36 22 50 30 9 43 19 16 50 11 15 44 46 10 16 28 23 27 18 56 42 2 51 41 57 47 16 15 16 12 …

100%1 / 75
Conv 1
Conv 2
21
13
15
19
10
9
11
5
4
8
6
7
14
3
1
18
20
1
2
2
16
17
16
12
4

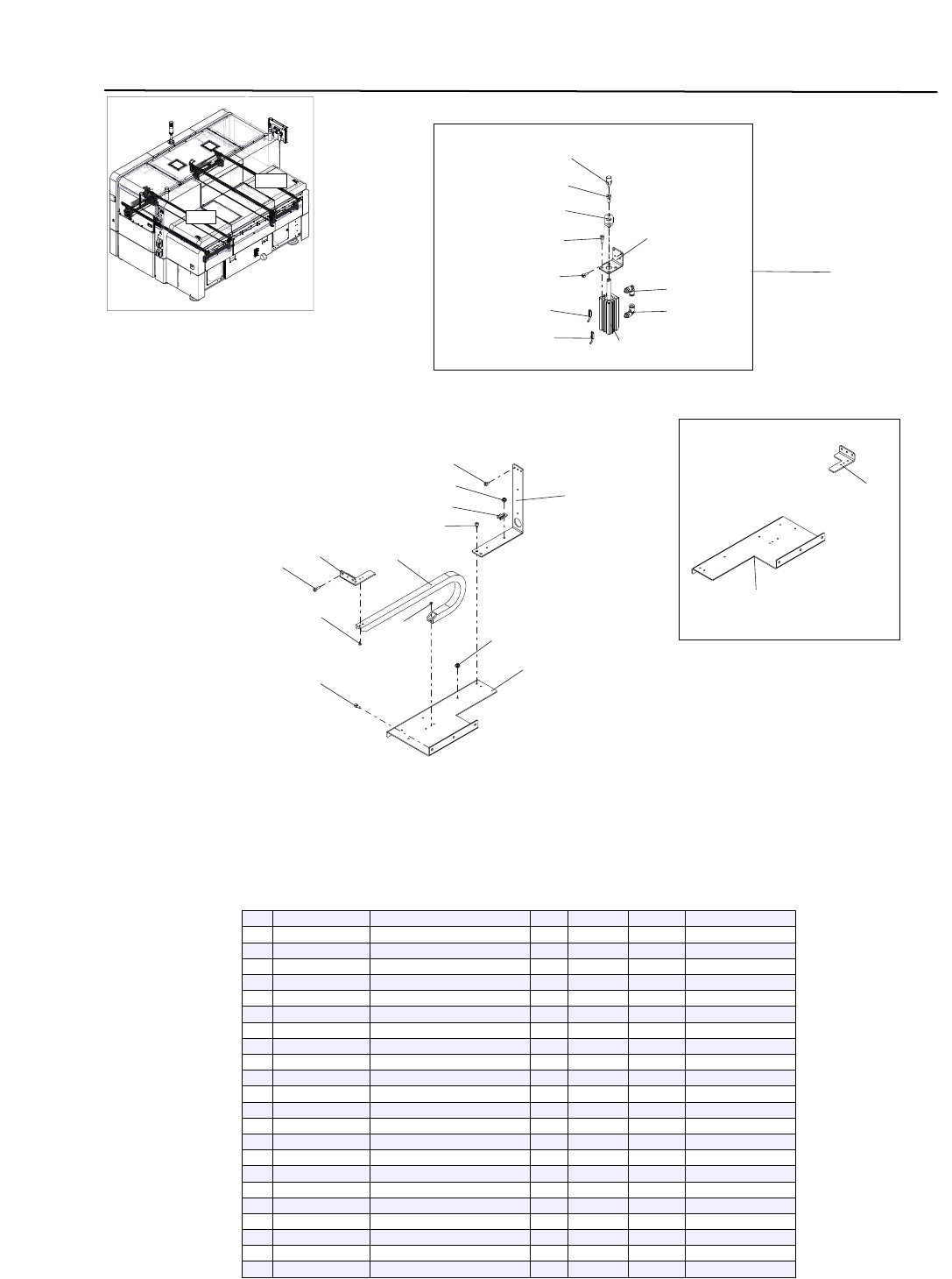

Cable duct 1/2 Exit stopper
Conveyor
KKX-1305
8-6
Conv 2
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
90990-11J001
SCREW, PAN HEAD W/W
11
2
91312-04006
BOLT HEX,SOCKET HEAD
4
3
91312-04008
BOLT HEX,SOCKET HEAD
3
4
91312-04010
BOLT HEX,SOCKET HEAD
4
5
91312-05012
BOLT HEX,SOCKET HEAD
2
6
91312-05016
BOLT HEX,SOCKET HEAD
2
7
KHW-M9272-00
STOPPER,EXIT
1
8
KHY-M9284-00
PLATE,STOPPER
1
9
KKX-M653B-00
SENS. EXT ST ON ASSY
1
10
KKX-M653B-10
SENS. EXT ST OFF ASSY
1
11
KKX-M9131-01
BRKT.,CYLINDER
1
12
KKX-M9151-00
BRKT.,W CABLE DUCT 1
1
Conv 1
13
KKX-M9151-50
BRKT.,W CABLE DUCT 1
1
Conv 2
14
KKX-M9152-00
BRKT.,W CABLE DUCT 2
1
Conv 1
15
KKX-M9152-50
BRKT.,W CABLE DUCT 2
1
Conv 2
16
98702-03006
SCREW,FLAT HEAD
4
17
KKX-M9153-00
DUCT,CABLE
1
18
KKX-M9154-00
BRKT.,HNS.
1
19
KKX-M9172-00
CYLINDER
1
20
$CTAM
CTAM
9
21
KKX-M9170-00
EXIT STOPPER 1 ASSY.
1
22
$TL4-M5
JOINT
2
lane 1
lane 2
58
40
10
7
54
6
52
3
25
10
9
53
16
34
33
17
18
21
53
37
16
9
49
16
55
51
50
11
31
35
29
38
39
42
56
35
36
22
50
30
9
43
19
16
50
11
15
44
46
10
16
28
23
27
18
56
42
2
51
41
57
47
16
15
16
12
2
1
12
48
8
45
14
17
16
32
17
48
14
32
17
4
5
17

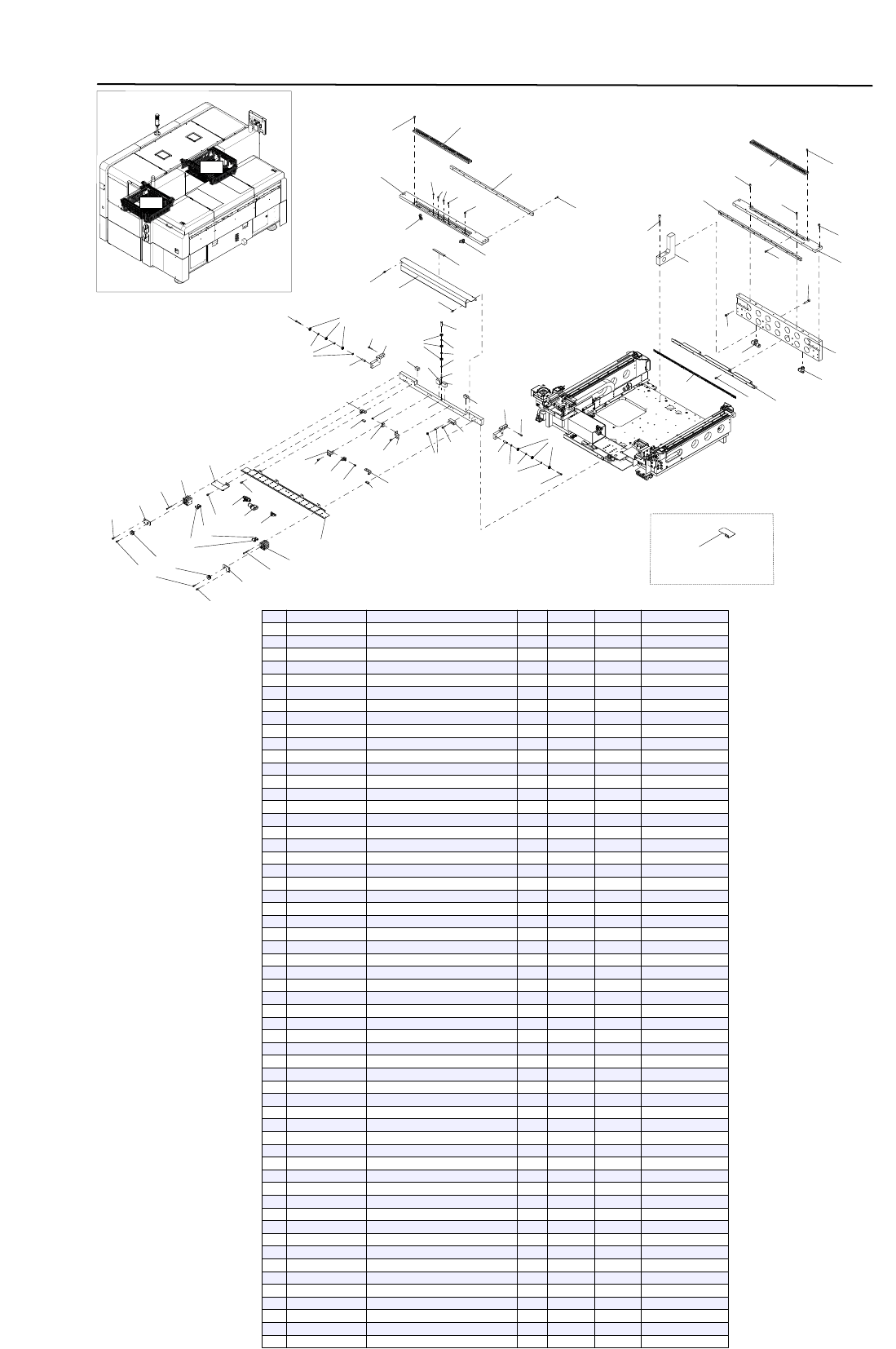

Clamp Unit 1
Conveyor
KKX-1305
8-7
lane 2
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
$SSU4
SPEED CONTROLER
1
2
$TL6-01M
JOINT
2
3
$TL8-01
JOINT
1
4
$TSH4-M5M
JOINT
2
5
$TSH6-M5M
JOINT
2
6
$TT8-01
JOINT
1
7
$UT4M
JOINT
1
8
$UYD8-6
JOINT
1
9
90933-02J126
BEARING
15
10
90990-29J055
SHIM
15
11
90990-41J146
COLLAR
4
12
91312-03008
BOLT HEX,SOCKET HEAD
4
14
91312-03030
BOLT HEX,SOCKET HEAD
8
15
91312-04006
BOLT HEX,SOCKET HEAD
2
16
91312-04008
BOLT HEX,SOCKET HEAD
38
17
91312-04010
BOLT HEX,SOCKET HEAD
14
18
91312-04012
BOLT HEX,SOCKET HEAD
16
19
KGJ-M925A-00
PIN 1
1
20
91312-04014
BOLT HEX,SOCKET HEAD
1
21
KHT-M9124-00
VACUUM PLATE
2
22
KKX-M652W-00
SENSOR EC FIX ASSY
1
23
KKX-M652W-10
SENSOR EC END ASSY
1
24
KKX-M920A-00
PLATE,CLAMP UNIT 3
4
25
KKX-M920D-00
PLATE,CLAMP UNIT 4
1
26
KKX-M9210-00
PLATE,E-CLAMP FIX
1
27
KKX-M9210-10
PLATE,E-CLAMP MOV.
1
28
KKX-M9211-00
PLATE,EDGE
2
29
KKX-M9214-00
STAY,E-CLAMP MOV.
1
30
KKX-M9215-00
BRKT.,RAIL R
1
31
KKX-M9215-10
BRKT.,RAIL L
1
32
KKX-M9218-00
PLATE,CYL.
2
33
KKX-M921A-01
BRKT.,SEAL
1
34
KKX-M921B-00
SEAL,SCALE
1
35
KKX-M9221-00
STOPPER,E-CLAMP
2
36
KKX-M9222-00
PLATE,STOPPER
2
37
KKX-M9223-00
SCREW,ADJUST
2
38
KKX-M9224-00
PLATE,RAIL 3
1
39
KKX-M9225-00
PLATE,RAIL 4
1
40
KKX-M9226-00
DOG,E-CLAMP ON
1
41
KKX-M9226-10
DOG,E-CLAMP END
1
42
KKX-M9229-00
PLATE,NUT
2
43
KKX-M922C-00
BRKT.,SENSOR
1
44
KKX-M922C-10
BRKT.,SENSOR
1
45
KKX-M923A-00
BRKT.,W HNS.
1
46
KKX-M923B-00
COVER,W HNS.
1
47
KKX-M923D-00
COVER,HNS.
1
lane 1
48
KKX-M9241-00
CYLINDER
2
49
KKX-M9242-00
JOINT,CYL.
2
50
91312-04016
BOLT HEX,SOCKET HEAD
10
51
91312-04025
BOLT HEX,SOCKET HEAD
4
52
91312-05012
BOLT HEX,SOCKET HEAD
4
53
91312-05016
BOLT HEX,SOCKET HEAD
4
54
91312-06025
BOLT HEX,SOCKET HEAD
8
55
91312-06050
BOLT HEX,SOCKET HEAD
8
56
97602-03308
SCREW PAN HEAD W/WASHER
4
57
90K41-001330
LABEL,CAUTION
1
58
KKX-M923D-50
COVER,HNS.
1
lane 2
lane 1
lane 2
14
54
61
15
32
44
50
42
33
53
50
36
19
45
35
7
37
52
4
17
14
45
49
20
10
51
23
46
45
4
31
2
3
1
43
45
48
11
40
8
26
12
3
25
47
63
17
13
39
10
10
51
9
38
50
64
42
60
18
45
56
5
10
45
59
49
42
19
52
62
36
6
50
35
42
34
57
8
41
24
46
58
55
45
4
30
16
3
45
48
27
3
25

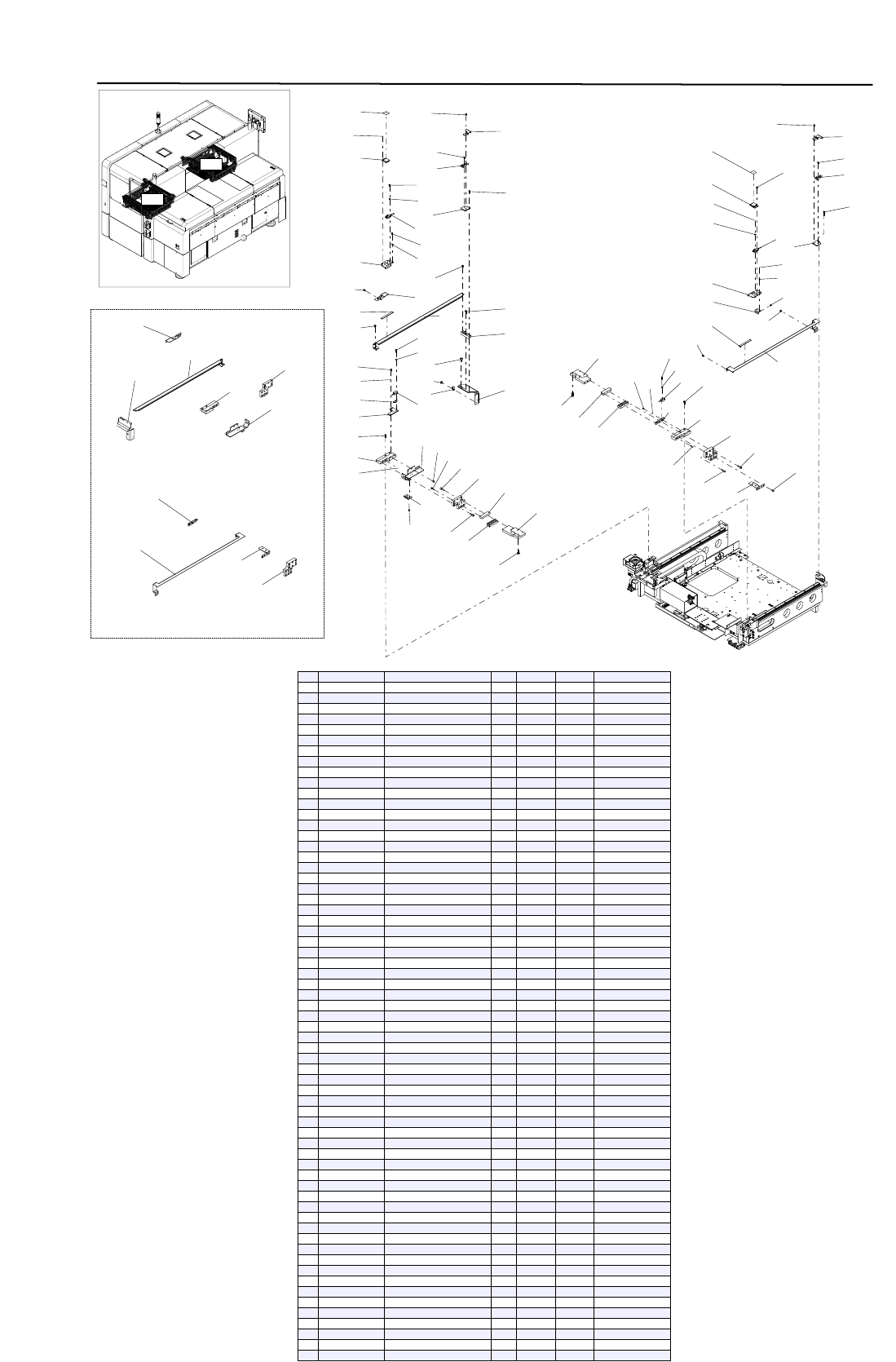

Clamp Unit 2
Conveyor
KKX-1305
8-8
lane 2
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
$NK-3N
NYLON CLIP
1
2
90990-11J003
SCREW, PAN HEAD W/W
1
3
91312-03004
BOLT HEX,SOCKET HEAD
8
4
91312-03006
BOLT HEX,SOCKET HEAD
6
5
91312-03008
BOLT HEX,SOCKET HEAD
2
6
91312-03010
BOLT HEX,SOCKET HEAD
2
7
91312-03020
BOLT HEX,SOCKET HEAD
2
8
91312-04006
BOLT HEX,SOCKET HEAD
4
9
91312-04008
BOLT HEX,SOCKET HEAD
2
10
91312-04012
BOLT HEX,SOCKET HEAD
16
11
91312-04016
BOLT HEX,SOCKET HEAD
6
12
91312-05012
BOLT HEX,SOCKET HEAD
2
13
KHT-M7635-00
PLATE,NUT
1
14
KKX-M653D-00
SENS.BACKUPPIN ASSY
1
15
KKX-M653Y-00
SENS.W BRAKE ENT
1
16
KKX-M653Y-10
SENS.W BRAKE EXIT
1
17
KKX-M9204-00
BLOCK,E-CLAMP F
2
lane 1
18
KKX-M920G-10
COVER,W GUIDE
1
lane 1
19
KKX-M920J-01
BRKT.,PCB CHECK
2
20
KKX-M920K-01
FIBER
2
21
KKX-M920M-00
BRKT.,CLAMP UNIT 1L
1
lane 1
22
KKX-M920P-00
BRKT.,SENSOR W1
1
23
KKX-M920R-00
BRKT.,SENSOR W2R
1
24
KKX-M920R-10
BRKT.,SENSOR W2L
1
25
90K41-001320
LABEL,CAUTION
2
26
KKX-M920T-00
COVER,SENSOR R
1
27
KKX-M920T-10
COVER,SENSOR L
1
28
KKX-M920U-00
BRKT.,COVER
1
29
KKX-M920X-00
COVER,FIBER
1
30
KKX-M920X-10
COVER,FIBER
1
31
KKX-M9212-00
LEG,E-CLAMP MOV. 1R
1
lane 1
32
KKX-M9212-10
LEG,E-CLAMP MOV. 1L
1
lane 1
33
KKX-M9213-00
BRKT.,E-CLAMP MOV.R
1
34
KKX-M9213-10
BRKT.,E-CLAMP MOV.L
1
35
KKX-M9216-00
PLATE,RAIL 1
2
36
KKX-M9217-00
PLATE,RAIL 2
2
37
KKX-M9227-01
BRKT.,PIN SENSOR R
1
lane 1
38
KKX-M922B-01
BRKT.,PIN SENSOR L
1
39
KKX-M9232-00
BRKT.,W CABLE DUCT 2
1
lane 1
40
KKX-M923E-00
BRKT.,HNS.
1
lane 1
41
KKX-M923F-00
BRKT.,HNS.
1
lane 1
42
91312-05014
BOLT HEX,SOCKET HEAD
15
43
91312-05016
BOLT HEX,SOCKET HEAD
3
44
92012-03006
BOLT BUTTON HEAD
2
45
92902-03600
WASHER,PLAIN
16
46
98702-03008
SCREW,FLAT HEAD
4
47
98902-03004
SCREW BINDING HEAD
2
48
98902-03008
SCREW BINDING HEAD
4
49
98902-03012
SCREW BINDING HEAD
4
50
98902-04006
SCREW BINDING HEAD
7
51
99480-04012
PIN,PARALLEL
4
52
90K41-001330
LABEL,CAUTION
4
53
KKX-M920G-00
COVER,W GUIDE
1
lane 1
54
KKX-M9204-50
BLOCK,E-CLAMP R
1
lane 2
55
KKX-M920G-50
COVER,W GUIDE
1
lane 2
56
KKX-M920G-60
COVER,W GUIDE
1
lane 2
57
KKX-M920M-50
BRKT.,CLAMP UNIT 1L
1
lane 2
58
KKX-M9212-50
LEG,E-CLAMP MOV. 1R
1
lane 2
59
KKX-M9212-60
LEG,E-CLAMP MOV. 1L
1
lane 2
60
KKX-M9227-51
BRKT.,PIN SENSOR R
1
lane 2
61
KKX-M9232-50
BRKT.,W CABLE DUCT 2
1
lane 2
62
KKX-M923E-50
BRKT.,HNS.
1
lane 2
63
KKX-M923F-50
BRKT.,HNS.
1
lane 2
64
KW3-M9139-00
MASK 1
1
Slit
ML20057-2014/2/18
