MODEL TCM-3100J-2 0108-001 106 ㇱຠଏ⛎ㇱ FEEDER CARRIAGE SECTION Fig. 5-1 ࡞ゲ Feeder Axis 4 6 4 5 4 4 4 1 12 12 11 11 10 10 22 22 7 8 21 21 2 1 22 22 6 2 1 3 9 4 42 42 4 2 43 43 43 43 3 3 34 34 35 35 36 36 37 37 31 31 38 38…
MODEL TCM-3100J-2
0108-001
105
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
4-12
1 630 070 9117 SUPPORT 1 659E--03B-046
2 630 070 9124 SUPPORT 1 659E--03B-047
3 630 069 5694 SPRING,FLAT 2 659E--03B-045
4 630 070 9902 MACHINE SCREW 4 659E--03H-018
5 630 000 7749 BOLT,HEX-SCT 2 M5X10
6 630 069 5731 SUPPORT 1 659E--03B-049
7 630 069 5724 SUPPORT 1 659E--03B-048
8 411 141 4107 WASHER V 5X10X1 4 FW5
9 411 141 6705 WASHER SPR 5 4 SW5
10 630 000 7770 BOLT,HEX-SCT 4 M5X20
11 411 141 4008 WASHER V 4X9X0.8 2 FW4
12 411 141 2905 WASHER SPR 4 2 SW4
13 630 000 7626 BOLT,HEX-SCT 2 M4X10
14 630 069 4598 PLUNGER 2 659E--03H-017
15 411 141 0406 NUT HEX 4 2 M4-3
16 630 070 9100 COVER 1 659E--03B-044
17 411 141 4008 WASHER V 4X9X0.8 2 FW4
18 411 141 2905 WASHER SPR 4 2 SW4
19 630 000 7619 BOLT,HEX-SCT 2 M4X8
26 630 070 9391 COVER 1 659E--03B-051
27 411 141 4008 WASHER V 4X9X0.8 2 FW4
28 411 141 2905 WASHER SPR 4 2 SW4
29 630 000 7626 BOLT,HEX-SCT 2 M4X10
MODEL TCM-3100J-2
0108-001
106

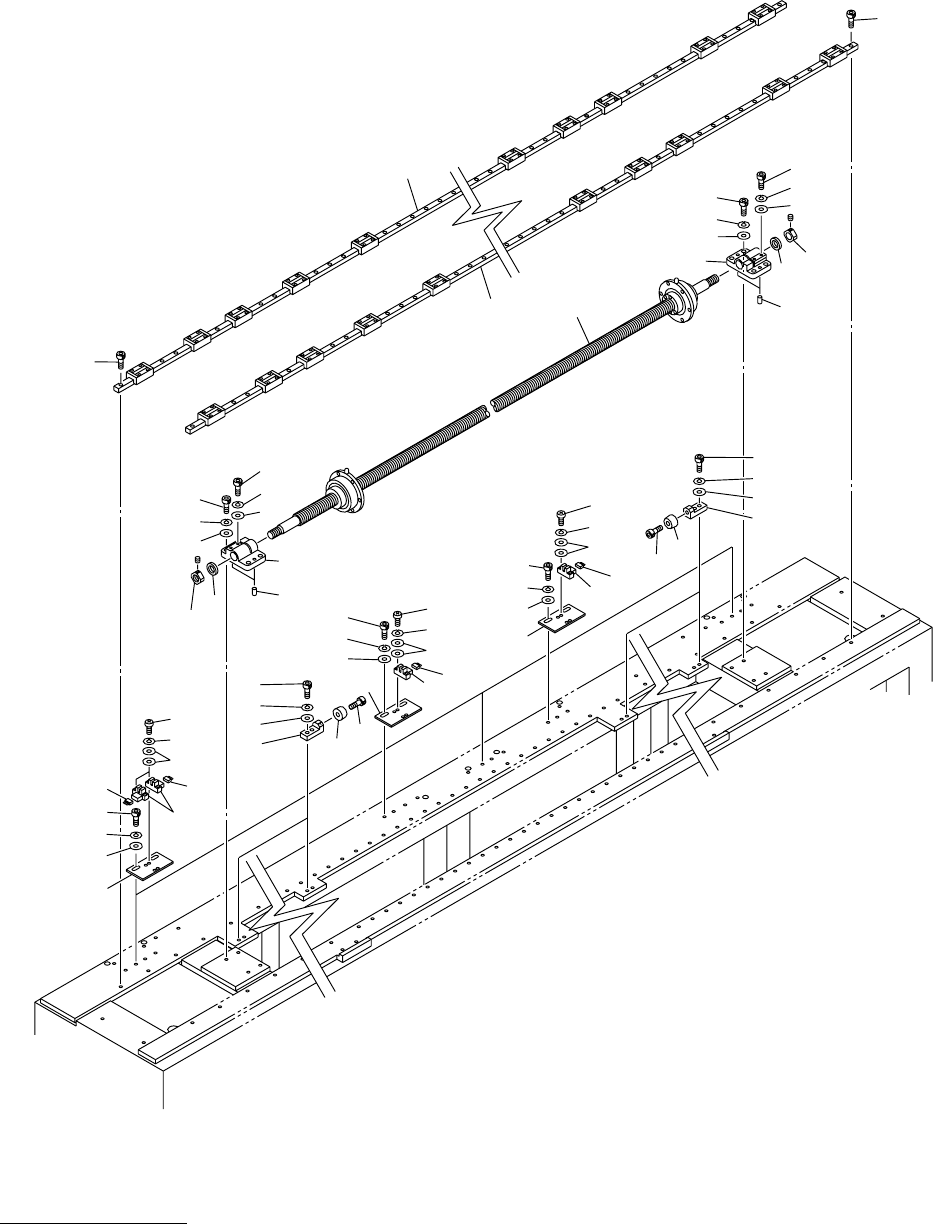

ㇱຠଏ⛎ㇱ FEEDER CARRIAGE SECTION
Fig. 5-1 ࡞ゲ Feeder Axis
46
45
44
41
12
12
11
11
10
10
22
22
7
8
21
21
21
22
22
6
2
1
3
9
4
42
42
42
43
43
43
43
33
34
34
35
35
36
36
37
37
31
31
38
38
39
39
34
34
35
35
36
36
37
37
31
38
38
39
39
10
11
12
6
7
2
9
3
4
8
34
33
32
32
33
39
38
37
31
35
36
32
33
33
32
46
45
44
41
MODEL TCM-3100J-2
0108-001
107
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
5-1
1 630 056 1395 BALL SCREW 1 659C--03H-001
2 630 047 9454 BRACKET 2 659C--03B-035
3 630 046 6874 COLLAR 2 659C--03B-037
4 630 046 6805 BEARING,PARTS 2 659C--03B-038
6 411 141 4503 WASHER V 8X17X1.6 4 FW8
7 411 141 3100 WASHER SPR 8 4 SW8
8 630 000 8043 BOLT,HEX-SCT 4 M8X35
9 630 032 5379 PIN,LOCATE 4 659C--03H-007
10 411 141 4800 WASHER V 12X24X2.5 8 FW12
11 411 141 3308 WASHER SPR 12 8 SW12
12 630 000 8241 BOLT,HEX-SCT 8 M12X40
21 630 064 2575 GUIDE,LINEAR 2 659C--03H-002
22 630 000 7770 BOLT,HEX-SCT 78 M5X20
31 630 047 6811 BRACKET 5 659C--03B-034
32 630 000 0252 SENSOR,PHOTO 8 PHS24, PHS25, PHS28, PHS29,
PHS30, PHS31, PHS32, PHS33
659C--03H-005
33 630 000 0269 SENSOR,PHOTO(CONNECTOR) 8 659C--03H-006
34 411 119 1909 WASHER V 3X7X0.5 32 FW3 F
35 411 086 4408 WASHER SPR 3 16 SW3 F
36 411 040 7803 SCR PAN 3X12 16 M3X12 PAN
37 411 141 4107 WASHER V 5X10X1 10 FW5
38 411 141 6705 WASHER SPR 5 10 SW5
39 630 000 7749 BOLT,HEX-SCT 10 M5X10
41 630 054 9973 BLOCK 4 659C--03B-031
42 630 048 4052 MECH PARTS(URETHANES) 4 659C--03H-016
43 630 000 7879 BOLT,HEX-SCT 4 M6X12
44 411 141 4701 WASHER V 10X21X2 8 FW10
45 411 141 3209 WASHER SPR 10 8 SW10
46 630 000 8142 BOLT,HEX-SCT 8 M10X35
