MODEL TCM-3100J-2 0108-001 141 Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 6-6 1 630 055 4090 BA LL SCR EW 1 659J--03H-033 2 630 059 5949 SUPPORT 1 659J--03B-037 3 630 032 1814 SH EET 1 659J--03B-051 4 630 000 8920 …
MODEL TCM-3100J-2
0108-001
140
㨄㨅࠹ࡉ࡞ㇱ XY TABLE SECTION

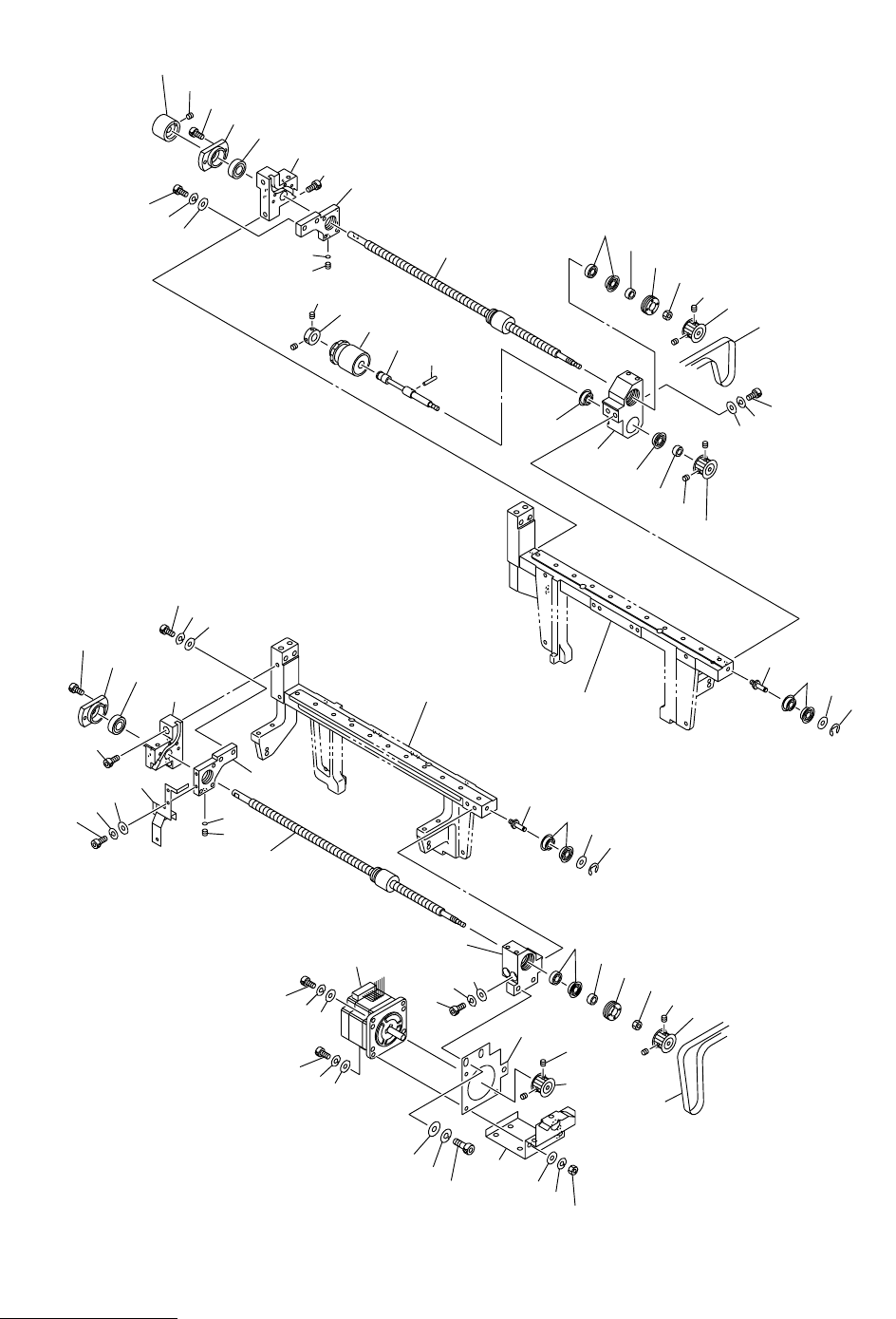

Fig. 6-6 ࠪࡘ࠻㚟േㇱ Chute Driver
80
56
56
58
58
57
52
51
47
49
49
48
45-1
45-1
45
66
68
68
67
76
76
78
77
79
45-1
50
50
71
43
43
44
44
70
70
41
59
46
46
53-1
53-1
14
13
13
13-1
6
2
1
3
4
39
39
37
36
19
19
38
28
28
26
26
27
53
54
55-1
55
55
42
42
69
69
65
64
64
See Fig.6-4
Key No.2
See Fig.6-4
Key No.1
76
78
77
79
28
26
26
27
24
22
20
21
21
23
31
31
32
32
25
25
33
34
35
26
27
30
30
18
18
16
5
7
11
80
12
10
8
9
17
17
Fig.6-6
TCM-3100J-2
TCM-3000Z-2
62
60
60
61
61
MODEL TCM-3100J-2
0108-001
141
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
6-6
1 630 055 4090 BALL SCREW 1 659J--03H-033
2 630 059 5949 SUPPORT 1 659J--03B-037
3 630 032 1814 SHEET 1 659J--03B-051
4 630 000 8920 SET SCREW 1 M4X6 SET
5 630 061 2424 HOLDER 1 659J--03B-040
6 630 061 2370 SUPPORT 1 659J--03B-032
7 630 059 6786 BEARING,RADIAL 1 659J--03H-034
8 630 059 6526 NUT 1 659J--03B-050
9 630 059 6793 COLLAR 1 659J--03H-035
10 630 059 6809 NUT 1 659J--03H-036
11 630 059 6755 PULLEY,TIMING 1 659J--03H-037
12 630 000 8883 SET SCREW 2 M3X4 SET
13 630 059 6007 HOLDER 1 659J--03B-031
13 -1 630 036 7645 BEARING,RADIAL 1 659J--03H-032
14 630 000 7503 BOLT,HEX-SCT 2 M3X6
16 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
17 411 008 1706 WASHER SPR 4 2 SW4 F
18 630 000 7695 BOLT,HEX-SCT 2 M4X35
19 630 000 7657 BOLT,HEX-SCT 2 M4X16
20 411 141 4008 WASHER V 4X9X0.8 2 FW4
21 411 141 2905 WASHER SPR 4 2 SW4
22 630 000 7640 BOLT,HEX-SCT 2 M4X14
23 630 061 2455 BRACKET 1 659J--03B-044
24 630 050 0790 MOTOR,STEPPING 1 PM100(CHW), 103H6701-0140
659J--03H-040
25 630 061 8228 PLATE 1 659J--03B-054
26 411 141 4008 WASHER V 4X9X0.8 5 FW4
27 411 141 2905 WASHER SPR 4 5 SW4
28 630 000 7626 BOLT,HEX-SCT 1 M4X10
29 630 000 7664 BOLT,HEX-SCT 2 M4X20
30 411 141 0307 NUT HEX 4 2 M4
31 630 059 6762 PULLEY,TIMING 1 659J--03H-038
32 630 008 1053 SET SCREW 2 659J--03H-039
33 411 141 4107 WASHER V 5X10X1 2 FW5
34 411 141 6705 WASHER SPR 5 2 SW5
35 630 000 7763 BOLT,HEX-SCT 2 M5X16
36 630 065 8309 PLATE 1 659J--03B-038
37 411 141 3902 WASHER V 3X7X0.5 2 FW3
38 411 141 2806 WASHER SPR 3 2 SW3
39 630 000 7503 BOLT,HEX-SCT 2 M3X6
41 630 055 4090 BALL SCREW 1 659J--03H-033
42 630 059 5956 SUPPORT 1 659J--03B-036
43 630 032 1814 SHEET 1 659J--03B-051
44 630 000 8920 SET SCREW 1 M4X6 SET
45 630 061 2431 HOLDER 1 659J--03B-041
45 -1 630 006 9211 BEARING,RADIAL 2 659J--03H-043
46 630 061 2387 SUPPORT 1 659J--03B-033
47 630 059 6786 BEARING,RADIAL 1 659J--03H-034
48 630 059 6526 NUT 1 659J--03B-050
49 630 059 6793 COLLAR 1 659J--03H-035
MODEL TCM-3100J-2
0108-001
142
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
6-6
50 630 059 6809 NUT 1 659J--03H-036
51 630 059 6755 PULLEY,TIMING 1 659J--03H-037
52 630 000 8883 SET SCREW 2 M3X4 SET
53 630 059 6007 HOLDER 1 659J--03B-031
53 -1 630 036 7645 BEARING,RADIAL 1 659J--03H-032
54 630 000 7503 BOLT,HEX-SCT 2 M3X6
55 630 059 6779 GRIP 1 659J--03H-031
55 -1 630 000 8920 SET SCREW 1 M4X6 SET
56 411 141 4008 WASHER V 4X9X0.8 2 FW4
57 411 141 2905 WASHER SPR 4 2 SW4
58 630 000 7688 BOLT,HEX-SCT 2 M4X30
59 630 000 7657 BOLT,HEX-SCT 2 M4X16
60 411 141 4008 WASHER V 4X9X0.8 2 FW4
61 411 141 2905 WASHER SPR 4 2 SW4
62 630 000 7640 BOLT,HEX-SCT 2 M4X14
64 630 061 2448 SHAFT 1 659J--03B-042
65 630 059 5888 PIN,GUIDE 1 659J--03B-043
66 630 061 3308 COLLAR 1 659J--03B-055
67 630 059 6755 PULLEY,TIMING 1 659J--03H-037
68 630 000 8883 SET SCREW 2 M3X4 SET
69 630 059 6823 CLUTCH/BRAKE 1 659J--03H-044
70 630 059 6830 MECH PARTS (SET COLLARS) 1 659J--03H-045
71 630 000 8883 SET SCREW 2 M3X4 SET
76 630 059 6502 PIN,GUIDE 2 659J--03B-045
77 630 001 1388 BEARING,RADIAL 4 659J--03H-042
78 411 141 4008 WASHER V 4X9X0.8 2 FW4
79 411 000 9809 RING E 3 2 659J--03H-049
80 630 059 6816 BELT,TIMING 1 659J--03H-041
