P-0196-001 - 第191页
MEMO
MODEL TCM-3100J-2
0108-001
188
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
11-1
71 408 031 0004 VARISTOR R.A.V-781BXZ-4 1 659BB-03D-011
72 411 119 2104 WASHER V 4X9X0.8 1 FW4 F
73 411 008 1706 WASHER SPR 4 1 SW4 F
74 411 043 5004 SCR PAN 4X8 1 M4X8 PAN
75 411 036 8609 SCR PAN+SW+W 5X12 2
81 630 057 7976 BRACKET 1 659BB-03V-005
82 411 141 4107 WASHER V 5X10X1 8 FW5
83 411 141 6705 WASHER SPR 5 8 SW5
84 630 000 7756 BOLT,HEX-SCT 8 M5X12
85 630 057 8720 PLATE 1 659BB-03V-006
86 411 113 9109 SCR TRS 5X10 2 M5X10 TRS
87 411 113 9109 SCR TRS 5X10 1 M5X10 TRS
MEMO
MODEL TCM-3100J-2
0108-001
190
㔚᳇ᓮㇱ ELECTRICAL SECTION

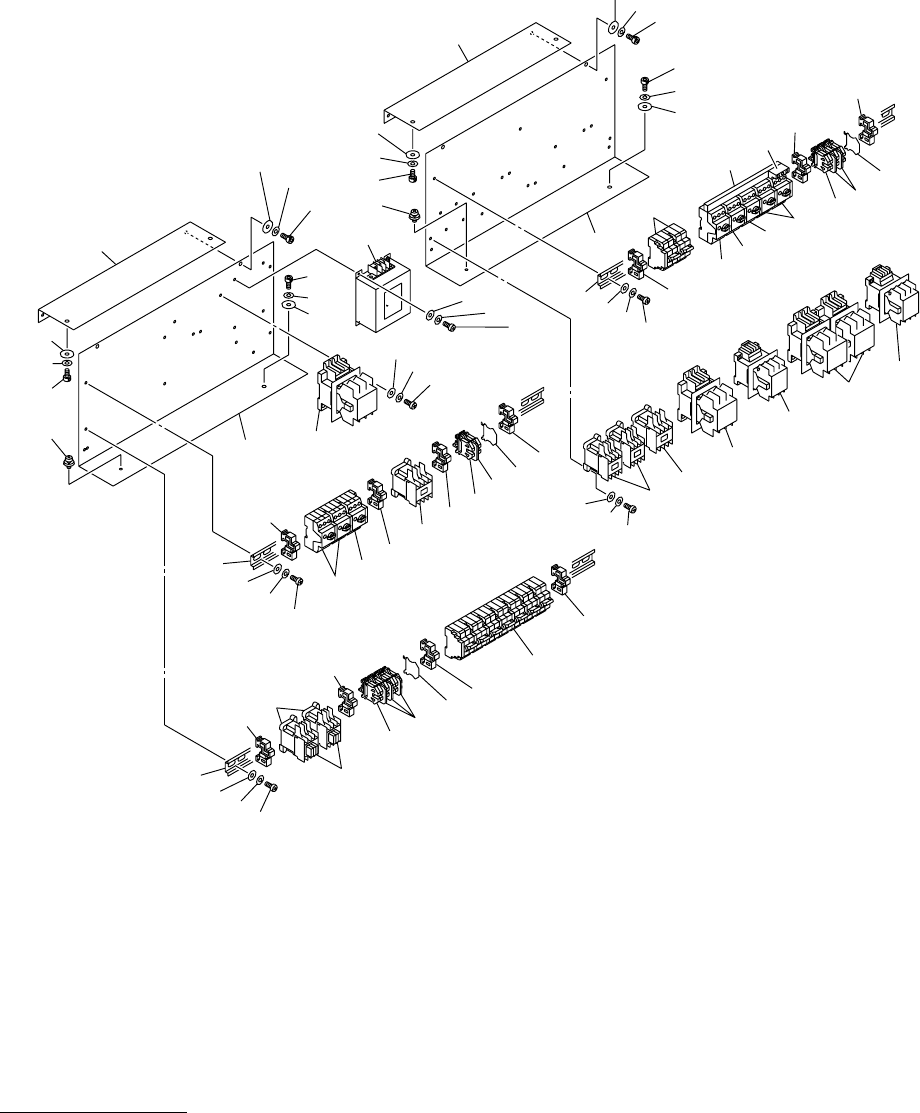

Fig.11-2 200V 㔚Ḯ Power Supply-200V
51
52
53
53
54
101
101
102
102
103
103
104
104
.
62-1
62-1
63
63
64
65
62
67
68
69
69
81
82
83
83
84
84
85
85
85-1
85-1
86
86
87
87
88
89
89
.
90
90
90
90
91
92
92
92
71
72
73
74
79
80
80
99
99
98
98
97
97
96
1
2
3
4
41
41
41
42
42
43
43
43
44
66
11
12
.
15-1
15-1
15
16
17
17
75
76
76
80
18
18
13
.
13-1
13-1
14
.
14-1
14
14
.
14-1
14-1
21
22
23
24
25
25
10
29
30
36
36
26
28
27
27
28
28
31
32
.
33
34
35
35
101
60
