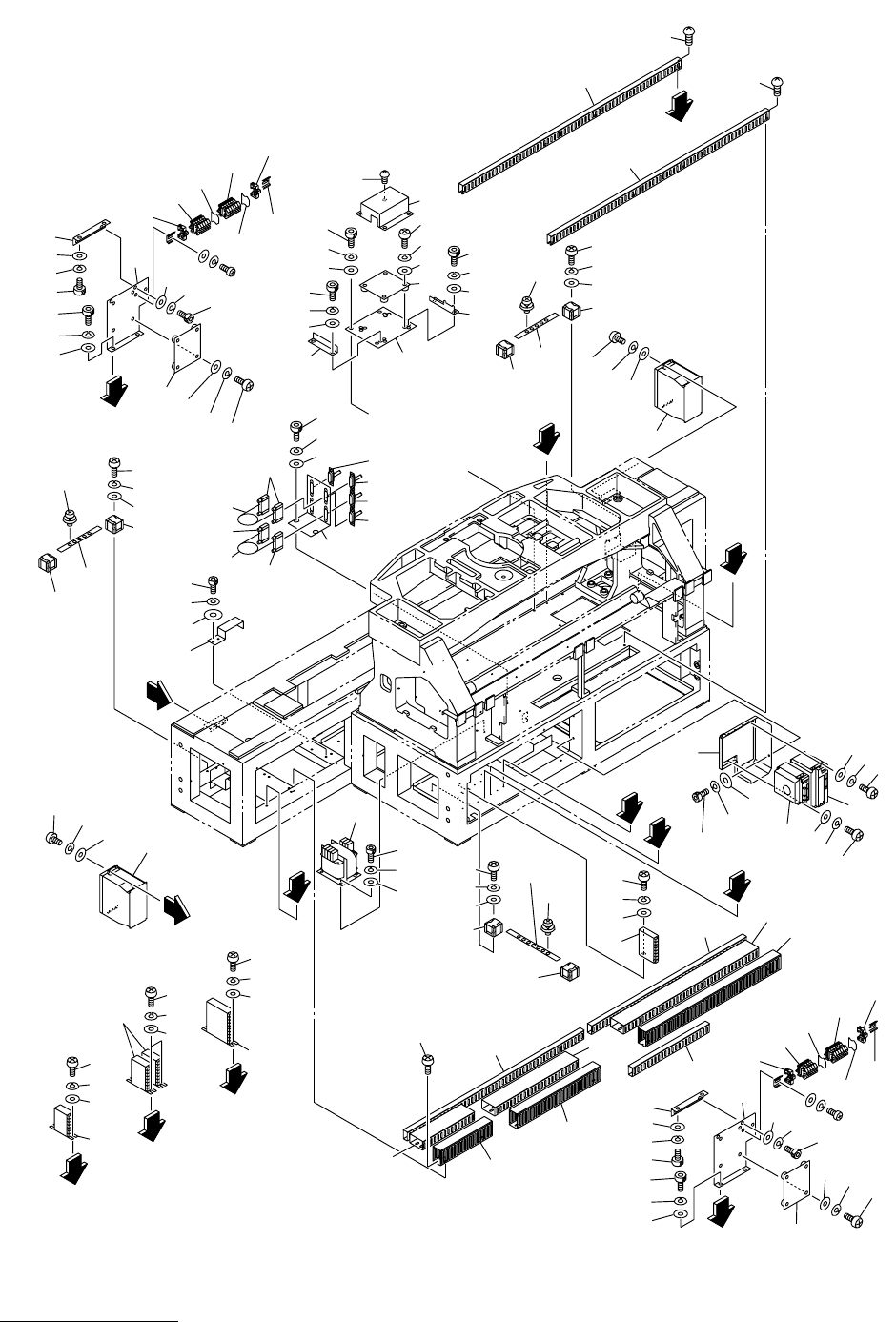

Fig.11-12 ᯏ᪾ᑫࠅ 1 Miscellaneous Parts-1
10-1
10-5
10-1
10-1
10-6
10-6
10-2
10-3
10-4
10-2
10-1
10-5
10-1
10-1
10-6
10-3
10-4
95
96
97
91
91
87
92
92
92
93
93
92
89
89
88
88
E
50
49
48
47
41
41
50
49
48
46
45
51
44
43
55
52
54
53
42
B
G
F
C
D
19-4
19-4
19-3
19-3
19-2
19-2
19-1
19-1
19-6
19-1
19-1
19-5
62
61-1
61-1
61
61
65
65
67
66
66
68
68
63
63-1
63-1
30
30
31
31
32
32
24
24
23
23
22
22
21
21
25
124
124
128
123
127
121
126
122
125
.
.
128
30
30
31
32
32
26
27
27
28
28
29
F
108-1
See Fig.11-14
Key No.7
Key No.7
27
28
G
30
31
32
24
23
22
21
26-1
25
124
128
123
127
121
126
122
125
.
.
128
30
30
31
31
32
32
29
14
14
13
13
12
12
11-1
B
C
18
18
17
17
16
16
15
15
14
14
13
13
12
12
11-2
14
14
13
13
12
12
11-3
11-3
D
E
3
4
2
58
58
59
59
56
57
57
1
1
2
A
4
3
69-3
69-2
69-1
69
104
103
102
7
6
8
9
7
101
5
8
9
A
72
71
71
73
73
73
62-1
62-1
Fig.11-12
TCM-3100J-2
MODEL TCM-3100J-2
0108-001
215
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
11-12
1 630 091 1541 UNIT,DRIVER 2 SMD2(R1), SMD3(R2),
#SGDM-50ADA-R 659FB-03D-019
2 411 088 1702 WASHER V 5X10X1 8 FW5 F
3 411 008 2109 WASHER SPR 5 8 SW5 F
4 411 043 6803 SCR PAN 5X12 8 M5X12 PAN
5 630 091 1558 UNIT,DRIVER 1 SMD4(X), #SGDM-30ADA-R
659FB-03D-021
6 630 091 1565 UNIT,DRIVER 1 SMD5(Y), #SGDM-08ADA-R
659FB-03D-022
7 411 088 1702 WASHER V 5X10X1 8 FW5 F
8 411 008 2109 WASHER SPR 5 8 SW5 F
9 411 043 6803 SCR PAN 5X12 8 M5X12 PAN
10 -1 630 051 5763 WIRE PARTS 4 659FB-03D-101
10 -2 411 119 2104 WASHER V 4X9X0.8 4 FW4 F
10 -3 411 008 1706 WASHER SPR 4 4 SW4 F
10 -4 411 043 5004 SCR PAN 4X8 4 M4X8 PAN
10 -6 411 036 8609 SCR PAN+SW+W 5X12 12
11 -1 630 053 2654 UNIT,DRIVER 1 PMD19(TR), #AK-BX551PV-SAT8
659FB-03D-082
11 -2 630 051 6555 UNIT,DRIVER 2 PMD101(CVW1), PMD102(CVW2),
#AK-BX501V-SAT4 659FB-03D-018
11 -3 630 059 8148 UNIT,DRIVER 1 PMD100(PWC), #AK-X220V-SAT8
659FB-03D-152
12 411 119 2104 WASHER V 4X9X0.8 8 FW4 F
13 411 008 1706 WASHER SPR 4 8 SW4 F
14 411 042 3001 SCR PAN 4X10 8 M4X10 PAN
15 630 049 0626 UNIT,POWER 1 PSU6, RWS15A-5A 659FB-03D-081
16 411 119 1909 WASHER V 3X7X0.5 2 FW3 F
17 411 086 4408 WASHER SPR 3 2 SW3 F
18 411 042 0703 SCR PAN 3X8 2 M3X8 PAN
19 -1 630 051 5763 WIRE PARTS 2 659FB-03D-101
19 -2 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
19 -3 411 008 1706 WASHER SPR 4 2 SW4 F
19 -4 411 043 5004 SCR PAN 4X8 2 M4X8 PAN
19 -6 411 036 8609 SCR PAN+SW+W 5X12 8
21 630 057 9017 SUPPORT 2 659FB-03V-004
22 630 001 0220 WASHER 4 BW5
23 411 141 6705 WASHER SPR 5 4 SW5
24 630 000 7756 BOLT,HEX-SCT 4 M5X12
25 630 066 3303 PANEL 2 659FB-03V-003
26 630 096 2536 P.C.B,MOUNT(MEKAHAI) 1 U942*002*0000 659FB-03U-001
26 -1 630 096 2741 P.C.B,MOUNT(MEKAHAI) 1 U942*002*0003 659FB-03U-004
27 411 119 1909 WASHER V 3X7X0.5 8 FW3 F
28 411 086 4408 WASHER SPR 3 8 SW3 F
29 411 162 1604 SCR PAN 3X20 8 M3X20 PAN
30 630 001 0220 WASHER 8 BW5
31 411 141 6705 WASHER SPR 5 8 SW5
32 630 000 7756 BOLT,HEX-SCT 8 M5X12
41 630 051 6692 PLATE 1 659FB-03V-030
42 630 096 2727 P.C.B,MOUNT(MEKAHAI) 1 U942*002*0001 659FB-03U-003
MODEL TCM-3100J-2
0108-001
216
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
11-12
43 411 119 1909 WASHER V 3X7X0.5 4 FW3 F
44 411 086 4408 WASHER SPR 3 4 SW3 F
45 411 113 0700 SCR PAN 3X16 4 M3X16 PAN
46 630 051 6722 COVER 1 659FB-03V-032
47 630 051 6739 COVER 1 659FB-03V-034
48 411 141 4008 WASHER V 4X9X0.8 4 FW4
49 411 141 2905 WASHER SPR 4 4 SW4
50 630 000 7619 BOLT,HEX-SCT 4 M4X8
51 630 050 0875 COVER 1 659FB-03V-031
52 411 051 2804 SCR TRS 4X8 4 M4X8 TRS
53 411 141 4107 WASHER V 5X10X1 3 FW5
54 411 141 6705 WASHER SPR 5 3 SW5
55 630 000 7756 BOLT,HEX-SCT 3 M5X12
56 630 091 1534 TRANSFORMER,POWER 1 T1, #STZ 2.5 659FB-03D-011
57 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
58 411 141 3001 WASHER SPR 6 4 SW6
59 630 000 7879 BOLT,HEX-SCT 4 M6X12
61 -1 630 089 5933 ACCESSORY,WIRING 1 659FB-03D-917
62 -1 630 089 5964 ACCESSORY,WIRING 1 659FB-03D-916
63 -1 630 089 6008 ACCESSORY,WIRING 1 659FB-03D-915
68 411 113 9109 SCR TRS 5X10 24 M5X10 TRS
69 630 094 8783 COVER 1 659L--03B-059
69 -1 630 001 0220 WASHER 2 BW5
69 -2 411 141 6705 WASHER SPR 5 2 SW5
69 -3 630 000 7756 BOLT,HEX-SCT 2 M5X12
73 411 113 9109 SCR TRS 5X10 8 M5X10 TRS
87 630 060 7352 PANEL 1 659FB-03V-005
88 630 056 4952 CORD 1 CN188-CN56 659FB-03D-121
89 630 056 4952 CORD 1 CN189-CN53 659FB-03D-121
91 630 057 9307 CORD 1 CN191-CN192 659FB-03D-123
92 630 066 8513 CONNECTOR 2 659FB-03D-112
93 630 056 9537 CORD 2 659FB-03D-113
95 630 001 0220 WASHER 2 BW5
96 411 141 6705 WASHER SPR 5 2 SW5
97 630 000 7749 BOLT,HEX-SCT 2 M5X10
101 630 094 2880 BRACKET 1 659FB-03V-051
102 630 001 0220 WASHER 4 BW5
103 411 141 6705 WASHER SPR 5 4 SW5
104 630 000 7756 BOLT,HEX-SCT 4 M5X12
121 -1 411 119 2104 WASHER V 4X9X0.8 4 FW4 F
121 -2 411 008 1706 WASHER SPR 4 4 SW4 F
121 -3 411 043 5004 SCR PAN 4X8 4 M4X8 PAN
122 630 049 3801 TERMINAL 10 659FB-03D-155
123 630 049 3733 ACCESSORY,WIRING 2 659FB-03D-156
125 630 049 3801 TERMINAL 12 659FB-03D-155
126 630 049 3733 ACCESSORY,WIRING 2 659FB-03D-156
128 630 049 3672 BRACKET,WIRING 4 659FB-03D-158
