MODEL TCM-3100J-2 0108-001 226 㔚᳇ᓮㇱ ELECTRICAL SECTION Fig.11-16 ೨ᓟᎿ⒟ I 㧛 F 㧝 Previous/Next Work Process Interface-1 3 1 1 0 1 5 6 5 1 52 52 5 3 54 54 55 55 5 7 5 8 34 34 1 3 21 21 20 20 2 2 2 3 1 4 1 5 1 5 1 1 3 0 3 2 …
MODEL TCM-3100J-2
0108-001
225
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
11-15
1 630 059 7066 BRACKET 1 659FG-03V-004
3 630 000 4243 SOCKET 1 659FG-03D-002
4 411 119 1909 WASHER V 3X7X0.5 2 FW3 F
5 411 086 4408 WASHER SPR 3 2 SW3 F
6 411 042 0703 SCR PAN 3X8 1 M3X8 PAN
6 -1 411 086 9809 WASHER IN TW 3 1
6 -2 411 114 7005 SCR PAN+SW+W 3X8 1
6 -3 411 054 6809 NUT HEX 3 2 M3 F
7 630 058 9191 CORD 1 CN120-CN192 659FB-03D-124
8 630 000 2744 SWITCH,BUTTON 1 PB31 659FG-03D-008
9 407 035 4704 LED SLP-721F 1 LED18 659FG-03D-011
10 411 140 8007 SCR TRS 5X6 2 M5X6 TRS
20 630 059 9251 NAME PLATE,PARTS 1 659FG-03D-013
23 411 087 1109 WASHER IN TW 5 1
24 411 036 8609 SCR PAN+SW+W 5X12 1
MODEL TCM-3100J-2
0108-001
226

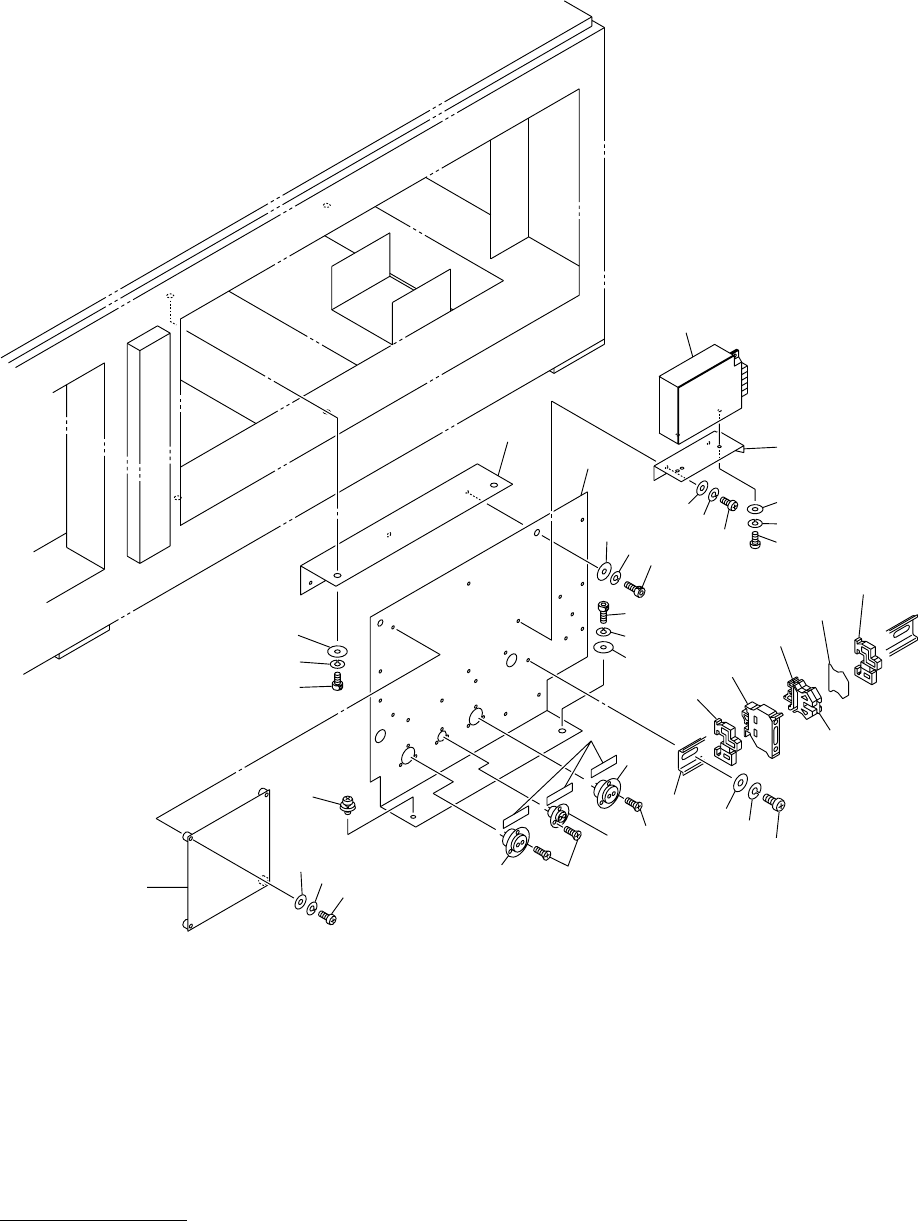

㔚᳇ᓮㇱ ELECTRICAL SECTION
Fig.11-16 ೨ᓟᎿ⒟ I 㧛 F 㧝
Previous/Next Work Process Interface-1
31
10
1
56
51
52
52
53
54
54
55
55
57
58
34
34
13
21
21
20
20
22
23
14
15
15
11
30
32
33
33
42
42
41
41
43
43
44
44
49
46
46
48
49
49
47
45-1
45-1
.
45
2
3
4
33
32
31
MODEL TCM-3100J-2
0108-001
227
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
11-16
1 630 061 5630 SUPPORT 1 659FB-03V-019
2 630 001 0220 WASHER 2 BW5
3 411 141 6705 WASHER SPR 5 2 SW5
4 630 000 7756 BOLT,HEX-SCT 2 M5X12
10 630 094 2934 PANEL 1 659FB-03V-017
11 630 004 6496 CONNECTOR 1 CN111 659FB-03D-130
13 630 004 6496 CONNECTOR 1 CN113 659FB-03D-130
14 630 004 6274 CONNECTOR 1 CN114 659FB-03D-129
15 411 034 7208 SCR FLT 3X8 9 M3X8 FLT
20 630 062 4793 P.C.B,MOUNT(I/F) 1 U943*001*0000 659FB-03U-002
21 411 119 1909 WASHER V 3X7X0.5 4 FW3 F
22 411 086 4408 WASHER SPR 3 4 SW3 F
23 411 162 1604 SCR PAN 3X20 4 M3X20 PAN
31 630 001 0220 WASHER 3 BW5
32 411 141 6705 WASHER SPR 5 3 SW5
33 630 000 7756 BOLT,HEX-SCT 3 M5X12
34 411 036 8609 SCR PAN+SW+W 5X12 1
42 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
43 411 008 1706 WASHER SPR 4 2 SW4 F
44 411 043 5004 SCR PAN 4X8 2 M4X8 PAN
45 630 070 4808 FUSE HOLDER 1 659FB-03D-157
45 -1 423 022 8005 FUSE 250V 1A 1 F136 659FB-03D-162
46 630 049 3801 TERMINAL 2 659FB-03D-155
47 630 049 3702 ACCESSORY,WIRING 1 659FB-03D-175
48 630 049 3733 ACCESSORY,WIRING 1 659FB-03D-156
49 630 049 3672 BRACKET,WIRING 2 659FB-03D-158
51 630 097 8476 BRACKET 1 659FB-03V-056
52 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
53 411 008 1706 WASHER SPR 4 2 SW4 F
54 411 003 0001 SCR PAN 4X12 2 M4X12 PAN
55 630 055 2201 UNIT,POWER 1 PSU11, P30E-24-N 659FB-03D-109
56 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
57 411 008 1706 WASHER SPR 4 2 SW4 F
58 411 043 5004 SCR PAN 4X8 2 M4X8 PAN
