MODEL TCM-3100J-2 0108-001 75 Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 3-20 1 630 038 8176 BR AC KE T 1 659B--03B-022 2 4 1 1 1 4 1 4 3 05 WASHER V 6X12.5X1.6 2 FW6 3 411 1 41 30 01 WASHER SPR 6 2 SW6 4 630 000 7…
MODEL TCM-3100J-2
0108-001
74

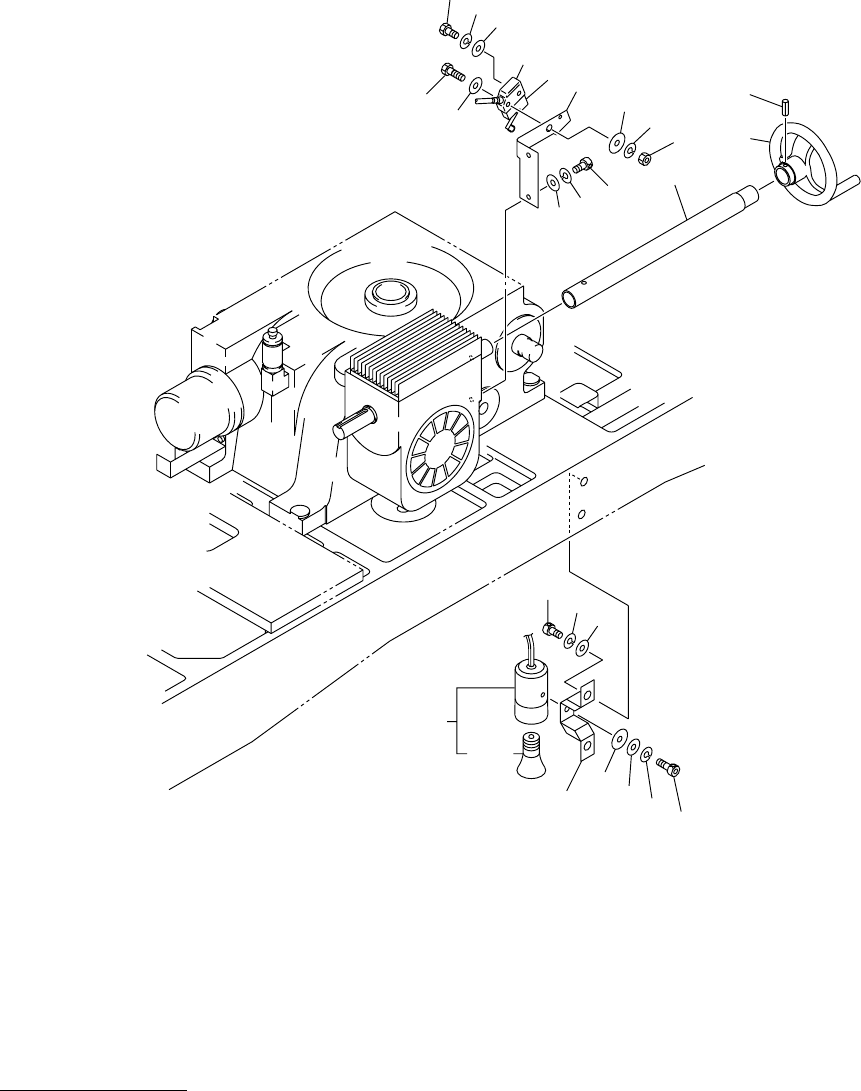

ࡋ࠶࠼㚟േㇱ HEAD DRIVING SECTION
Fig. 3-20
ᚻ࿁ߒࡂࡦ࠼࡞ޔࠬࡐ࠶࠻ࠗ࠻
Hand Wheel, Spotlight
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
14
15
16
17
21
22
23
23
24
25
25
26
26
27
28
29
29
22-1
MODEL TCM-3100J-2
0108-001
75
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
3-20
1 630 038 8176 BRACKET 1 659B--03B-022
2 411 141 4305 WASHER V 6X12.5X1.6 2 FW6
3 411 141 3001 WASHER SPR 6 2 SW6
4 630 000 7886 BOLT,HEX-SCT 2 M6X16
5 630 000 3345 SWITCH,MICRO 1 LS1 659B--03H-028
6 630 000 0375 ACCESSORY,SW 1 659B--03H-029
7 411 119 2104 WASHER V 4X9X0.8 1 FW4 F
8 411 008 1706 WASHER SPR 4 1 SW4 F
9 630 000 8609 BOLT,HEX 1 M4X30 HEX
10 411 119 2104 WASHER V 4X9X0.8 1 FW4 F
11 630 000 8616 BOLT,HEX 1 M4X35 HEX
12 630 001 0213 WASHER 1 BW4
13 411 008 1706 WASHER SPR 4 1 SW4 F
14 411 054 8506 NUT HEX 4 1 M4 F
15 630 048 6612 SHAFT 1 659B--03B-023
16 630 048 6629 HANDLE 1 659B--03B-024
17 630 001 0381 SPRING PIN 1
21 630 003 6527 MECH PARTS(RUBBER DAMPER) 1 659L--03H-063
22 630 000 5271 LIGHTING UNIT 1 659L--03H-062
22 -1 630 005 4286 LAMP 1 WL2
23 411 141 4107 WASHER V 5X10X1 1 FW5
24 411 141 4008 WASHER V 4X9X0.8 1 FW4
25 411 141 2905 WASHER SPR 4 1 SW4
26 630 000 7633 BOLT,HEX-SCT 1 M4X12
27 411 141 4107 WASHER V 5X10X1 2 FW5
28 411 141 6705 WASHER SPR 5 2 SW5
29 630 000 7756 BOLT,HEX-SCT 2 M5X12
MODEL TCM-3100J-2
0108-001
76
11
12
13
14
16
16
21
22
23
17
18
19
20
21
22
23
24
24
25
26
27
30
29
28
31
31
32
34
34
35
35
51
51
55
55
56
See Fig.3-13
See Fig.3-13
Key No.29
See Fig.1-1
Key No.11
18
19
20
12
13
14
36
37
38
5
4
3
5
4
3
57
57
2
33
33
1
52
52
53
53
54
Fig.4-1
TCM-3100J-2
TCM-3000Z-2

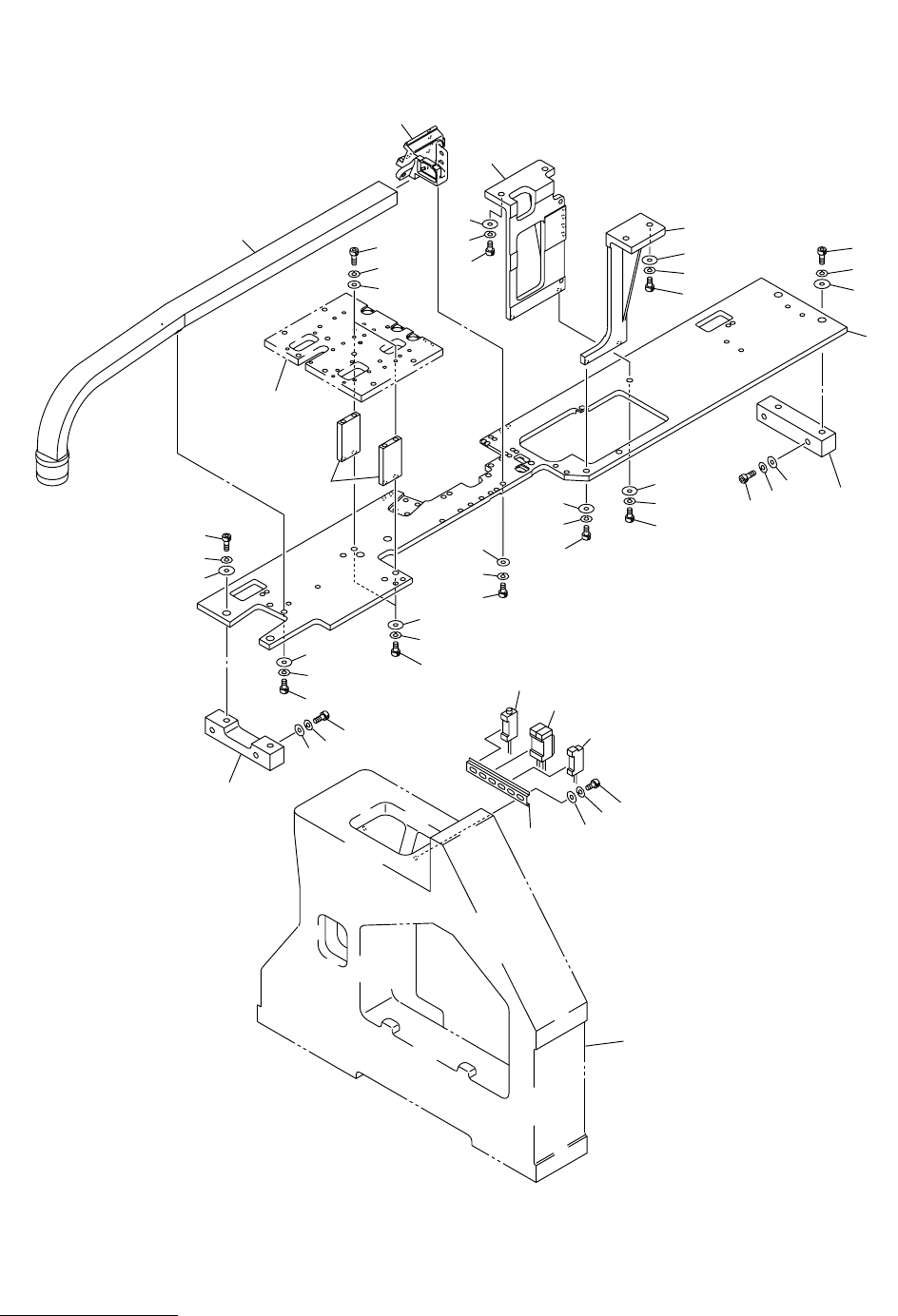

ਛ㑆ࡌࠬㇱ MIDDLE BASE SECTION
Fig. 4-1 ਛ㑆ࡌࠬ Middle Base
