Specifications
Smart-UPS SMTL 2200/3000 RMI2UC/RMI2UCNC
EN TME20822 – 08/2023
Electrical
Output
Input
Applicable power grid power distribution system TN Power System
Overvoltage category II
Applicable Standard IEC62040-1
CAUTION
RISK OF FIRE, ELECTRIC SHOCK
Connect the UPS models only to a circuit provided with recommended maximum branch
circuit overcurrent protection in accordance with IEC/EN 60934.
Failure to follow these instructions can result in fire, and minor or moderate
injury.
Models Rating
Branch Circuit Overcurrent /
Building Circuit Breaker (CB)
Current Rating
SMTL2200RMI2UC/
SMTL2200RMI2UCNC
2200 VA / 1980 W 16 A
SMTL3000RMI2UC/
SMTL3000RMI2UCNC
3000 VA / 2700 W
Model SMTL2200RMI2UC
SMTL2200RMI2UCNC
SMTL3000RMI2UC
SMTL3000RMI2UCNC
Frequency 50/60 Hz ± 3 Hz
Connector type 8x IEC 320 C13 and 1x IEC 320 C19
Nominal Voltage 220 VAC 230 VAC 240 VAC 220 VAC 230 VAC 240 VAC
Current 10 A 9.57 A 9.17 A 13.64 A 13.04 A 12.50 A
Power 2200 VA / 1980 W 3000 VA / 2700 W
Model SMTL2200RMI2UC
SMTL2200RMI2UCNC
SMTL3000RMI2UC
SMTL3000RMI2UCNC
Frequency 50/60 Hz ±3 Hz (auto sensing)
Connector type IEC 320 C20
Nominal Voltage 220 - 240 VAC
Current 13 A 16 A
10
Smart-UPS SMTL 2200/3000 RMI2UC/RMI2UCNC
Product Front View
EN TME20822 – 08/2023
Product Front View
Front panel display features
Bezel
Battery
Internal battery connector - Black color
Internal battery connector - Red color
Front Panel Display
UPS ON/OFF button
Replace Battery LED
Multi-lingual display screen
UP/DOWN button
ENTER button
ESCAPE button
On-Line LED
On-Battery LED
Internal Error Detected LED
s
u
1
a
3
5
7
su 3 a158
APC By Schneider
Electric
11
Product Front View
Smart-UPS SMTL 2200/3000 RMI2UC/RMI2UCNC
EN TME20822 – 08/2023

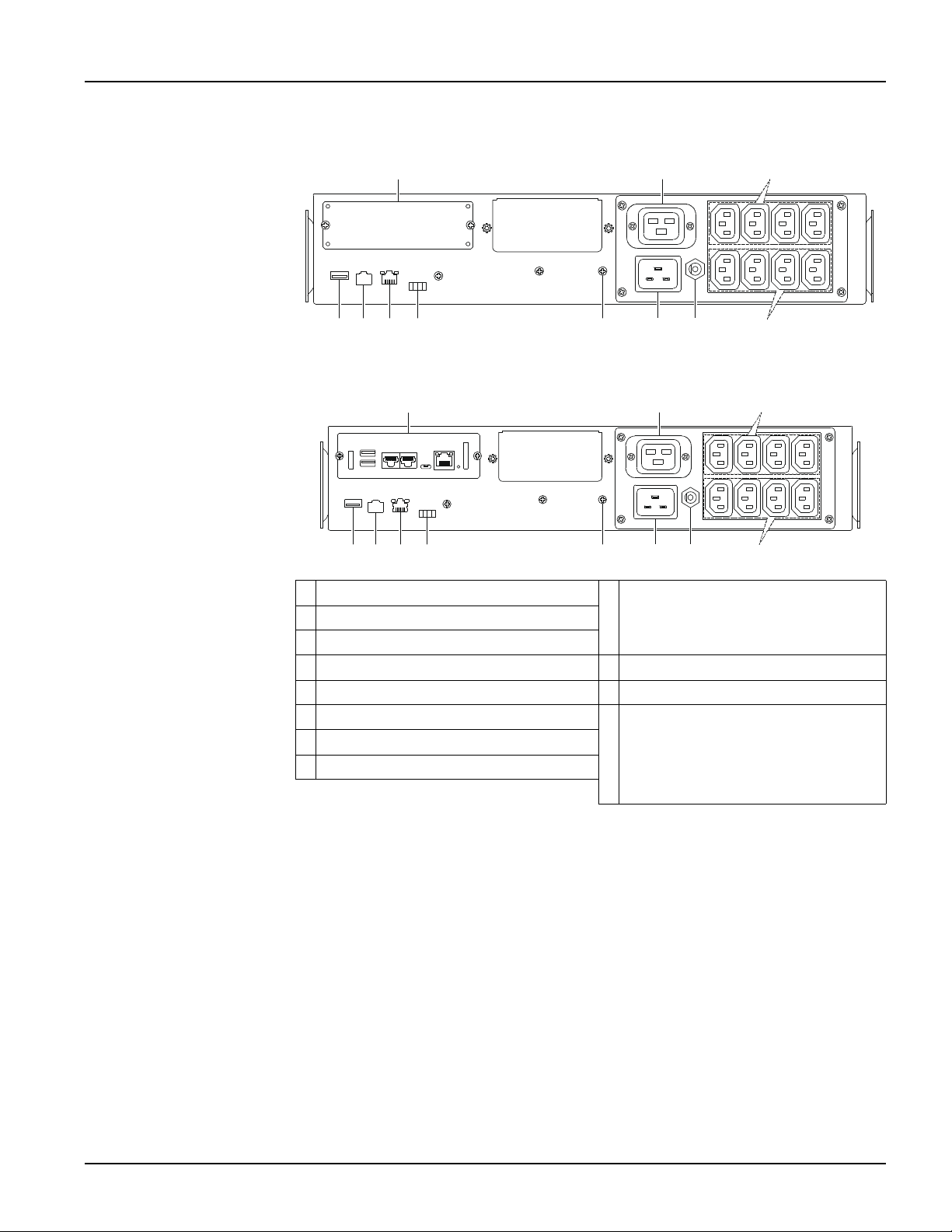

Rear panel features
SMTL2200RMI2UC/SMTL3000RMI2UC
SMTL2200RMI2UCNC/SMTL3000RMI2UCNC
SmartSlot for APC management card
SmartConnect Ethernet port
Refer to “SmartConnect” on page 14
for details.
Outlet
Controlled outlet group (Group1)
Outlets
Serial port
Input circuit breaker
USB port
UPS input
AP9641 Network Management
Card (NMC).
NOTE: Refer the user manual of the
NMC card for details of the ports.
Chassis ground connection screw
EPO connector
su1 a354
su1 a355
