Smart-UPS SMTL 2200/3000 RMI2UC/RMI2UCNC
Specifications
EN TME20822 – 08/2023
Specifications
For additional specifications, refer to the APC Web site at www.apc.com.
Environmental specifications
Physical
The UPS is heavy. Follow all lifting guidelines.
Battery
Temperature Operating 0 to 40 °C (32 to 104 °F)
Storage -15 to 45 °C (5 to 113 °F)
Maximum Elevation Operating 10,000 ft (3,048 m)
Storage 25,000 ft (7,620 m)
Shelf Life Storage Limited by battery state of charge.
Batteries must be recharged when storage time
exceeds 12 months.
Humidity 0% to 95% relative humidity, non-condensing
International Protection Code IP20
SMTL2200RMI2UC
SMTL3000RMI2UC
SMTL2200RMI2UCNC
SMTL3000RMI2UCNC
Unit weight batteries included,
without packaging
33.19 kg (73.17 lb) 33.28 kg (73.37 lb)
Unit weight batteries included, with
packaging
59.65 kg (131.51 lb) 60.85 kg (134.15 lb)
Unit dimensions without packaging
Height x Width x Depth
3.39 x 17.01 x 26.89 in
(86.1 x 432 x 683 mm)
Unit dimensions with packaging
Height x Width x Depth
23.39 x 25.59 x 39.37 in
(594 x 650 x 1000 mm)
The model and serial numbers are on a small label located on the rear panel.
Battery type Li-ion
Replacement battery module
This UPS has swappable battery modules.
Refer to the appropriate replacement battery user manual
for installation instructions.
Contact your dealer or go the APC by Schneider Electric
web site, www.apc.com for information on replacement
batteries.
APCRBC174-LI
Number of battery modules 1 battery module
Voltage for each battery module 48 VDC
Ah rating 9 Ah per battery module
9
Specifications
Smart-UPS SMTL 2200/3000 RMI2UC/RMI2UCNC
EN TME20822 – 08/2023
Electrical
Output
Input
Applicable power grid power distribution system TN Power System
Overvoltage category II
Applicable Standard IEC62040-1
CAUTION
RISK OF FIRE, ELECTRIC SHOCK
Connect the UPS models only to a circuit provided with recommended maximum branch
circuit overcurrent protection in accordance with IEC/EN 60934.
Failure to follow these instructions can result in fire, and minor or moderate
injury.
Models Rating
Branch Circuit Overcurrent /
Building Circuit Breaker (CB)
Current Rating
SMTL2200RMI2UC/
SMTL2200RMI2UCNC
2200 VA / 1980 W 16 A
SMTL3000RMI2UC/
SMTL3000RMI2UCNC
3000 VA / 2700 W
Model SMTL2200RMI2UC
SMTL2200RMI2UCNC
SMTL3000RMI2UC
SMTL3000RMI2UCNC
Frequency 50/60 Hz ± 3 Hz
Connector type 8x IEC 320 C13 and 1x IEC 320 C19
Nominal Voltage 220 VAC 230 VAC 240 VAC 220 VAC 230 VAC 240 VAC
Current 10 A 9.57 A 9.17 A 13.64 A 13.04 A 12.50 A
Power 2200 VA / 1980 W 3000 VA / 2700 W
Model SMTL2200RMI2UC
SMTL2200RMI2UCNC
SMTL3000RMI2UC
SMTL3000RMI2UCNC
Frequency 50/60 Hz ±3 Hz (auto sensing)
Connector type IEC 320 C20
Nominal Voltage 220 - 240 VAC
Current 13 A 16 A
10
Smart-UPS SMTL 2200/3000 RMI2UC/RMI2UCNC
Product Front View
EN TME20822 – 08/2023

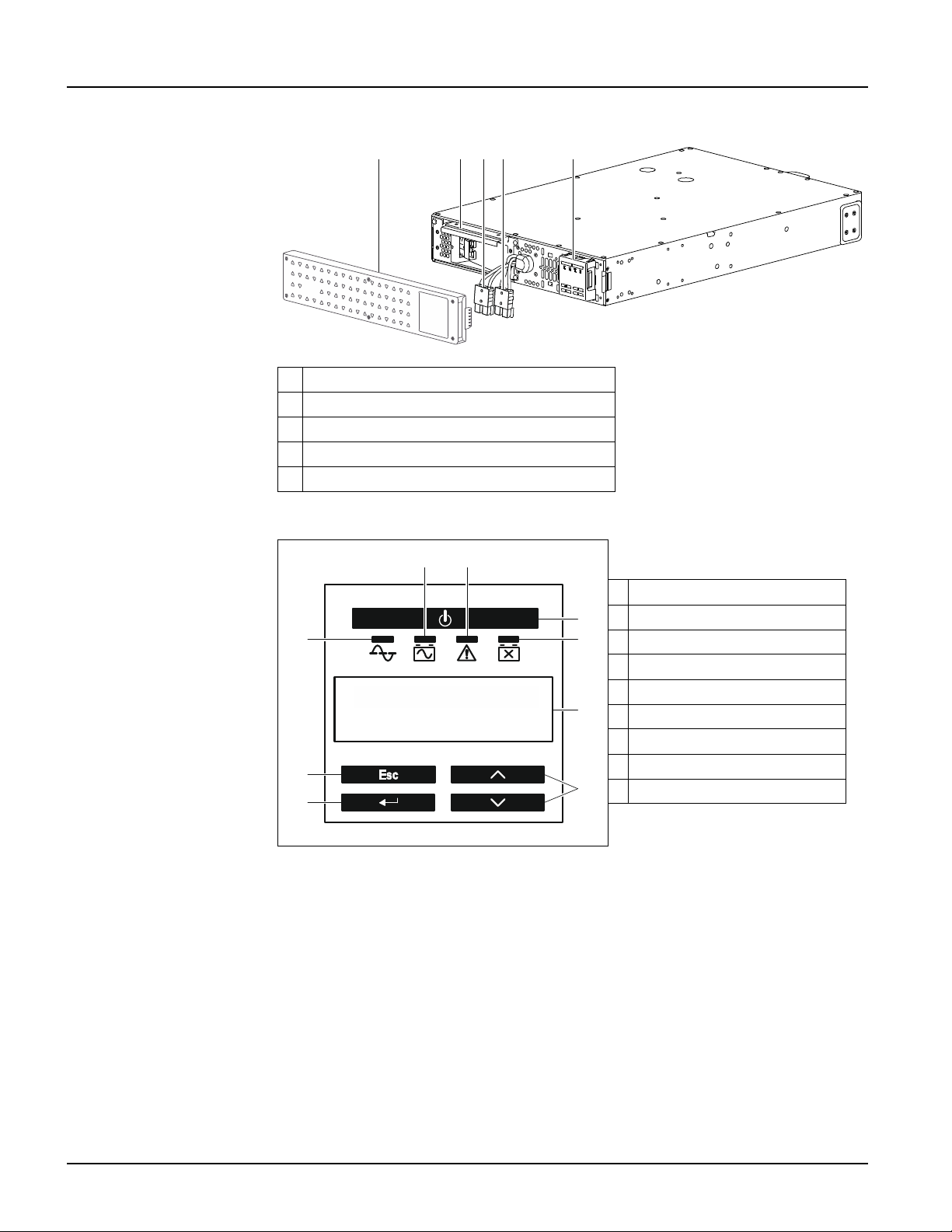

Product Front View
Front panel display features
Bezel
Battery
Internal battery connector - Black color
Internal battery connector - Red color
Front Panel Display
UPS ON/OFF button
Replace Battery LED
Multi-lingual display screen
UP/DOWN button
ENTER button
ESCAPE button
On-Line LED
On-Battery LED
Internal Error Detected LED
s
u
1
a
3
5
7
su 3 a158
