INFINITY
EX
HIGH THROUGHPUT CONVEYOR MODULE
ADJUSTMENTS AND SETTINGS
16.34 Technical Reference Manual Chapter Issue 1 Aug 02
rail support.
b. Carefully adjust the height of the auxiliary conveyor rails to achieve
conveyor levelness.
c. Re-tighten the rail bracket and shaft guide plate securing bolts and repeat
the check.
Left Hand Conveyor To check and if required adjust the left hand auxiliary conveyor levelling, carry
out the following procedure:
1. Adjust the left hand auxiliary conveyor rail width to approximately 250mm.
2. Place a Board Clamp Setting Plate Pt No 140403 onto the auxiliary conveyor
transport belts.
3. Place a spirit level on top of the setting plate and check the levelness of the
conveyor in the X and Y planes.
4. If adjustment in the X plane is required, carry out the following (see graphic
overleaf):
a. Loosen the three hexagonal headed bolts, two on the inner face and one on
the outer face of the front upright of the conveyor frame.
b. Using the two hexagonal headed bolts on the inner face of the rear upright

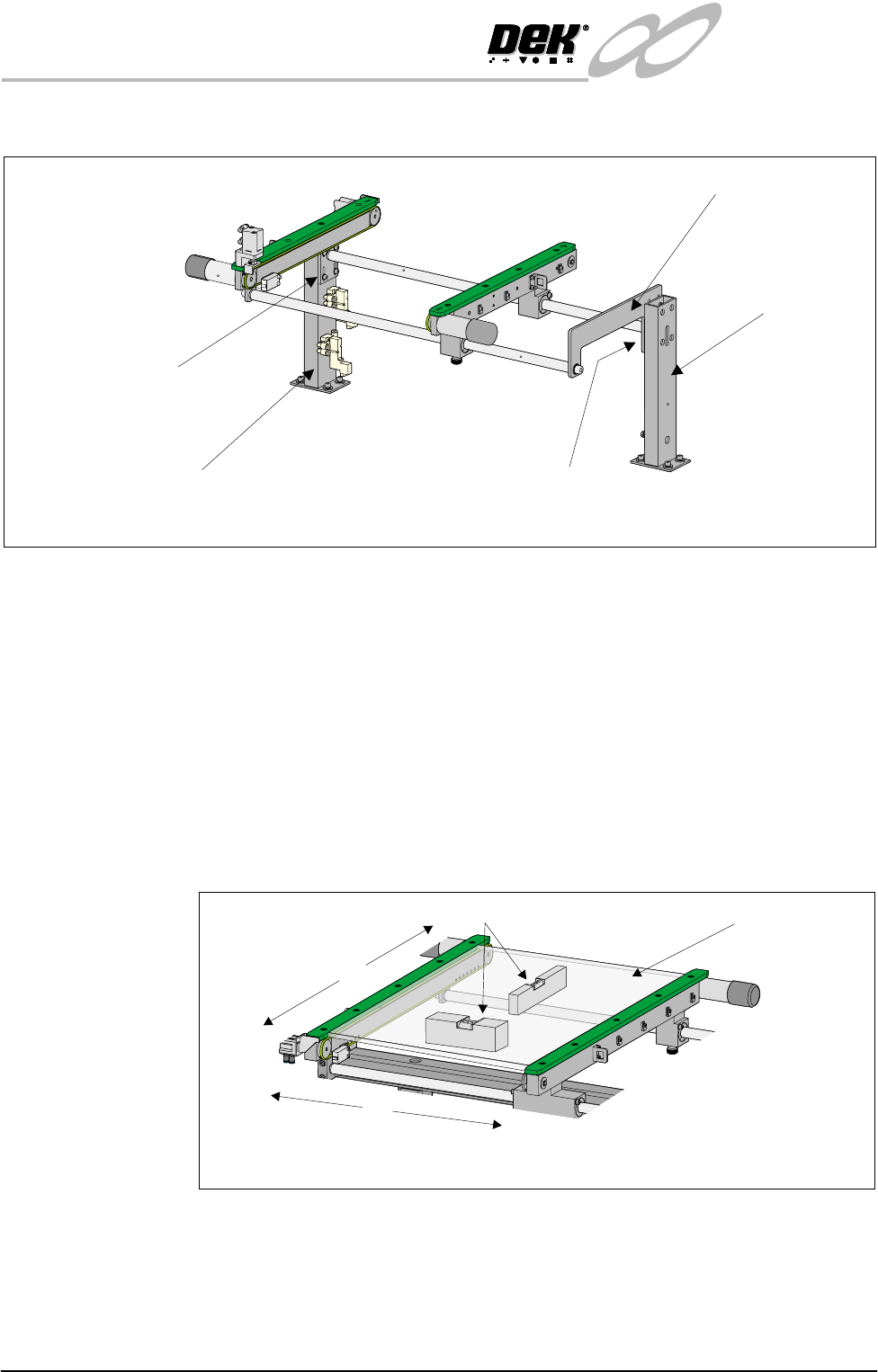

Rear View of Right Auxiliary Conveyor
Front Auxiliary Conveyor
Rail Support
Rear Auxiliary Conveyor
Rail Support
Shaft Guide Plate
Shaft Guide Plate to Rear
Rail Support Bolts (4 off)
Rail Bracket to Front
Rail Support Bolts
(in 4 positions)
X
Y
Board Clamp
Setting Plate
View on Auxiliary Conveyor
Spirit Level
INFINITY
EX
HIGH THROUGHPUT CONVEYOR MODULE
ADJUSTMENTS AND SETTINGS
Chapter Issue 1 Aug 02 Technical Reference Manual 16.35
of the conveyor frame, carefully loosen or tighten the bolts to level the
conveyor.
NOTE
Tightening bolt A and loosening bolt B raises the inboard end of the
conveyor rails. Loosening bolt A and tightening bolt B lowers the inboard
end of the conveyor rails.
c. Carefully lock bolts A and B in position using the locknuts provided.
d. Tighten the three bolts on the front upright of the conveyor frame and
repeat the check.
5. If adjustment in the Y plane is required, carry out the following (see graphic
below):
a. Loosen the bolt C on the outer face of the appropriate conveyor upright.
b. Adjust the height of the upright by loosening or tightening the height
adjustment grub screw fitted to the top of the upright.

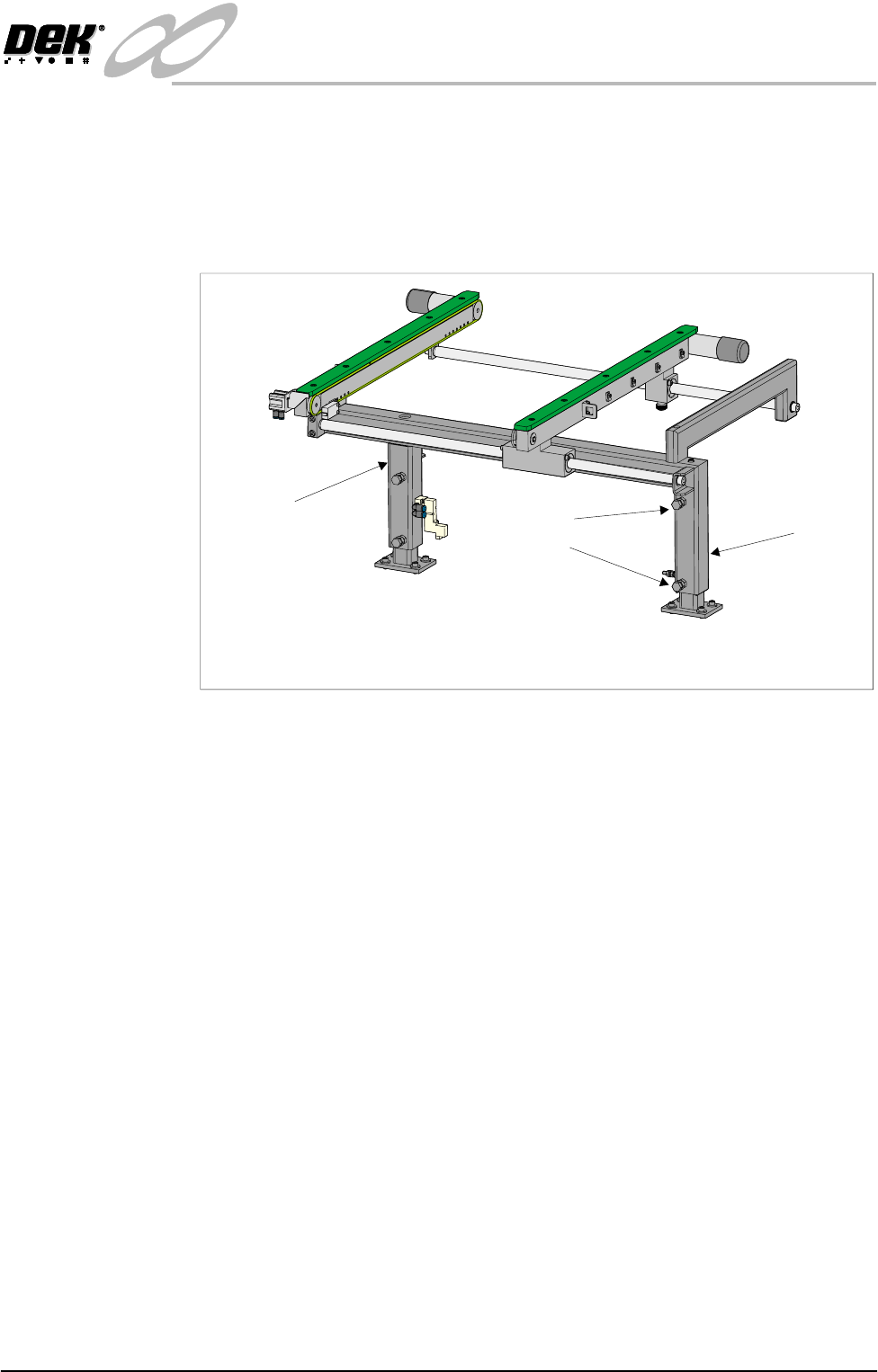

Rear View of Left Hand Auxiliary Conveyor
(Configured as Upline Conveyor)
Bolt A
Bolt B
Rear Upright of
Conveyor Frame
Front Upright of
Conveyor Frame
INFINITY
EX
HIGH THROUGHPUT CONVEYOR MODULE
ADJUSTMENTS AND SETTINGS
16.36 Technical Reference Manual Chapter Issue 1 Aug 02
c. Tighten bolt C loosened in Step 5a and repeat the check.
Auxiliary Conveyor Rail Parallelism
WARNING
BOARD CLAMPS. EXTREME CARE MUST BE EXERCISED WHEN
WORKING IN THE TOOLING AREA OF THE MACHINE TO AVOID
INJURY. THE FOILS ON THE FRONT AND REAR BOARD CLAMPS
ARE VERY SHARP.
Front Rail To check and if required adjust the auxiliary conveyors front rail parallelism,
carry out the following procedure:
NOTE
The parallelism of the auxiliary conveyors rails is dependent on the front and
rear print station rails being parallel. Therefore, before any adjustment is
carried out an assessment of the parallelism of the print station rails must be
carried out.
1. In Rail System Diagnostics, select Adjust and alter board width to 250mm.
2. Select Drive Rail to Board Width. The rails are driven to the board width
selected.
3. Adjust the both auxiliary conveyor rail widths to approximately 250mm.
4. Place one of the Board Clamp Setting Plates Pt No 140403 onto the print
station transport belts.
5. Manually slide the setting plate back and forth from the print station to the
right hand auxiliary conveyor, ensuring the plate moves freely without
binding or jamming.
6. If adjustment is required on the right hand auxiliary conveyor, loosen the
eight auxiliary conveyor rails support securing bolts (four on each support)

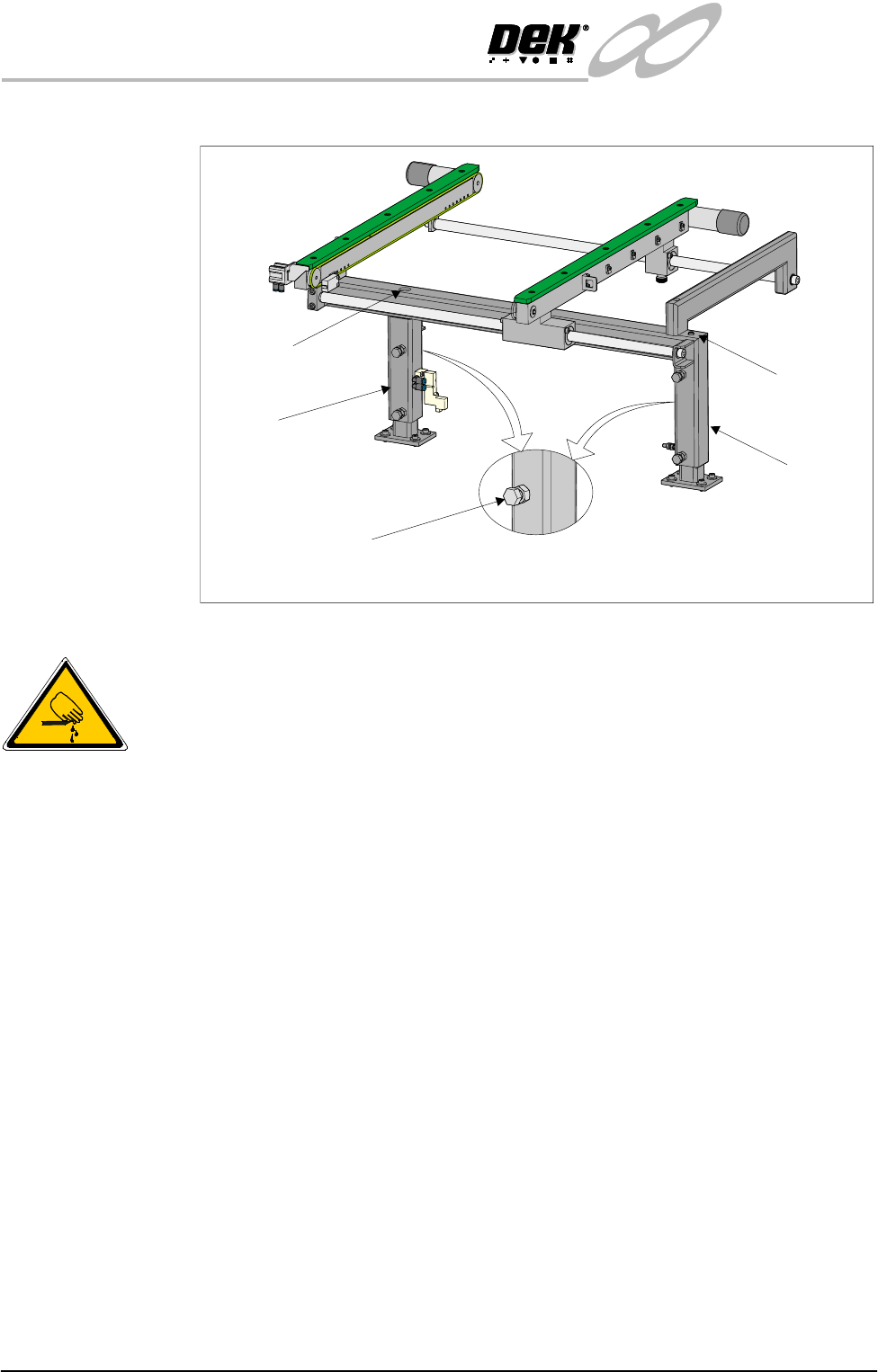

Rear View of Left Hand Auxiliary Conveyor
Bolt C on Outer Face
Of Conveyor Frame Uprights
Rear Upright of
Conveyor Frame
Front Upright of
Conveyor Frame
Height Adjustment
Grub Screw
Height Adjustment
Grub Screw
