ADJUSTMENTS AND SETTINGS
16.40 Technical Reference Manual Chapter Issue 1 Aug 02
station. Ensure the plates abut and are fully supported by the transport belts.
6. Using a spirit level, place across both setting plates and check the plates are
level.
7. If adjustment is required, loosen the four bolts that secure the auxiliary
conveyor guide plate to rear rail support and the four bolts that secure the rail
bracket to front rail support.
8. Carefully adjust the height of the conveyor rails until they match the print
station rails.
9. Re-tighten the securing bolts loosened in Step 7 and repeat the check.
10.If adjustment has occurred, carry out Auxiliary Conveyor Levelling check.
Left Hand Conveyor To check and if required adjust the height of the left hand auxiliary conveyor to
the print station rails carry out the following at transport height:
1. In Rail System Diagnostics, select Adjust and alter board width to 250mm.
2. Select Drive Rail to Board Width. The rails are driven to the board width
selected.
3. Adjust the left hand auxiliary conveyor rail width to approximately 250mm.
4. Using a Board Clamp Setting Plate Pt No 140403, place the plate on the left
hand auxiliary conveyor transport belts.
5. Place a second board clamp setting plate onto the transport belts of the print
station. Ensure the plates abut and are fully supported by the transport belts.
6. Using a spirit level, place across both setting plates and check the plates are
level.
7. If adjustment is required, loosen bolt C on the outer face of both conveyor
frame uprights.
8. Adjust the height of the conveyor rails until they match the print station rails
by loosening or tightening height adjustment grub screw, fitted to the top of

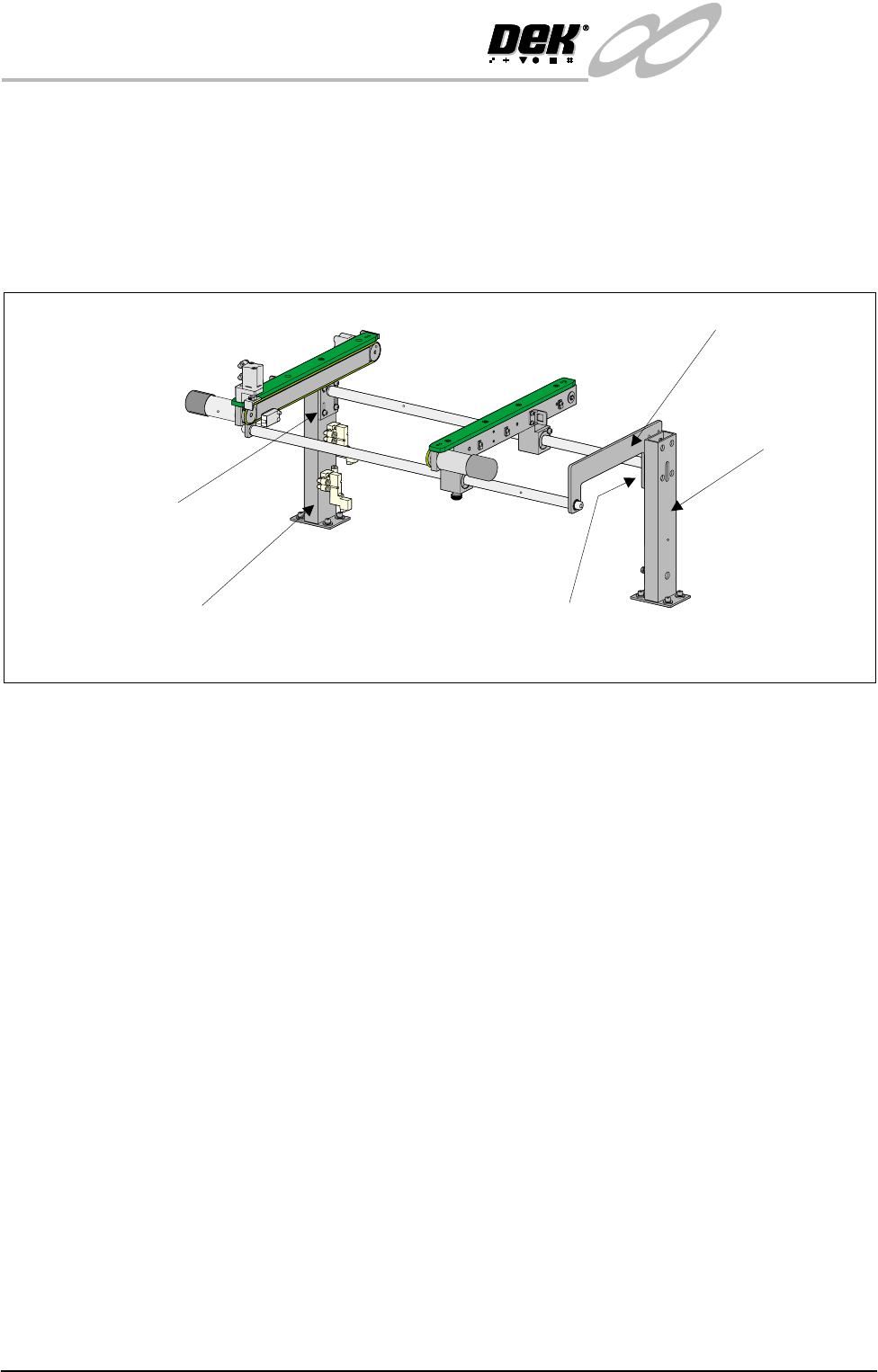

Rear View of Right Auxiliary Conveyor
Front Auxiliary Conveyor
Rail Support
Rear Auxiliary Conveyor
Rail Support
Shaft Guide Plate
Shaft Guide Plate to Rear
Rail Support Bolts (4 off)
Rail Bracket to Front
Rail Support Bolts
(in 4 positions)
INFINITY
EX
HIGH THROUGHPUT CONVEYOR MODULE
ADJUSTMENTS AND SETTINGS
Chapter Issue 1 Aug 02 Technical Reference Manual 16.41
both uprights.
9. Re-tighten the bolts loosened in Step 7 and repeat the check.
10.If adjustment has occurred, carry out Auxiliary Conveyor Levelling check.

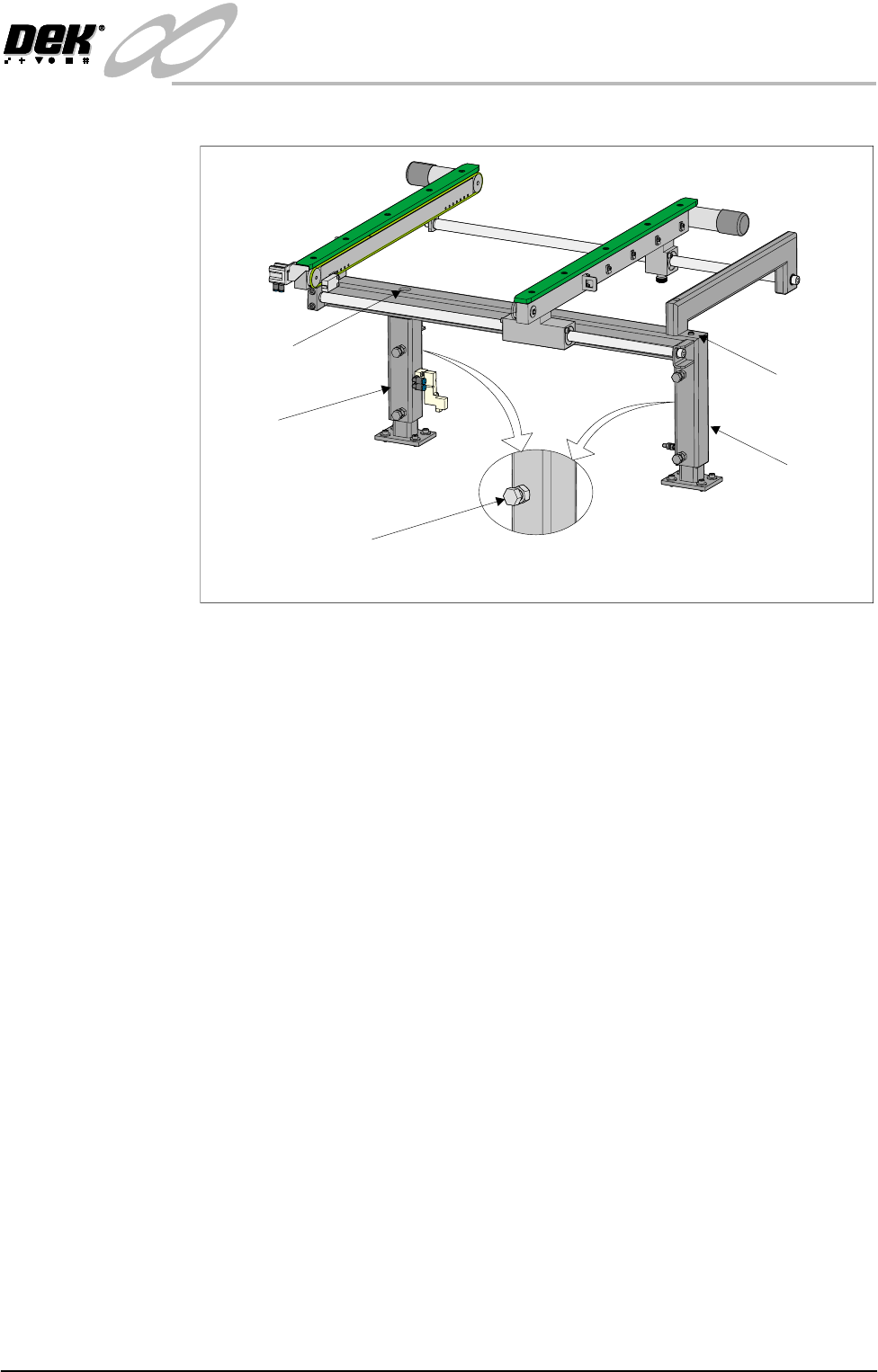

Rear View of Left Hand Auxiliary Conveyor
Bolt C on Outer Face
Of Conveyor Frame Uprights
Rear Upright of
Conveyor Frame
Front Upright of
Conveyor Frame
Height Adjustment
Grub Screw
Height Adjustment
Grub Screw
INFINITY
EX
HIGH THROUGHPUT CONVEYOR MODULE
ADJUSTMENTS AND SETTINGS
16.42 Technical Reference Manual Chapter Issue 1 Aug 02
Quick Fit Board Clamp Setting
WARNING
BOARD CLAMPS. EXTREME CARE MUST BE EXERCISED WHEN
WORKING IN THE TOOLING AREA OF THE MACHINE TO AVOID
INJURY. THE FOILS ON THE FRONT AND REAR BOARD CLAMPS
ARE VERY SHARP.
1. Check that a gap between the front board clamp and the transport belt is set
between 0.1mm - 0.15mm. Ensure that the front board clamp is parallel to
the front transport belt.
2. If adjustment is necessary, slacken screw A (2 positions) and adjust. Tighten
screw A (2 positions) on completion.
3. Repeat Steps 1 and 2 for the rear board clamp.
4. Gently move the rear rail in by hand enabling the setting plate (140403) to
be moved along the transport rails until it sits along the entire length of the
board clamp. Gently move the rear rail in by hand until the front and rear
clamps grip the setting plate.
5. Using a 0.05mm feeler gauge check along the whole length of both clamps
for gaps. If the feeler enters any gaps, slacken screws A on the rear board
clamp and adjust. Tighten screws A on completion.
6. If any adjustment is carried out, ensure that gaps set in Steps 1 and 2 are
maintained.
7. Check for correct operation of the board clamps after any adjustment is
made.
WARNING SHARP EDGE
WARNING SHARP EDGE
PATENT No.5157438
PATENT No.5157438

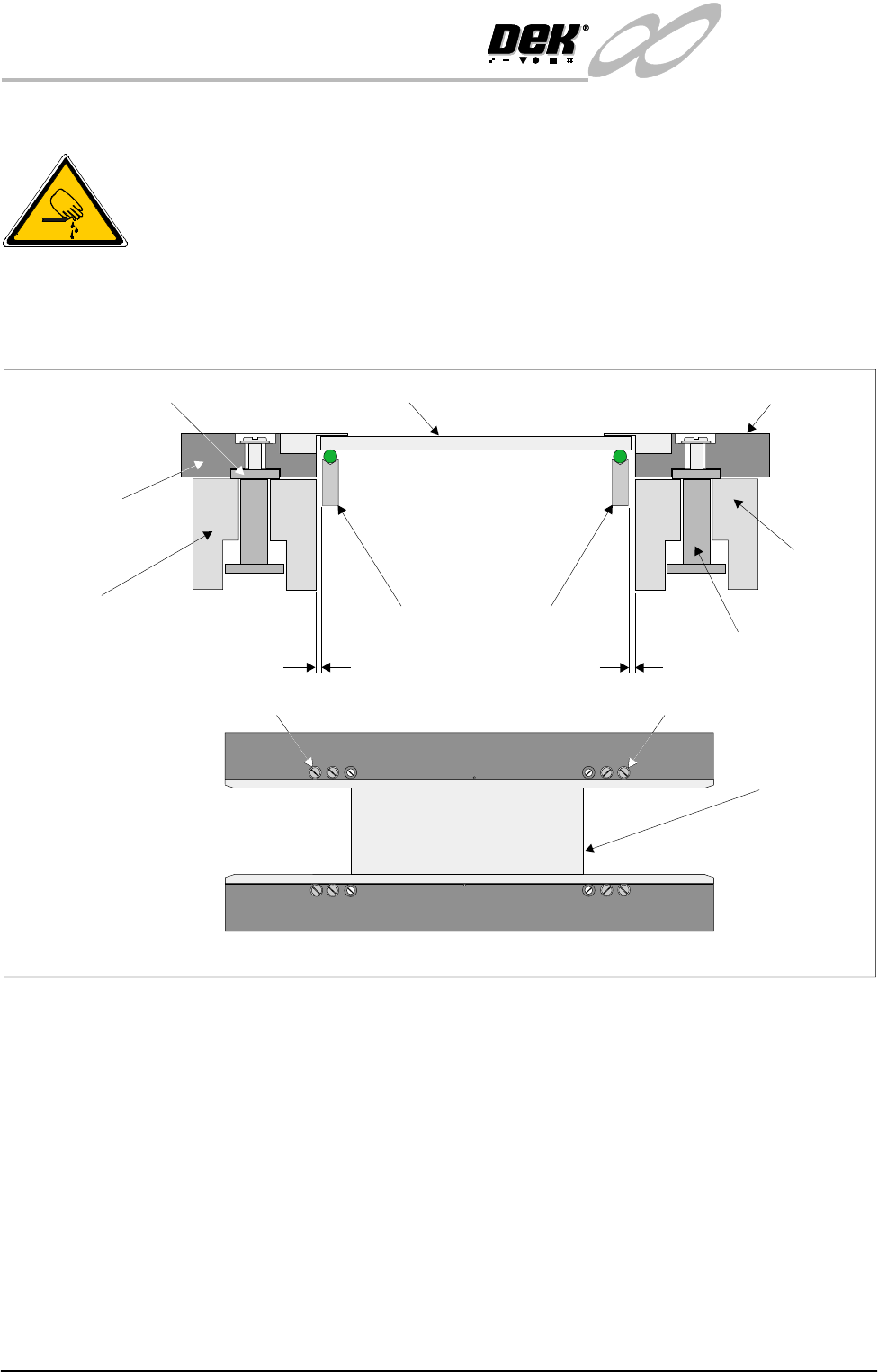

Board Clamp
Setting Plate
A
A
Board Clamp Mechanism
Front Fixed Rail
Transport Belt Guides
0.1mm - 0.15mm
0.1mm - 0.15mm
Board Clamp Mounting Plate
Board Clamp Setting Plate
Front Board Clamp
Rear Board Clamp
Moving Rail
Board Clamp Guide
