ADJUSTMENTS AND SETTINGS
Chapter Issue 1 Aug 02 Technical Reference Manual 16.53
13.Withdraw the allen screws and remove the board stop bracket from the rail.
14.To orientate the downline conveyor board stop for fitment to the right hand
auxiliary conveyor, remove the small pan head screw securing the board stop
bracket to the actuator rod.
15.Loosen the grubscrew on the board stop bracket and rotate the bracket 180°;
re-tighten the grubscrew.
NOTE
Ensure the grubscrew is located onto the flat side of the actuator rod.
16.Secure the board stop bracket to the actuator rod by refitting the pan head
screw.
17.Fit the downline board stop to the right hand auxiliary conveyor front rail
utilizing the existing securing points and the 3mm allen screws.
NOTE
Ensure the board stop bracket is orientated in the correct direction, ie angled
face of bracket towards the machine.
18.Disconnect the two pneumatic pipes supplying the conveyor board stop fitted
to the inboard end of the right hand auxiliary conveyor from solenoid (SOL
03).
19.Re-route the two pneumatic pipes to the downline conveyor board stop fitted

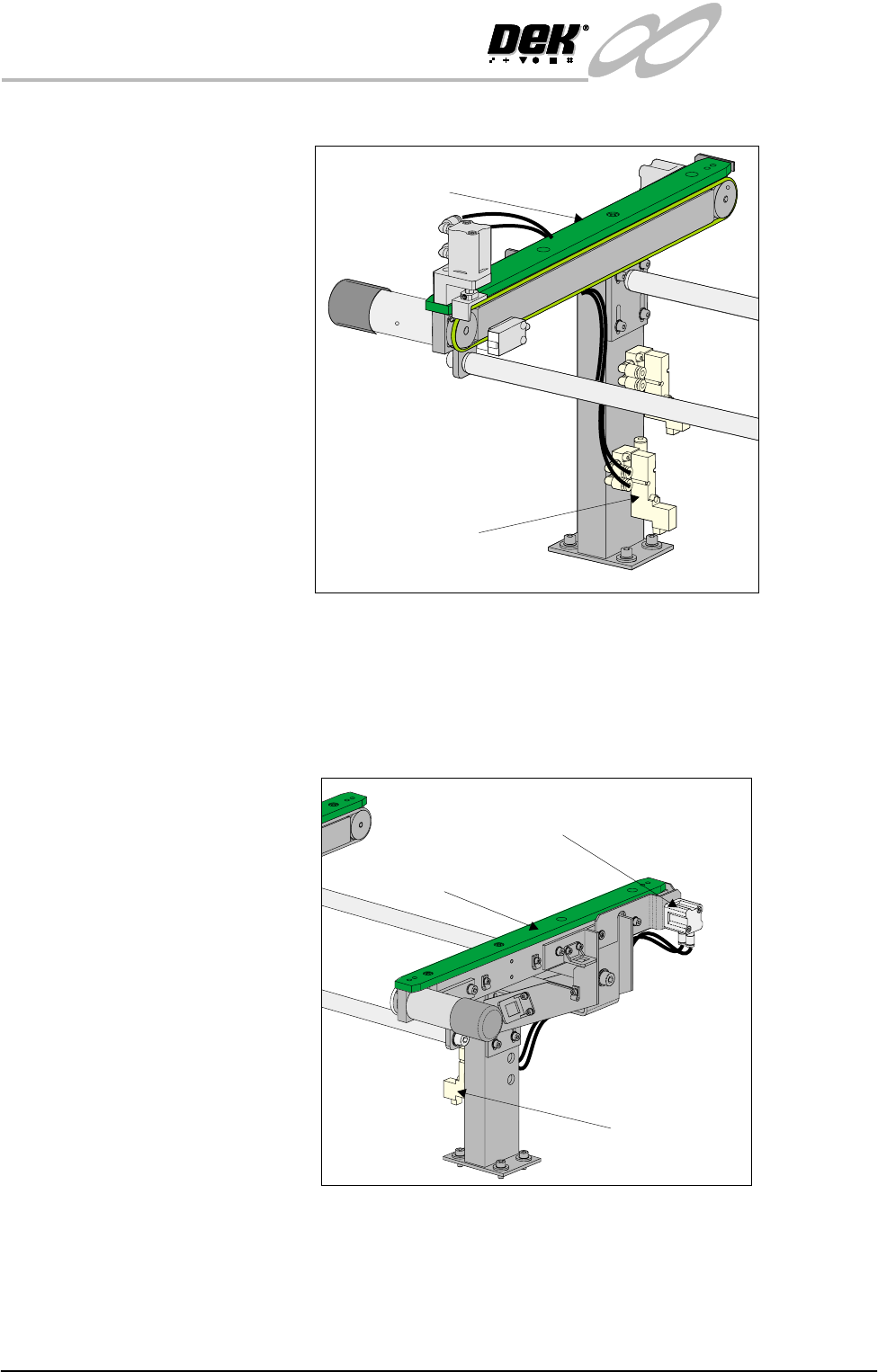

Pneumatic Elbow Joints
(2 Positions)
3mm Allen Screw
(2 Positions)
Securing Bracket
Board Stop Actuator
(Double Acting Cylinder)
Actuator Rod
Pan Head Securing
Screw (Underside of
Bracket)
Board Stop Bracket
Grubscrew
INFINITY
EX
HIGH THROUGHPUT CONVEYOR MODULE
ADJUSTMENTS AND SETTINGS
16.54 Technical Reference Manual Chapter Issue 1 Aug 02
to the outboard end of the right hand auxiliary conveyor.
20.Disconnect and remove from the machine, the two pneumatic pipes from
solenoid (SOL 01) supplying print station conveyor board stop fitted to the
inboard end of the left hand conveyor.
21.Route the pneumatic pipes from solenoid (SOL 02) to the board stop, this
now configures the board stop from the print station board stop to the upline
board stop.
22.Fit two new 4mm pneumatic pipes to the solenoid (SOL 01) output ports A
& B and route the pipes to the to the upline conveyor board stop fitted to the
inboard end of the right hand auxiliary conveyor. The board stop now is
Right Hand
Auxiliary Conveyor
Pneumatic Solenoid
(SOL 03)
Left Hand
Auxiliary Conveyor
Pneumatic
Solenoid
(SOL 02)
Print Station Board Stop
Now Configured as Upline Board Stop
INFINITY
EX
HIGH THROUGHPUT CONVEYOR MODULE
ADJUSTMENTS AND SETTINGS
Chapter Issue 1 Aug 02 Technical Reference Manual 16.55
configured as the print station board stop.
23.Gain access to the M27 HTC Controller enclosure.
24.Remove the four M27 enclosure securing screws.
25. Pull the M27 enclosure from its chassis mount and lower on the chassis hinge
to access the rear panel socket array.
26. To configure the M27 enclosure for left to right throughput direction, connect
the enclosure as shown in the graphic below:
27.On completion, refit the M27 enclosure.
Pneumatic Solenoid
(SOL 03)
Pneumatic Solenoid
(SOL 01)
Downline Conveyor
Board Stop
Upline Board Stop
Now Confgured as Print Station Board Stop
M27SK04 M27SK12M27SK18 M27SK19
M27SK08 (L/H)M27SK20 (L/H) M27SK08 (R/H)M27SK21 (R/H)
LANE A (LEFT) LANE A (RIGHT)
M27SK01 (L/H) M27SK01 (R/H)
M27SK02 (L/H) M27SK02 (R/H)
M27SK03 M27SK11
Inverted View on Rear of 3-Stage Conveyor Controller M27
M27SK20
(L/H)
M27PL20
(SOL 02)
N/C
N/C
N/C
M27PL08
(SOL 01)
M27PL21
(SOL 03)
M27PL04/
M27PL18
M27PL12/
M27PL19
M27PL01
(Loom
160622)
M27PL02
(Loom
160622)
M27PL02
(Loom
160645 or
160631)
M27PL01
(Loom
160643 or
160631)
M27SK04
M27SK08
(L/H)
M27SK18
M27SK01
(L/H)
M27SK02
(L/H)
M27SK12
M27SK21
(R/H)
M27SK19
M27SK08
(R/H)
M27SK01
(R/H)
M27SK02
(R/H)
