MODEL TCM-X210 0306-001 116 X 軸、 Y 軸 X AXIS,Y AXIS Fig. JB-5 Y テーブル検出部 Y T able Detector 409 412 414 405 410 406 402 413 41 1 408 413 403 41 1 407 408 41 1 413 See Fig.JB-4 Key No.301 409 412 414 405 406 405 410 409 412 …
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X210
0306-001
115
JB-4
301 630 085 7733 BASE 1 801JB-110-301
302 630 064 5156 BRACKET,LOCATE 1 801JB-110-302
303 630 064 4197 BRACKET,LOCATE 1 801JB-110-303
304 630 093 0689 HOLDER 1 801JB-110-304
305 630 093 0696 COVER 1 801JB-110-305
306 630 086 0917 MECH PARTS(URETHANES) 1 801JB-110-306
307 630 086 0924 MECH PARTS(URETHANES) 1 801JB-110-307
308 630 117 7441 COLLAR 1 801JB-110-308
309 630 117 7458 COLLAR 1 801JB-110-309
310 630 064 5934 COVER 1 801JB-110-310
311 630 086 7978 PANEL 1 801JB-110-311
312 630 086 7985 COVER 1 801JB-110-312
313 630 118 2605 BALL SCREW 1 801JB-110-313
314 630 085 8662 GUIDE,LINEAR 1 801JB-110-314
315 630 063 9285 COUPLING 1 801JB-110-315
316 630 086 3536 MOTOR,AC-SERVO 1 MSVM7(Y),#SGMSH-15ACA-TV11
801JB-110-316
317 630 005 1377 BEARING,UNIT 1 WBK15-11 801JB-110-317
320 630 000 7633 BOLT,HEX-SCT 3 801JB-110-320
321 630 000 7664 BOLT,HEX-SCT 32 801JB-110-321
322 630 000 7770 BOLT,HEX-SCT 20 801JB-110-322
323 630 000 7787 BOLT,HEX-SCT 4 801JB-110-323
324 630 000 7893 BOLT,HEX-SCT 5 801JB-110-324
325 630 000 7909 BOLT,HEX-SCT 8 801JB-110-325
326 630 000 7916 BOLT,HEX-SCT 4 801JB-110-326
327 630 000 7923 BOLT,HEX-SCT 1 801JB-110-327
329 411 141 2905 WASHER SPR 4 3 801JB-110-329
330 411 141 6705 WASHER SPR 5 20 801JB-110-330
331 411 141 3001 WASHER SPR 6 16 801JB-110-331
332 411 141 4008 WASHER V 4X9X0.8 3 801JB-110-332
333 411 141 4107 WASHER V 5X10X1 20 801JB-110-333
334 411 141 4305 WASHER V 6X12.5X1.6 16 801JB-110-334
337 630 111 3906 BOLT,HEX-SCT(BUTTON HEAD) 10 801JB-110-337
MODEL TCM-X210
0306-001
116
X
軸、
Y
軸
X AXIS,Y AXIS

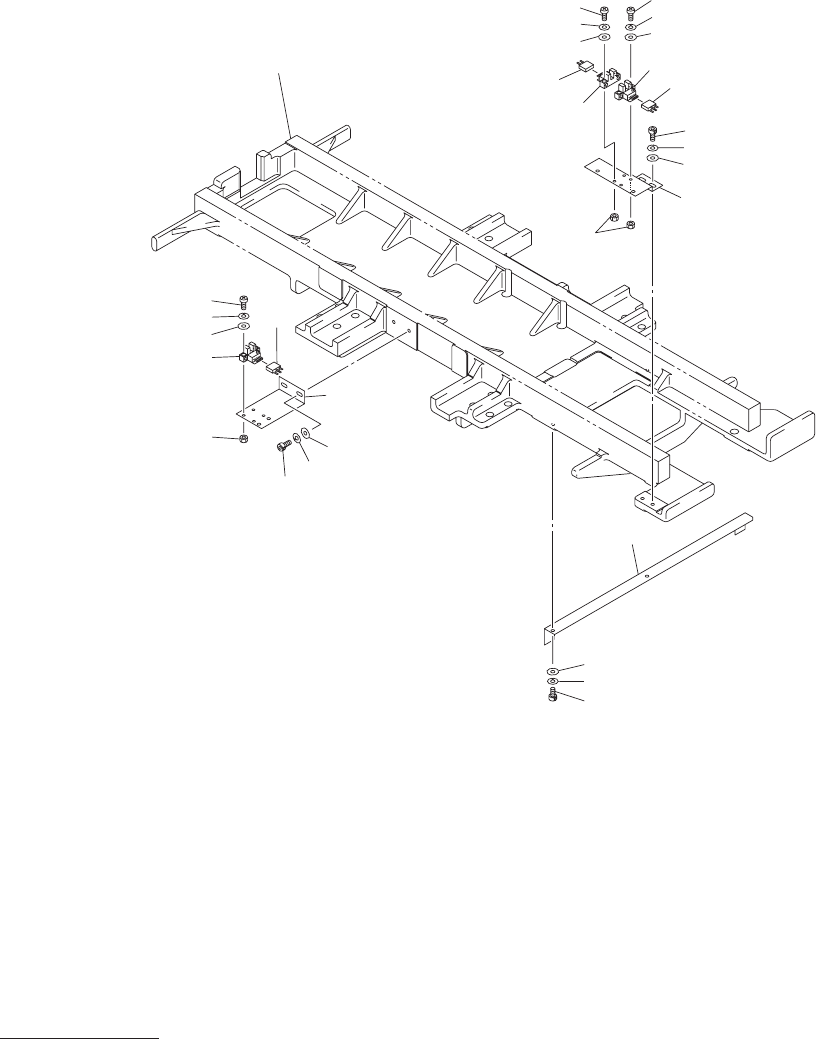

Fig. JB-5 Y
テーブル検出部
Y Table Detector
409
412
414
405
410
406
402
413
411
408
413
403
411
407
408
411
413
See Fig.JB-4
Key No.301
409
412
414
405
406
405
410
409
412
414
406
401
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X210
0306-001
117
JB-5
401 630 067 0004 BRACKET 1 801JB-110-401
402 630 066 1217 BRACKET 1 801JB-110-402
403 630 064 5699 PLATE 1 801JB-110-403
405 630 000 0252 SENSOR,PHOTO 3 BPH44,BPH45,BPH46,EE-SX671
801JB-110-405
406 630 000 0269 SENSOR,PHOTO(CONNECTOR) 3 EE-1001 801JB-110-406
407 630 000 7633 BOLT,HEX-SCT 2 801JB-110-407
408 630 000 7640 BOLT,HEX-SCT 4 801JB-110-408
409 411 113 0502 SCR PAN 3X14 6 801JB-110-409
410 411 141 0000 NUT HEX 3 6 801JB-110-410
411 411 141 2905 WASHER SPR 4 6 801JB-110-411
412 411 086 4408 WASHER SPR 3 6 801JB-110-412
413 411 141 4008 WASHER V 4X9X0.8 6 801JB-110-413
414 411 088 9005 WASHER F 3X6X0.5 6 801JB-110-414
