MODEL TCM-X210 0306-001 228 フィーダキャリッジカバー部 FEEDER CARRIAGE COVER SECTION Fig. MB-7 フィーダキャリッジカバー Feeder Carriage Cover 601
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X210
0506-002
227
MB-6
501 630 119 3700 PANEL(LCD) 1 801MB-110-501
502 630 119 3489 PANEL(CNL-SW) 1 801MB-110-502
504 630 097 4690 PANEL 6 801MB-110-504
505 630 097 4706 PANEL 1 801MB-110-505
506 630 116 4304 COVER(CABLE) 1 801MB-110-506
509 630 138 3040 BRACKET(SENSOR) 1 801MB-110-509
510 630 138 3057 BRACKET(ACTUATOR) 1 801MB-110-510
511 630 133 2536 BRACKET 6 801MB-110-511
512 630 133 2543 BRACKET 6 801MB-110-512
513 630 000 7633 BOLT,HEX-SCT 12 801MB-110-513
515 630 124 9865 SWITCH,LIMIT 7 SQ4(YSOL5),SQ5(YSOL6),
SQ12(YSOL10),SQ10(YSOL12),
SQ13(YSOL11),SQ6(YSOL7),
SQ7(YSOL8) 801MB-110-515
516 630 073 5727 SWITCH,LIMIT 7 801MB-110-516
520 411 051 2804 SCR TRS 4X8 4 801MB-110-520
521 411 043 6803 SCR PAN 5X12 18 801MB-110-521
522 630 000 7794 BOLT,HEX-SCT 4 801MB-110-522
523 411 141 6705 WASHER SPR 5 18 801MB-110-523
524 411 141 4107 WASHER V 5X10X1 4 801MB-110-524
526 630 000 7619 BOLT,HEX-SCT 14 801MB-110-526
527 630 001 0220 WASHER 14 801MB-110-527
528 630 000 7763 BOLT,HEX-SCT 14 801MB-110-528
529 630 000 7657 BOLT,HEX-SCT 2 801MB-110-529
530 411 141 2905 WASHER SPR 4 49 801MB-110-530
531 630 001 0213 WASHER 2 801MB-110-531
532 411 141 4008 WASHER V 4X9X0.8 26 801MB-110-532
533 411 140 8304 SCR BIN 4X10 4 801MB-110-533
534 411 113 9109 SCR TRS 5X10 14 801MB-110-534
535 630 119 3717 COVER(SWITCH) 1 801MB-110-535
536 411 051 1708 SCR TRS 4X6 2 801MB-110-536
543 630 000 7695 BOLT,HEX-SCT 21 801MB-110-543
551 630 033 4609 SWITCH,BUTTON 1 SPB2 801MB-110-551
552 630 033 4586 DISPLAY ELEMENT 1 LED2 801MB-110-552
553 630 033 4593 ACCESSORY,SW 1 801MB-110-553
554 630 000 2515 SWITCH,BUTTON 1 SPB21 801MB-110-554
555 630 000 2713 SWITCH,BUTTON 2 SPB20(LED20),SPB22(LED22)
801MB-110-555
556 630 000 2744 SWITCH,BUTTON 1 SPB23(LED23) 801MB-110-556
557 630 000 0382 ACCESSORY,SW 1 801MB-110-557
558 407 035 4704 LED SLP-721F 1 LED21 801MB-110-558
560 630 068 8375 ACCESSORY,CONN 2 801MB-110-560
561 630 121 8915 ASSY,CONNECTOR 1 SW5 801MB-110-561
562 630 089 0556 SOCKET 1 801MB-110-562
563 630 093 6445 ASSY,SWITCH,BUTTON 2 SPB7,SPB8 801MB-110-563
564 630 093 6407 ASSY,SWITCH,BUTTON 6 SPB31(LED31) - SPB36(LED36)
801MB-110-564
565 630 114 5167 NAME PLATE,NOTICE 2
MODEL TCM-X210
0306-001
228
フィーダキャリッジカバー部
FEEDER CARRIAGE COVER SECTION

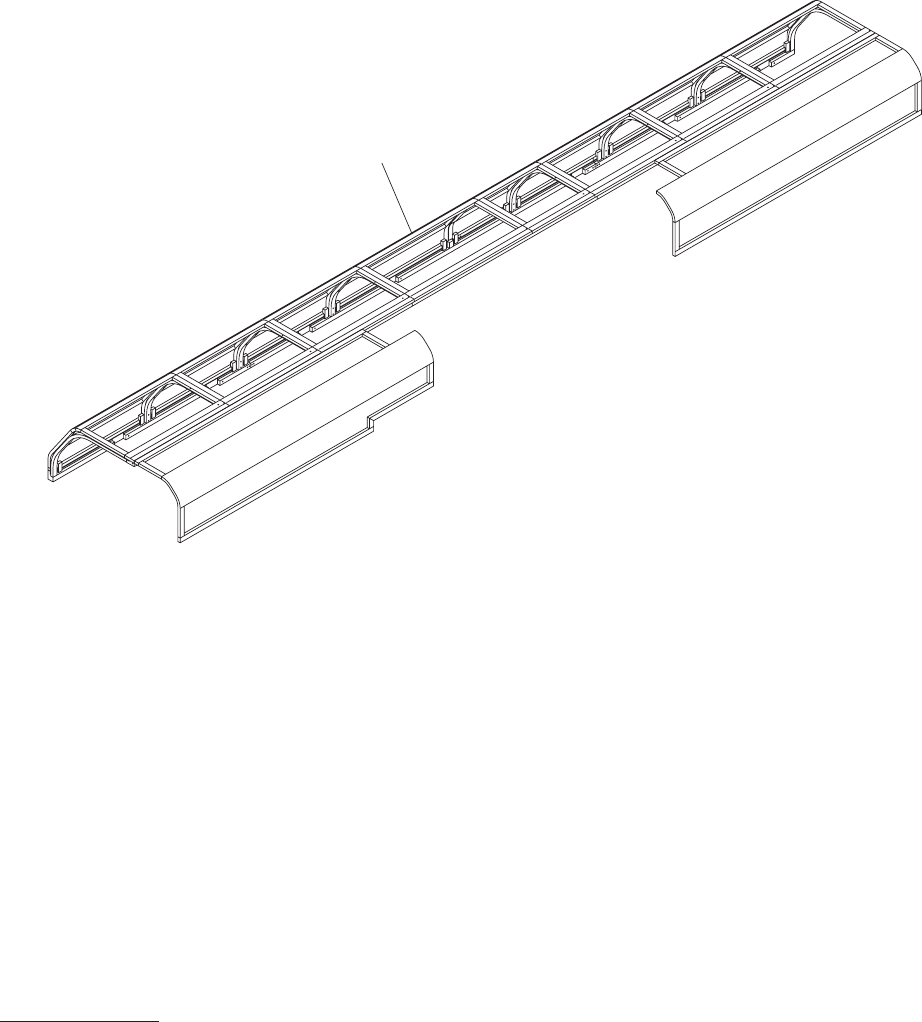

Fig. MB-7
フィーダキャリッジカバー
Feeder Carriage Cover
601
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X210
0306-001
229
MB-7
601 630 123 8524 MECH PARTS(COVER) 1 801MB-110-601
