MODEL TCM-X210 0506-002 258 100V 電源部 100V POWER SUPPL Y SECTION Fig. RE-3 100V 電源３ 100V Power Supply 3 See Fig.RE-1 Key No.65 296 297 298 299 251 252 257 260 259 257 253 255 . 256 . 254 257 261
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X210
0506-002
257
RE-2
151 630 083 5496 FUSE HOLDER 10 801RE-110-151
152 630 059 6632 ACCESSORY,WIRING 1 801RE-110-152
153 630 083 5601 ACCESSORY,WIRING 1 801RE-110-153
154 630 127 0937 TERMINAL 22 801RE-110-154
155 630 127 0975 ACCESSORY,WIRING 1 801RE-110-155
156 630 127 0982 ACCESSORY,WIRING 3 801RE-110-156
157 630 058 8460 ACCESSORY,WIRING 3 801RE-110-157
158 630 091 1749 BRACKET,WIRING 2 801RE-110-158
159 423 022 8005 FUSE 250V 1A 1 F105 801RE-110-159
160 423 022 8104 FUSE 250V 2A 1 F100 801RE-110-160
161 423 025 2109 FUSE 250V 6.3A 6 F106,F107,F108,F104,F110,F111
801RE-110-161
162 423 022 8500 FUSE 250V 10A 1 F101 801RE-110-162
163 630 000 1273 ACCESSORY,WIRING 2 801RE-110-163
166 630 127 1002 ACCESSORY,WIRING 1 801RE-110-166
167 630 058 8415 ACCESSORY,WIRING 3 801RE-110-167
MODEL TCM-X210
0506-002
258
100V
電源部
100V POWER SUPPLY SECTION

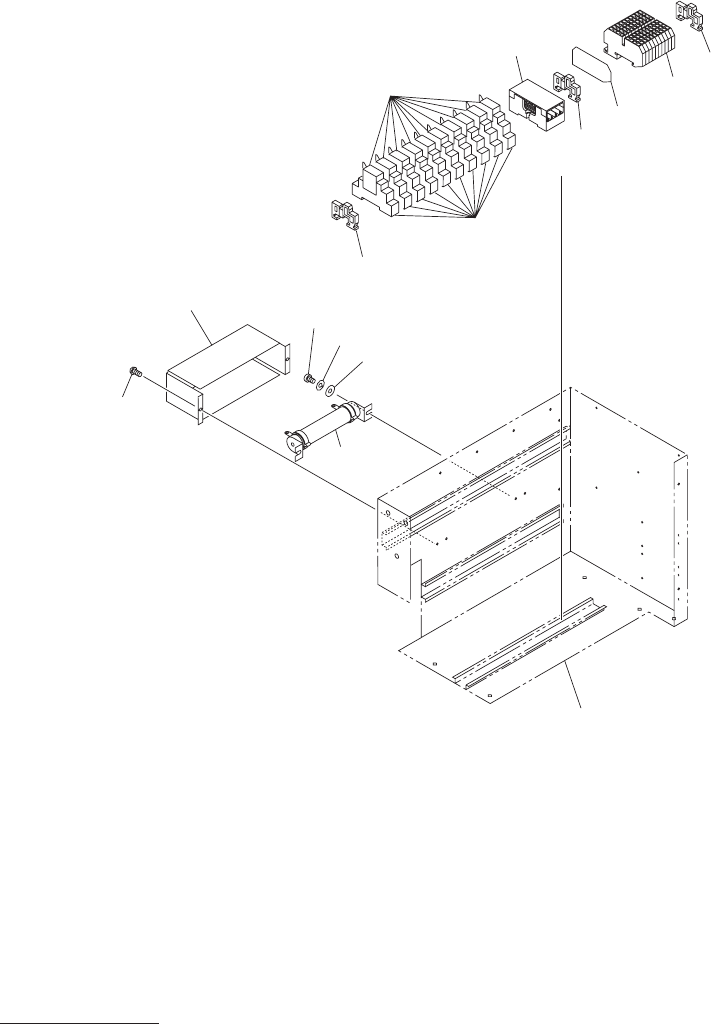

Fig. RE-3 100V
電源３
100V Power Supply 3
See Fig.RE-1
Key No.65
296
297
298
299
251
252
257
260
259
257
253
255
.
256
.
254
257
261
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X210
0506-002
259
RE-3
251 402 061 5206 WIRE WOUND 100 JB 80W 1 801RE-110-251
252 630 115 8259 COVER 1 801RE-110-252
253 630 127 0937 TERMINAL 10 801RE-110-253
254 630 127 0975 ACCESSORY,WIRING 1 801RE-110-254
255 630 127 0982 ACCESSORY,WIRING 1 801RE-110-255
256 630 127 0999 ACCESSORY,WIRING 1 801RE-110-256
257 630 091 1749 BRACKET,WIRING 3 801RE-110-257
258 630 058 8460 ACCESSORY,WIRING 1 801RE-110-258
259 630 068 9723 RELAY 10 K30,K35,K36,K31,K32,K33,K34,K37,
K38,K9 801RE-110-259
260 630 049 2064 SOCKET 10 801RE-110-260
261 630 085 4152 RELAY 1 K62 801RE-110-261
296 411 113 7501 SCR TRS 4X10 2 801RE-110-296
297 411 043 5004 SCR PAN 4X8 2 801RE-110-297
298 411 008 1706 WASHER SPR 4 2 801RE-110-298
299 411 119 2104 WASHER V 4X9X0.8 2 801RE-110-299
