6 WF 3 TX-Series Maintenance Return a maintained CPP head 8 min 2 / 2 C A U T I O N ! R e f e r t o s a f e t y i n s t r u c t i o n s i n u s e r m a n u a l b e f o r e c o m m e n c i n g M a i n t e n a n c e Mach…
6 WF 3 TX-Series Maintenance Return a maintained CPP head 8 min 1 / 2
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool:
T7, T8, T9, T49, T62
Wear Part: Consumables:
www.asm-smt.com
1 Take the maintained head out of transport
container.
2 Place the head on the hook. 3 Fasten the left side screws fixing the head
(1) to (2) torque 2.7.
4 Fasten the 2 right side screws fixing the
head (1) to (2) torque 2.7.
5 Connect the 2 camera cables. 6 Connect the ribbon cables (1) and fix with
the two clips (2).
6 WF 3 TX-Series Maintenance Return a maintained CPP head 8 min 2 / 2
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool:
T7, T8, T9, T49, T62
Wear Part: Consumables:
www.asm-smt.com
7 Connect the 3 compressed air connec-
tions.
8 Move the Y-Axis to the outer limit. 9 Remove the protection cap from the com-
ponents sensor.

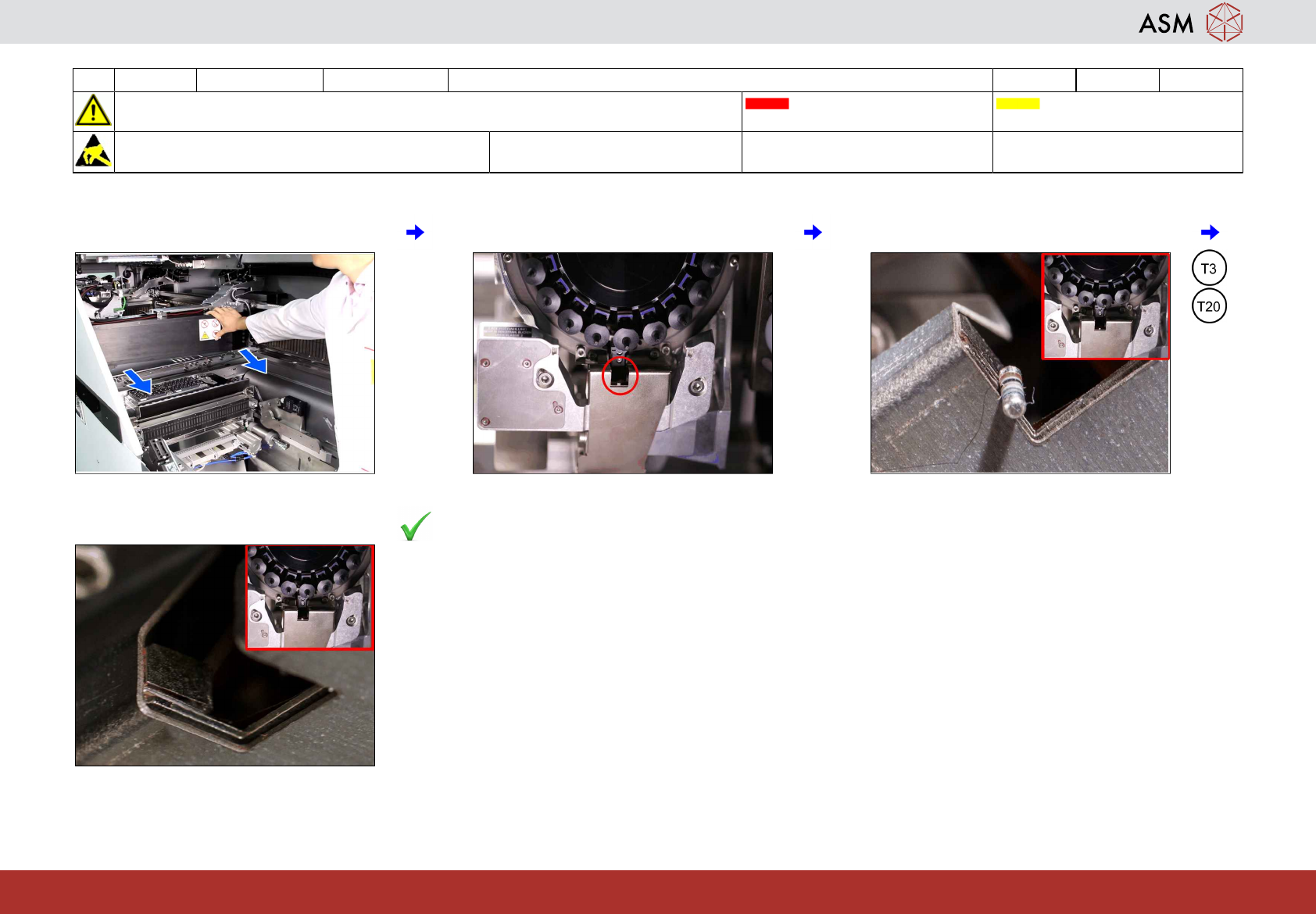

7 WF 3 TX-Series Maintenance Cleaning the Z-Axis C&P20 P 2 min 1 / 1
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool:
T3, T20
Wear Part: Consumables:
www.asm-smt.com
1 Move the gantries to the outside end limit. 2 Area of the head to be cleaned. 3 Remove any components from Z-Axis.
4 If OK → next job.
