13 WF 3 TX-Series Maintenance Maintain the tape cutter 15 min 2 / 4 C A U T I O N ! R e f e r t o s a f e t y i n s t r u c t i o n s i n u s e r m a n u a l b e f o r e c o m m e n c i n g M a i n t e n a n c e Machin…
13 WF 3 TX-Series Maintenance Maintain the tape cutter 15 min 1 / 4
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool:
T31, T34, T54
Wear Part: Consumables:
C26, C27, C28
www.asm-smt.com

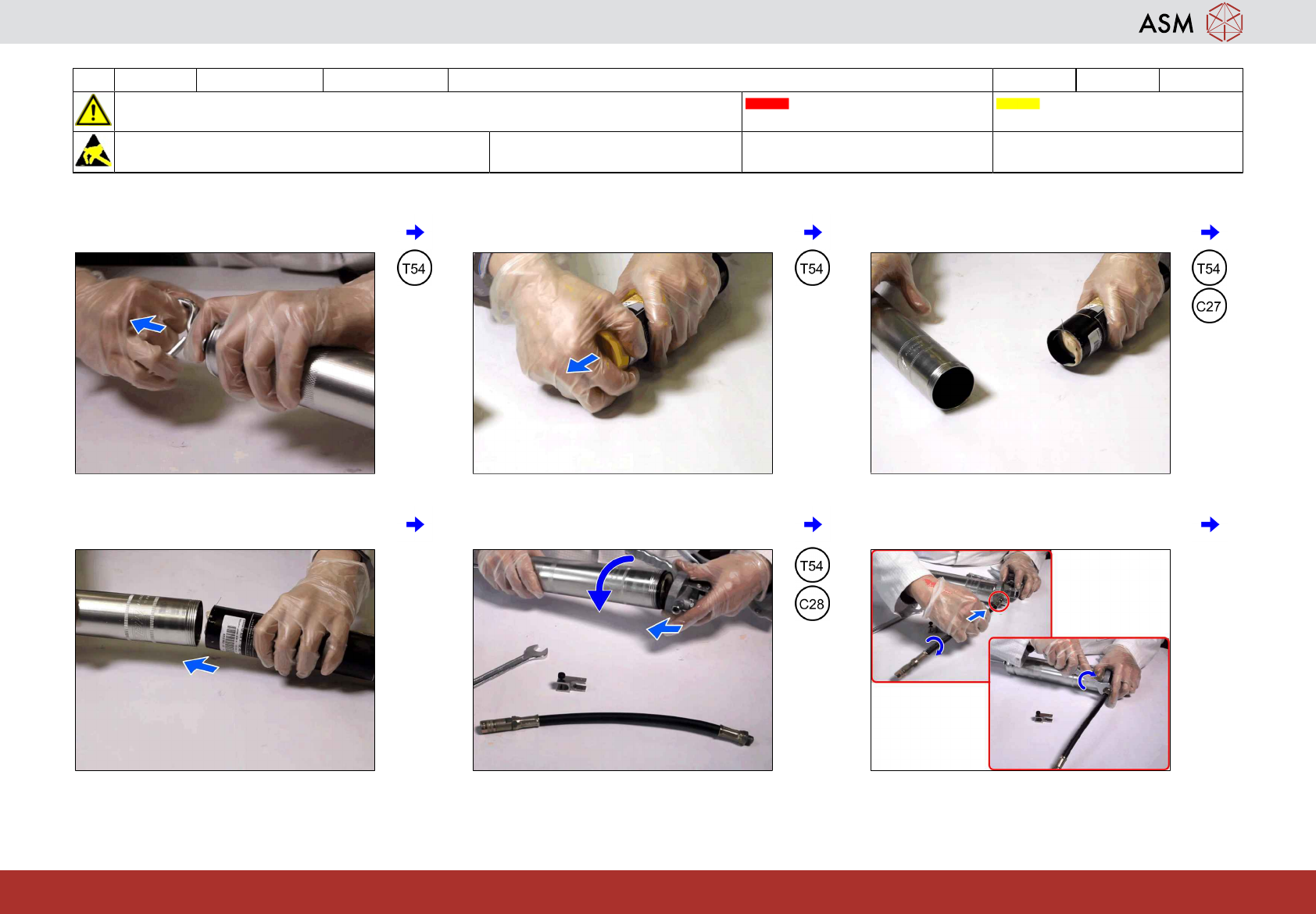

1 Pull back the plunger to the lock. 2 Unscrew the top section. 3 Prepare the grease cartridge.
4 Insert the grease cartridge into the grease
gun.
5 Close the grease gun. 6 Mount the hose with hydraulic mouthpiece
Y-Axis.
13 WF 3 TX-Series Maintenance Maintain the tape cutter 15 min 2 / 4
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool:
T31, T34, T54
Wear Part: Consumables:
C26, C27, C28
www.asm-smt.com

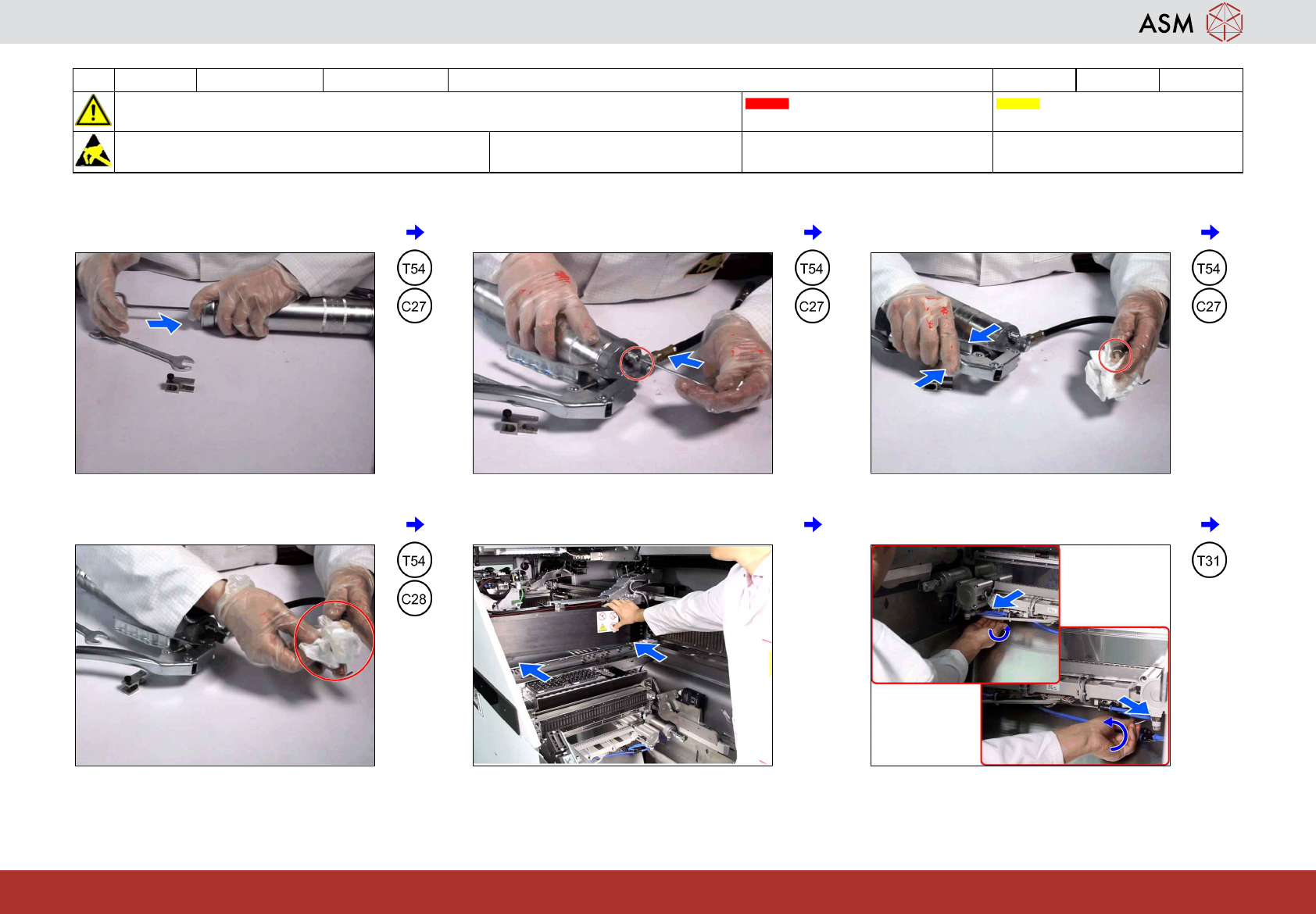

7 Loosen the lock. 8 Push back the ball on the vent screw. 9 Press the trigger until grease comes out.
10 Remove the grease. 11 Move the gantries to the middle. 12 Loosen the fastening screws (1).
13 WF 3 TX-Series Maintenance Maintain the tape cutter 15 min 3 / 4
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool:
T31, T34, T54
Wear Part: Consumables:
C26, C27, C28
www.asm-smt.com

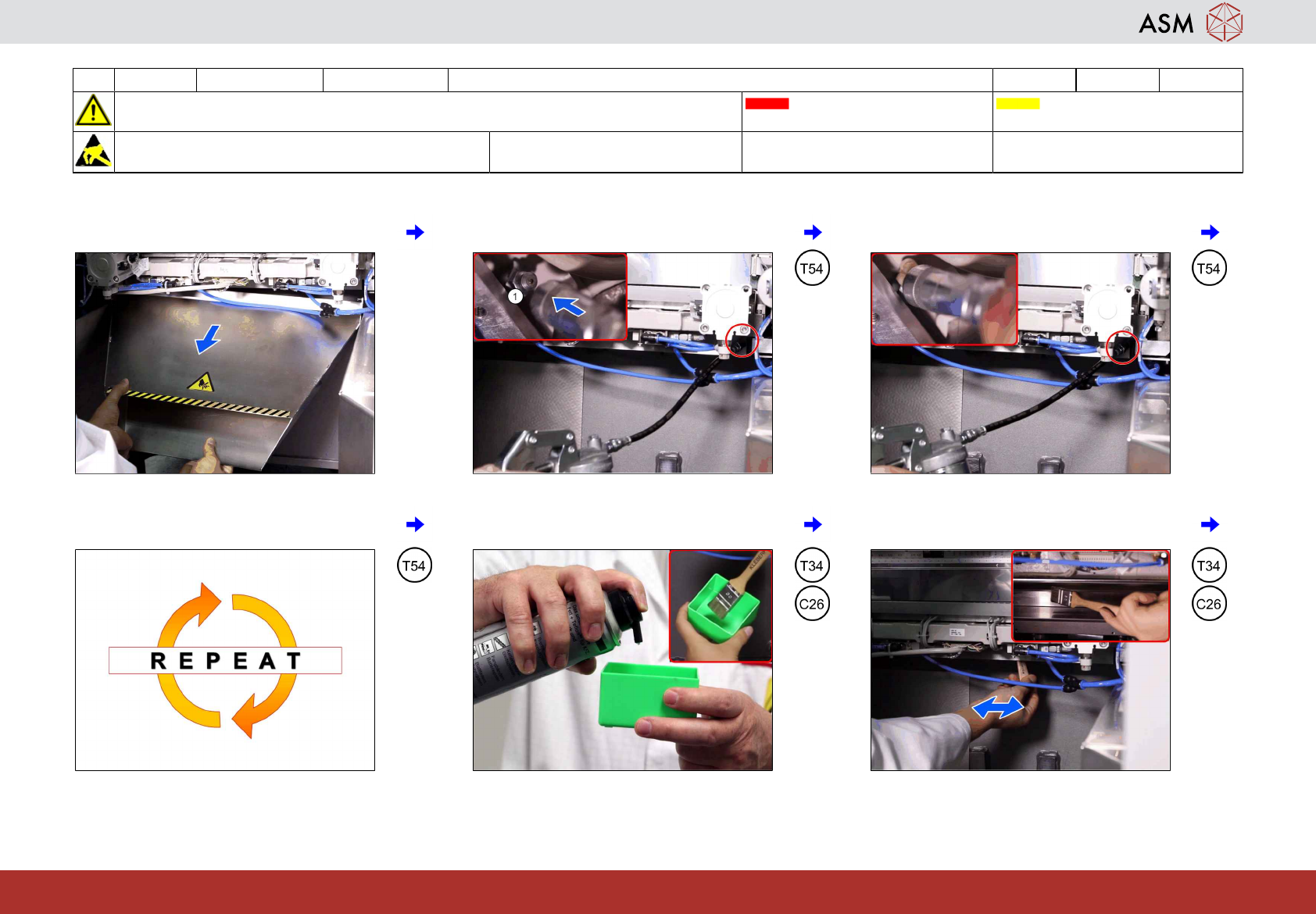

13 Remove the waste slide. 14 Positioning grease gun to nipple (1). 15 Press the trigger till grease comes out.
16 Repeat steps 12 to 13 at the other side of
the cutter.
17 Put grease on a brush. 18 Distribute the grease to the fixing blade
over the whole length.
