14 WF 3 TX-Series Maintenance Check/ replace the vacuum pump filter disk 4 min 1 / 2 C A U T I O N ! R e f e r t o s a f e t y i n s t r u c t i o n s i n u s e r m a n u a l b e f o r e c o m m e n c i n g M a i n t e…
13 WF 3 TX-Series Maintenance Maintain the tape cutter 15 min 4 / 4
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool:
T31, T34, T54
Wear Part: Consumables:
C26, C27, C28
www.asm-smt.com

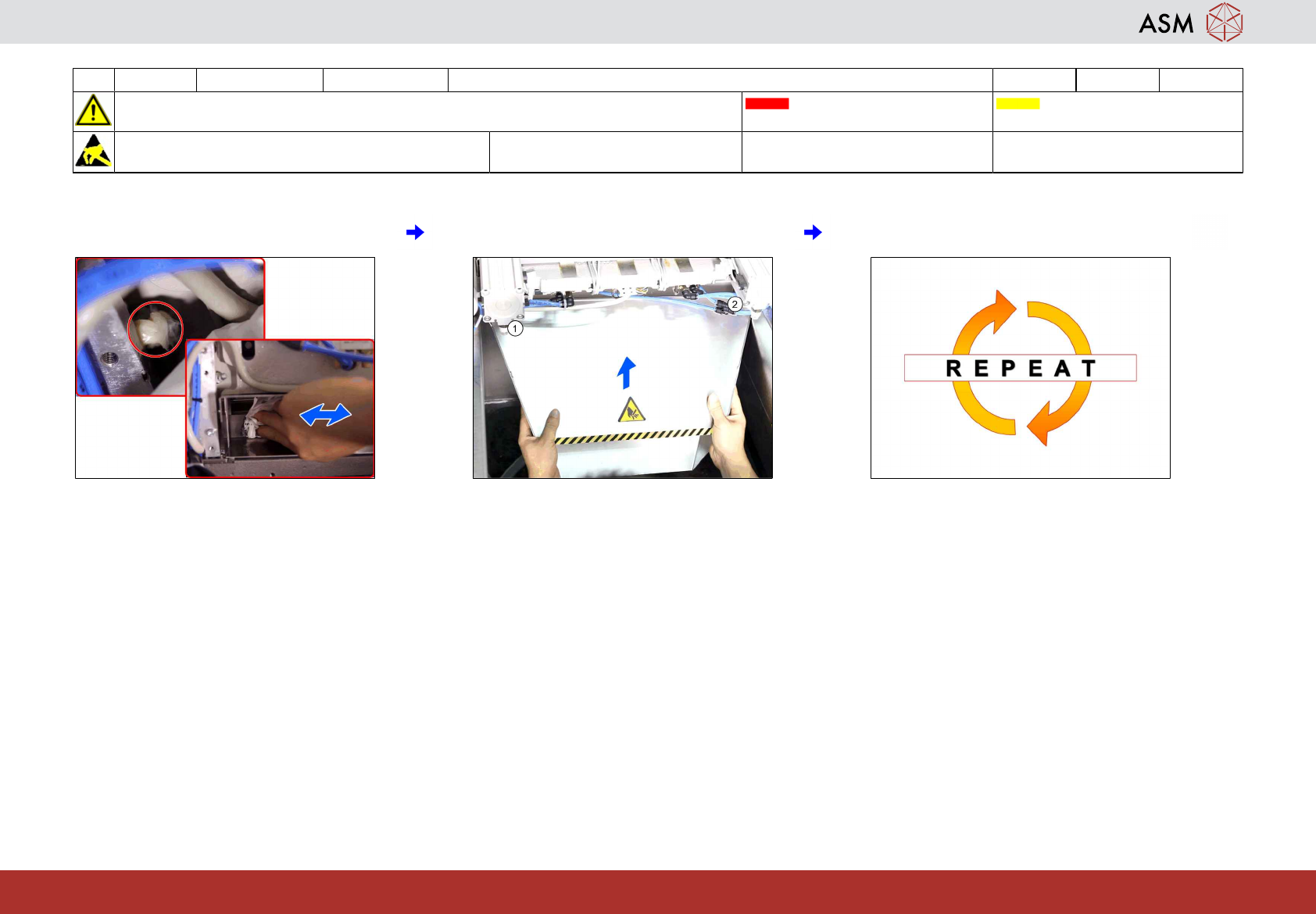

19 Remove excess grease from both sides of
the cutter.
20 Return the waste slide and fasten screws
on both sides (1 and 2).
21 Repeat for other tape cutter.
14 WF 3 TX-Series Maintenance Check/ replace the vacuum pump filter disk 4 min 1 / 2
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool:
T31, T86
Wear Part: Consumables:
C19
www.asm-smt.com

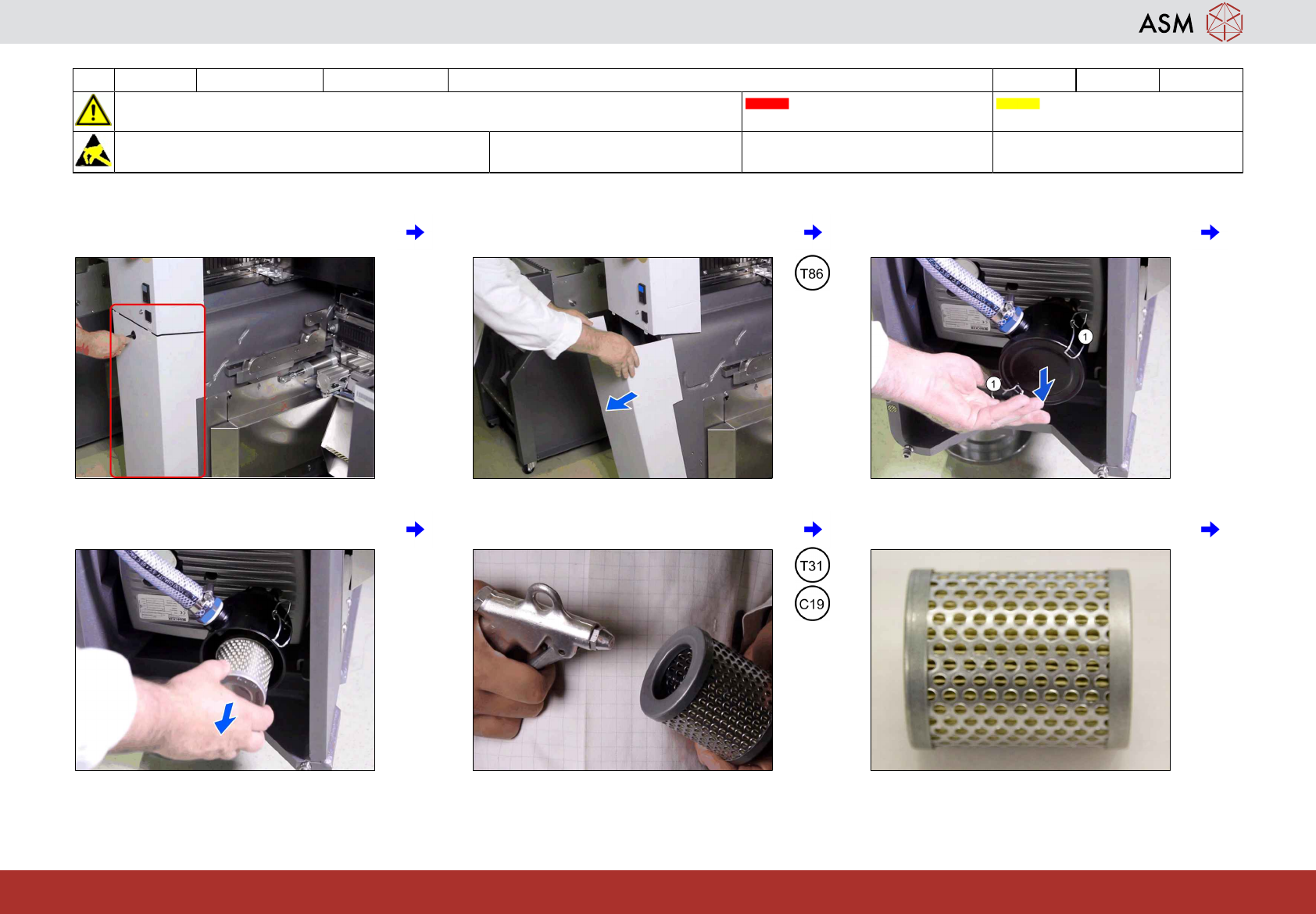

1 Pump location. 2 Open panel. 3 Open the edgewise retaining clamp (1)
and remove cap.
4 Remove the vacuum filter. 5 Clean the vacuum filter. 6 If OK go to step 8.
14 WF 3 TX-Series Maintenance Check/ replace the vacuum pump filter disk 4 min 2 / 2
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool:
T31, T86
Wear Part: Consumables:
C19
www.asm-smt.com

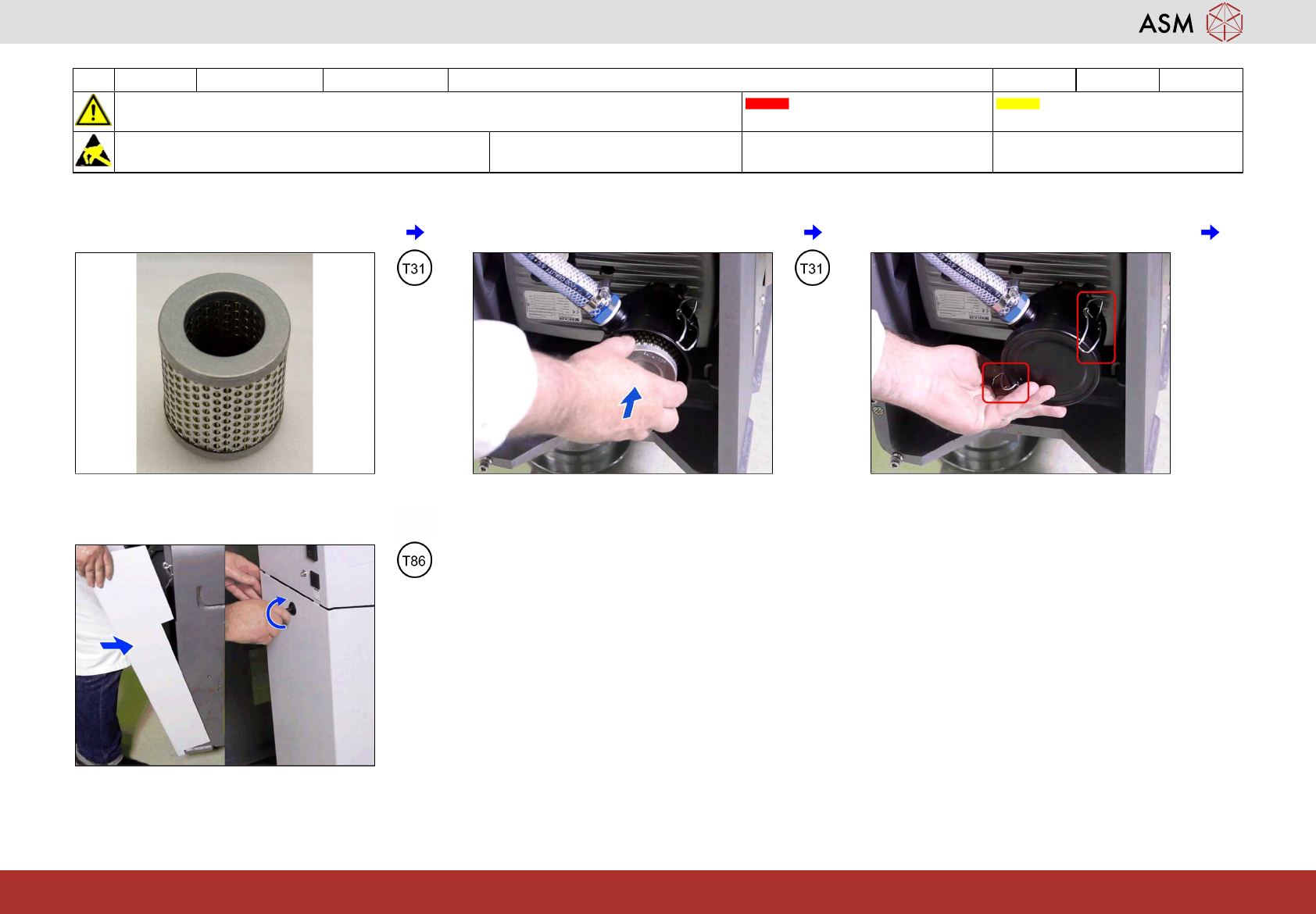

7 If NOT OK exchange filter. 8 Return the vacuum filter. 9 Lock the edgewise retaining clamp.
10 Close panel.
