– 1 1 – ELE V A TOR S ECTION No. Part No. Part Name Qty . Detail Y amaha Hitachi 301 KYC-M1715-00 1015A41K FRAME 1 302 KYC-M176K-00 21 1FE476 BRACKET 1 303 KYC-M176L-00 21 1FE477 BRACKET 1 304 91312-04008 221AA016 BOL T …
– 11 –
ELEVATOR SECTION
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
301 KYC-M1715-00 1015A41K FRAME 1
302 KYC-M176K-00 211FE476 BRACKET 1
303 KYC-M176L-00 211FE477 BRACKET 1
304 91312-04008 221AA016 BOLT,HEX.SOCKET HEAD 4 M4L8
305 92902-04200 221HA104 WASHER 4 FW4
311 KYC-M170R-00 0921E407 PLATE 1
312 KYC-M1776-00 216C1047 ROD 2
313 KYC-M176V-00 211G6042 BLOCK 4
314 KYC-M176W-00 211G6194 BLOCK 2
315 90990-01J132 221A0449 BOLT,HEX.SOCKET HEAD 8
316 KYC-M171L-00 0921E406 PIN_LOCATE 2
317 KYC-M173M-00 211FE485 BRACKET 2
318 KYC-M1756-00 0921E400 SPIRIT LEVEL 2
319 KYC-M1757-00 0921E402 BLOCK 2
320 91312-06014 221AA240 BOLT,HEX.SOCKET HEAD 4 M6L14
321 91312-06025 221AA045 BOLT,HEX.SOCKET HEAD 8 M6L25
322 91312-06040 221AA048 BOLT,HEX.SOCKET HEAD 2 M6L40
323 91312-03010 221AA007 ROHS;BOLT_HEX-SCT 3 M3L10
324 92902-06200 221HA106 WASHER 14 FW6
325 92902-03600 221HA203 WASHER 3 FWS3
326 92902-06200 221HA106 WASHER 8 FW6
331 KYC-M1758-00 0921E403 BLOCK 1
332 KYC-M171K-00 0921E404 ADJUST FOOT 1
333 KYC-M1755-00 0921E305 BRACKET 1
334 90990-02J026 221CA007 SCREW,SET 1 SET M5L6
1304-001
– 12 –

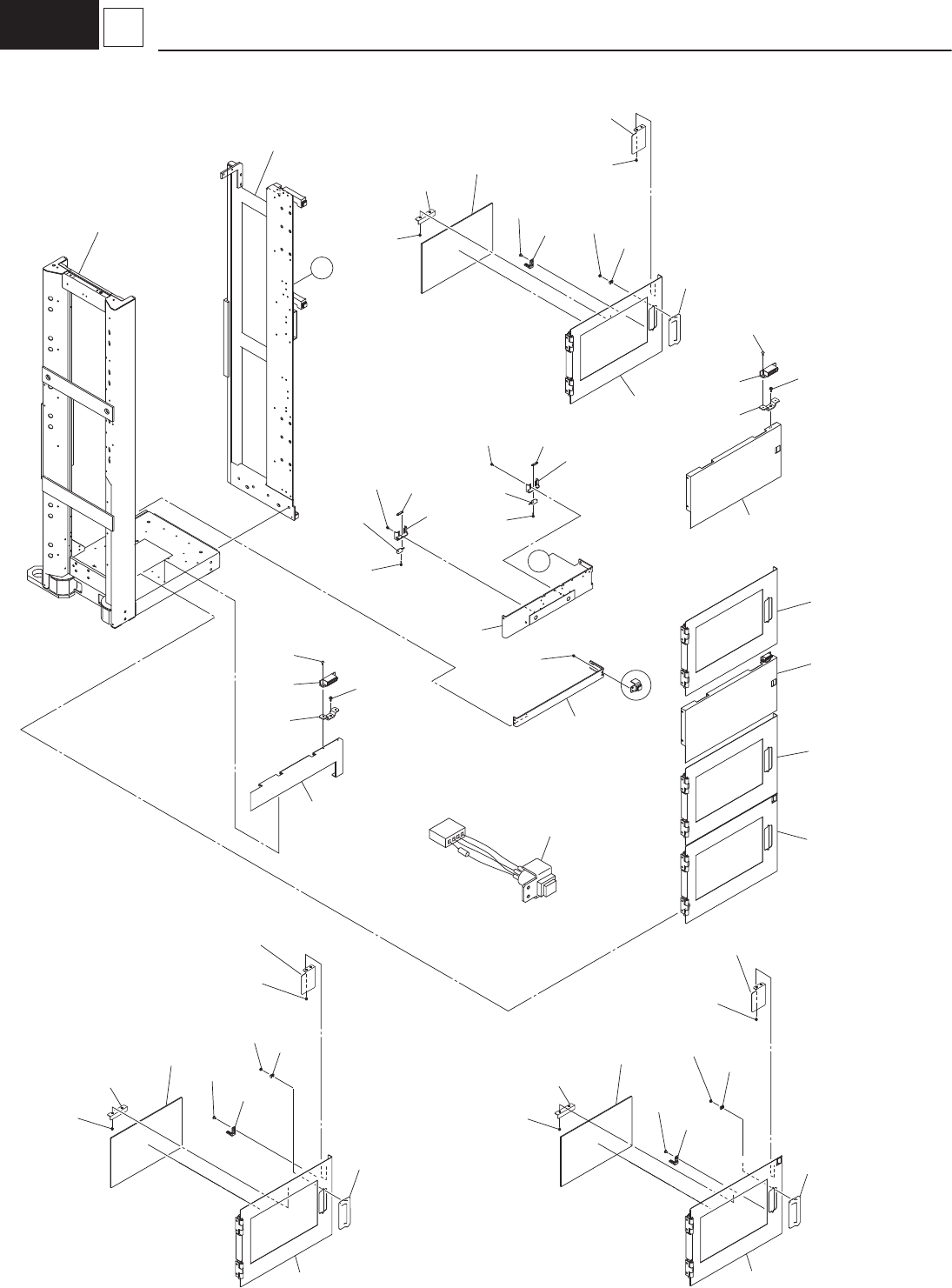

K1
5 O/C Door
1304-001
425
424
421
422
428
430
428
430
432
429
426
427
447
4A3
423
423
427
445
444
441
442
448
450
448
450
452
449
446
443
447
443
465
464
461
462
472
469
466
463
467
463
4A3
4A1
4A2
487
484
485
483
482
481
402
416
404
403
415
413
470
468
470
468
419
418
412
415
413
419
417
419
417
419
418
411
4A7
4A4
4A5
491
C
DETAIL “C”
See Fig. K1-2
Key No.106
See Fig. K1-3
Key No.204
467
C
C
