P-0332-001_MULTI-LAYER_TRAY-FEEDER - 第21页

– 15 – ELE V A TOR SECTIO N No. Part No. Part Name Qty . Detail Y amaha Hitachi 470 92902-03200 221HA103 WASHER,PLAIN 4 FW3 472 92902-04100 221HA004 WASHER 2 SW4 481 KYC-M175G-00 0921E710 BRACKET 1 482 KYC-M174N-00 0913F…

100%1 / 84

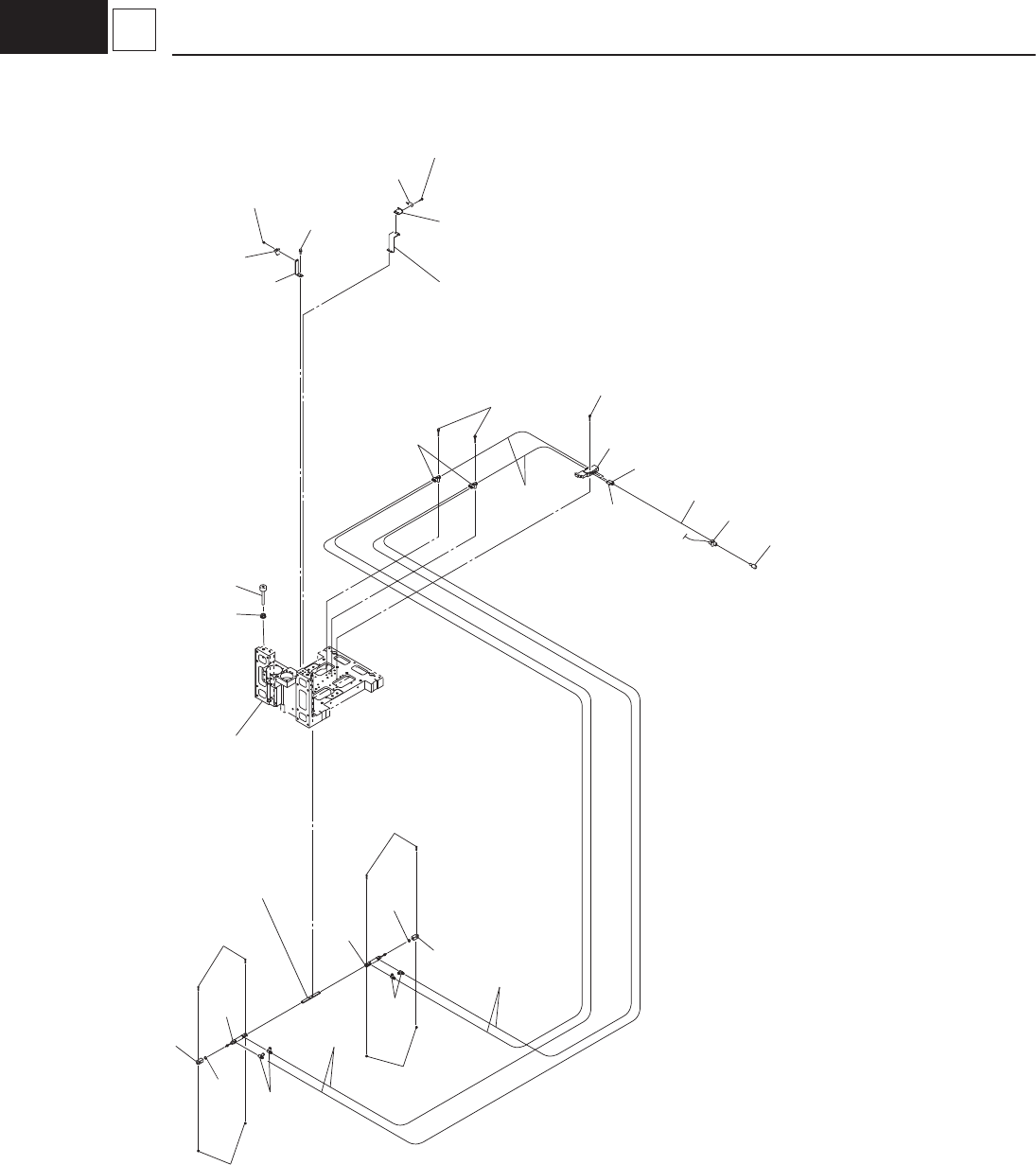

– 14 –
K1
5 O/C Door
1304-001
425
424
421
422
428
430
428
430
432
429
426
427
447
423
423
427
445
444
441
442
448
450
448
450
452
449
446
443
443
465
464
461
462
472
469
463
467
463
4A3
4A1
4A2
487
484
485
483
482
481
402
416
404
403
415
413
470
468
470
468
419
418
412
415
413
419
417
419
417
419
418
411
4A7
4A4
4A5
491
C
DETAIL “C”
See Fig. K1-2
Key No.106
Key No.204
467
C
C
– 15 –
ELEVATOR SECTION
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
470 92902-03200 221HA103 WASHER,PLAIN 4 FW3
472 92902-04100 221HA004 WASHER 2 SW4
481 KYC-M175G-00 0921E710 BRACKET 1
482 KYC-M174N-00 0913F21E MG_CATCH_C9302 1
483 KYC-M1716-00 1015A41N COVER 1
484 91312-03008 221AA006 BOLT,HEX.SOCKET HEAD 4 M3L8
485 92902-03200 221HA103 WASHER,PLAIN 4 FW3
486 92902-03100 221HA003 WASHER,SPRING 4 SW3
491 KYC-M171T-00 ASSY-READY-SW-DN 1
4A1 KYC-M175G-00 0921E710 BRACKET 1
4A2 KYC-M174N-00 0913F21E MG_CATCH_C9302 1
4A3 KYC-M1711-00 1015A41P COVER 1
4A4 91312-03006 221AA005 BOLT,HEX.SOCKET HEAD 2 M3L6
4A5 92902-03200 221HA103 WASHER,PLAIN 2 FW3
4A7 90990-66J007 221DA202 SCREW,TRUSS HEAD 2 TRS M3L4
1304-001
– 16 –
K1
6 Elevator (D) Base
1304-001
520
515
508
507
522
511
517
509
518
514
562
563
563
502
503
512
See Fig. K1-8
Key No.714
See Fig. K1-8
Key No. 715
See Fig. K1-8
Key No.705(D)
510
533
534
544
531
541
510
543
516
532
516
542
See Fig. K1-8
Key No.707
551
552
564
563
561
553
518
513
565
