P-0332-001_MULTI-LAYER_TRAY-FEEDER - 第27页
– 21 – ELE V A TOR S ECTION No. Part No. Part Name Qty . Detail Y amaha Hitachi 705 KYC-M170D-00 1015A41E BASE 1 706 KYC-M1769-00 21 1F8492 BRACKET 1 707 KYC-M174D-00 226F0151 HINGE 1 708 KYC-M1778-00 216S2678 LEVER 1 70…
– 20 –
K1

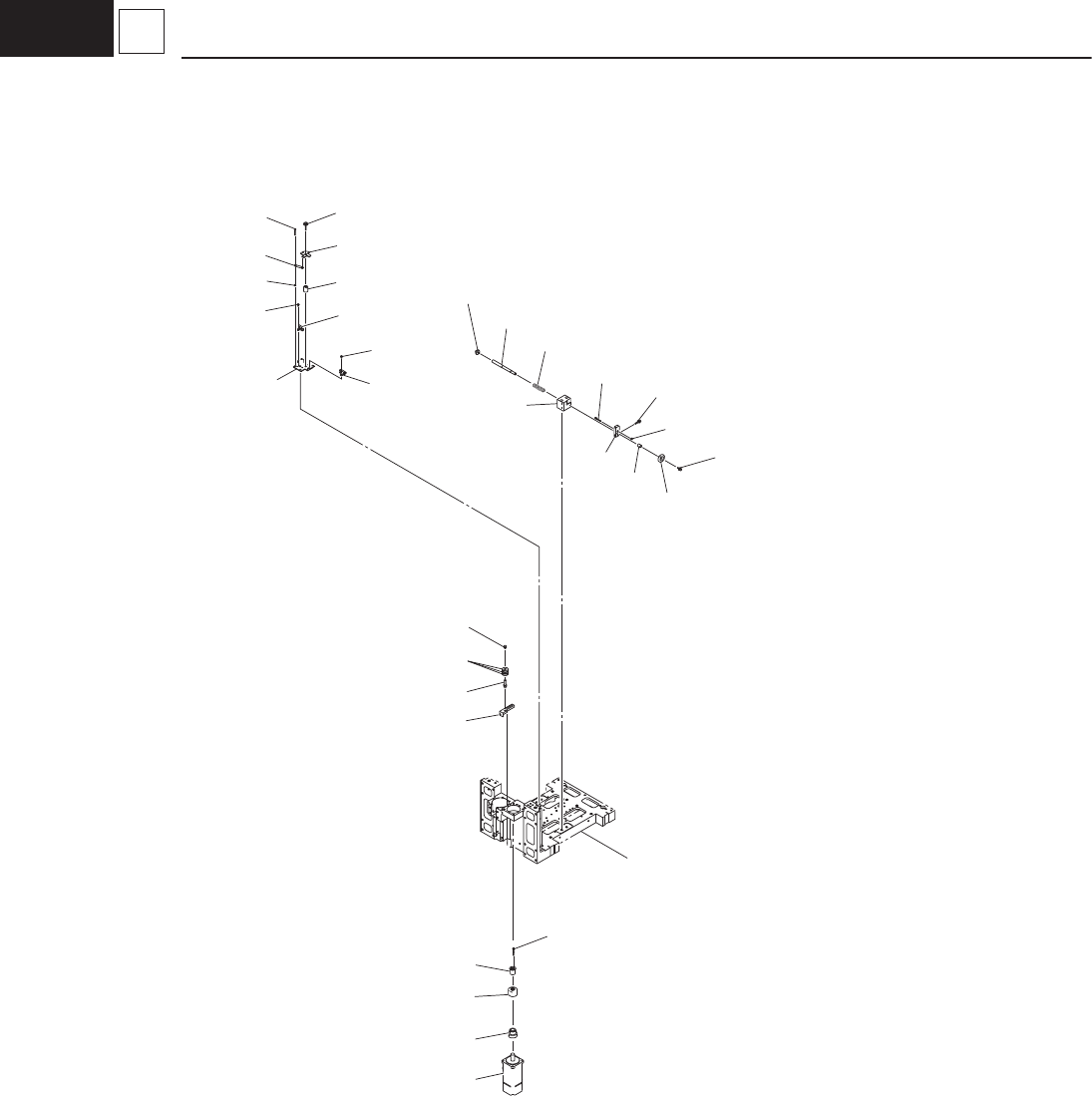

8 Magazine Storage Section
1007-003
748
737
706
747
730
748
734
717
743
742
749
739
713
754
741
See Fig. K1-9
Key No.801
See Fig. K1-9
Key No.
See Fig. K1-9
Key No.851
See Fig. K1-9
Key No.821
728
723
724
728
750
744
733
748
722
729
726
726
749
756
746
739
728
727
750
744
727
753
720
708
712
705
719
748
736
748
745
757
7
749
740
718
759
758
746
716
748
734
714
715
748
732
753
748
736
748
745
757
11
749
740
720
709
712
719
748
736
707
719
710
710
719
751
731
842
1
7
1
– 21 –
ELEVATOR SECTION
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
705 KYC-M170D-00 1015A41E BASE 1
706 KYC-M1769-00 211F8492 BRACKET 1
707 KYC-M174D-00 226F0151 HINGE 1
708 KYC-M1778-00 216S2678 LEVER 1
709 KYC-M1779-00 216S2679 LEVER 1
710 KYC-M177A-00 216S2680 LEVER 2
711 KYC-M1775-00 216B1432 HOLDER 2
712 KYC-M1774-00 216A1159 COLLAR 2
713 KYC-M174X-00 0921E20D BLOCK 2
714 KYC-M1760-00 1015A418 BRACKET 1
715 KYC-M176G-00 211F8700 BRACKET 1
716 91312-03014 221AA009 BOLT,HEX.SOCKET HEAD 1 M3L14
717 KYC-M1766-00 211A8875 COVER 1
718 KYC-M175X-00 1015A400 BLOCK 1
719 90933-13J696 222D0019 BEARING,RADIAL 4
720 KYC-M1743-00 222H0118 CAM- FOLLOWER 2
722 KYC-M170P-00 0921E00C PLATE 1
723 KYC-M173G-00 211D9805 PLATE 1
724 KYC-M173H-00 211D9806 PLATE 1
726 KYC-M171F-00 0921E006 PLATE 2
727 KYC-M1744-00 222L0717 GUIDE_LINEAR 2
728 90990-66J012 221DA207 SCREW,TRUSS HEAD 24 TRS M4L6
729 KYC-M174A-00 226C0111 HANDLE 1
730 91312-03010 221AA007 ROHS;BOLT_HEX-SCT 2
731 91312-03016 221AA010 BOLT,HEX.SOCKET HEAD 1 M3L16
732 91312-04006 221AA015 BOLT,HEX.SOCKET HEAD 2 M4L6
733 91312-04008 221AA016 BOLT,HEX.SOCKET HEAD 6 M4L8
734 91312-04012 221AA018 BOLT,HEX.SOCKET HEAD 4 M4L12
736 91312-04016 221AA020 BOLT,HEX.SOCKET HEAD 4 M4L16
737 91312-04018 221AA337 BOLT,HEX.SOCKET HEAD 2 M4L18
739 91312-05012 221AA030 ROHS_HEX-SCT 4 M5L12
740 91312-05016 221AA031 ROHS_HEX-SCT 11 M5L16
741 91312-05020 221AA032 BOLT,HEX.SOCKET HEAD 4 M5L20
742 91312-05030 221AA034 BOLT,HEX.SOCKET HEAD 4 M5L30
743 91312-05040 221AA036 BOLT,HEX.SOCKET HEAD 2 M5L40
744 91312-06014 221AA240 BOLT,HEX.SOCKET HEAD 8 M6L14
745 95302-04700 221FA008 NUT,HEXAGON 2 M4
746 95302-05600 221FA009 NUT,HEXAGON 3 M5
747 92902-03200 221HA103 WASHER,PLAIN 2 FW3
748 92902-04200 221HA104 WASHER 20 FW4
749 92902-05200 221HA105 WASHER 7 FW5
750 92902-06200 221HA106 WASHER 8 FW6
751 92902-03600 221HA203 WASHER 1 FWS3
753 92902-04100 221HA004 WASHER 2 SW4
754 92902-05100 221HA005 WASHER 4 SW5
756 97002-05016 221BB003 BOLT,HEXAGON 2
757 KYC-M177S-00 221K1003 RING 2 RING C 6
758 91312-05025 221AA033 BOLT,HEX.SOCKET HEAD 1 M5L25
759 KYB-M656F-00 0921E203 ACCESS-WIRING 1
