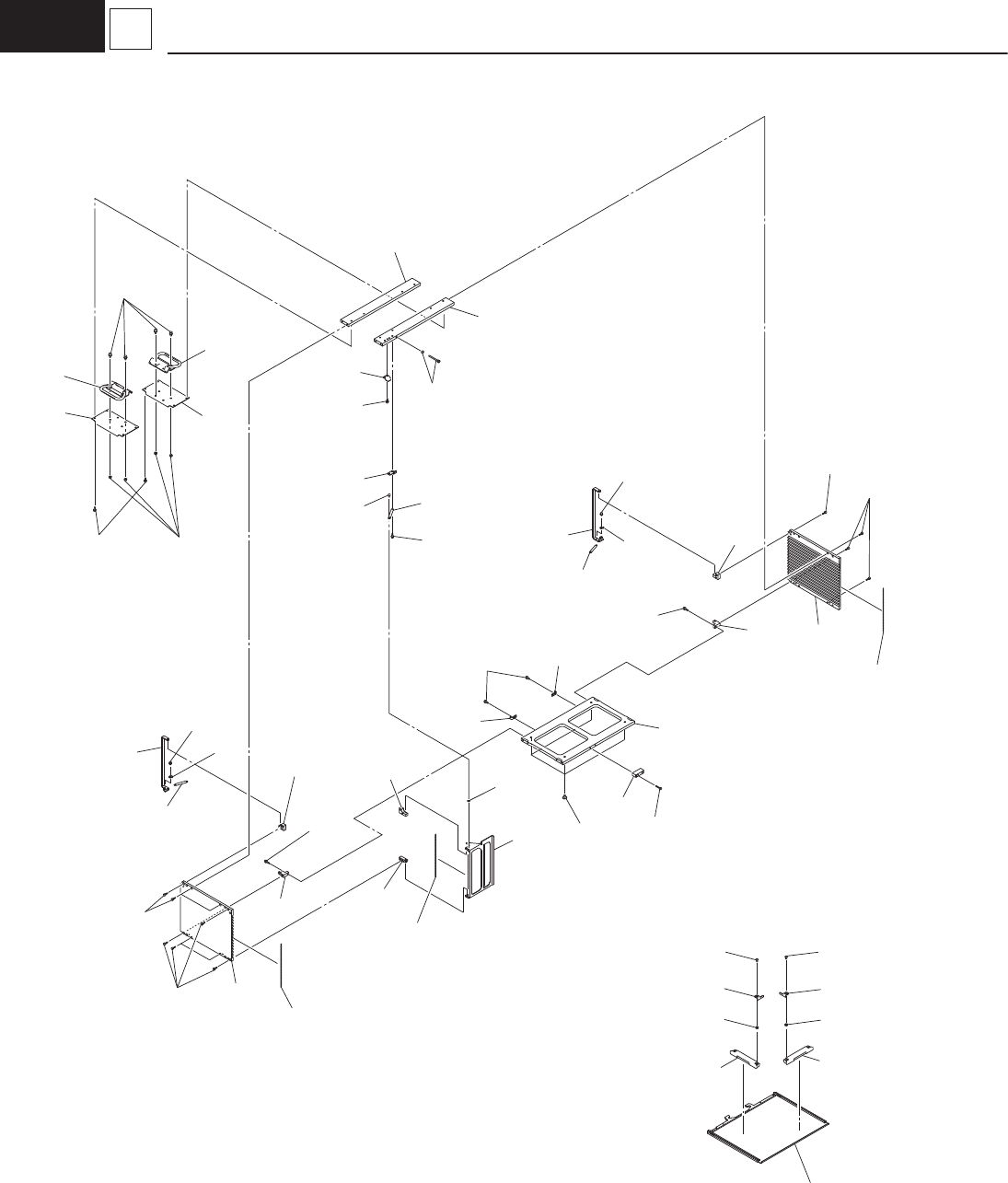

– 25 –
ELEVATOR SECTION
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
902 KYC-M170U-00 0921G105 PALLET 15
911 KYC-M171N-00 0921G006 PLATE 1
912 KYC-M171M-00 0921G002 PLATE 1
913 KYC-M173P-00 211J1227 STAY 1
914 KYC-M173R-00 211J1228 STAY 1
915 KYC-M170S-00 0921G003 STAY 1
916 KYC-M173J-00 211D9807 PLATE 2
917 KYC-M176U-00 211G3655 BLOCK 1
918 KYC-M176N-00 211G3590 BLOCK 1
919 KYC-M175L-00 0921G00N BLOCK 1
920 KYC-M175K-00 0921G00F BLOCK 2
921 KYC-M175M-00 0921G00P BLOCK 1
923 KYC-M171R-00 0921G00M LEVER 1
924 KYC-M171P-00 0921G00K LEVER 1
927 KYC-M175J-00 0921G00B BLOCK 1
928 KYC-M176A-00 211F8530 BRACKET 1
929 KYC-M176B-00 211F8531 BRACKET 1
930 KYC-M176C-00 211F8532 BRACKET 1
931 KYC-M176E-00 211F8553 BRACKET 1
932 KYC-M176P-00 211G3599 BLOCK 2
933 KYC-M177C-00 221E0308 BOLT 4
934 KYC-M177G-00 222N0127 SPRING TENSION 2
935 KYC-M170T-00 0921G00D LEVER 1
936 KYC-M177K-00 226D0109 GRIP 2
937 KYC-M175N-00 0921G00R BOLT 1
938 KYC-M177H-00 222N0618 SPRING TENSION 1
939 KYC-M177M-00 6P460139 NAMEPLATE_INDEX 3
940 91312-04006 221AA015 BOLT,HEX.SOCKET HEAD 2 M4L6
941 91312-04012 221AA018 BOLT,HEX.SOCKET HEAD 42 M4L12
942 91312-04016 221AA020 BOLT,HEX.SOCKET HEAD 2 M4L16
943 91312-04020 221AA021 BOLT,HEX.SOCKET HEAD 2 M4L20
944 91312-05010 221AA029 BOLT,HEX.SOCKET HEAD 8 M5L10
945 95302-04700 221FA008 NUT,HEXAGON 1 M4
946 95302-05600 221FA009 NUT,HEXAGON 8 M5
949 98502-04008 221DA022 SCREW,PAN HEAD 1 PAN M4L8
950 92902-04200 221HA104 WASHER 18 FW4
961 KYB-M1701-00 08069901 ASSY_MAGNET 2
962 KYB-M1704-00 211F8808 BRACKET 1
963 KYB-M1705-00 211F8809 BRACKET 1
964 98702-03006 221DA106 MACHINE_SCREW 2 FLT M3L6
965 95302-03600 221FA005 NUT_HEX 2 M3
1304-001
– 26 –
K1

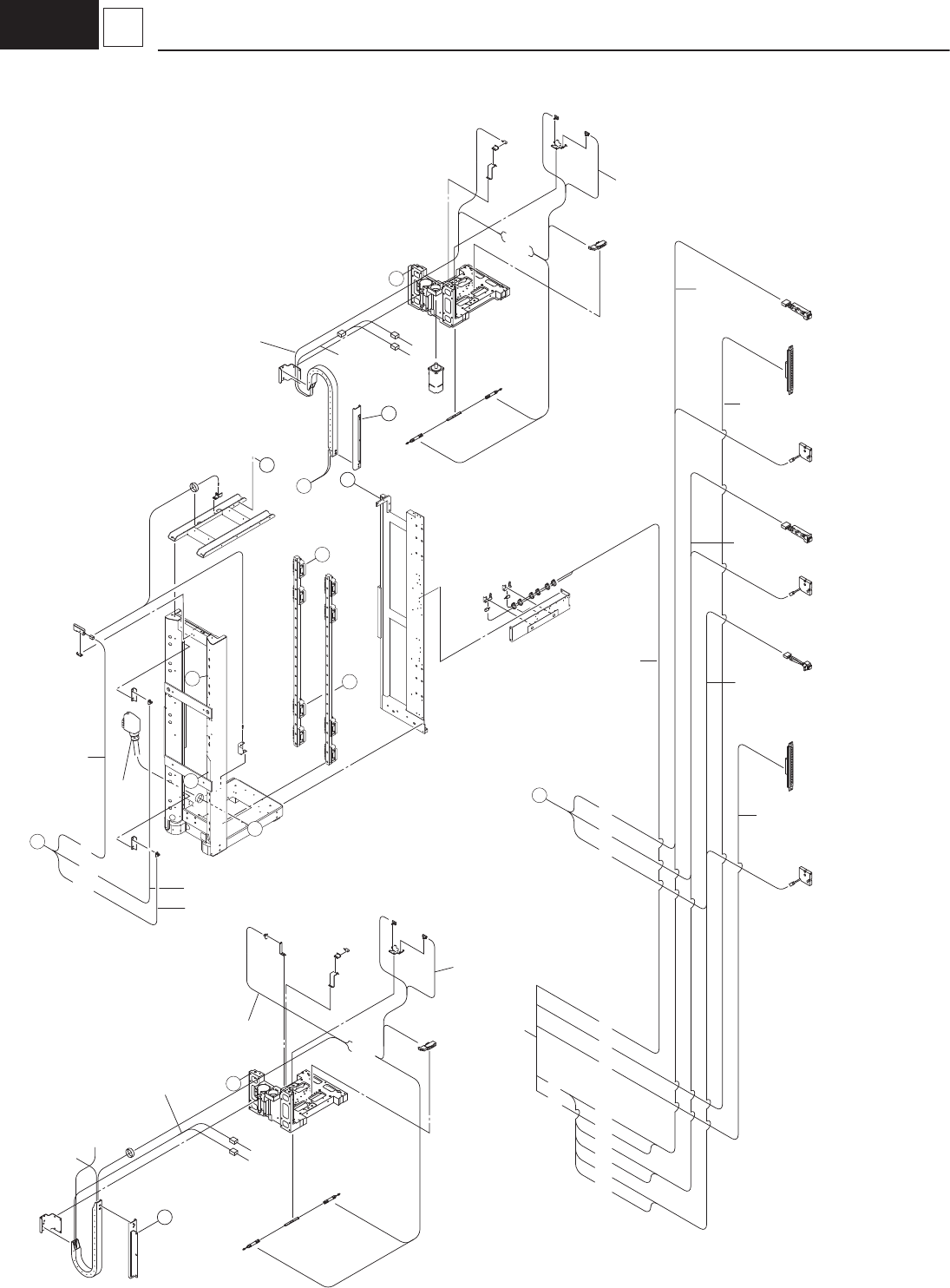

11 Cable
