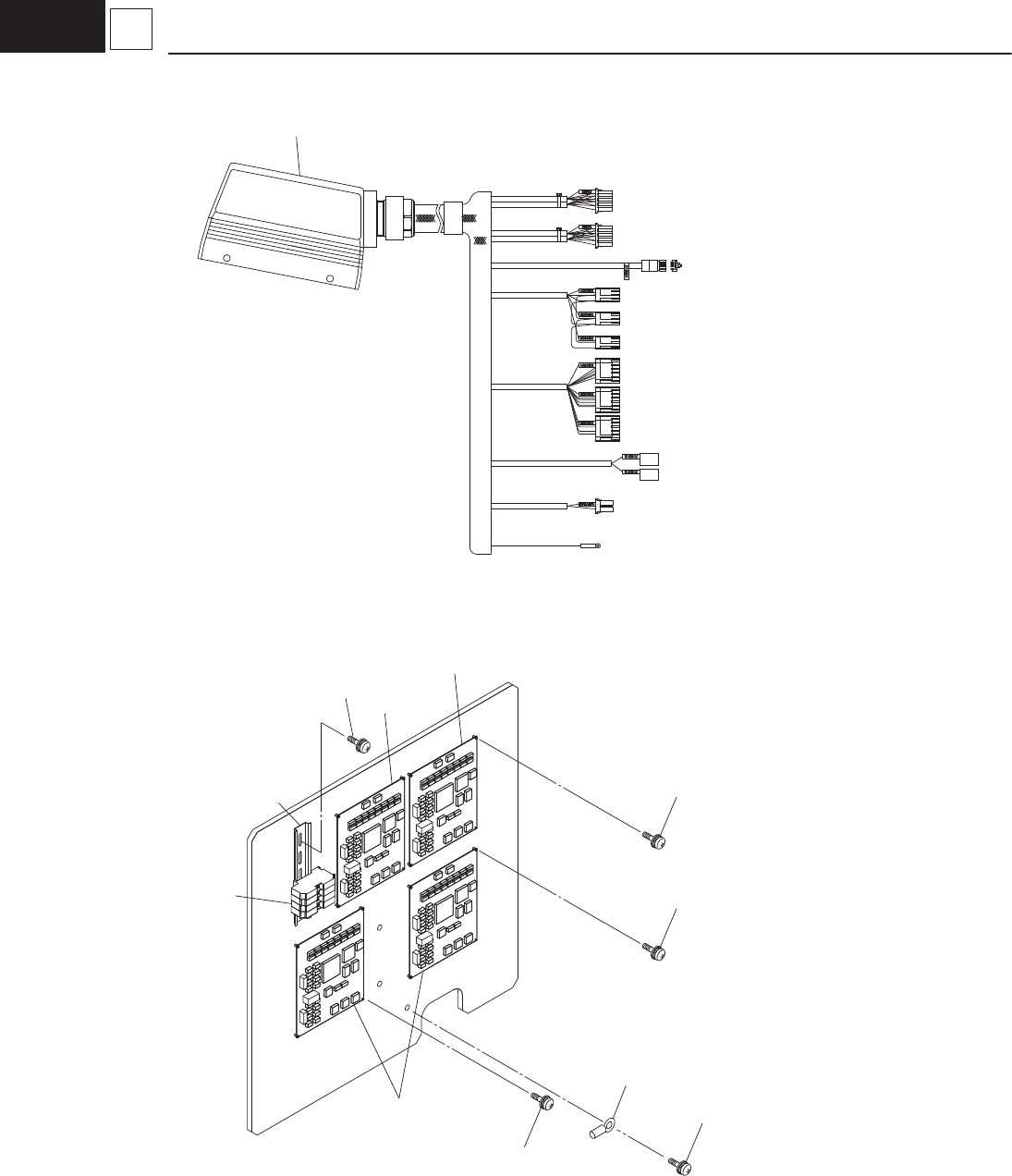

– 28 – K1 1 1 Cable 1304-001 XM02 XS0501 1-EV24G U152 U153 U154 U155 XS0503 XS0502 A01 XM03 X1 5201 X15212 X15213 XB0202 XB0201 XB0302 A32 A33 A32 A31 A34 A36 A39 A38 A37 A41 A40 ELECTRICAL BOX A33 A33 A34 A35
– 27 –
ELEVATOR SECTION
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
A01 KYC-M1712-00 1015A301 HNS,FEED-BUNDLE 1
A02 KYC-M172U-00 1015A302 HNS,SW-UP 1
A03 KYC-M172V-00 1015A303 HNS,SW-DN 1
A04 KYC-M175V-00 1015A30G HNS,PALETTE-DETECT 1
A05 KYC-M172W-00 1015A305 HNS,SAFETY-SW-DN 1
A06 KYC-M172X-00 1015A306 HNS,SAFETY-SW-UP 1
A07 KYC-M172Y-00 1015A307 HNS,SAFETY-SW-MG 1
A09 KYC-M175B-00 0921E50C HNS,XB0302-B0302 1
A10 KYC-M175A-00 0921E50B HNS,XB0201-B0201 1
A11 KYC-M175T-00 1015A304 HNS,PALETTE-OUT 1
A12 KYC-M174L-00 4W205241 HNS,XM03-M03 1
A13 KYC-M1733-00 1015A30D HNS,UP-MG-SENSOR1 1
A14 KYC-M1734-00 1015A30E HNS,UP-MG-SENSOR2 1
A16 KYC-M174K-00 4W205240 HNS,XM02-M02 1
A17 KYC-M1730-00 1015A30A HNS,DN-MG-SENSOR1 1
A18 KYC-M1731-00 1015A30B HNS,DN-MG-SENSOR2 1
A31 KYC-M171W-00 10150324 ASSY-UB95-EL 1
A32 KYB-M918U-00 1015011Z ASSY-UB95-WRITE 3
A33 90990-11J012 221DA057 SCREW,PAN HEAD WW 16 PAN M3L14 SW+FW
A34 90990-11J016 221DA053 SCREW,PAN HEAD WW 6 PAN M4L6 SW+FW
A35 KYB-M65AW-00 23N30632 WIRING 3
A36 KYB-M65AS-00 23N30497 RAIL-WIRING 1
A37 KYB-M65AV-00 23N30612 ACCESS-WIRING 1
A38 KYB-M941P-00 23N30519 ACCESS-WIRING 2
A39 KYB-M65BC-00 4J320187 TERMINAL 4
A40 KYB-M65AU-00 23N30524 ACCESS-WIRING 4
A41 KYB-M6587-00 23N10027 TERMINAL 2
1710-001
– 29 –
ELEVATOR SECTION
1304-001
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
A01 KYC-M1712-00 1015A301 HNS,FEED-BUNDLE 1
A02 KYC-M172U-00 1015A302 HNS,SW-UP 1
A03 KYC-M172V-00 1015A303 HNS,SW-DN 1
A04 KYC-M175V-00 1015A30G HNS,PALETTE-DETECT 1
A05 KYC-M172W-00 1015A305 HNS,SAFETY-SW-DN 1
A06 KYC-M172X-00 1015A306 HNS,SAFETY-SW-UP 1
A07 KYC-M172Y-00 1015A307 HNS,SAFETY-SW-MG 1
A09 KYC-M175B-00 0921E50C HNS,XB0302-B0302 1
A10 KYC-M175A-00 0921E50B HNS,XB0201-B0201 1
A11 KYC-M175T-00 1015A304 HNS,PALETTE-OUT 1
A12 KYC-M174L-00 4W205241 HNS,XM03-M03 1
A13 KYC-M1733-00 1015A30D HNS,UP-MG-SENSOR1 1
A14 KYC-M1734-00 1015A30E HNS,UP-MG-SENSOR2 1
A16 KYC-M174K-00 4W205240 HNS,XM02-M02 1
A17 KYC-M1730-00 1015A30A HNS,DN-MG-SENSOR1 1
A18 KYC-M1731-00 1015A30B HNS,DN-MG-SENSOR2 1
A31 KYC-M171W-00 10150324 ASSY-UB95-EL 1
A32 KYB-M918U-00 1015011Z ASSY-UB95-WRITE 3
A33 90990-11J012 221DA057 SCREW,PAN HEAD WW 16 PAN M3L14 SW+FW
A34 90990-11J016 221DA053 SCREW,PAN HEAD WW 6 PAN M4L6 SW+FW
A35 KYB-M65AW-00 23N30632 WIRING 3
A36 KYB-M65AS-00 23N30497 RAIL-WIRING 1
A37 KYB-M65AV-00 23N30612 ACCESS-WIRING 1
A38 KYB-M941P-00 23N30519 ACCESS-WIRING 2
A39 KYB-M65BC-00 4J320187 TERMINAL 4
A40 KYB-M65AU-00 23N30524 ACCESS-WIRING 4
A41 KYB-M6587-00 23N10027 TERMINAL 2
