– 31 –

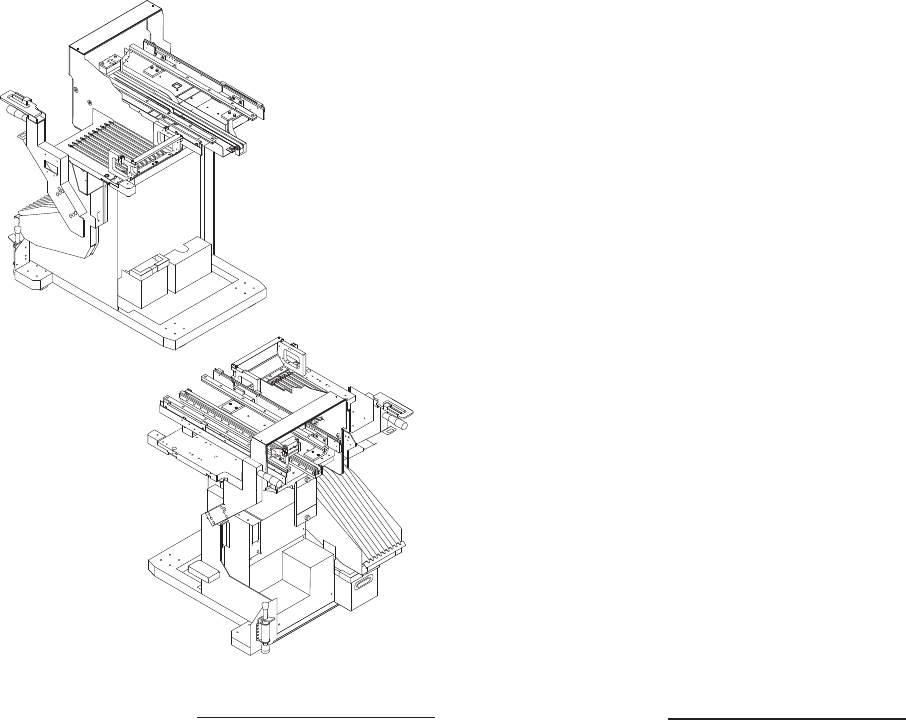

UNIT-13: TRAVERSE CART(FULL), CUTTER SECTION
CONTENTS
N1 TRAVERSE CART SECTION(FULL) 32
1 Reel Holder, Box 32
2 Frame Section 36
3 Clamp Lever-1 38
4 Upper Base 42
5 Pallet Chuck 46
6 Lower Base 48
7 Clamp Lever-2 50
8 Electrical Box 1 52
9 Cable 1 56
10 Electrical Box 2 58
11 Cable 2 60
– 32 –
N1
N1 TRAVERSE CART SECTION(FULL)
1 Reel Holder, Box
1304-001
11
13
11
13
5
32
7
8
9
20
15
34
33
See Fig. N1-2
Key No.101
See Fig. N1-3
Key No.208
6
20
34
15
– 33 –
TRAVERSE CART SECTION(FULL)
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
5 KYC-M183P-00 211AE156 COVER 1
6 90990-66J017 221DA221 RO_MACHIN_SCREW 2 TRS M5L8
7 KYC-M181Y-00 0921F00L COVER 1
8 KYC-M181W-00 0921F00D COVER 1
9 KYC-M181X-00 0921F00E COVER 1
10 KYC-M1820-00 0921F00T BOX 1
11 91312-04008 221AA016 BOLT,HEX.SOCKET HEAD 6 M4L8
12 91312-04010 221AA017 BOLT,HEX.SOCKET HEAD 6 M4L10
13 92902-04200 221HA104 WASHER 10 FW4
14 KYB-M65A9-00 221HA302 ROHS_WASHER 2 BW4
15 90990-66J012 221DA207 SCREW,TRUSS HEAD 18 TRS M4L6
16 90990-11J017 221DA062 SCREW,PAN HEAD WW 4 PAN M4L8 SW+FW
17 KYC-M185L-00 0921D00J BRACKET 1
19 90990-11J019 221DA063 SCREW,PAN HEAD WW 2 PAN M4L12 SW+FW
20 91312-06010 221AA041 BOLT,HEX.SOCKET HEAD 10 M6L10
25 KYC-M181R-00 0921D00D BOX 1
27 KYB-M121F-00 0921E204 ACCESSORY-WRING 1
28 KYB-M656D-00 0920E302 ACCESS-WIRING 15
29 KYB-M65AB-00 226J0373 MOUNTING-BASE 5
32 KYC-M181M-00 0921C800 BRACKET 1
33 KYC-M181N-00 0921C801 BRACKET 1
34 KYB-M132C-00 221HA304 ROHS_WASHER 6
41 KYC-M1801-00 0921D00W BOX 1
42 KYC-M183V-00 211DE982 PLATE 9
43 KYC-M1816-00 0920E20K LEVER_1 10
44 KYC-M1845-00 213A1631 SHAFT 1
45 KYC-M1842-00 212A2762 GUIDE 1
46 KYC-M183T-00 211DE555 PLATE 1
48 91312-05008 221AA028 BOLT,HEX.SOCKET HEAD 5 M5L8
50 92902-05200 221HA105 WASHER 5 FW5
51 90990-66J018 221DA213 SCREW,TRUSS HEAD 2 TRS M5L10
1304-001
