P-0332-001_MULTI-LAYER_TRAY-FEEDER - 第42页

– 36 – N1 2 Frame Section 1304-001 11 7 101 104 103 103 105 145 145 144 144 11 7 11 7 11 7 131 132 131 132 131 132 131 132 11 9 11 8 11 8 133 133 140 138 140 138 147 147 149 149 146 132 134 146 132 134 135 137 137 120 12…

100%1 / 84
– 35 –
TRAVERSE CART SECTION(FULL)
1304-001
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
5 KYC-M183P-00 211AE156 COVER 1
6 90990-66J017 221DA221 RO_MACHIN_SCREW 2 TRS M5L8
7 KYC-M181Y-00 0921F00L COVER 1
8 KYC-M181W-00 0921F00D COVER 1
9 KYC-M181X-00 0921F00E COVER 1
10 KYC-M1820-00 0921F00T BOX 1
11 91312-04008 221AA016 BOLT,HEX.SOCKET HEAD 6 M4L8
12 91312-04010 221AA017 BOLT,HEX.SOCKET HEAD 6 M4L10
13 92902-04200 221HA104 WASHER 10 FW4
14 KYB-M65A9-00 221HA302 ROHS_WASHER 2 BW4
15 90990-66J012 221DA207 SCREW,TRUSS HEAD 18 TRS M4L6
16 90990-11J017 221DA062 SCREW,PAN HEAD WW 4 PAN M4L8 SW+FW
17 KYC-M185L-00 0921D00J BRACKET 1
19 90990-11J019 221DA063 SCREW,PAN HEAD WW 2 PAN M4L12 SW+FW
20 91312-06010 221AA041 BOLT,HEX.SOCKET HEAD 10 M6L10
25 KYC-M181R-00 0921D00D BOX 1
27 KYB-M121F-00 0921E204 ACCESSORY-WRING 1
28 KYB-M656D-00 0920E302 ACCESS-WIRING 15
29 KYB-M65AB-00 226J0373 MOUNTING-BASE 5
32 KYC-M181M-00 0921C800 BRACKET 1
33 KYC-M181N-00 0921C801 BRACKET 1
34 KYB-M132C-00 221HA304 ROHS_WASHER 6
41 KYC-M1801-00 0921D00W BOX 1
42 KYC-M183V-00 211DE982 PLATE 9
43 KYC-M1816-00 0920E20K LEVER_1 10
44 KYC-M1845-00 213A1631 SHAFT 1
45 KYC-M1842-00 212A2762 GUIDE 1
46 KYC-M183T-00 211DE555 PLATE 1
48 91312-05008 221AA028 BOLT,HEX.SOCKET HEAD 5 M5L8
50 92902-05200 221HA105 WASHER 5 FW5
51 90990-66J018 221DA213 SCREW,TRUSS HEAD 2 TRS M5L10
– 36 –
N1

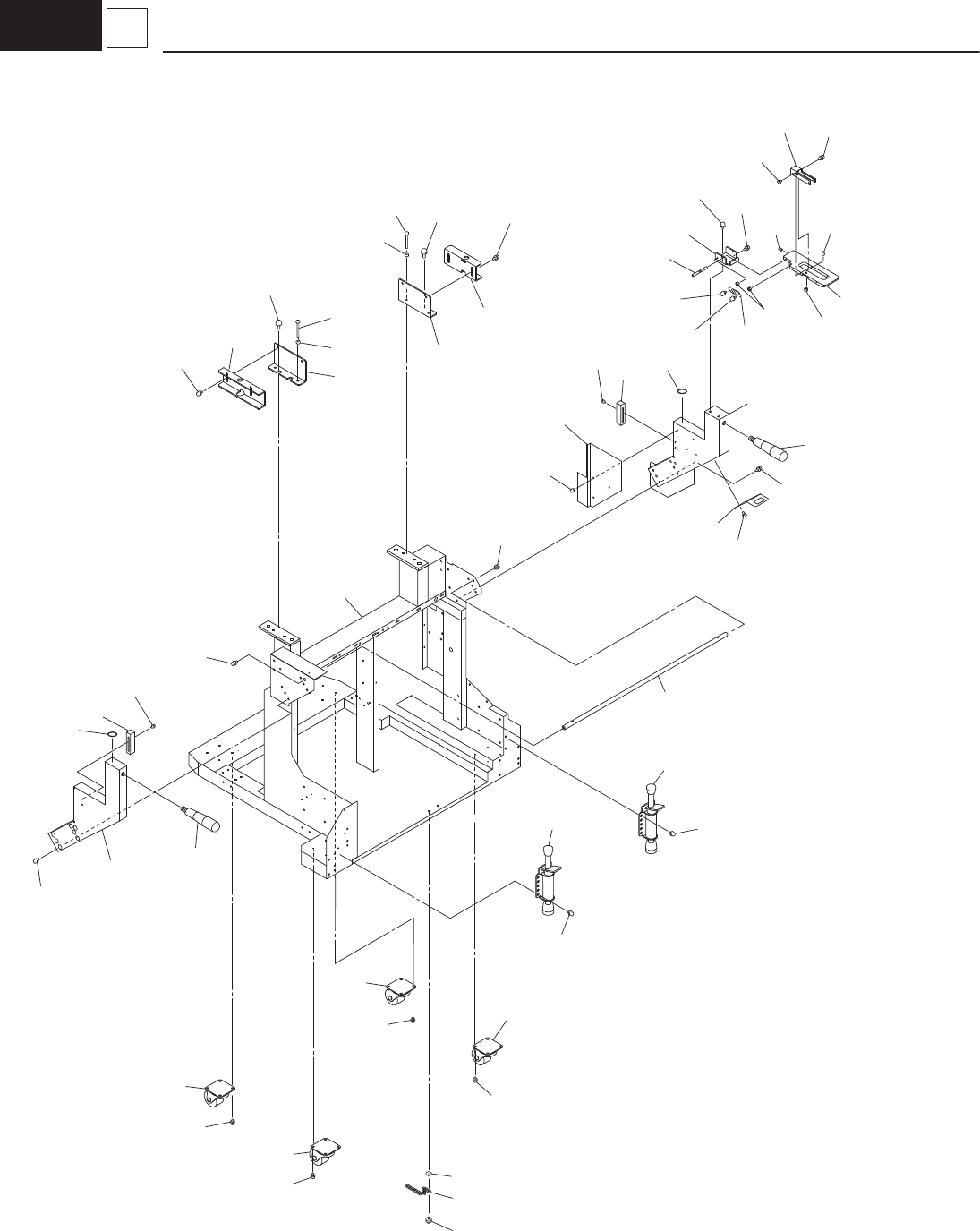

2 Frame Section
1304-001
117
101
104
103
103
105
145
145
144
144
117
117
117
131
132
131
132
131
132
131
132
119
118
118
133
133
140
138
140
138
147
147
149
149
146
132
134
146
132
134
135
137
137
120
122
141
136
143
106
110
112
150
155
155
151
121
134
153
154
142
157
152
123
133
116
102
108
150
113
114
11
1
120
107
133
141
136
143
106
158
158
– 37 –
TRAVERSE CART SECTION(FULL)
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
101 KYC-M180E-00 0921D00U FRAME 1
102 KYC-M1844-00 213A1630 SHAFT 1
103 KYC-M183W-00 211FD760 BRACKET 2
104 KYC-M1840-00 211K3656 SUPPORT 1
105 KYC-M1841-00 211K3657 SUPPORT 1
106 KYC-M186U-00 211FE897 BRACKET 2
107 KYC-M180M-00 0921D00F HANDLE 1
108 KYC-M180N-00 0921D00X SUPPORT 1
110 KYC-M183M-00 211AD768 COVER 1
111 KYC-M181P-00 0921D003 PLATE 1
112 KYB-M371S-00 212A2483 GUIDE 1
113 KYC-M181S-00 0921D00T BRACKET 1
114 KYC-M185H-00 0921D005 SHAFT 1
116 KYC-M185G-00 0921D000 PLATE 1
117 KYL-M86H4-00 226E0069 CASTER 4
118 KYB-M3734-00 226J2295 CASTER 2
119 KYB-M3732-00 223R0111 CHAIN 1
120 KYC-M184P-00 226D0140 GRIP 2
121 90990-01J126 221E0302 BOLT 2
122 KYC-M184G-00 222N0666 SPRING_TENSION 1
123 KYC-M1852-00 0920E20D BALL_PLANGERS 1
131 91312-06008 221AA140 BOLT,HEX.SOCKET HEAD 16 M6L8
132 92902-06100 221HA006 WASHER,SPRING 20 SW6
133 91312-06010 221AA041 BOLT,HEX.SOCKET HEAD 16 M6L10
134 92902-06200 221HA106 WASHER 6 FW6
135 91312-04014 221AA019 BOLT,HEX.SOCKET HEAD 1 M4L14
136 92902-04100 221HA004 WASHER 4 SW4
137 KYB-M65A9-00 221HA302 ROHS_WASHER 3 FW4
138 91312-05016 221AA031 ROHS_HEX-SCT 2 M5L16
140 92902-05200 221HA105 WASHER 2 FW5
141 91312-04025 221AA022 BOLT,HEX.SOCKET HEAD 4 M4L25
142 95302-04600 221FA007 NUT,HEXAGON 2 M4
143 92902-04200 221HA104 WASHER 9 FW4
144 90990-07J011 221BA030 BOLT,HEXAGON 4 BOLT HEX M6L50
145 95302-06600 221FA011 NUT,HEXAGON 4 M6
146 91312-06012 221AA042 BOLT,HEX.SOCKET HEAD 4 M6L12
147 97002-08016 221BA032 BOLT,HEXAGON 4 BOLT HEX M8L16
149 92902-08200 221HA107 WASHER,PLAIN 4 FW8
150 90990-66J012 221DA207 SCREW,TRUSS HEAD 5 TRS M4L6
151 91312-06014 221AA240 BOLT,HEX.SOCKET HEAD 2 M6L14
152 95302-06700 221FA012 NUT_HEX 1 M6
153 91312-04010 221AA017 BOLT,HEX.SOCKET HEAD 1 M4L10
154 91312-04016 221AA020 BOLT,HEX.SOCKET HEAD 1 M4L16
155 91312-04008 221AA016 BOLT,HEX.SOCKET HEAD 3 M4L8
157 90990-02J024 221CA005 SCREW,SET 1 SET M4L6
158 KYC-M189Y-00 MARK LABEL ASSY 2
1304-001
