– 40 – N1 No. Part No. Part Name Qty . Detail Y amaha Hitachi 203 KYC-M1800-00 0921B306 BASE 1 205 KYC-M182F-00 1015012G ASSY -NEARBYSENSOR-L 1 206 KYC-M182G-00 1015012H ASSY -NEARBYSENSOR-R 1 208 KYC-M180B-00 1015A22C B…
– 39 –

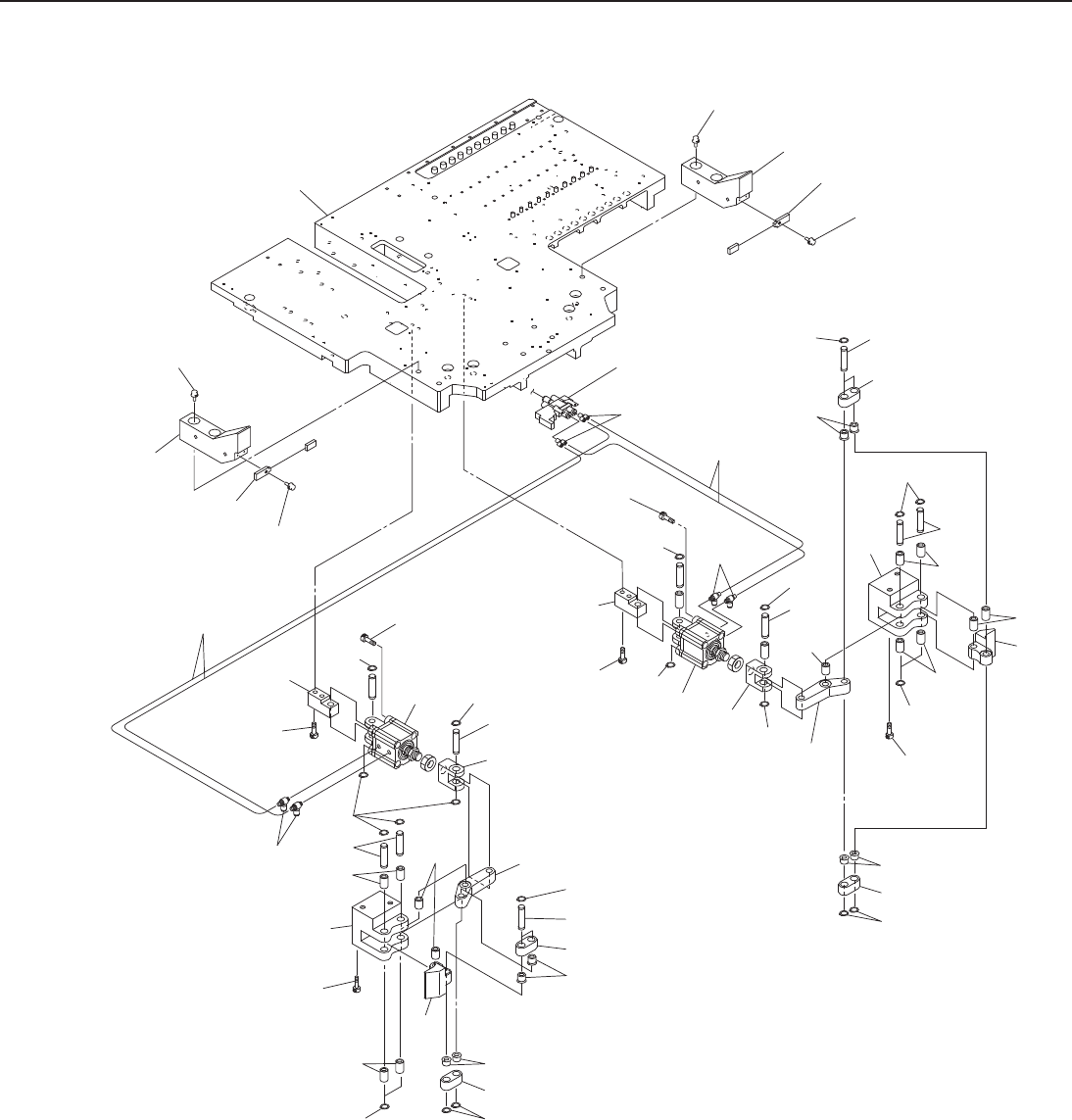

TRAVERSE CART SECTION(FULL)
1304-001
208
203
253
258
255
206
205
256
239
238
234
231
233
237
237
232
236
235
251
254
257
2A3
293
2B8
246
246
246
246
233
237
253
260
259
252
288
215
213
215
213
210
210
209
209
265
266
264
263
266
257
257
261
262
261
266
260
266
266
262
266
266
266
241
242
241
240
240
246
246
245
244
243
2A3
293
2B8
2A3
293
2B8
288
See Fig. N1-7
Key No.651
2A3
293
2B8
272
– 40 –
N1
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
203 KYC-M1800-00 0921B306 BASE 1
205 KYC-M182F-00 1015012G ASSY-NEARBYSENSOR-L 1
206 KYC-M182G-00 1015012H ASSY-NEARBYSENSOR-R 1
208 KYC-M180B-00 1015A22C BASE 1
209 KYC-M183H-00 1015A225 BLOCK 2
210 98502-03010 221DA012 SCREW,PAN HEAD 2 PAN M3L10
213 91312-08035 221AA059 BOLT,HEX.SOCKET HEAD 4 M8L35
215 92902-08200 221HA107 WASHER,PLAIN 4 FW8
216 KYC-M181L-00 0921C200 MECH_PARTS 1
217 KYC-M184R-00 226J2623 MECH_PARTS 2
218 90990-66J007 221DA202 SCREW,TRUSS HEAD 4 TRS M3L4
221 KYC-M180A-00 1015A211 COVER 1
222 KYC-M186E-00 1015A21Q EDGING 1
223 KYC-M181J-00 0921B802 COVER 1
224 90990-66J012 221DA207 SCREW,TRUSS HEAD 2 TRS M4L6
231 KYC-M1829-00 1015012A ASSY-CLAMP-SENSOR-L 1
232 KYC-M1818-00 0921A056 VALVE 2
233 KYC-M186V-00 211G6045 BLOCK 2
234 KYC-M186W-00 211G6046 BLOCK 1
235 KYC-M183Y-00 211G6376 BLOCK 1
236 KYC-M183F-00 1015A21Z BLOCK 1
237 KYC-M1873-00 216D0607 PIN_HINGE 4
238 KYC-M186X-00 211G6445 BLOCK 1
239 KYC-M1846-00 214B0241 LINK 1
240 KYC-M184B-00 222D0441 BEARING_RADIAL 4
241 KYC-M184C-00 222D0442 BEARING_RADIAL 4
242 KYC-M184D-00 222E0020 BEARING_THRUST- 4
243 91312-06016 221AA043 BOLT,HEX.SOCKET HEAD 4 M6L16
244 92902-06200 221HA106 WASHER 4 FW6
245 92902-06100 221HA006 WASHER,SPRING 4 SW6
246 99009-10400 221K0076 CIRCLIP 12 C RING 10
251 KYC-M182A-00 1015012B ASSY-CLAMP-SENSOR-R 1
252 KYC-M1818-00 0921A056 VALVE 2
253 KYC-M186V-00 211G6045 BLOCK 2
254 KYC-M186W-00 211G6046 BLOCK 1
255 KYC-M183Y-00 211G6376 BLOCK 1
256 KYC-M183G-00 1015A220 BLOCK 1
257 KYC-M1873-00 216D0607 PIN_HINGE 4
258 KYC-M186X-00 211G6445 BLOCK 1
259 KYC-M1846-00 214B0241 LINK 1
260 KYC-M184B-00 222D0441 BEARING_RADIAL 4
3 Clamp Lever-1
1304-001
– 41 –
TRAVERSE CART SECTION(FULL)
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
261 KYC-M184C-00 222D0442 BEARING_RADIAL 4
262 KYC-M184D-00 222E0020 BEARING_THRUST- 4
263 91312-06016 221AA043 BOLT,HEX.SOCKET HEAD 4 M6L16
264 92902-06200 221HA106 WASHER 4 FW6
265 92902-06100 221HA006 WASHER,SPRING 4 SW6
266 99009-10400 221K0076 CIRCLIP 12 C RING 10
272 KYB-M8515-00 1005AB0W PIPE_FITTINGS 2
278 KYC-M185P-00 0921D302 TUBE_D6 1
288 91312-06040 221AA048 BOLT,HEX.SOCKET HEAD 4 M6L40
289 91312-08030 221AA058 BOLT,HEX.SOCKET HEAD 4 M8L30
293 92902-06200 221HA106 WASHER 4 FW6
294 92902-08200 221HA107 WASHER,PLAIN 4 FW8
2A2 92902-08100 221HA007 WASHER,SPRING 8 SW8
2A3 92902-06100 221HA006 WASHER,SPRING 4 SW6
2B8 91312-06025 221AA045 BOLT,HEX.SOCKET HEAD 4 M6L25
