– 45 – TR A V ERS E C A RT SECTIO N (FU LL ) No. Part No. Part Name Qty . Detail Y amaha Hitachi 347 90990-01J137 221AA091 BOL T ,HEX.S/H WW 38 M5L12 348 90990-01J137 221AA091 BOL T ,HEX.S/H WW 2 M3L10 SW+FWS 350 KYC-M18…
– 44 –

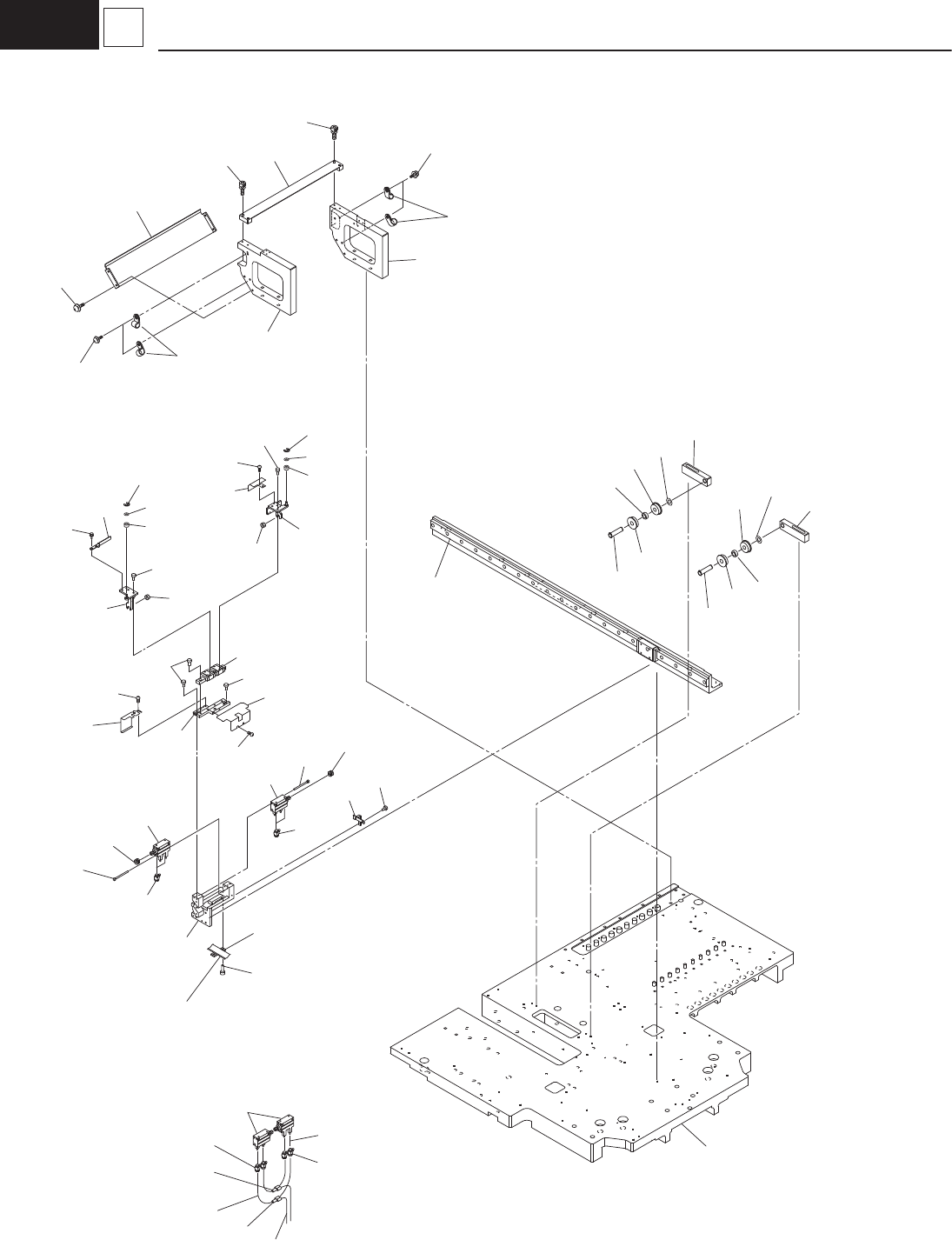

N1
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
302 KYC-M1815-00 1015A22B BRACKET 1
303 KYC-M1827-00 10150128 ASSY-PCHUCK-SENSOR 1
304 KYC-M1828-00 10150129 ASSY-PALETTE-SENSOR 1
305 KYC-M1823-00 10150123 ASSY-TRAY12MM-SENSOR 1
306 KYC-M1824-00 10150124 ASSY-TRAY20MM-SENSOR 1
307 KYC-M1826-00 10150126 ASSY-TRAY30MM-SENSOR 1
309 KYC-M1817-00 0921160J ASSY-OR-SENSOR 1
310 KYC-M182D-00 1015012E ASSY-SUCTION-MISSAMP 1
311 KYC-M182E-00 1015012F ASSY-UNHOOKAMP 1
315 KYC-M183C-10 PLATE 2 ‘-00’ Compatible
316 KYC-M183U-10 GUIDE 2 ‘-00’ Compatible
317 KYC-M183B-00 1015A20P BRACKET 4
318 KYC-M1856-00 0921B10B SHAFT 2
319 KYC-M1836-00 1015A209 BRACKET 4
320 KYC-M1812-00 1015A206 CHUTE 1
321 KYC-M1813-00 1015A20N CHUTE 1
322 KYC-M1811-00 1015A201 GUIDE 1
323 KYC-M1834-00 1015A207 GUIDE 1
324 KYC-M1835-00 1015A208 GUIDE 1
325 KYC-M1839-00 1015A20J COVER 2
326 KYC-M186C-00 1015A20K BRACKET 1
327 KYC-M1866-00 1015A202 PLATE 1
328 KYC-M1867-00 1015A203 PLATE 1
329 KYC-M1868-00 1015A204 PLATE 2
330 KYC-M186K-00 1015A21W BRACKET 1
331 KYC-M186L-00 1015A21X BRACKET 1
332 KYC-M186A-00 1015A20F BLOCK 1
333 91312-03025 221AA012 BOLT,HEX.SOCKET HEAD 2 M3L25
334 92902-03200 221HA103 WASHER,PLAIN 7 FW3
335 KYU-M86AG-00 23G00183 SENSOR,PELEC(SLIT) 4
336 KYC-M1855-00 0921B106 PULLEY_TIMING 2
337 90933-13J688 222D0050 BEARING_RADIAL 4
338 KYC-M181K-00 0921C100 GUIDE_LINEAR 1
339 KYC-M184H-00 223L0399 BELT_TIMING 1
340 KYB-M372P-00 211G5359 BLOCK 2
341 KYB-M3711-00 1010E10M PLATE_GUIDE_L 1
342 91312-03008 221AA006 BOLT,HEX.SOCKET HEAD 9 M3L8
343 KYB-M3716-00 1010E10W GUIDE_BLOCK_R 1
344 KYB-M3715-00 1010E10V GUIDE_BLOCK_L 1
345 91312-05010 221AA029 BOLT,HEX.SOCKET HEAD 11 M2.5L6
346 91312-05012 221AA030 ROHS_HEX-SCT 4 M5L10
4 Upper Base
1304-001
– 45 –
TRAVERSE CART SECTION(FULL)
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
347 90990-01J137 221AA091 BOLT,HEX.S/H WW 38 M5L12
348 90990-01J137 221AA091 BOLT,HEX.S/H WW 2 M3L10 SW+FWS
350 KYC-M184T-00 23G10029 SENSOR_PHOTO 1
351 KYB-M3J1N-00 1015A112 AMP-FIBER 1
352 KYC-M184S-00 23G00207 SENSOR_PELEC 2
353 KYC-M1859-00 0921B300 SENSOR_PELEC- 2
354 90990-06J005 0921B20A BOLT,BUTTON HEAD 4
355 KYC-M187C-00 221K1004 RING 4
356 91312-03010 221AA007 ROHS;BOLT_HEX-SCT 2 M3L10
357 91312-04012 221AA018 BOLT,HEX.SOCKET HEAD 14 M4L12
358 91312-04008 221AA016 BOLT,HEX.SOCKET HEAD 20 M4L8
359 91312-05025 221AA033 BOLT,HEX.SOCKET HEAD 4 M5L25
360 91312-05016 221AA031 ROHS_HEX-SCT 22 M5L16
361 90990-11J010 221DA056 SCREW,PAN HEAD WW 2 PAN M3L8 SW+FW
362 91312-05030 221AA034 BOLT,HEX.SOCKET HEAD 4 M5L30
363 KYB-M382C-00 221FA001 NUT_HEX 2 M2
364 90167-02J206 221DA102 SCREW,FLAT HEAD 8 FLT M2L6
365 98702-04008 221DA114 SCREW,FLAT HEAD 8 FLT M4L8
366 90112-2AJ008 221AA002 BOLT,HEX.SOCKET HEAD 2 PAN M2L6
367 90990-01J136 221DA090 ROHS_HEX-SCT 4 M3L6 SW+FWS
368 91312-03006 221AA005 BOLT,HEX.SOCKET HEAD 12 M3L6
369 90166-02J210 221DA004 MACHINE_SCREW 16 PAN M2L10
370 90990-02J019 221CA026 SCREW,SET 4 SET M3L3
371 90171-02J026 221HA101 WASHER,PLAIN 18 FW2
372 92902-03200 221HA103 WASHER,PLAIN 12 FW3
373 92902-04600 221HA204 WASHER,PLAIN 14 FWS4
374 92902-05200 221HA105 WASHER 30 FW5
375 KYC-M1825-00 10150125 ASSY-TRAY24MM-SENSOR 1
376 KYC-M186G-00 1015A21T BRACKET 2
377 KYC-M186J-00 1015A21V BRACKET 1
378 KYC-M1853-00 0921B009 BRACKET 2
379 KYC-M186H-00 1015A21U BRACKET 1
380 KYC-M186F-00 1015A21S BRACKET 2
1304-001
– 46 –
N1
5 Pallet Chuck
1304-001
419
419
405
415
422
417
421
422
417
406
404
409
453
451
452
451
454
443
441
442
441
444
455
445
410
411
411
401
410
401
414
414
422
422
425
425
412
412
403
407
402
431
432
413
415
415
419
420
420
415
415
See Fig. N1-4
Key No.338
See Fig. N1-3
Key No.208
418
484
484
486
483
488
483
487
410
See Fig. N1-4
Key No.339
463
464
462
461
465
466
468
468
467
467
465
408
416
