– 56 – N1 9 Cable 1 1304-001 B15040 B15041 TV1 TV2 TV3 TV4 XB15417 XB15417T M01 803 XB15420 XB15420T B15138 B15044 B15045 B15139 B15138 B15044 B15045 B15139 Y15010 Y15015 Y15010 Y15015 804 804 B15031 B15030 B15131 B15030…
– 55 –
TRAVERSE CART SECTION(FULL)
1304-001
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
701 KYC-M185C-00 0921B502 COVER 1
702 KYC-M186D-00 0921B501 COVER 1
703 KYC-M186R-00 211AE306 COVER 1
704 90990-66J012 221DA207 SCREW,TRUSS HEAD 18 TRS M4L6
707 90990-11J016 221DA053 SCREW,PAN HEAD WW 3 PAN M4L6 SW+FW
708 KYB-M65AW-00 23N30632 WIRING 1
709 KYB-M6588-00 23N20103 TUBE-WIRING 2 RBT-3048
710 KYB-M852E-00 23N30737 ACCESS-WIRING 25
711 KYB-M656D-00 0920E302 ACCESS-WIRING 10
712 KYB-M657Y-00 1015A10B LAN-CABLE 1
713 KYC-M180Y-00 1015A100 HNS,FEED-BUNDLE 1
716 KYB-M370P-00 10051A58 ASSY-EXT-FEEDER-PWR 1
721 KYC-M1814-00 1015A20R BOX 1
722 KYC-M185Y-00 1005EA01 PCB-MOUNT 1
723 KYB-M3739-00 4W204901 HNS,DRAWER 10
724 KYB-M372X-00 221E0298 BOLT 20
725 KYB-M3724-00 0920E30U ACCESSORY-P-C-B 4
726 90990-66J007 221DA202 SCREW,TRUSS HEAD 4 TRS M3L4
728 90990-11J009 221DA051 MACHINE SCREW 4 M3L6
731 KYC-M1809-00 1015A20S BOX 1
732 KYB-MD730-00 226F0186 HINGE 2
733 KYC-M1876-00 23N30727 ACCESSORY-WIRING 2
734 KYB-M65AB-00 226J0373 MOUNTING-BASE 1
735 KYC-M185W-00 1005BC2M HNS,FEED-POW30 1
736 KYC-M185V-00 1005BC2L HNS,FEED-POW50 1
737 KYC-M181G-00 0921B504 SPACER 10
738 KYC-M185X-00 1005EA00 PCB-MOUNT 1
739 KYC-M183D-00 1015A20T COVER 1
741 90990-66J012 221DA207 SCREW,TRUSS HEAD 5 TRS M4L6
743 90990-01J138 221AA099 BOLT,HEX.S/H WW 6 M3L6 SW3+FW3
– 56 –
N1
9 Cable 1
1304-001
B15040
B15041
TV1
TV2
TV3
TV4
XB15417
XB15417T
M01
803
XB15420
XB15420T
B15138
B15044
B15045
B15139
B15138
B15044
B15045
B15139
Y15010
Y15015
Y15010
Y15015
804
804
B15031
B15030
B15131
B15030
B15131
811
801
B15130
B15132
B15132
813
813
X300
B15133
B15133
B0102
B0102
B15035T
B15036T
B15035T
B15036T
B15034T
B15033T
B15034T
B15033T
B15040
B15041
B15040
B15041
815
814
815
814
815
814
802
B15035
B15036
B15034
B15035
B15036
B15033
B15033
B15034
X35
– 57 –

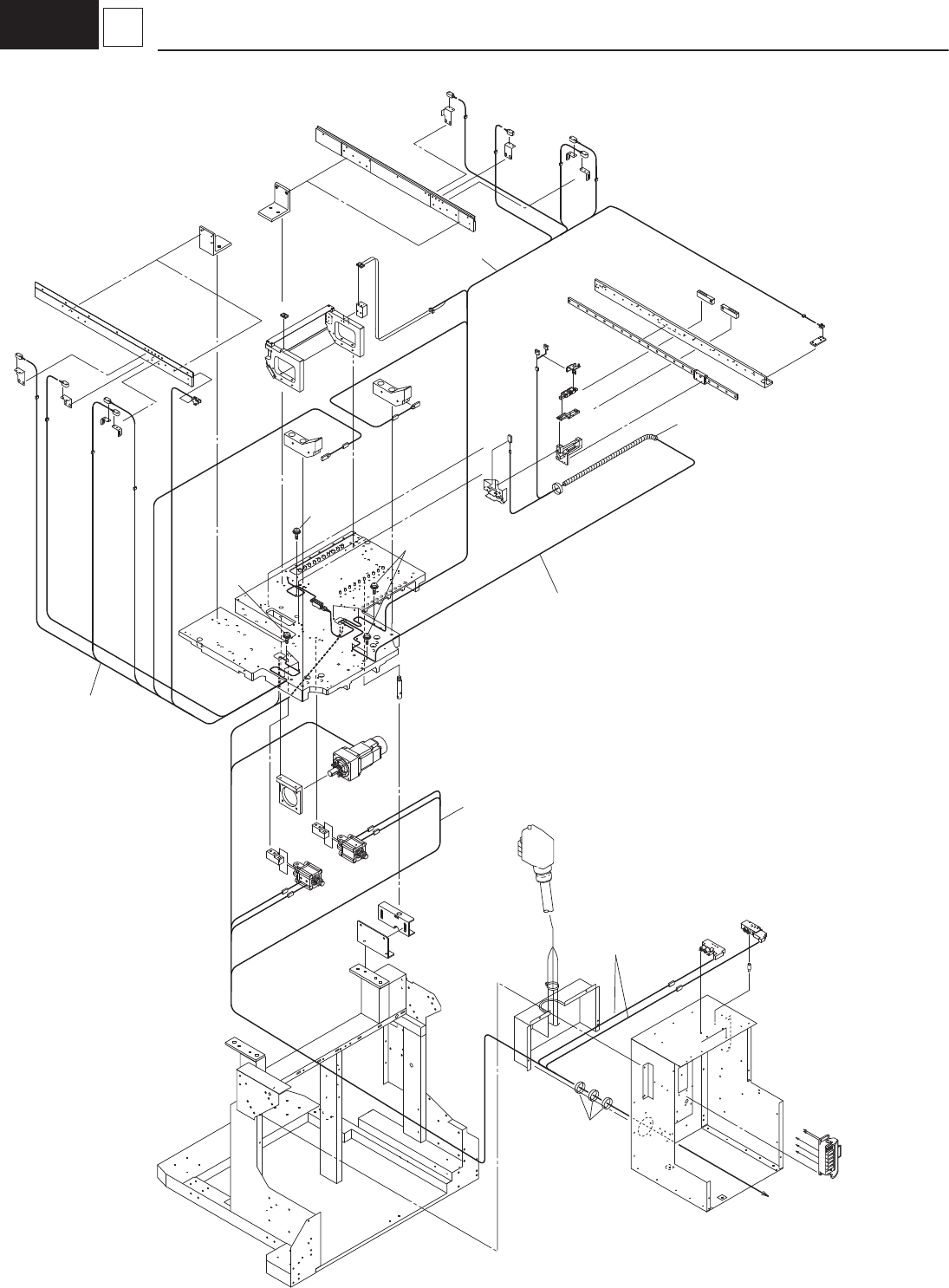

TRAVERSE CART SECTION(FULL)
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
801 KYC-M182U-00 1015A10C HNS,TV-TOP 1
802 KYC-M182V-00 1015A10D HNS,TV-TOP-L 1
803 KYC-M182W-00 1015A10E HNS,TV-TOP-R 1
804 KYC-M182X-00 1015A10F HNS,TV-BACK 1
811 KYB-M410L-00 0921A024 COIL-TUBE 1
812 KYB-M852E-00 23N30737 ACCESS-WIRING 20
813 KYB-M91F7-00 23N30738 CABLE-TIE 5
814 KYB-M65AW-00 23N30632 WIRING 14
815 90990-11J016 221DA053 SCREW,PAN HEAD WW 14 PAN M4L6 SW+FW
1304-001
