P-0332-001_MULTI-LAYER_TRAY-FEEDER - 第63页
– 57 – TR A V ERS E C A RT SECTIO N (FU LL ) No. Part No. Part Name Qty . Detail Y amaha Hitachi 801 KYC-M182U-00 1015A10C HNS,TV -T OP 1 802 KYC-M182V-00 1015A10D HNS,TV -TOP-L 1 803 KYC-M182W-00 1015A10E HNS,TV-T OP-R …
– 56 –
N1
9 Cable 1
1304-001
B15040
B15041
TV1
TV2
TV3
TV4
XB15417
XB15417T
M01
803
XB15420
XB15420T
B15138
B15044
B15045
B15139
B15138
B15044
B15045
B15139
Y15010
Y15015
Y15010
Y15015
804
804
B15031
B15030
B15131
B15030
B15131
811
801
B15130
B15132
B15132
813
813
X300
B15133
B15133
B0102
B0102
B15035T
B15036T
B15035T
B15036T
B15034T
B15033T
B15034T
B15033T
B15040
B15041
B15040
B15041
815
814
815
814
815
814
802
B15035
B15036
B15034
B15035
B15036
B15033
B15033
B15034
X35
– 57 –

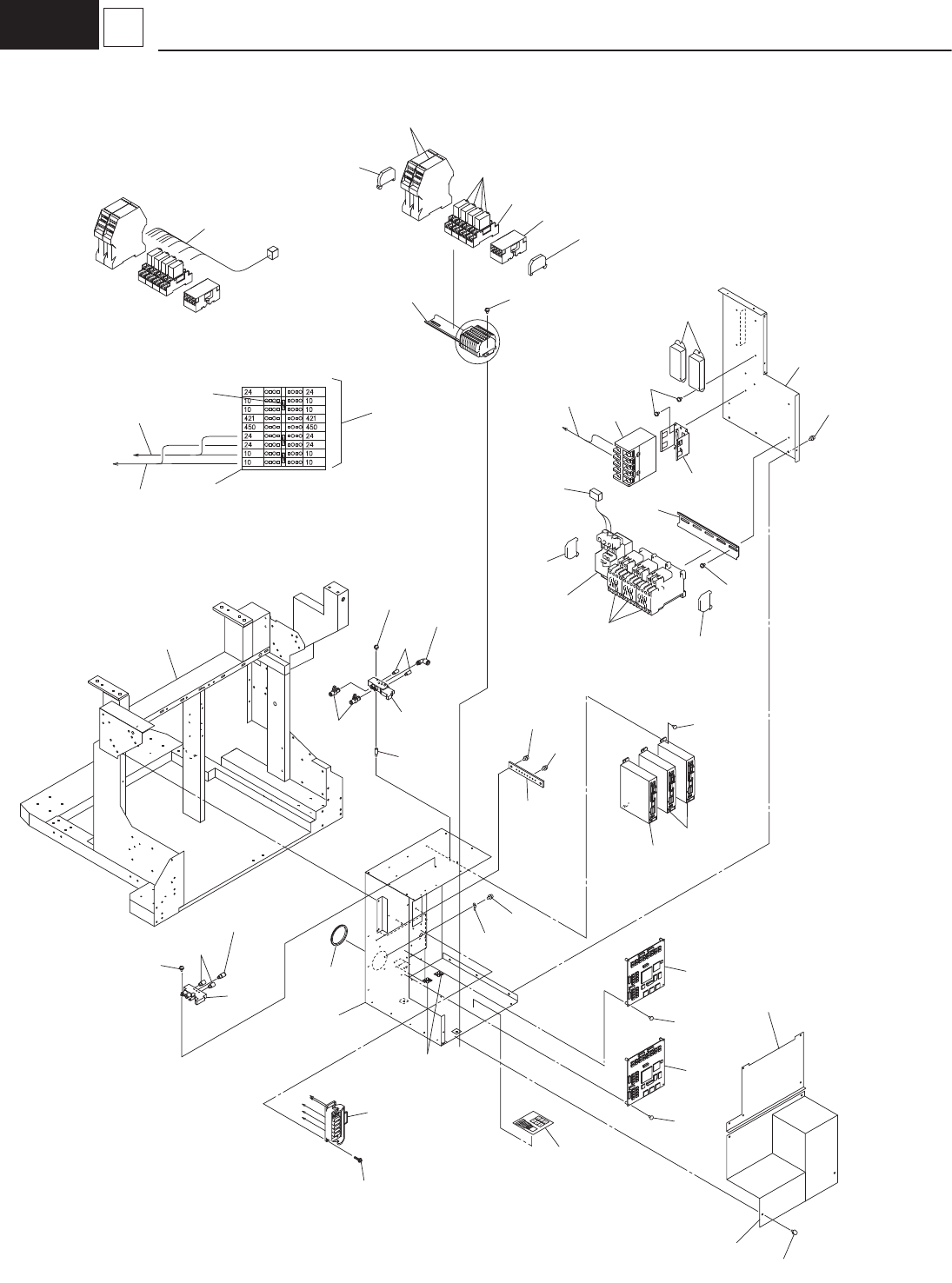

TRAVERSE CART SECTION(FULL)
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
801 KYC-M182U-00 1015A10C HNS,TV-TOP 1
802 KYC-M182V-00 1015A10D HNS,TV-TOP-L 1
803 KYC-M182W-00 1015A10E HNS,TV-TOP-R 1
804 KYC-M182X-00 1015A10F HNS,TV-BACK 1
811 KYB-M410L-00 0921A024 COIL-TUBE 1
812 KYB-M852E-00 23N30737 ACCESS-WIRING 20
813 KYB-M91F7-00 23N30738 CABLE-TIE 5
814 KYB-M65AW-00 23N30632 WIRING 14
815 90990-11J016 221DA053 SCREW,PAN HEAD WW 14 PAN M4L6 SW+FW
1304-001
