– 60 – N1 1 1 Cable 2 1304-001 X1 X2 CN1 CN2 CN3 U150 X1 X2 CN1 CN2 CN3 U150 X1 X2 CN1 CN2 CN3 U151 X2 U151 X1 CN1 CN2 CN3 A67 A65 A68 A66 X15038 XSV X0102 X0107 X10107 X0105 X0101 K101-24 K201-24 K301-24 X0103 X0207 X03…
– 59 –
TRAVERSE CART SECTION(FULL)
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
901 KYC-M1821-00 1015011Y ASSY-UB95-TV 1
902 KYB-M918U-00 1015011Z ASSY-UB95-WRITE 1
903 KYC-M181T-00 0921D200 UNIT-DRIVER- 1
904 KYC-M181U-00 0921D201 UNIT-DRIVER- 2
905 KYC-M1810-00 1015A101 HNS,FEED-BUNDLE 1
906 KYC-M181V-00 0921D202 RESISTOR 2
907 KYB-M65BJ-00 4S200100 RELAY 1
908 KYB-M65AN-00 23N10019 BRACKET-WIRING 1
909 KYC-M1878-00 4S250116 BREAKER 1
910 KYB-M65BL-00 4S210127 EM-CONTACTOR 3
911 KYB-M121F-00 0921E204 ACCESSORY-WRING 1
912 KYC-M187V-00 23N00099 RAIL_WIRING 2
913 KYC-M184X-00 4S200141 RELAY 2
914 KYC-M187Y-00 4S200086 RELAY 5
915 KYC-M1877-00 4J120061 SOCKET 5
916 KYB-M124M-00 4S200112 RELAY 1
917 KYB-M4114-00 23N30011 CONVEX BASES 2
918 KYB-M6587-00 23N10027 TERMINAL 4
919 KYB-M65AV-00 23N30612 ACCESS-WIRING 1
920 KYB-M941P-00 23N30519 ACCESS-WIRING 3
921 KYB-M65AU-00 23N30524 ACCESS-WIRING 9
922 KYB-M65BC-00 4J320187 TERMINAL 9
923 KYB-M6579-00 1015BA0K EARTHBAR 1
924 KYC-M181G-00 0921B504 SPACER 10
927 KYC-M1861-00 10100120 ASSY-LABEL-ELE-BOX 1
928 KYC-M180C-00 1015A22F BOX 1
929 KYC-M180D-00 1015A22G COVER 1
930 KYC-M183R-00 211AE184 COVER 1
931 KYC-M180L-00 0921D00C BOX 1
932 KYB-M65AW-00 23N30632 WIRING 4
951 90990-11J012 221DA057 SCREW,PAN HEAD WW 8 PAN M3L14 SW+FW
952 90990-11J017 221DA062 SCREW,PAN HEAD WW 6 PAN M4L8 SW+FW
953 98502-04010 221DA023 SCREW,PAN HEAD 4 PAN M4L10
954 90990-11J016 221DA053 SCREW,PAN HEAD WW 15 PAN M4L6 SW+FW
955 90990-01J139 221DA092 MACHINE_SCREW 2 PAN M3L8 SW+FW
956 91312-03020 221AA011 BOLT,HEX.SOCKET HEAD 2 M3L20
957 90990-66J012 221DA207 SCREW,TRUSS HEAD 16 TRS M4L6
961 KYC-M1863-00 1015A109 HNS,EV24G 1
962 KYC-M1865-00 1015A10P HNS,AC200 1
963 KYC-M184Y-00 4W205245 HNS,X1S05 1
964 KYC-M1864-00 1015A10A HNS,24G 1
969 KYC-M1862-00 1015A108 HNS,SV-NET24G 1
9C1 KYC-M182B-00 1015012C ASSY-CLAMP-VALVE 1
9C2 KYB-M3725-00 1005AB0Q PIPE_FITTINGS 1
9C3 $AN120-M5 225B0059 AIR LINE EQPT 2
9D1 KYC-M182C-00 1015012D ASSY-PL-VALVE 1
9D2 KYC-M184M-00 225B0374 AIR_LINE_EQPT 2
9D3 KYB-M711J-00 1005AB0B PIPE_FITTINGS 1
9D4 KYC-M1819-00 0921A05M SPEED CONTROL-LER 2
1304-001

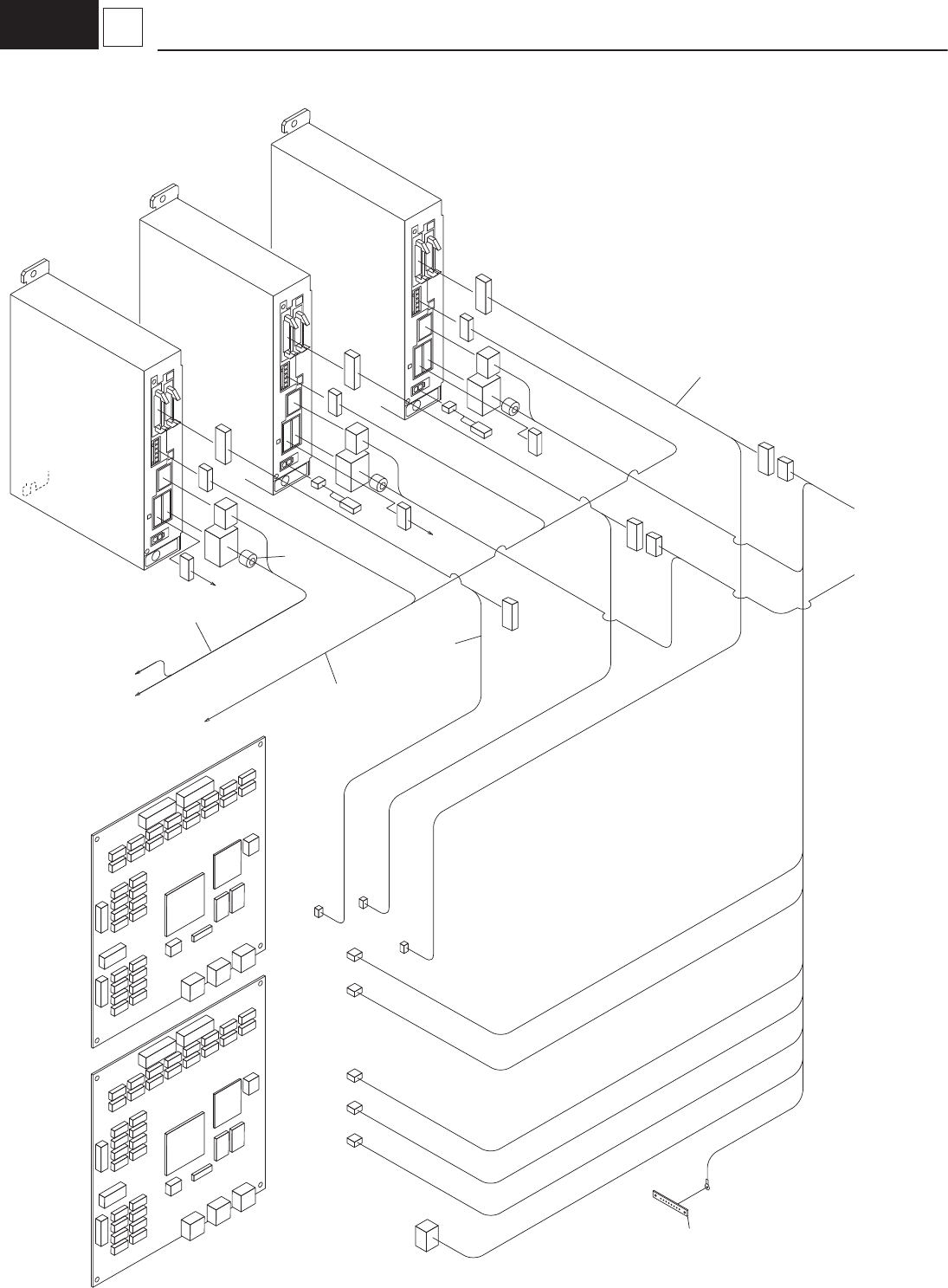

– 60 –
N1
11 Cable 2
1304-001
X1
X2
CN1
CN2
CN3
U150
X1
X2
CN1
CN2
CN3
U150
X1
X2
CN1
CN2
CN3
U151
X2
U151
X1
CN1
CN2
CN3
A67
A65
A68
A66
X15038
XSV
X0102
X0107
X10107
X0105
X0101
K101-24
K201-24
K301-24
X0103
X0207
X0307
X0202
X0302
X15012
X15014
X15013
A33
X35
See Fig. N1-10
Key No.905
M01
M01P
X0205
XACV
X0203
X0201
X0301
X0305
X10207
X10307
X0303
A01
A02
A03
X15039
X15134
X15135
X15032
TB:TV
TB:TV
See Fig. N1-10
Key No.923
X150X1
X150X2
X151X1
X151X2
X15001
A72
X15002
X15101
X15102
A70
TV-TOP
TV-BACK
A71
TV-TOP-L
TV-TOP-R1
TV-TOP-R2
X15139
X15138
X15131
X15045
X15044
X15031
X15030
X15015
X15010
X15133
X15132
X15130
X15041
X15040
X15036
X15035
X15034
X15033
– 61 –
TRAVERSE CART SECTION(FULL)
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
A33 KYC-M185R-00 0921E206 FERRITE-CORE 3
A65 KYC-M1850-00 4W205249 HNS,X0103-M01 1
A66 KYC-M182T-00 1015A102 HNS,SV-NET 1
A67 KYC-M182Y-00 1015A10G HNS,X0107 1
A68 KYC-M1830-00 1015A10H HNS,X0207-X0307 1
A70 KYC-M1832-00 1015A10L HNS,TV-SENSOR-2 1
A71 KYC-M1831-00 1015A10K HNS,TV-SENSOR-1 1
A72 KYB-M65BS-00 4W203562 LAN-CABLE-05M 1
