– 63 – TR A V ERS E C A RT SECTIO N (FU LL ) 1304-001 No. Part No. Part Name Qty . Detail Y amaha Hitachi A33 KYC-M185R-00 0921E206 FERRITE-CORE 3 A65 KYC-M1850-00 4W205249 HNS,X0103-M01 1 A66 KYC-M182T -00 1015A102 HNS,…
– 62 –
N1
11 Cable 2
1304-001
X1
X2
CN1
CN2
CN3
U150
X1
X2
CN1
CN2
CN3
U150
X1
X2
CN1
CN2
CN3
U151
X2
U151
X1
CN1
CN2
CN3
A67
A65
A68
A66
X15038
XSV
X0102
X0107
X10107
X0105
X0101
K101-24
K201-24
K301-24
X0103
X0207
X0307
X0202
X0302
X15012
X15014
X15013
A33
X35
See Fig. N1-10
Key No.905
M01
M01P
X0205
XACV
X0203
X0201
X0301
X0305
X10207
X10307
X0303
A01
A02
A03
X15039
X15134
X15135
X15032
TB:TV
TB:TV
See Fig. N1-10
Key No.923
X150X1
X150X2
X151X1
X151X2
X15001
A72
X15002
X15101
X15102
A70
TV-TOP
TV-BACK
A71
TV-TOP-L
TV-TOP-R1
TV-TOP-R2
X15139
X15138
X15131
X15045
X15044
X15031
X15030
X15015
X15010
X15133
X15132
X15130
X15041
X15040
X15036
X15035
X15034
X15033
– 63 –

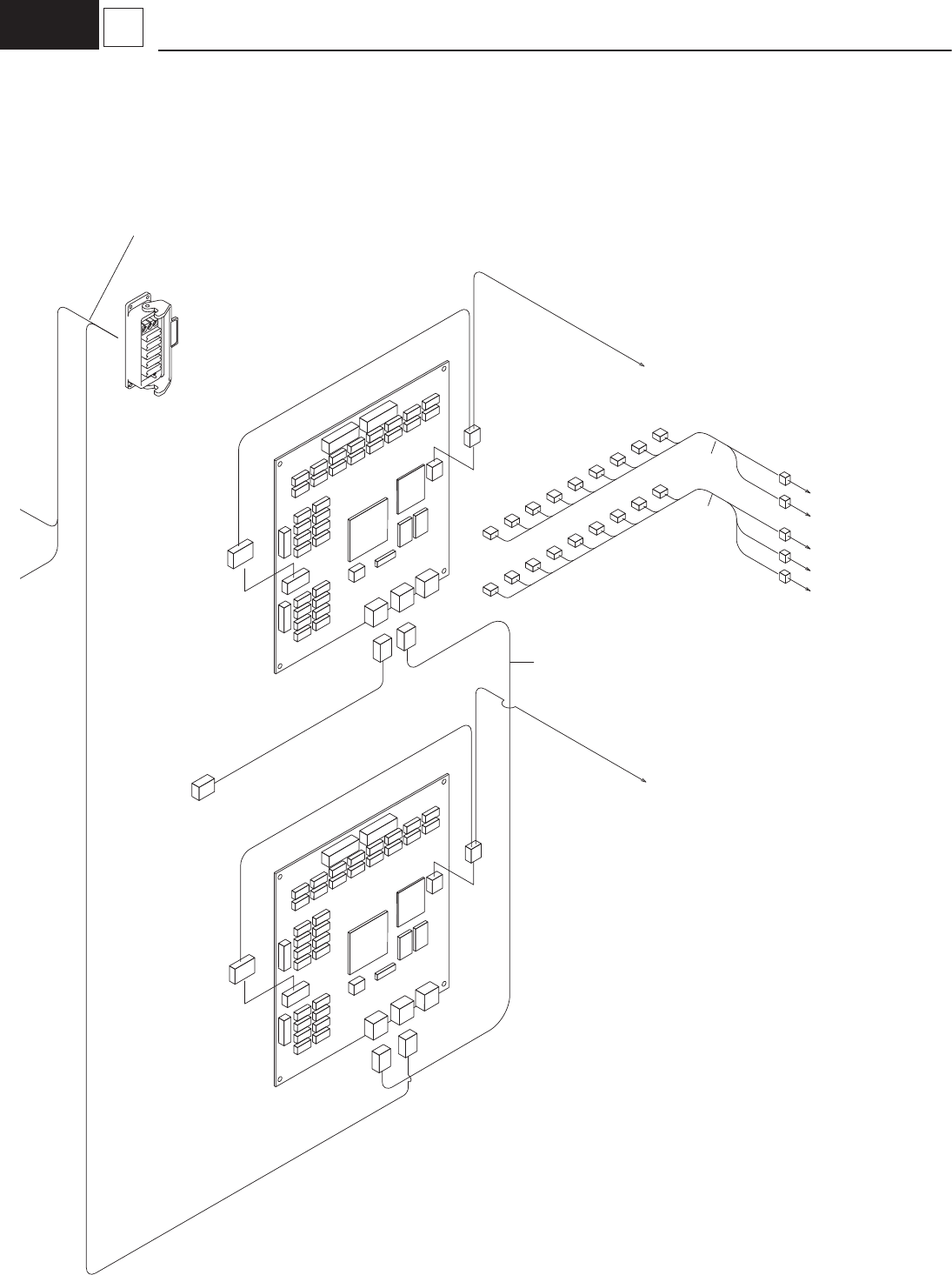

TRAVERSE CART SECTION(FULL)
1304-001
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
A33 KYC-M185R-00 0921E206 FERRITE-CORE 3
A65 KYC-M1850-00 4W205249 HNS,X0103-M01 1
A66 KYC-M182T-00 1015A102 HNS,SV-NET 1
A67 KYC-M182Y-00 1015A10G HNS,X0107 1
A68 KYC-M1830-00 1015A10H HNS,X0207-X0307 1
A70 KYC-M1832-00 1015A10L HNS,TV-SENSOR-2 1
A71 KYC-M1831-00 1015A10K HNS,TV-SENSOR-1 1
A72 KYB-M65BS-00 4W203562 LAN-CABLE-05M 1
