– 64 –

– 63 –

TRAVERSE CART SECTION(FULL)

1304-001

No.

Part No.

Part Name Qty. Detail

Yamaha Hitachi

A33 KYC-M185R-00 0921E206 FERRITE-CORE 3

A65 KYC-M1850-00 4W205249 HNS,X0103-M01 1

A66 KYC-M182T-00 1015A102 HNS,SV-NET 1

A67 KYC-M182Y-00 1015A10G HNS,X0107 1

A68 KYC-M1830-00 1015A10H HNS,X0207-X0307 1

A70 KYC-M1832-00 1015A10L HNS,TV-SENSOR-2 1

A71 KYC-M1831-00 1015A10K HNS,TV-SENSOR-1 1

A72 KYB-M65BS-00 4W203562 LAN-CABLE-05M 1

– 64 –

– 65 –

Main Machine Modification For

Attaching Multi-Layer Tray Feeder

C4NCB4N

C

3NC

C4NCB4NC

3

NC

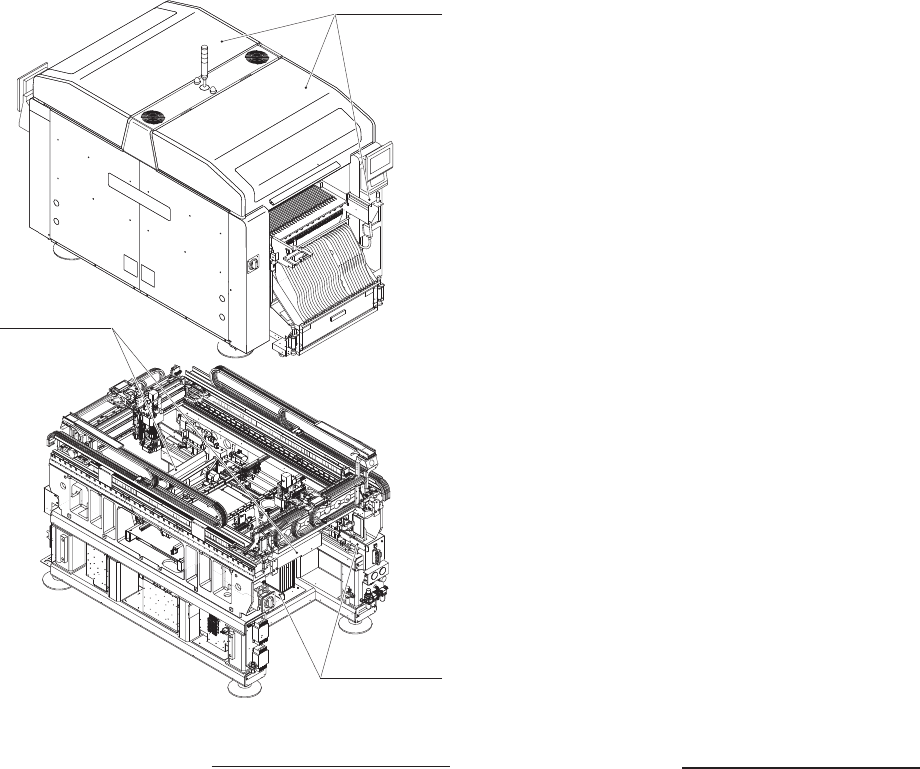

Fig. B1 COVER SCTION

Fig. E4 POSITIONING UNIT

Fig. E2 CUTTER SECTION

CONTENTS

B1 COVER SECTION 66

2 Feeder Cover 66

E2 CUTTER SECTIONN 68

1 Cover 68

E4 POSITIONING UNIT 70

3 Frame L 70

4 Frame R 72

5 Air Piping 74
