– 68 –
E2
E2 CUTTER SECTIONN
1 Cover
1304-001
7
4
3
6
2
– 69 –
CUTTER SECTIONN
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
2 KYC-M3T01-00 1015H237 DUSTCHUTE-TRAY 1
3 90990-66J017 221DA221 RO_MACHIN_SCREW 2 TRS M5L8
4 90990-66J012 221DA207 SCREW,TRUSS HEAD 2 TRS M4L6
6 KYC-M3T00-00 1015H22Y SUPPORT 1
7 90990-01J144 221AA100 BOLT,HEX.S/H WW 4 M4L8
1304-001
– 70 –
E4

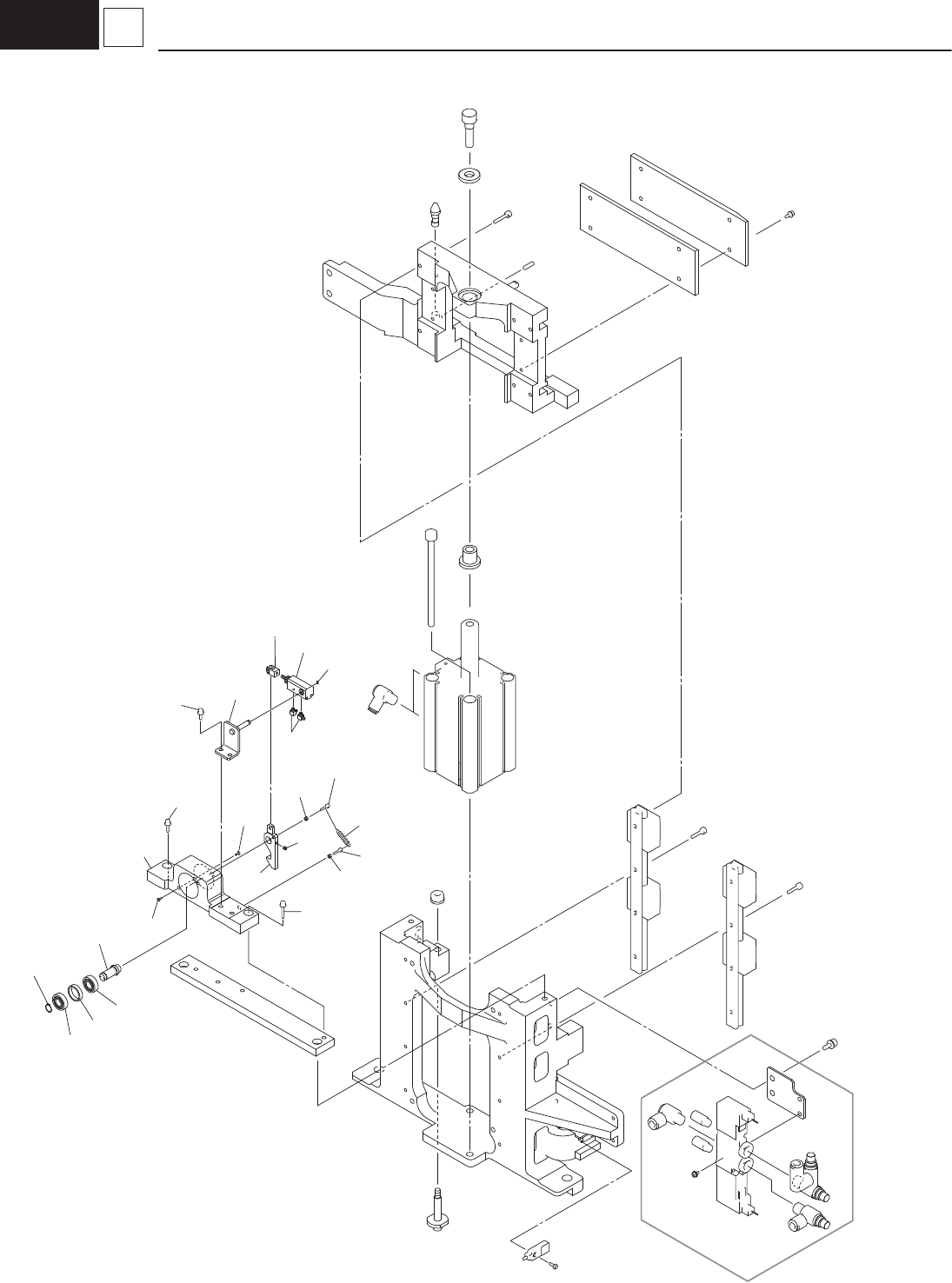

E4 POSITIONING UNIT
3 Frame L
1304-001
229
223
240
242
228
230
224
238
236
237
232
212
212
233
222
227
243
227
226
225
233
234
235
