P-0332-001_MULTI-LAYER_TRAY-FEEDER - 第78页
– 72 – E4 4 Frame R 1304-001 340 323 312 312 328 330 329 342 325 327 326 327 344 331 321 339 333 324 332 310 334 336 313 337 335 338 322 341 333
– 71 –

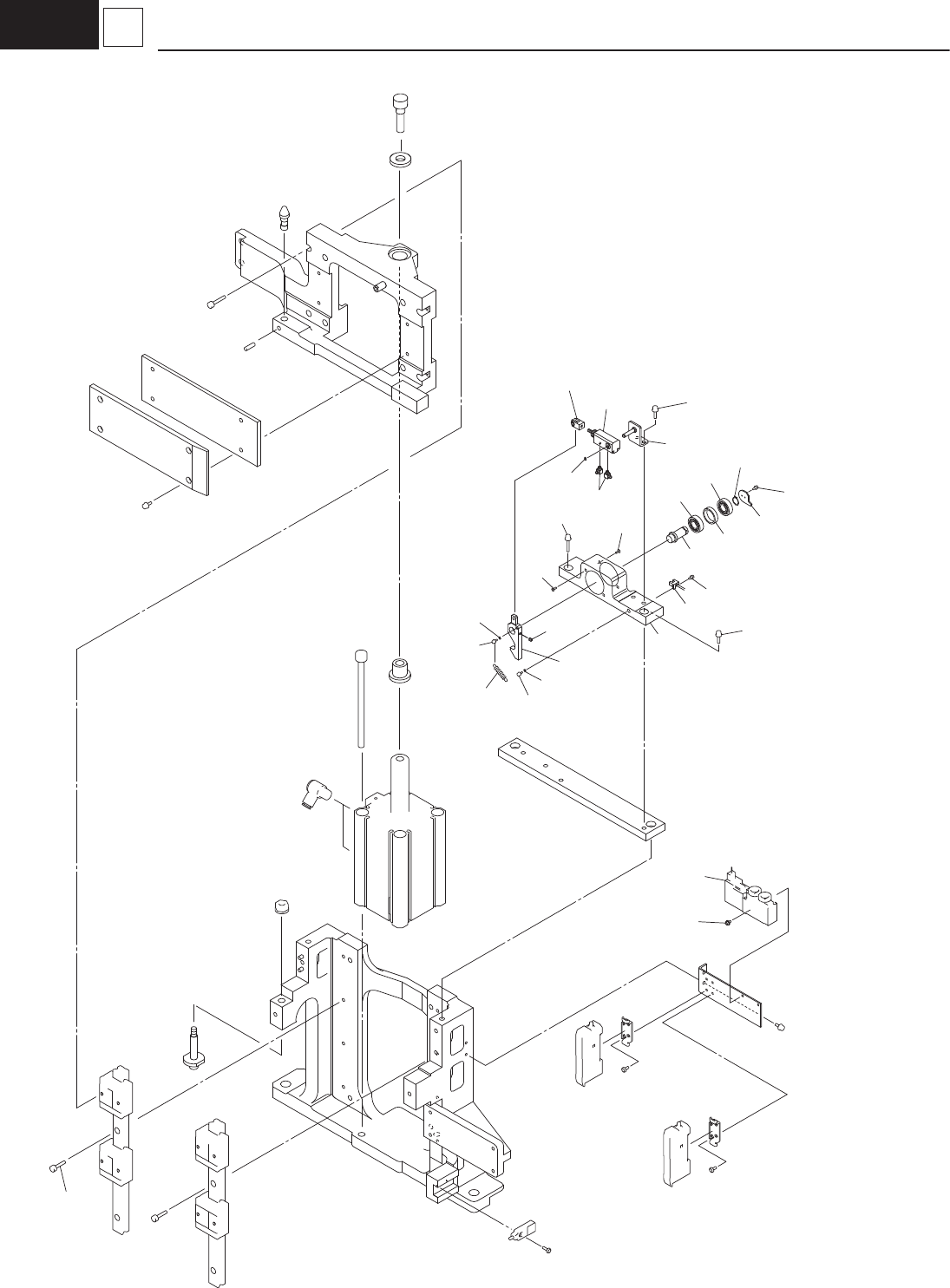

POSITIONING UNIT
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
212 91312-05012 221AA030 ROHS_HEX-SCT 2 M5L12
222 KYC-M3J00-00 1010BJ0Q BLOCK_LEVER_R 1
223 KYC-M3J06-00 1010BJ1U CYLINDER_BKT-R 1
224 KYC-M3J05-00 1010BJ0P LEVER 1
225 KYC-M3J0A-00 0929E00W SHAFT 1
226 KYC-M3J0B-00 0929E00Y COLLAR 1
227 90933-01J002 222D0008 BEARING,RADIAL 2
228 KYC-M3J04-00 0929E01L PIN_CYLINDER 1
229 $M-5ALU-4 225F0260 PIPE_FITTINGS 2
230 KYC-M3J0E-00 0929E01M D_KNUCKLE_JOINT 1
232 KYC-M3J0D-00 0929E01H TENSION_SPRING 1
233 90990-66J012 221DA207 SCREW,TRUSS HEAD 4 TRS M4L6
234 91312-05016 221AA031 ROHS_HEX-SCT 1 M5L16
235 95302-05600 221FA009 NUT,HEXAGON 2 M3
236 91312-06030 221AA046 BOLT,HEX.SOCKET HEAD 1 M6L30
237 95302-06600 221FA011 NUT,HEXAGON 1 M6
238 90990-02J026 221CA007 SCREW,SET 1 SET_M5L6
240 91312-05008 221AA028 BOLT,HEX.SOCKET HEAD 2 M5L8
242 90440-01J040 221KB001 CIRCLIP 1 RING_E4
243 99009-15400 221K0079 CIRCLIP 1
1304-001
– 73 –
POSITIONING UNIT
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
310 KYC-M3J03-00 09294021 ASSY-VALVE 1
312 91312-05012 221AA030 ROHS_HEX-SCT 2 M5L12
313 91312-03006 221AA005 BOLT,HEX.SOCKET HEAD 2 M3L6
321 KYC-M3J02-00 0929401Y ASSY-SENSOR 1
322 KYC-M3J00-00 1010BJ0Q BLOCK_LEVER_R 1
323 KYC-M3J06-00 1010BJ1U CYLINDER_BKT-R 1
324 KYC-M3J05-00 1010BJ0P LEVER 1
325 KYC-M3J0A-00 0929E00W SHAFT 1
326 KYC-M3J0B-00 0929E00Y COLLAR 1
327 90933-01J002 222D0008 BEARING,RADIAL 2
328 KYC-M3J04-00 0929E01L PIN_CYLINDER 1
329 $M-5ALU-4 225F0260 PIPE_FITTINGS 2
330 KYC-M3J0E-00 0929E01M D_KNUCKLE_JOINT 1
331 KYC-M3J0C-00 0929E01D PLATE 1
332 KYC-M3J0D-00 0929E01H TENSION_SPRING 1
333 90990-66J012 221DA207 SCREW,TRUSS HEAD 4 TRS M4L6
334 91312-05016 221AA031 ROHS_HEX-SCT 1 M5L16
335 95302-05600 221FA009 NUT,HEXAGON 2 M3
336 91312-06030 221AA046 BOLT,HEX.SOCKET HEAD 1 M6L30
337 95302-06600 221FA011 NUT,HEXAGON 1 M6
338 90990-02J026 221CA007 SCREW,SET 1 SET_M5L6
339 90112-02J006 221AA001 BOLT,HEX.SOCKET HEAD 2 M2L6
340 91312-05008 221AA028 BOLT,HEX.SOCKET HEAD 2 M5L8
341 90166-12J208 221DA061 SEMS_PANHEADSCR 1 PAN M2L8 SW+FWS
342 90440-01J040 221KB001 CIRCLIP 1 RING_E4
343 99009-15400 221K0079 CIRCLIP 1
1303-001
