P-0332-001_MULTI-LAYER_TRAY-FEEDER - 第81页

– 75 – POSITI ON IN G U NIT No. Part No. Part Name Qty . Detail Y amaha Hitachi 401 KYB-M3J1H-00 0929E105 TUBE D6 1 402 KYC-M3J0F-00 1005AB0V PIPE_FITTINGS 2 403 KYB-M3J2K-00 0929E106 TUBE D4 1 1304-001

100%1 / 84
– 74 –
E4

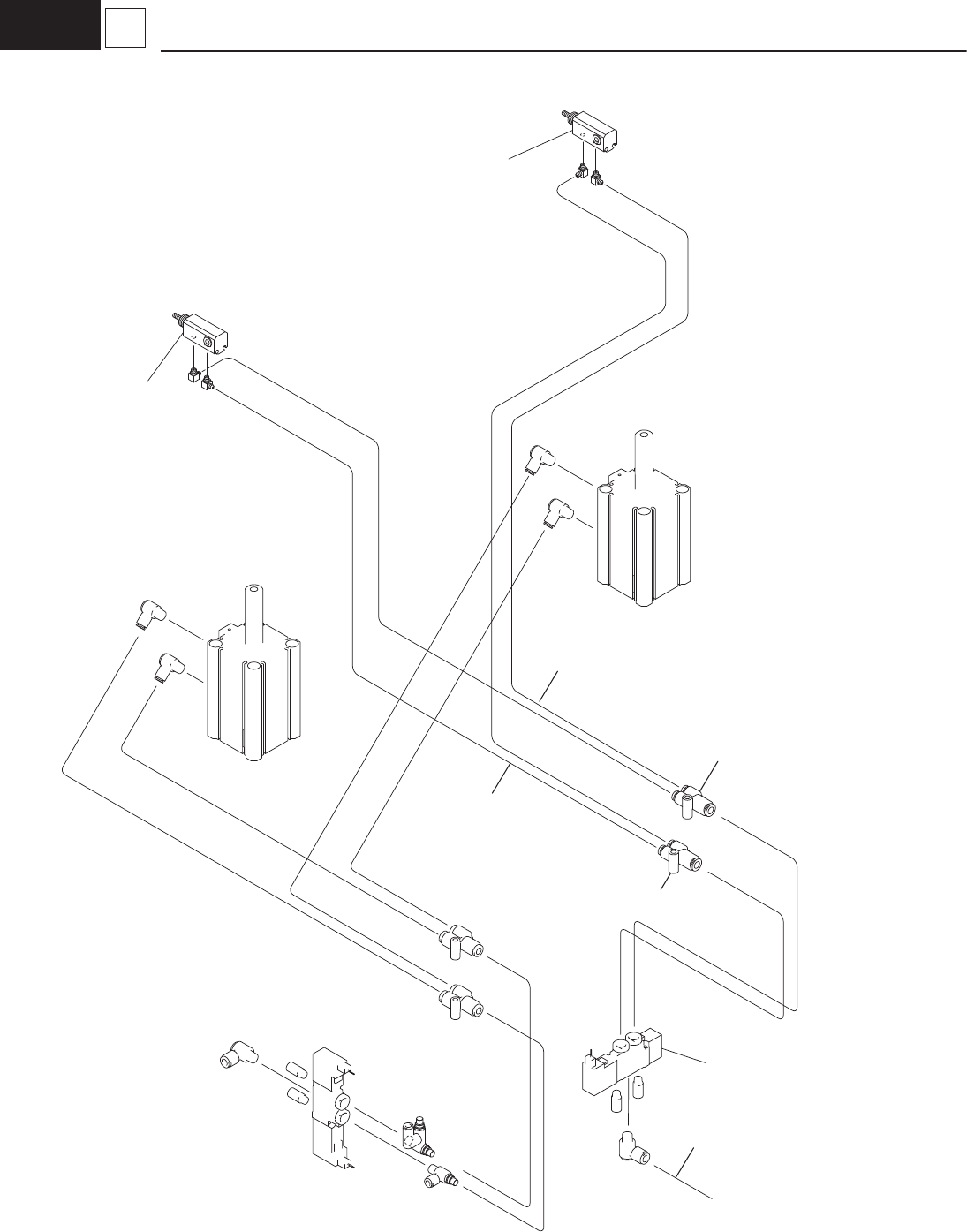

5 Air Piping
1303-001
402
403
401
402
403
From Main Body
See Fig E4-3
Key No.228
See Fig E4-4
Key No.328
See Fig E4-4
Key No.313
– 75 –
POSITIONING UNIT
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
401 KYB-M3J1H-00 0929E105 TUBE D6 1
402 KYC-M3J0F-00 1005AB0V PIPE_FITTINGS 2
403 KYB-M3J2K-00 0929E106 TUBE D4 1
1304-001
– 76 –
