1.11 [ OPERATION ] Switch When the [ OPERATION ] switch is set to the “ SET UP ” side , operations will be limited as follows . • When the [ OPERATION / SET UP ] switch is set to the “ SET UP ” side , the following opera…

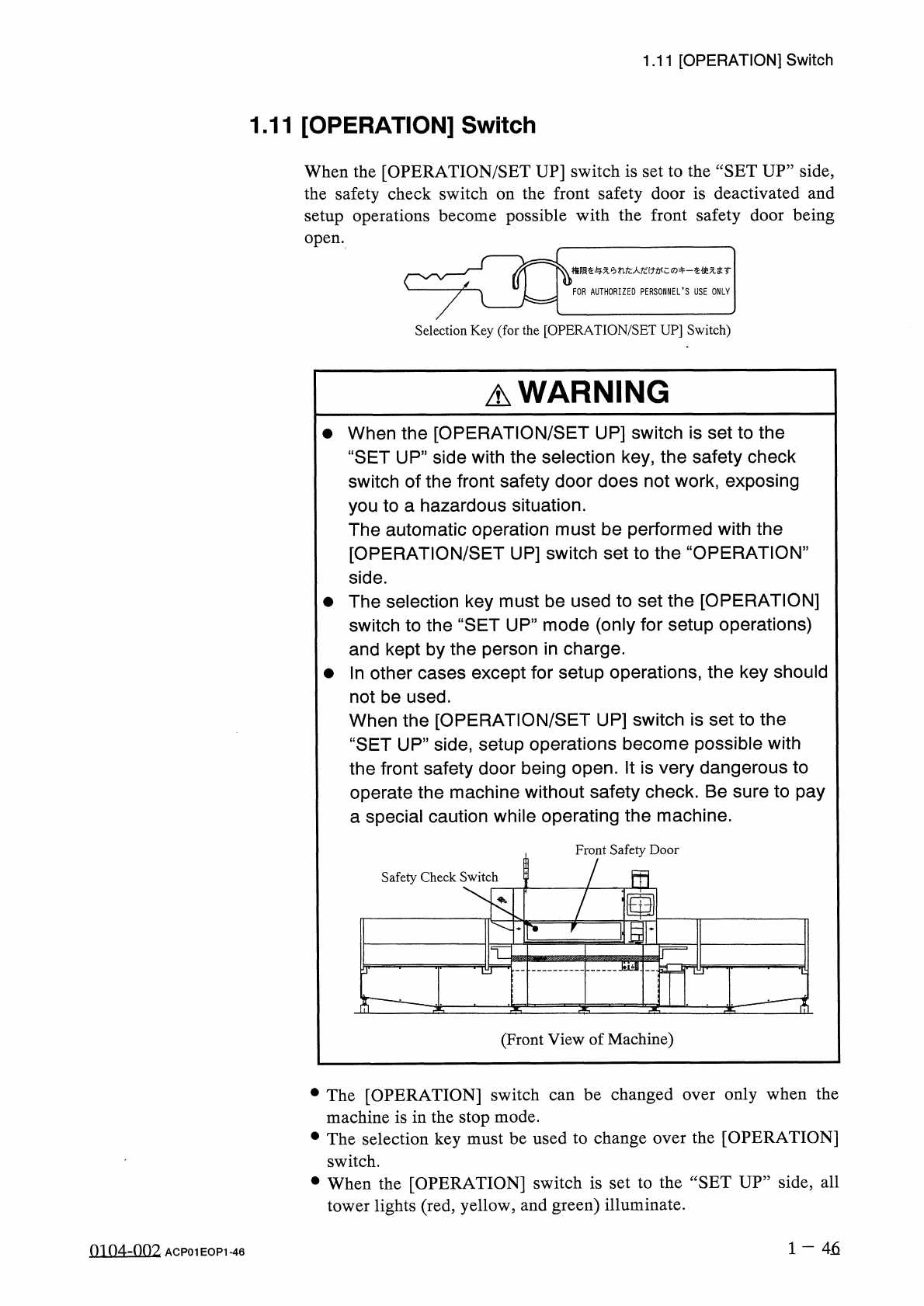

1.11
[
OPERATION
]
Switch
1.11
[
OPERATION
]
Switch
When
the
[
OPERATION
/
SET
UP
]
switch
is
set
to
the
“
SET
UP
”
side
,
the
safety
check
switch
on
the
front
safety
door
is
deactivated
and
setup
operations
become
possible
with
the
front
safety
door
being
open
.
雕奄与无人
/
(
力
&
<
；
：
—
眘使无丰
r
FOR
AUTHORIZED
PERSONNEL
'
S
USE
ONLY
Selection
Key
(
for
the
[
OPERATION
/
SET
UP
]
Switch
)
A
WARNING
•
When
the
[
OPERATION
/
SET
UP
]
switch
is
set
to
the
“
SET
UP
”
side
with
the
selection
key
,
the
safety
check
switch
of
the
front
safety
door
does
not
work
,
exposing
you
to
a
hazardous
situation
.
The
automatic
operation
must
be
performed
with
the
[
OPERATION
/
SET
UP
]
switch
set
to
the
“
OPERATION
”
side
.
•
The
selection
key
must
be
used
to
set
the
[
OPERATION
]
switch
to
the
“
SET
UP
”
mode
(
only
for
setup
operations
)
and
kept
by
the
person
in
charge
.
參
In
other
cases
except
for
setup
operations
,
the
key
should
not
be
used
.
When
the
[
OPERATION
/
SET
UP
]
switch
is
set
to
the
“
SET
UP
”
side
,
setup
operations
become
possible
with
the
front
safety
door
being
open
.
It
is
very
dangerous
to
operate
the
machine
without
safety
check
.
Be
sure
to
pay
a
special
caution
while
operating
the
machine
.
Front
Safety
Door
!
m
Safety
Check
Switch
TZ
(
Front
View
of
Machine
)
be
changed
only
when
the
•
The
[
OPERATION
]
switch
machine
is
in
the
stop
mode
.
•
The
selection
key
must
be
used
to
change
over
the
[
OPERATION
]
over
can
switch
.
•
When
the
[
OPERATION
]
switch
is
set
to
the
“
SET
UP
”
side
,
all
tower
lights
(
red
，
yellow
,
and
green
)
illuminate
.
1
一
46
0104
-
002
ACP
01
EOP
1
-
46

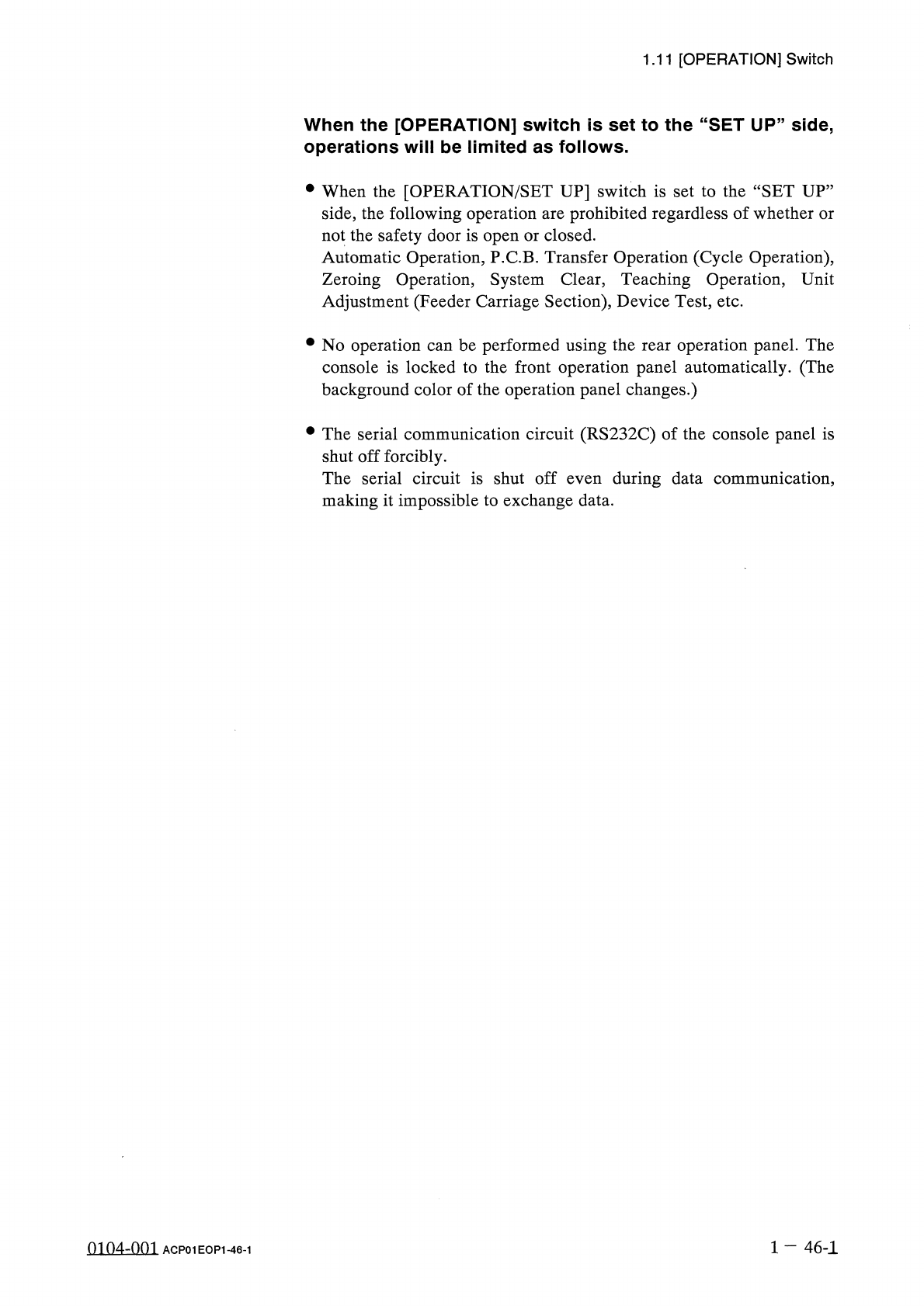

1.11
[
OPERATION
]
Switch
When
the
[
OPERATION
]
switch
is
set
to
the
“
SET
UP
”
side
,
operations
will
be
limited
as
follows
.
•
When
the
[
OPERATION
/
SET
UP
]
switch
is
set
to
the
“
SET
UP
”
side
,
the
following
operation
are
prohibited
regardless
of
whether
or
not
the
safety
door
is
open
or
closed
.
Automatic
Operation
,
P
.
C
.
B
.
Transfer
Operation
(
Cycle
Operation
)
,
Zeroing
Operation
,
System
Clear
，
Teaching
Operation
,
Unit
Adjustment
(
Feeder
Carriage
Section
)
,
Device
Test
，
etc
.
•
No
operation
can
be
performed
using
the
rear
operation
panel
.
The
console
is
locked
to
the
front
operation
panel
automatically
.
(
The
background
color
of
the
operation
panel
changes
.
)
•
The
serial
communication
circuit
(
RS
232
C
)
of
the
console
panel
is
shut
off
forcibly
.
The
serial
circuit
is
shut
off
even
during
data
communication
,
making
it
impossible
to
exchange
data
.
1
一
46
-
1
01
04
-
001
ACP
01
EOP
1
-
46
-
1

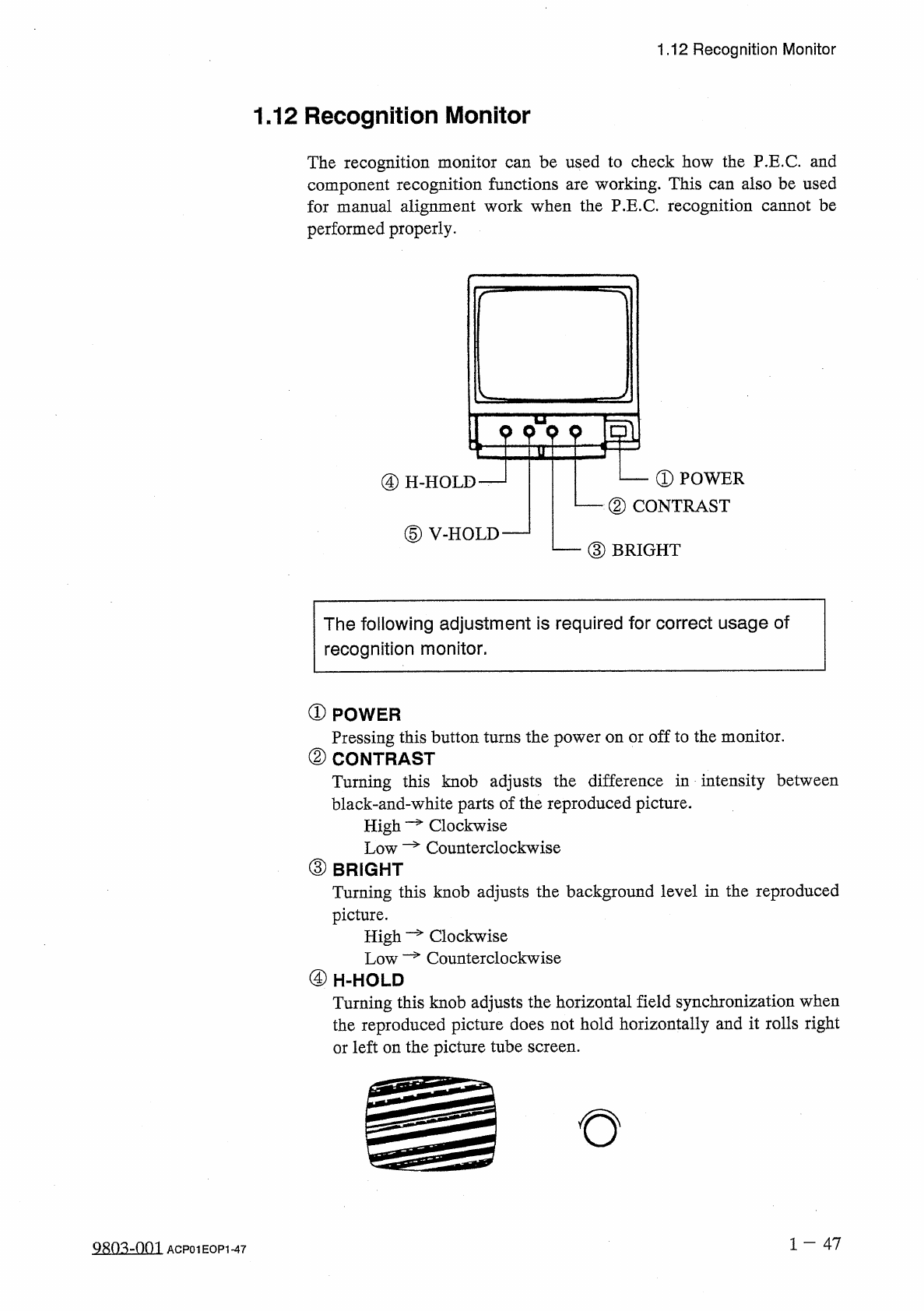

1.12
Recognition
Monitor
1.12
Recognition
Monitor
The
recognition
monitor
can
be
used
to
check
how
the
P
.
E
.
C
.
and
component
recognition
functions
are
working
.
This
can
also
be
used
for
manual
alignment
work
when
the
P
.
E
.
C
.
recognition
cannot
be
performed
properly
.
O
—
①
POWER
②
CONTRAST
④
H
-
HOLD
—
1
⑤
V
-
HOLD
—
—
③
BRIGHT
The
following
adjustment
is
required
for
correct
usage
of
recognition
monitor
,
①
POWER
Pressing
this
button
turns
the
power
on
or
off
to
the
monitor
.
②
CONTRAST
Turning
this
knob
adjusts
the
difference
in
intensity
between
black
-
and
-
white
parts
of
the
reproduced
.
Clockwise
High
Low
—
Counterclockwise
③
BRIGHT
Turning
this
knob
adjusts
the
background
level
in
the
reproduced
.
High
Low
—
Counterclockwise
Clockwise
④
H
-
HOLD
Turning
this
knob
adjusts
the
horizontal
field
synchronization
when
the
reproduced
does
not
hold
horizontally
and
it
rolls
right
or
left
on
the
tube
screen
.
1
一
47
ACP
01
EOP
1
-
47
