2 Assembly Instructions "Long Board Option" SIPLACE HS-60 / D4 HS-60 / D4 "Long Board Option" 05/2007 Edition 32 : Introduce the two guide shaf ts beneath the convey or side walls into the pre-assembl…
HS-60 / D4 "Long Board Option" 2 Assembly Instructions "Long Board Option" SIPLACE HS-60 / D4
05/2007 Edition
31

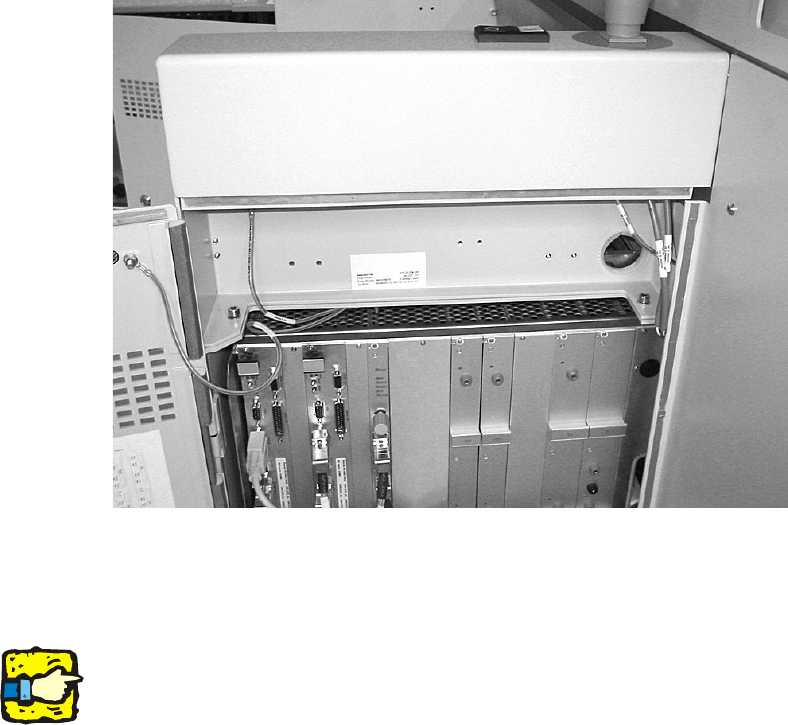

: Detach the hand guard (00330683-).
2
2
: Detach the connectors for cables 00335306- and 00335307- for the controls and remove the
"Side attachment“.
2
Don't forget the cover on the PCB output side. 2
2
2
2
2
2
2
2
2
2
2
2
2
2
2 Assembly Instructions "Long Board Option" SIPLACE HS-60 / D4 HS-60 / D4 "Long Board Option"
05/2007 Edition
32

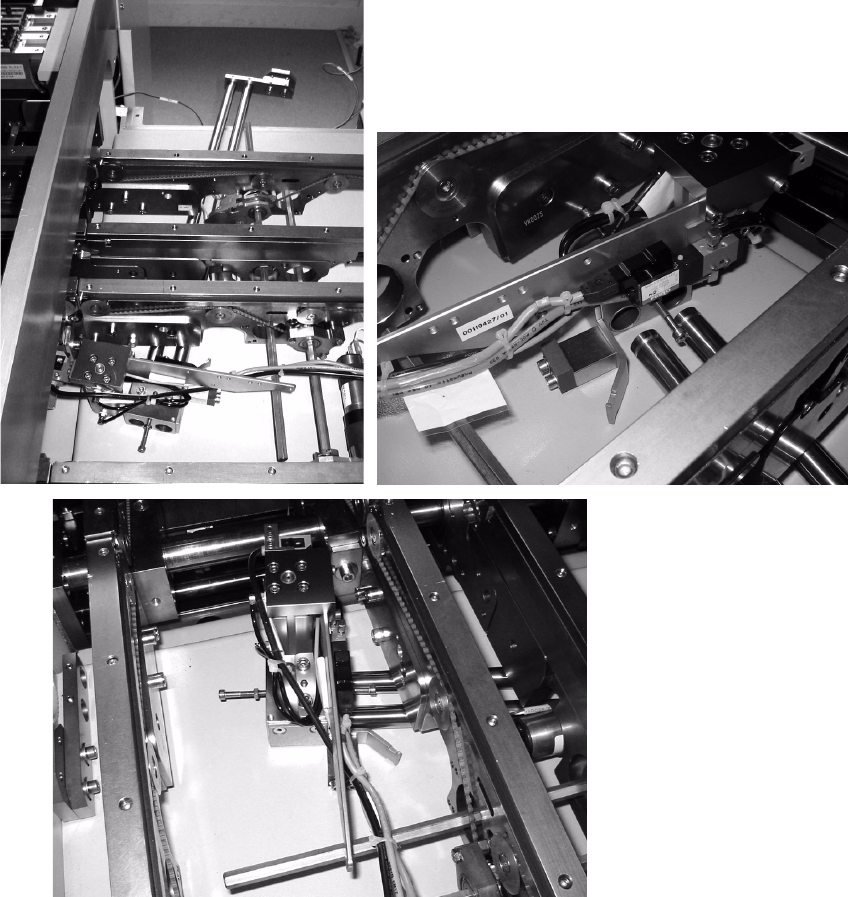

: Introduce the two guide shafts beneath the conveyor side walls into the pre-assembled stopper
base unit assembly (00368385-01).
2
2
: Guide these guide shafts into the two fixing plates 1 (00368312-01) and fix them to the two at-
tachments in the output belt through the existing holes.
: Fit the fixing plates 2 (00368313-01) on both ends of the guide shafts.
: Fix the guide shafts on one side using grubscrews M4x6-DIN914 in fixing plate 2.
2
2
HS-60 / D4 "Long Board Option" 2 Assembly Instructions "Long Board Option" SIPLACE HS-60 / D4
05/2007 Edition
33

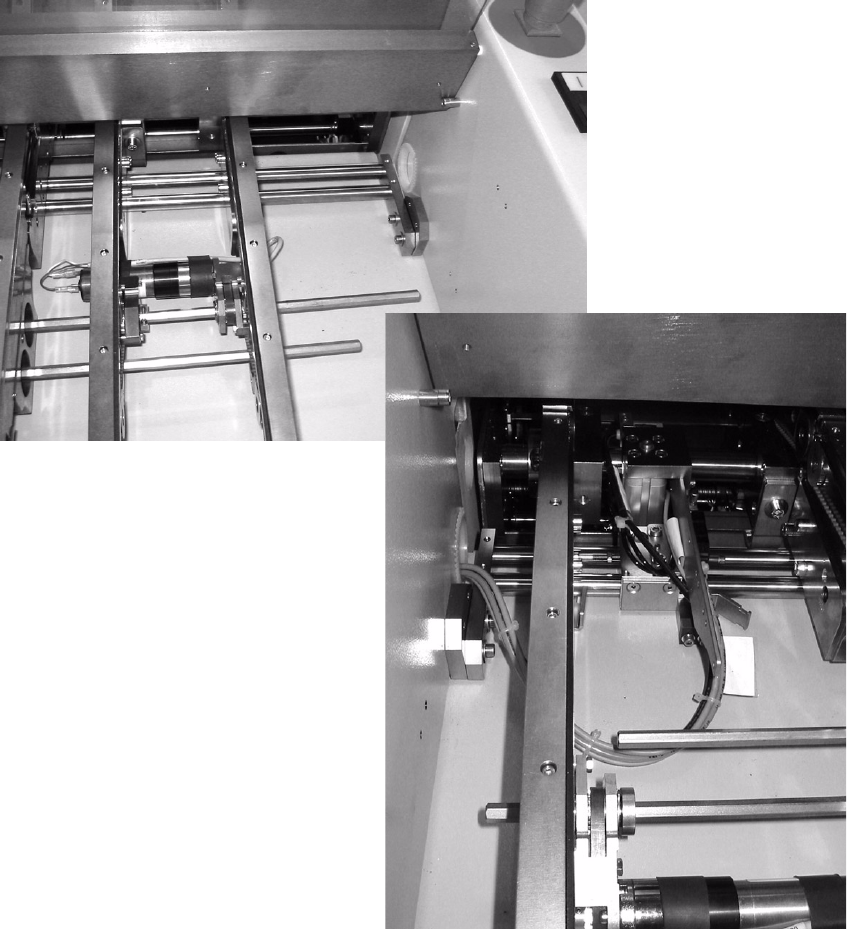

: Loosely fasten the fixing plates 2 to the fixing plates 1 that you have already assembled (using
screws M5x20-DIN 912 and washers 5.3-DIN 9021).
2
2
2
2
2
2
2
