2 Assembly Instructions "Long Board Option" SIPLACE HS-60 / D4 HS-60 / D4 "Long Board Option" 05/2007 Edition 34 : Adjust the position in the vertical and horizo ntal directions using an adjusti ng ga…
HS-60 / D4 "Long Board Option" 2 Assembly Instructions "Long Board Option" SIPLACE HS-60 / D4
05/2007 Edition
33
: Loosely fasten the fixing plates 2 to the fixing plates 1 that you have already assembled (using
screws M5x20-DIN 912 and washers 5.3-DIN 9021).
2
2
2
2
2
2
2
2 Assembly Instructions "Long Board Option" SIPLACE HS-60 / D4 HS-60 / D4 "Long Board Option"
05/2007 Edition
34
: Adjust the position in the vertical and horizontal directions using an adjusting gauge
(00373397-01).
Set the horizontal distance between the side wall flanges on the two side parts and the guide
shaft to 27 mm.
2
2
Adjusting gauge
Adjusting gauge
HS-60 / D4 "Long Board Option" 2 Assembly Instructions "Long Board Option" SIPLACE HS-60 / D4
05/2007 Edition
35
2
The cables and hoses should be in a single hose. 2
(The photographs do not show the standard version). 2
2

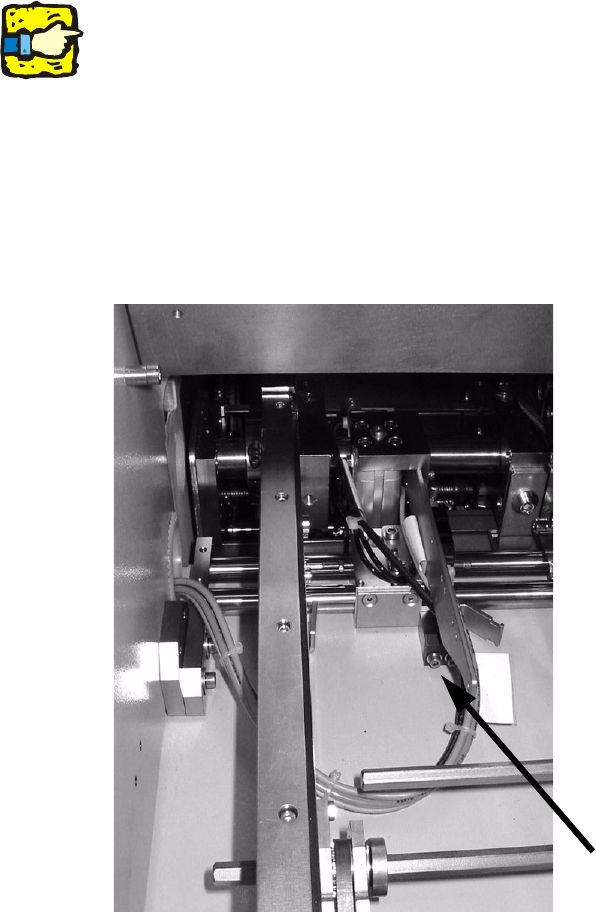

: Tighten the screws to the fixing plates 2.
: Secure the two guide shafts axially on one side using the preassembled grubscrews.
: Adjust the support for the stopper base unit by placing it on the surface of the attachment and
tightening the preassembled screws.
2
2
: Manually move the stopper base unit back and forth on the guide shafts.
If it does not move easily, fit the packing element with an air gap.
: Run the cables and the air line through the large hole in the attachment and sideways from the
outside into the cable duct in the assembly trough.
2
2
2
2
Screws
