2.5 Software
2.5.1 SITEST
: Switch to the SITEST program.
: Select “Conveyor” –> “PCB conveyor”.
: Change the transport mode: Select “Long PCB with additional stopper” and confirm your sel-
ection.
: Start the station software.
2.5.2 Line computer

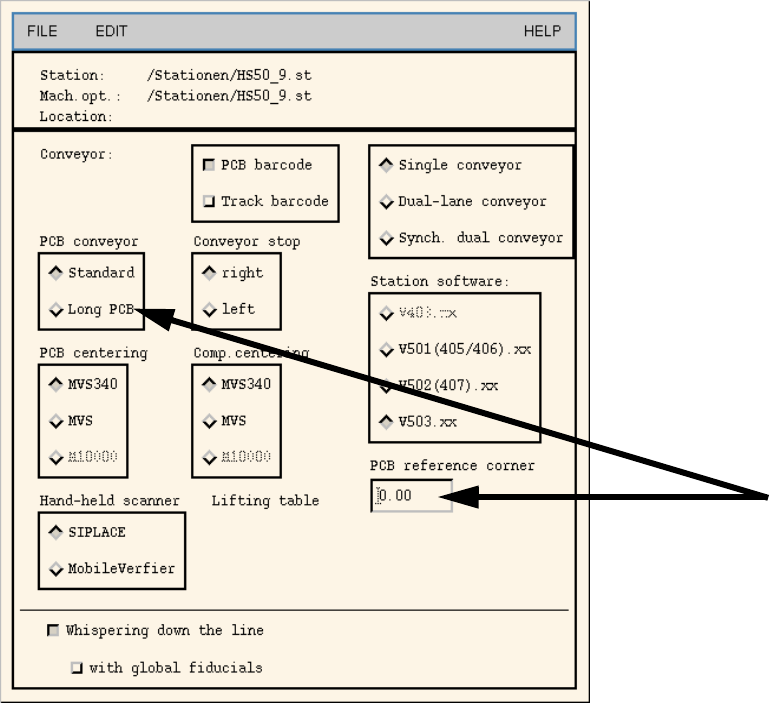

: Load the options from the CD-ROM.
: In the station configuration / component editor, activate “Long PCB” under PCB conveyor.
2
HS-60 / D4 "Long Board Option" 2 Assembly Instructions "Long Board Option" SIPLACE HS-60 / D4
05/2007 Edition
41
: Enter the placement offset (= distance old stopper – new stopper).
Press “Enter” to confirm.

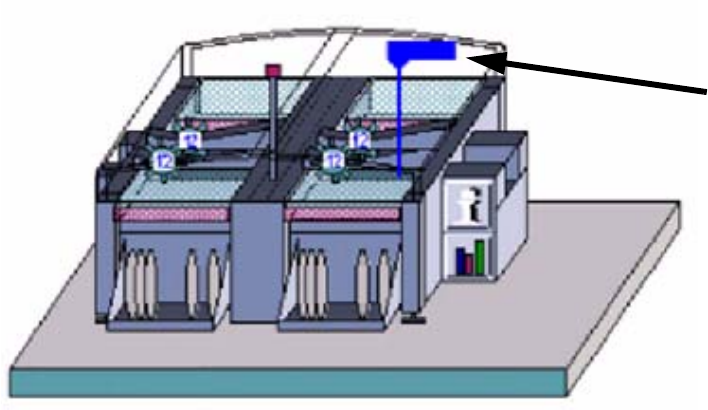

A blue flag with the offset value then appears on the output conveyor in the machine display on
the desktop. 2
2
2
A large PCB must be programmed with a correspondingly large number of fiducials (up to 6 per
fiducial set). 2
2
2
2
2
2
2
2
2
2
2
2
2
2
Blue flag
2 Assembly Instructions "Long Board Option" SIPLACE HS-60 / D4 HS-60 / D4 "Long Board Option"
05/2007 Edition
42
2.6 Changes in SIPLACE PRO
The option must be entered in the line configuration in SIPLACE PRO and in the set-up. 2
2.6.1 Line configuration

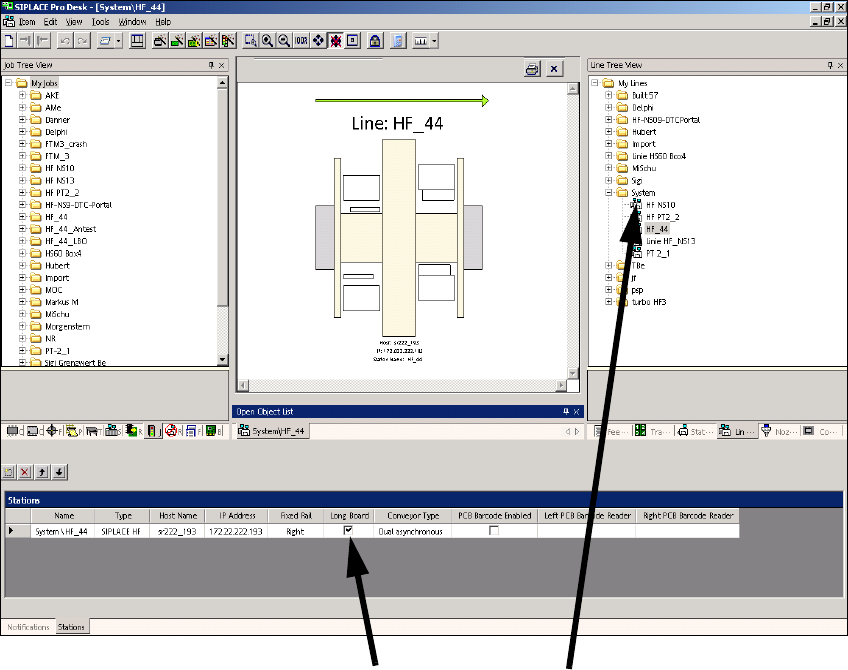

: Select a line and check the Long board check box.
2
2
2
2
2
2
Click on Long board Select the lineClick on Long board
