KE-750_KE-760-Rev07PDF - 第95页
- - REF.NO N OTE P ART N O D E S C R I P T I O N Qty 1 # 01 E3600 -7 25 - 0 A0 CAL BL OC K AS M.(ST A) 1 2 # 02 E3600 -7 25 - F A0 CAL BLOCK ASM .(ST B) 1 3 E3601-725 -0 A0 CAL BLOCK UN I T ASM. (1) 4 E2061-760 -0 00 S…
- -

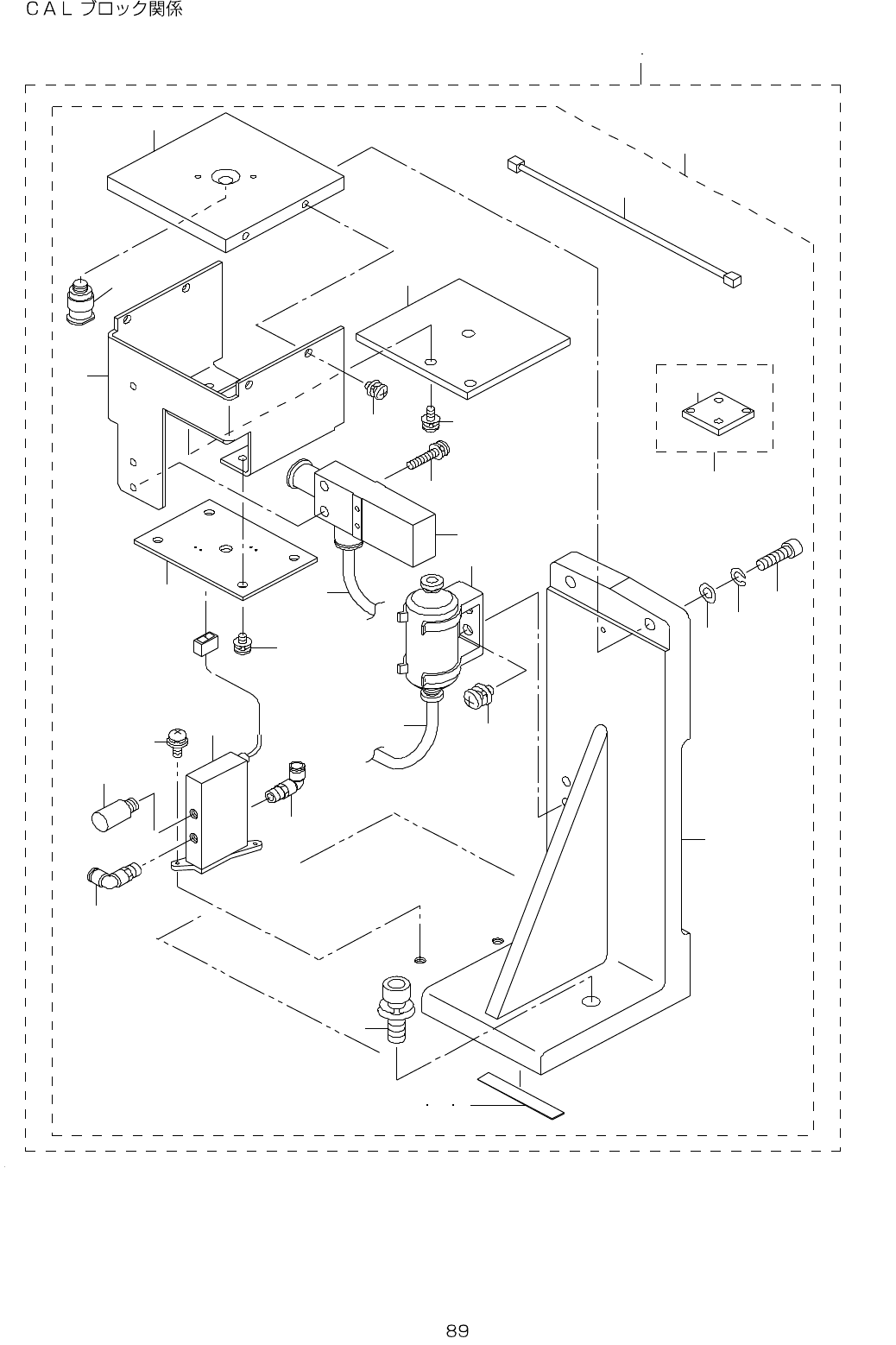

45.CAL BLOCK COMPONENTS
3 2
8
7
1 1
1 0
9
1 6
1 7
1 8
1 9
2 0
2 1
2 3
1 4
1 5
2 4
1 3
1 3
2 2
3
1 2
2 6
2 5
4 5 6
3 0
3 1
2 9
1 2
2 8
2 7
- -

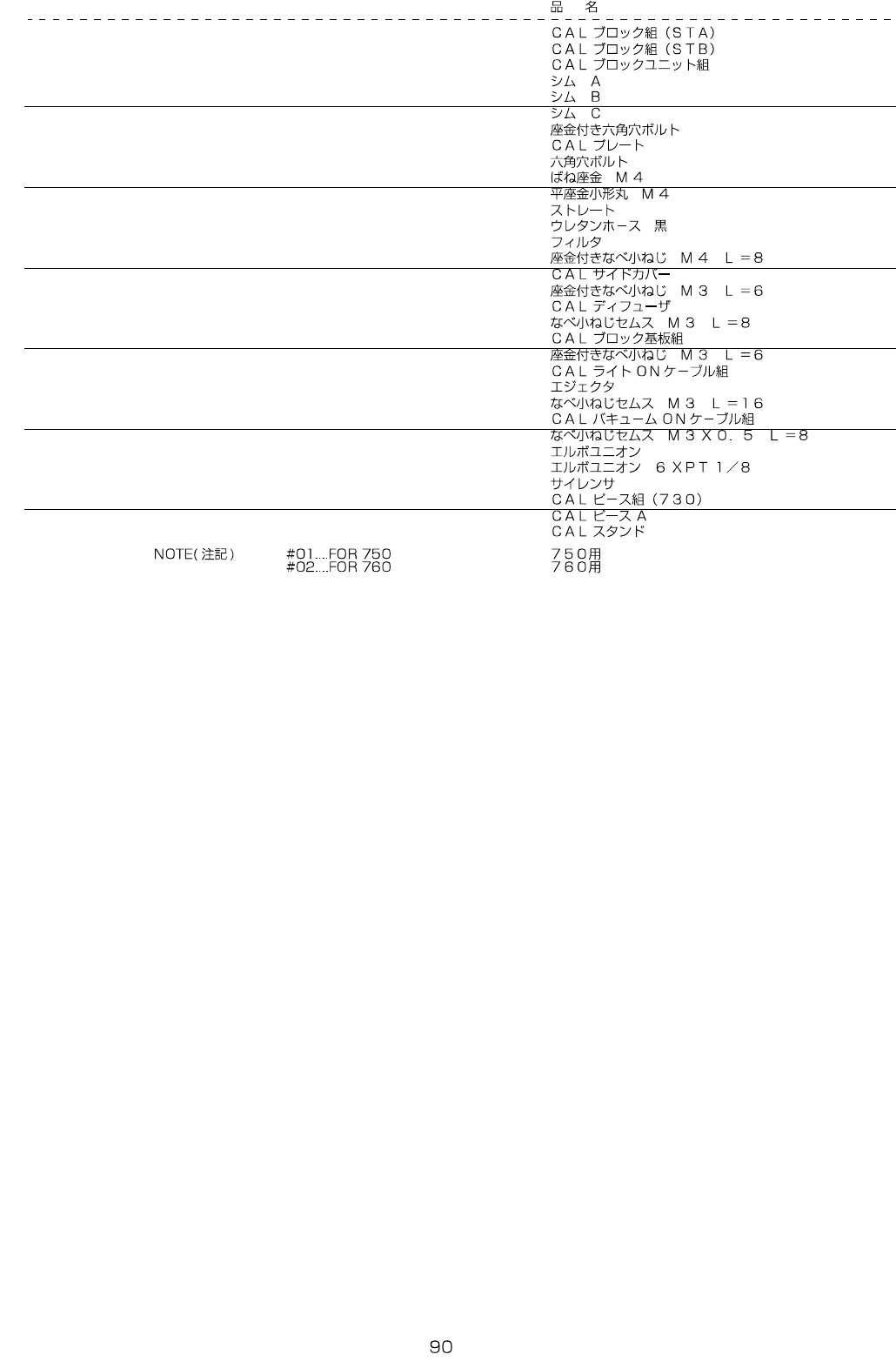

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
E3600-725-0A0 CAL BLOCK ASM.(STA) 1
2
#02
E3600-725-FA0 CAL BLOCK ASM.(STB) 1
3 E3601-725-0A0 CAL BLOCK UNIT ASM. (1)
4 E2061-760-000 SHIM A (1)
5 E2062-760-000 SHIM B (1)
6 E2063-760-000 SHIM C (1)
7 SL-6062092-TN SCREW M6 L=20 (2)
8 E3603-721-000 CAL PLATE (1)
9 SM-6042002-TN BOLT (2)
10 WS-0410002-KN SPRING WASHER (2)
11 WP-0430800-SC WASHER M4 (2)
12 PJ-3010405-06 STRAIGHT (1)
13 BT-0400251-EB URETHANE HOSE, BLACK (0.1)
14 E7916-725-0A0 FILTER (1)
15 SL-4040891-SC SCREW M4 L=8 (2)
16 E3604-721-000 CAL SIDE COVER (1)
17 SL-4030681-SC SCREW M3 L=6 (4)
18 E3605-721-000 CAL DIFFUSER (1)
19 SL-4030891-SC SCREW M3X8 (2)
20 E8609-721-0A0 CAL BLOCK CIRCUIT BOARD ASM. (1)
21 SL-4030681-SC SCREW M3 L=6 (4)
22 E9366-725-0A0 CAL LIGHT ON CABLE ASM. (1)
23 E3066-700-000 EJECTOR (1)
24 SL-4031681-SC SCREW M3 X 16 (2)
25 E9367-725-0A0 CAL VACUUM ON CABLE ASM. (1)
26 SL-4030881-SC SCREW M3X8 (2)
27 PJ-3040405-05 ELBOW (1)
28 PJ-3040651-01 ELBOW UNION 6XPT1/8 (1)
29 PX-0580010-00 SILENCER (1)
30 E3621-721-0A0 CAL PIECE ASM. (730) (1)
31 E3622-721-000 CAL PIECE A (1)
32 E3602-721-000 CAL STAND (1)
- -

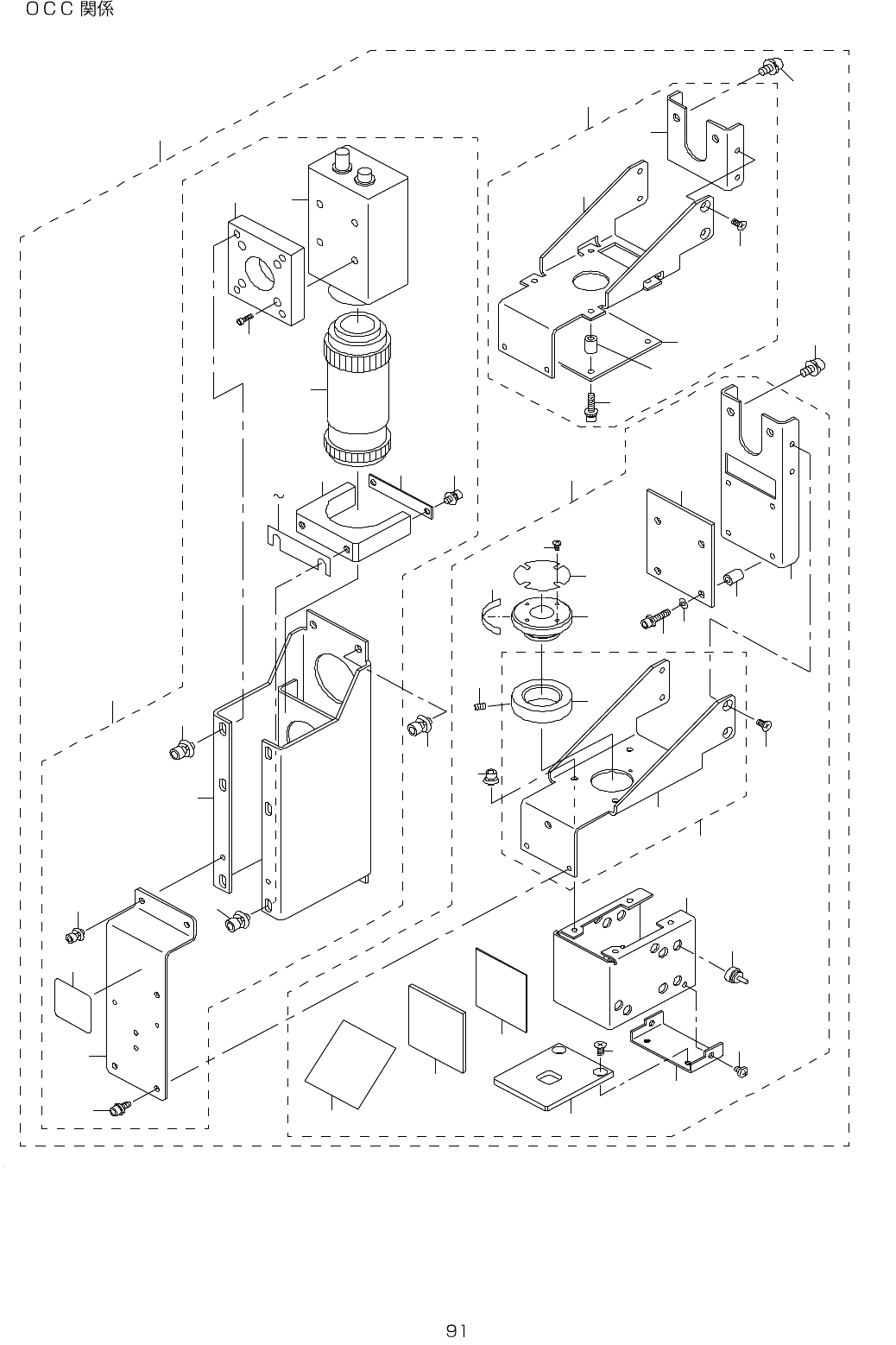

46.OCC COMPONENTS
4
5
3
6
7
1 4
9
1 0 1 3
8
1 5 1 6
1 7
1 8
1 9
4 5
2 9
3 1
3 2
3 6
3 7
3 8
3 9
4 0
4 1
4 4
2 1
4 6
2 3
2 5
2 6
2 7
2 8
4 9
5 0
5 1
4 3
3 3
3 5
3 4
5 4
5 3
5 2
2
2 2
4 8
1
3 0
2 4
2 0
5 5
4 7
4 2
