- - 49.P O W E R S UPPLY TRAN S FO R M ER COMPONENTS (1- P HA S E) 6 7 1 1 1 4 1 7 1 6 3 4 5 1 2 8 9 1 8 1 9 1 5 1 2 1 3 2 0 1 0 2 3 2 1 2 1 2 2 2 2
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
E5000-725-0A0 PACKAGE ACCESSORY ASM.(STA) 1
2
#02
E5000-725-FA0 PACKAGE ACCESSORY ASM.(STB) 1
3 E9690-715-000 LAMP (1)
4 E5302-700-0A0 HOD BOX PACKAGE ASM. (1)
5 WP-0641601-SC WASHER (2)
6 MDF-RX1001L0 DEFRIX OIL NO.1 800CC (1)
7 J1067-000-000 OILER (1)
8 B9121-220-0A0 OILER (CONTAINING NO.2 OIL) (1)
9 MGR-EAS400G0 GREASE (1)
10 J1066-000-00B HEXAGONAL WRENCH KEY (2MM) (1)
11 J1066-000-00C HEXAGONAL WRENCH KEY 2.5 (1)
12 J1066-000-00D HEXAGONAL WRENCH KEY (1)
13 J1066-000-00E HEXAGONAL BOWL WRENCH (1)
14 J1066-000-A0G HEXAGONAL LONG SPANNER (1)
15 J1080-000-000 BOLL SCREWDRIVER (1)
16 MAI-17002000 RECESSED HEAD DRIVER (NO.1) (1)
17 E5001-715-000 X AXIS STOPPER (1)
18 SL-6030842-TN SCREW M3 L=8 (2)
19 NM-6030001-SC NUT M3 (2)
20 E1348-700-000 SAFETY COVER STOPPER (2)
21 SM-6052502-TN HEXAGONAL-HOLE BOLT (2)
22 E9450-700-0A0 POWER SUPPLY CABLE ASM. (1)
23 E2801-725-0A0 CHIP BOX ASM. (2)
24 E2801-725-000 CHIP BOX (1)
25 E2802-721-000 CHIP CUSHION (1)
26
#02
E2803-725-0A0 CHIP BOX L ASM. (1)
27 E2803-725-000 CHIP BOX L (1)
28 E2804-725-000 CHIP CUSHION (1)
- -

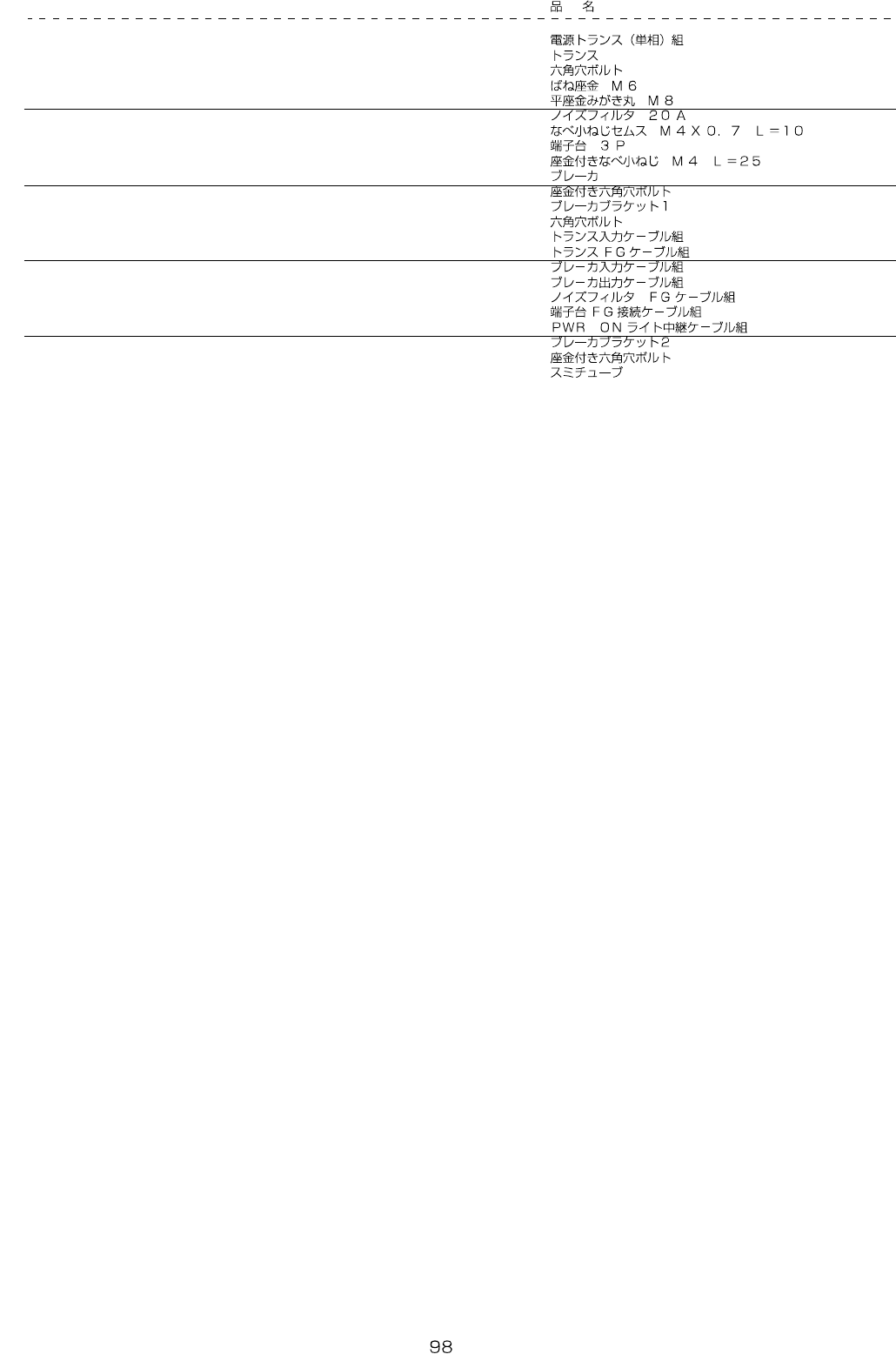

49.POWER SUPPLY TRANSFORMER COMPONENTS (1-PHASE)
6
7
1 1
1 4
1 7
1 6
3
4
5
1
2
8
9
1 8
1 9
1 5
1 2
1 3
2 0
1 0
2 3
2 1
2 1
2 2
2 2
-
-
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E9640-725-0A0 POWER SUPPLY TRANSFORMER ASM. 1
2 KX-0000000-40 TRANSFORMER (1)
3 SM-6061202-TN BOLT (4)
4 WS-0610002-KN SPRING WASHER 6.1X12.2X1.5 (4)
5 WP-0841601-SC WASHER 8.4X17.4X1.6 (4)
6 HN-0008900-0A NOISE FILTER 20A (1)
7 SL-4041091-SC SCREW M4 L=10 (2)
8 HK-0433500-30 TERMINAL BASE 3P (1)
9 SL-4042591-SC SCREW M4 L=25 (2)
10 400-79990 CIRCUIT PROTECTOR (1)
11 SL-6051092-TN SCREW (4)
12 400-79756 BREAKER BR 1 (1)
13 SM-6061202-TN BOLT (4)
14 E9214-721-0A0 TRANSFORMER INPUT CABLE ASM. (1)
15 E9215-725-0A0 TRANSFORMER FG CABEL ASM. (1)
16 E9216-725-0A0 BREAKER INPUT CABEL ASM. (1)
17 E9217-725-0A0 BREAKER OUTPUT CABEL ASM. (1)
18 E9218-725-0A0 NOISE FILTER CABLE ASM. (1)
19 E9219-725-0A0 FGCONNECTING CABLE ASM. (1)
20 E9589-725-0A0 POWER ON LIGHT RELAY CABLE ASM (1)
21 400-79757 BREAKER BR 1 (2)
22 SL-6040892-TN BOLT (4)
23 E8760-452-W00 TUBE (0.24)
