- - 50.P O W E R S UPPLY TRAN S FO R M ER COMPONENTS (3- P HA S E) 1 6 1 8 1 7 6 7 9 1 0 1 1 1 2 2 0 2 1 2 2 1 9 1 3 3 4 5 2 8 1 4 1 1 5 2 3
-
-
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E9640-725-0A0 POWER SUPPLY TRANSFORMER ASM. 1
2 KX-0000000-40 TRANSFORMER (1)
3 SM-6061202-TN BOLT (4)
4 WS-0610002-KN SPRING WASHER 6.1X12.2X1.5 (4)
5 WP-0841601-SC WASHER 8.4X17.4X1.6 (4)
6 HN-0008900-0A NOISE FILTER 20A (1)
7 SL-4041091-SC SCREW M4 L=10 (2)
8 HK-0433500-30 TERMINAL BASE 3P (1)
9 SL-4042591-SC SCREW M4 L=25 (2)
10 400-79990 CIRCUIT PROTECTOR (1)
11 SL-6051092-TN SCREW (4)
12 400-79756 BREAKER BR 1 (1)
13 SM-6061202-TN BOLT (4)
14 E9214-721-0A0 TRANSFORMER INPUT CABLE ASM. (1)
15 E9215-725-0A0 TRANSFORMER FG CABEL ASM. (1)
16 E9216-725-0A0 BREAKER INPUT CABEL ASM. (1)
17 E9217-725-0A0 BREAKER OUTPUT CABEL ASM. (1)
18 E9218-725-0A0 NOISE FILTER CABLE ASM. (1)
19 E9219-725-0A0 FGCONNECTING CABLE ASM. (1)
20 E9589-725-0A0 POWER ON LIGHT RELAY CABLE ASM (1)
21 400-79757 BREAKER BR 1 (2)
22 SL-6040892-TN BOLT (4)
23 E8760-452-W00 TUBE (0.24)
- -
50.POWER SUPPLY TRANSFORMER COMPONENTS (3-PHASE)
1 6
1 8
1 7
6
7
9
1 0
1 1
1 2
2 0
2 1
2 2
1 9
1 3
3
4
5
2
8
1 4
1
1 5
2 3
- -

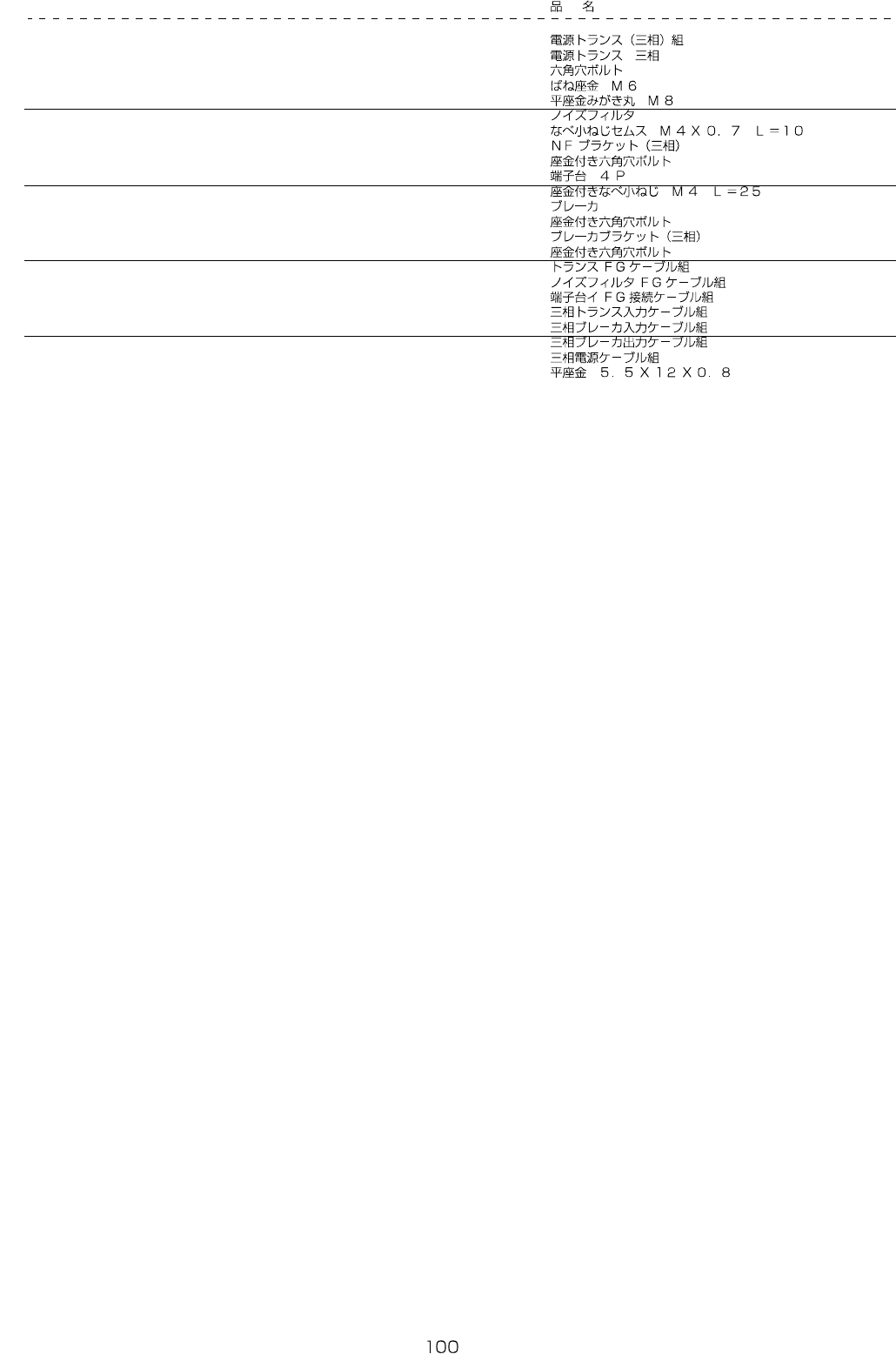

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E9641-725-0A0 POWER SUPPLY TRANSFORMER ASM. 1
2 E9641-721-000 POWER SUPPLY TRANSFORMER (1)
3 SM-6061202-TN BOLT (4)
4 WS-0610002-KN SPRING WASHER 6.1X12.2X1.5 (4)
5 WP-0841601-SC WASHER 8.4X17.4X1.6 (4)
6 HN-0014000-00 NOIS FILTER (1)
7 SL-4041091-SC SCREW M4 L=10 (2)
8 E1620-725-000 NF BRACKET (THREE PHASE) (1)
9 SL-6051042-TN SCREW (4)
10 HK-0433500-40 TERMINAL BASE 4P (1)
11 SL-4042591-SC SCREW M4 L=25 (2)
12 HA-0040300-00 BRAKER (1)
13 SL-6051092-TN SCREW (4)
14 E1011-725-000 BRAKER BRACKET (THREE PHASE) (1)
15 SL-6051042-TN SCREW (4)
16 E9215-725-0A0 TRANSFORMER FG CABLE ASM. (1)
17 E9218-725-0A0 NOISE FILTER FG CABLE ASM. (1)
18 E9219-725-0A0 FG CONNECTING CABLE ASM. (1)
19 E9585-725-0A0 TRANSFORMER INPUT CABLE ASM. (1)
20 E9586-725-0A0 BREAKER INPUT CABLE ASM. (1)
21 E9587-725-0A0 BREAKER OUTPUT CABLE ASM. (1)
22 E9599-721-0A0 POWER SUPPLY CABLE ASM. (1)
23 WP-0550836-SC WASHER 5.5X12X0.8 (4)
