- - 57.P WB CON VE YOR COMPONENTS (7)(M) 4 3 9 1 8 9 9 2 9 3 9 4 9 5 6 8 3 0 3 9 3 9 3 1 3 7 3 6 4 1 4 7 4 6 4 8 4 7 4 6 5 9 3 6 3 1 3 4 3 2 3 4 3 4 3 2 5 8 3 6 3 8 4 0 4 0 4 2 4 5 4 3 4 4 4 5 4 5 4 4 4 5 4 3 3 3 3 1 3…
- -

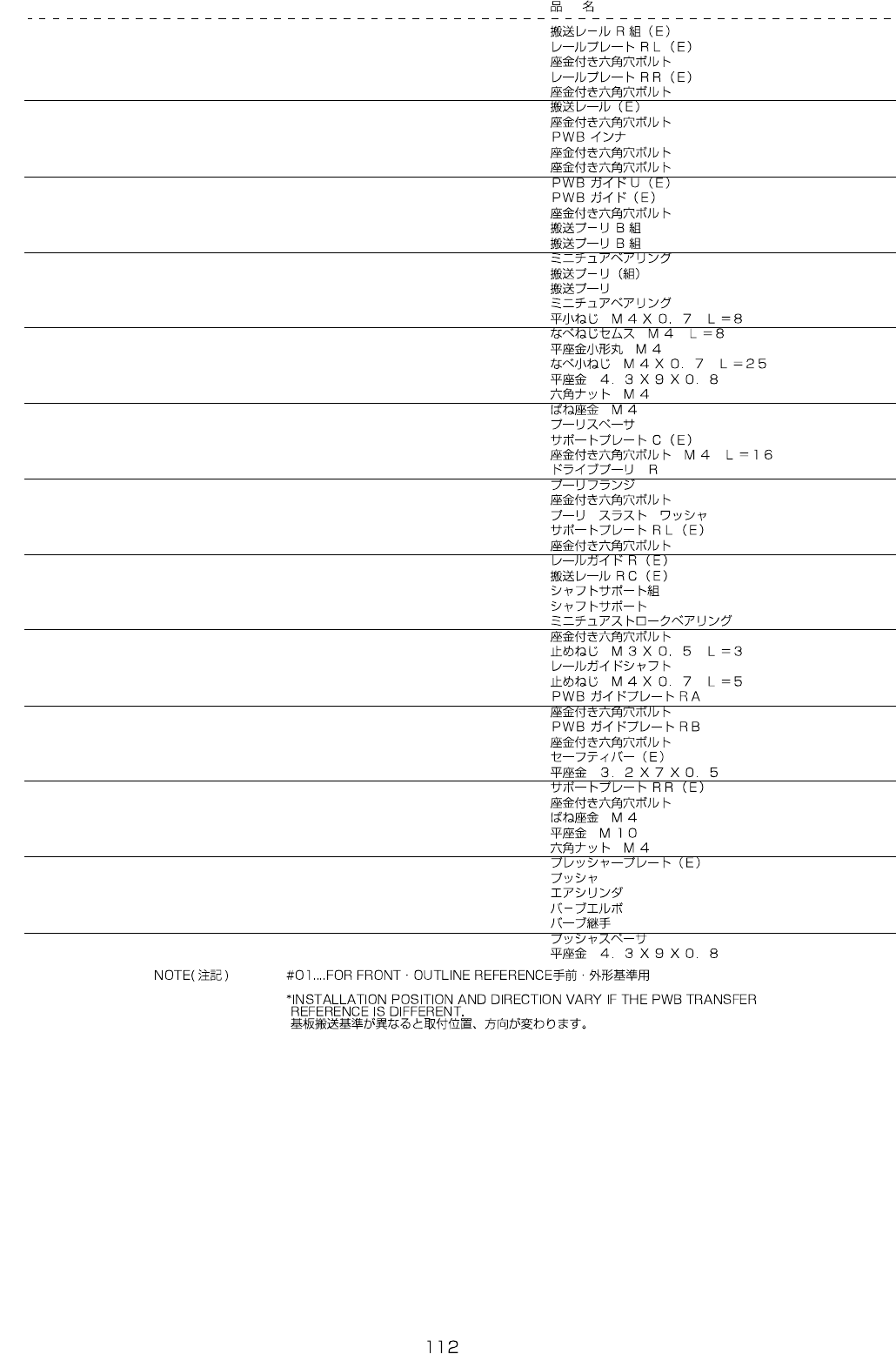

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E4073-725-0A0 CONVEYOR RAIL R ASM.(E) 1
2 E4070-725-000 RAIL PLATE RL(E) (1)
3 SL-6041092-TN SCREW (2)
4 E4071-725-000 RAIL PLATE RR(E) (1)
5 SL-6041092-TN SCREW (2)
6 E4049-725-000 CONVEOR RAIL(E) (2)
7 SL-6031492-TN SCREW (8)
8 E2046-725-000 PWB INNER (6)
9 SL-6031092-TN SCREW (8)
10 SM-6031002-TN SCREW (4)
11 E4041-725-000 PWB GUIDE U(E) (4)
12 E4042-725-000 PWB GUIDE(E) (4)
13 SL-6031092-TN SCREW (8)
14 E2089-721-0A0 CONVEYOR PULLEY B ASM. (8)
15 E2089-721-000 CONVEYOR PULLEY B ASM. (1)
16 SB-1040001-00 BEARING (2)
17 E2111-715-0A0 CONVEYOR PULLEY ASM. (12)
18 E2111-715-000 CONVEYOR PULLEY (1)
19 SB-1040001-00 BEARING (1)
20 SM-6040810-SC SCREW M4X0.7 L=8 (11)
21 SL-4040841-SE SCREW M4 L=8 (4)
22 WP-0430800-SC WASHER M4 (12)
23 SM-4042501-SC SCREW M4X0.7 L=25 (9)
24 WP-0430801-SC WASHER 4.3X9X0.8 (9)
25 NM-6040001-SC NUT M4 (9)
26 WS-0410002-KN SPRING WASHER (9)
27 E2055-721-000 PULLEY SPACER (8)
28 E4074-725-000 SUPPORT PLATE C(E) (1)
29 SL-6041692-TN SCREW (10)
30 E2154-721-000 DRIVE PULLEY R (3)
31 E2160-721-000 PULLEY FLANGE (6)
32 SL-6030892-TN SCREW (18)
33 E3931-750-000 PULLEY WASHER (6)
34 E4076-725-000 SUPPORT PLATE RL(E) (1)
35 SL-6042092-TN SCREW M4 L=20 (4)
36 E4072-725-000 RAIL GUID R(E) (1)
37 E4073-725-000 CONVEYOR RAIL RC(E) (1)
38 E2136-721-0A0 SHAFT SUPPORT ASM. (2)
39 E2136-721-000 SHAFT SUPPORT (1)
40 E2111-721-000 BEARING (1)
41 SL-6041092-TN SCREW (4)
42 SM-8030302-TP SCREW M3X0.5 L=3 (2)
43 E2176-721-000 RAIL GUIDE SHAFT (2)
44 SM-8040502-TP SCREW M4X0.7 L=5 (2)
45 E2124-721-000 PWB GUIDE PLATE RA (8)
46 SL-6030892-TN SCREW (8)
47 E2125-721-000 PWB GUIDE PLATE RB (2)
48 SL-6030892-TN SCREW (2)
49 E4075-725-000 SAFETY BAR(E) (1)
50 WP-0320501-SC WASHER M3 (4)
51 E4077-725-000 SUPPORT PLATE RR(E) (1)
52 SL-6042092-TN SCREW M4 L=20 (4)
53
#01
WS-0410002-KN SPRING WASHER 4
54
#01
WP-1052000-SD WASHER M10 12
55
#01
NM-6040001-SC NUT M4 4
56 #01 E4055-725-000 PUSHER PLATE(E) 1
57
#01
E2161-721-000 PUSHER 6
58
#01
PA-0600505-A0 AIR CYLINDER 6
59
#01
PJ-0460525-01 ELBOW 1
60
#01
PJ-0460590-05 CONNECTOR 5
61
#01
E2165-721-000 PUSHER SPACER 4
62
#01
WP-0430801-SC WASHER 4.3X9X0.8 4
- -

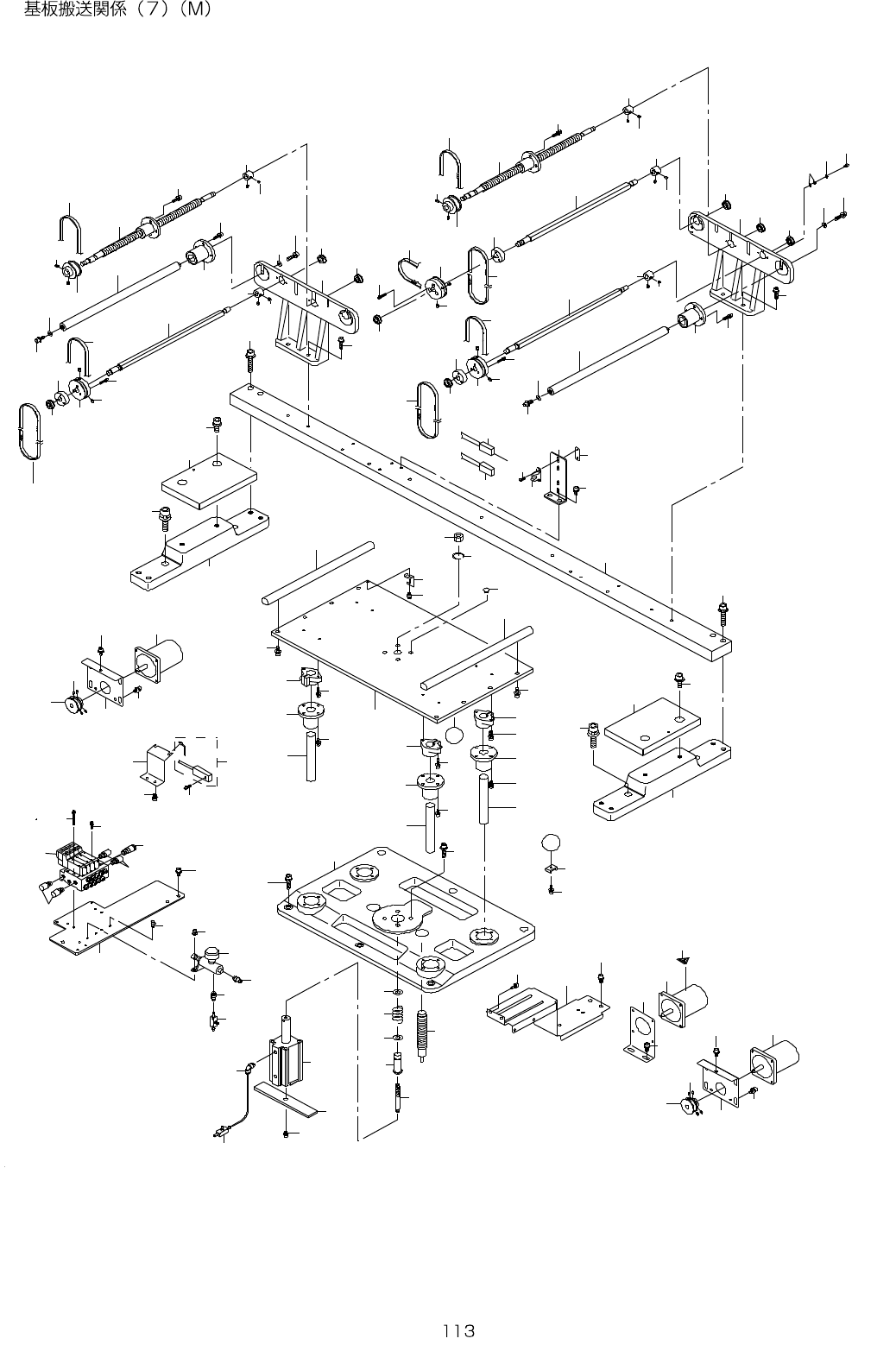

57.PWB CONVEYOR COMPONENTS (7)(M)
4 3
9 1
8 9
9 2
9 3
9 4
9 5
6 8
3 0
3 9
3 9
3 1
3 7
3 6
4 1
4 7
4 6
4 8
4 7
4 6
5 9
3 6
3 1
3 4
3 2
3 4
3 4
3 2
5 8
3 6
3 8
4 0
4 0
4 2
4 5
4 3
4 4
4 5
4 5
4 4
4 5
4 3
3 3
3 1
3 3
3 3
5 6
2 8
2 9
6 3
6 4
6 5
6 6
6 0
3 2
3 5
A
A
7 0
8 8
6 2
7 6
7 7
7 1
7 8
8 7
8 5 8 6
8 3
7 2
7 3
7 5
8 1
7 9
8 0
7 5
7 4
5 7
8 4
8 2
6 9
6 1
6 1
4
4
9 0
4 9
9 0
4 9
1
2 5
5
7
9
9
1 3
1 5
1 4
1 5
1 5
1 5
1 5
1 4
1 6
1 6
1 6
1 6
1 6
1 6
2 2
2 0
2 1
2 2
1 6
2 4
2 7
2 5
2 4
2 7
5 0
5 1
1 6
2 2
2 0
2 1
5 2
5 5
5 3
5 3
3
2
6
1 2
8
1 0
1 0
1 1
1 0
1 2
1 0
1 8
1 9
1 7
2 0
2 3
2 1
2 3
2 3
3 4
3 3
3 4
3 3
1 4
1 4
5 4
2 6
2 6
5 1
1 1
1 4
5 4
1 3
6 7
6 7
9 7
9 8
9 8
9 6
9 9
- -

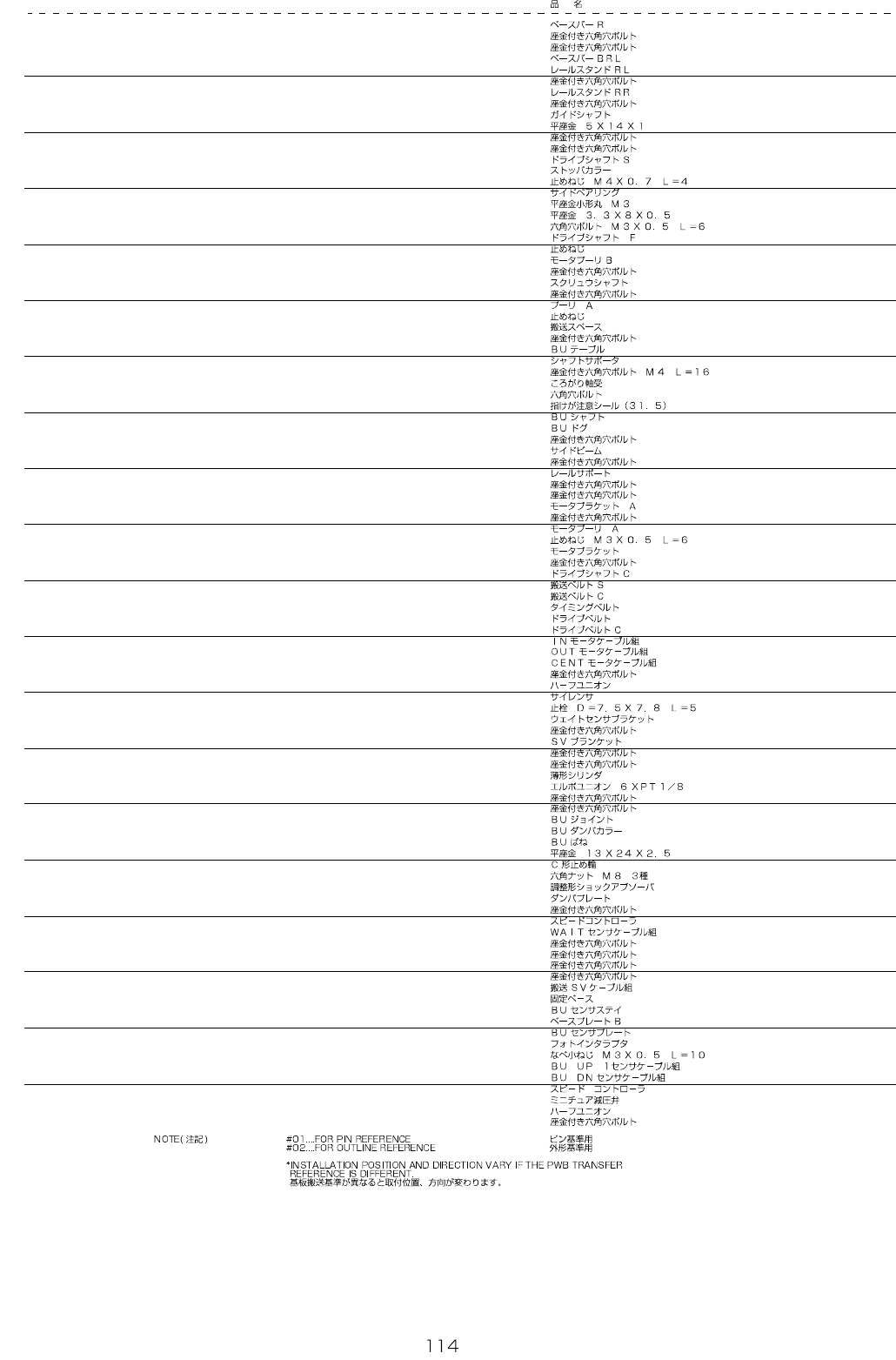

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E2002-725-000 BASE BAR R 1
2 SL-6084092-TN BOLT 2
3 SL-6084092-TN BOLT 2
4 E2028-725-000 BASE BAR BRL 2
5 E2023-725-000 RAIL STAND RL 1
6 SL-6052092-TN SCREW 2
7 E2024-725-000 RAIL STAND RR 1
8 SL-6052092-TN SCREW 2
9 E2009-725-000 GUIDE SHAFT 2
10 WP-0501046-SC WASHER 5 X 13 X 1 4
11 SL-6051242-TN SCR EW 2
12 SL-6052042-TN SCR EW 2
13 E2011-725-000 DRIVE SH AFT 2
14 E2141-721-000 STOPPER COLLAR 5
15 SM-8040402-TP SCREW M4X0.7 L=4 10
16 SB-1080002-00 SIDE BEARING 10
17 WP-0320500-SF WASHER 3.2X7X0.5 20
18 WP-0330516-SC WASHER 3.3X8X0.5 10
19 SM-6030602-TN HEX SCREW M3 X 6 10
20 E2012-725-000 DRIVE SH AFT F 3
21 SM-8040602-TP SCREW M4X0.7 L=6 6
22 E2050-721-000 MOTOR PULLEY B 3
23 SL-6031642-TN SCR EW 9
24 E2010-725-000 SCREW SHAFT 2
25 SL-6041692-TN SCR EW 8
26 E2156-721-000 PULLEY A 2
27 SM-8040602-TP SCREW M4X0.7 L=6 4
28 E2020-725-000 CONVEYOR BASE 1
29 SL-6062592-TN SCR EW 6
30 E2007-725-000 BU TABLE 1
31 E2014-715-000 SHAFT SUPPORTER 4
32 SL-6041692-TN SCR EW 8
33 SB-8160001-00 OIL FELT 6
34 SM-6041002-TN BOLT 24
35 CM-3002000-03 ATTENTION LABEL 2
36 E2006-725-000 BU SHAFT 4
37 E2008-725-000 BU DOG 1
38 SL-6041092-TN SCR EW 1
39 E2019-725-000 SIDE BEAM 2
40 SL-6051492-TN BOLT 8
41 E2018-725-000 RAIL SUPPOR T 1
42 SL-6041292-TN SCR EW 2
43 SL-6051292-TN BOLT 6
44 E2171-721-000 MOTOR BRACKET 2
45 SL-6051092-TN SCR EW 10
46 E2172-721-000 MOTOR PULLEY A 3
47 SM-8030602-TP SCREW M3X0.5 L=6 9
48 E2021-725-000 MOTOR BRACKET 1
49 SL-6082042-TN BOLT 4
50 E2004-725-000 DRIVE SH AFT C 1
51 E2017-725-000 CONVEYOR BELT S 4
52 E2016-725-000 CONVEYOR BELT C 2
53 E2015-725-000 TIMIN G BELT 1
54 E2051-721-000 DRIVE BELT 2
55 E2014-725-000 DRIVE BELT C 1
56 E9480-721-0A0 IN MOTOR CABLE ASM. 1
57 E9482-721-0A0 OUT MOTOR CABLE ASM. 1
58 E9478-725-0A0 CENT MOT OR CABLE ASM. 1
59 SL-6041042-TN BOLT 4
60 PJ-3010651-03 HALF UNION 6XPT1/8 1
61 PX-0551040-00 SILENCER (PT1/8) 4
62 TA-0750501-R0 PLUG D =7.5X7.8 L=5 4
63 E2091-725-000 WEIGHT SENSOR BRACKETE 1
64 SL-6041092-TN SCR EW 2
65 E2032-725-000 SV BRACKET 1
66 SL-6051092-TN SCR EW 4
67 SL-6104042-TN SCR EW 4
68 PA-3205301-00 CYLINDER 1
69 PJ-3040651-01 ELBOW UNION 6XPT1/8 2
70 SL-6041092-TN SCR EW 2
71 SL-6062592-TN SCR EW 4
72 E2113-721-000 BU JOINT 1
73 E2194-721-000 BU DAMPER 1
74 E2110-721-000 BU SPRIN G 1
75 WP-1302501-SC WASHER 13X24X2.5 2
76 RC-1200001-KP C-SHAPED SNAP RING 1
77 NM-6080003-SC NUT M8 1
78 PA-9000640-00 SHOCK ABSORBER 2
79 E2096-725-000 DAMPER PLATE 1
80 SL-6061692-TN BOLT 1
81 PC-0126010-00 SPEED CONTROLLER 3
82 E9464-725-0A0 WAIT SENSOR CABLE ASM. 1
83 SL-6031292-TN BOLT 1
84 SL-6030642-TN SCR EW M3 L=6 2
85 #01 SL-6042592-TN SCREW 4
86 #02 SL-6043092-TN BOLT 4
87 E9462-721-0A0 SV CABLE ASM. 1
88 HX-0029400-00 FIXED BASE 2
89 E2092-725-000 BU SENSOR STAY 1
90 E2299-725-000 BASE PLATE B 2
91 E2093-725-000 BU SENSOR PLATE 4
92 HD-0007600-00 DETECTOR SWITCH 2
93 SM-4031001-SC SCREW M3X0.5 L=10 4
94 E9468-725-0A0 BU UP 1 SENSOR CABLE ASM. 1
95 E9469-725-0A0 BU DN SENSOR CABLE ASM. 1
96
#02
PC-0124010-00 SPEED CONTROLLER 2
97
#02
PC-0205010-A0 MINIATURE DECOMPRESSION VALVE 2
98
#02
PJ-2100043-00 UNION 4
99 #02 SL-6041092-TN SCREW 4
