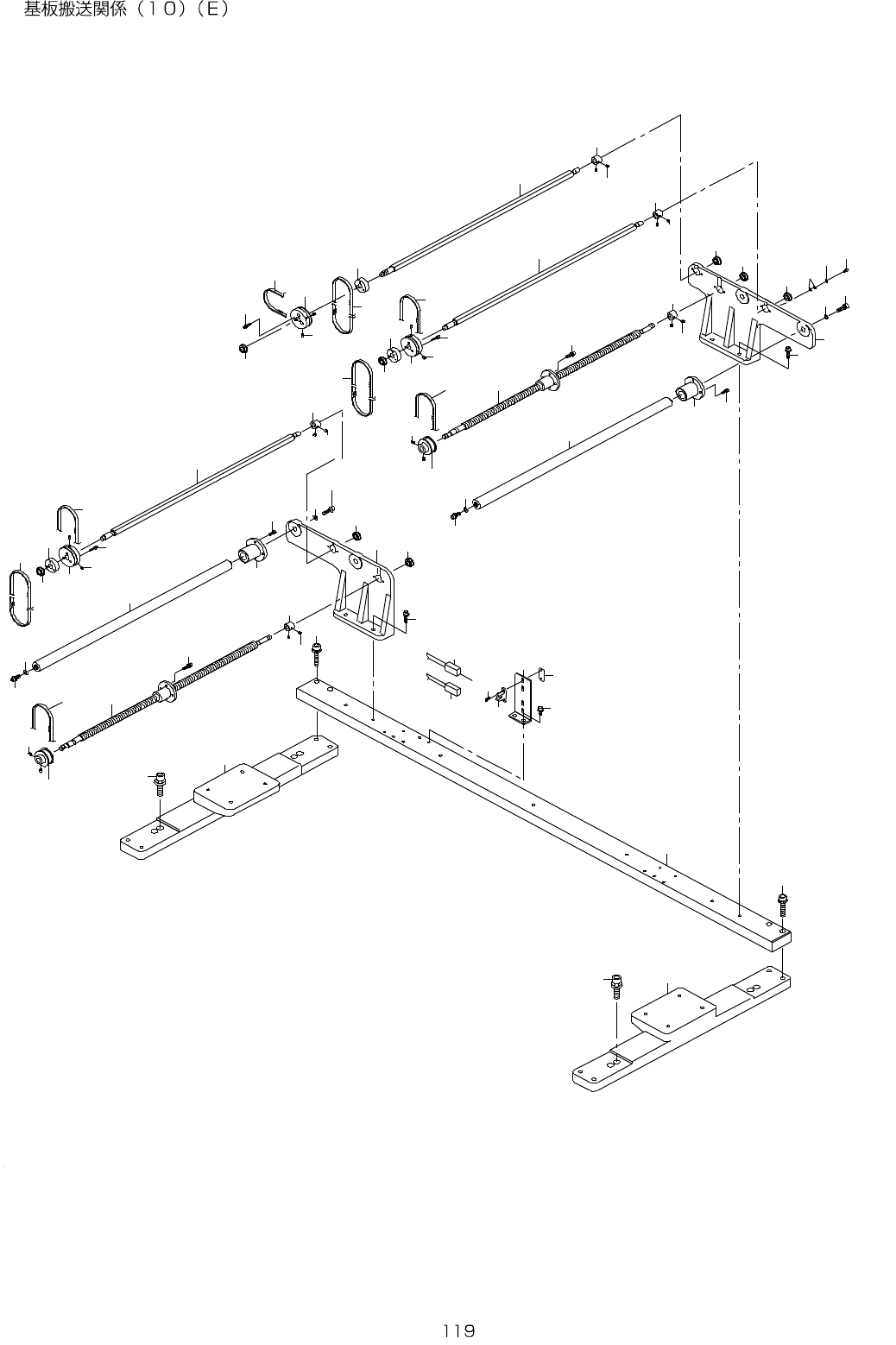

60.PWB CONVEYOR COMPONENTS (10)(E)
3 6
3 7
3 5
3 8
3 9
4 0
4 1
3
3 4
3
3 4
1
2
2
5
2 3
4
6
7
2 0
1 1
1 3
1 3
1 3
1 2
1 4
1 4
1 4
1 4
1 4
2 1
1 1
2 9
2 0
1 4
2 2
2 5
2 8
2 9
1 4
2 0
1 8
1 9
3 0
3 3
3 1
1 0
5
8
8
9
1 8
1 9
1 0
8
1 6
1 7
1 5
1 8
1 3
1 9
2 1
2 1
2 7
2 6
2 7
2 6
1 2
1 2
3 2
2 4
3 2
1 2
1 4
1 3
2 2
2 3
2 5
2 4
3 1
1 2
9
7
8
- -

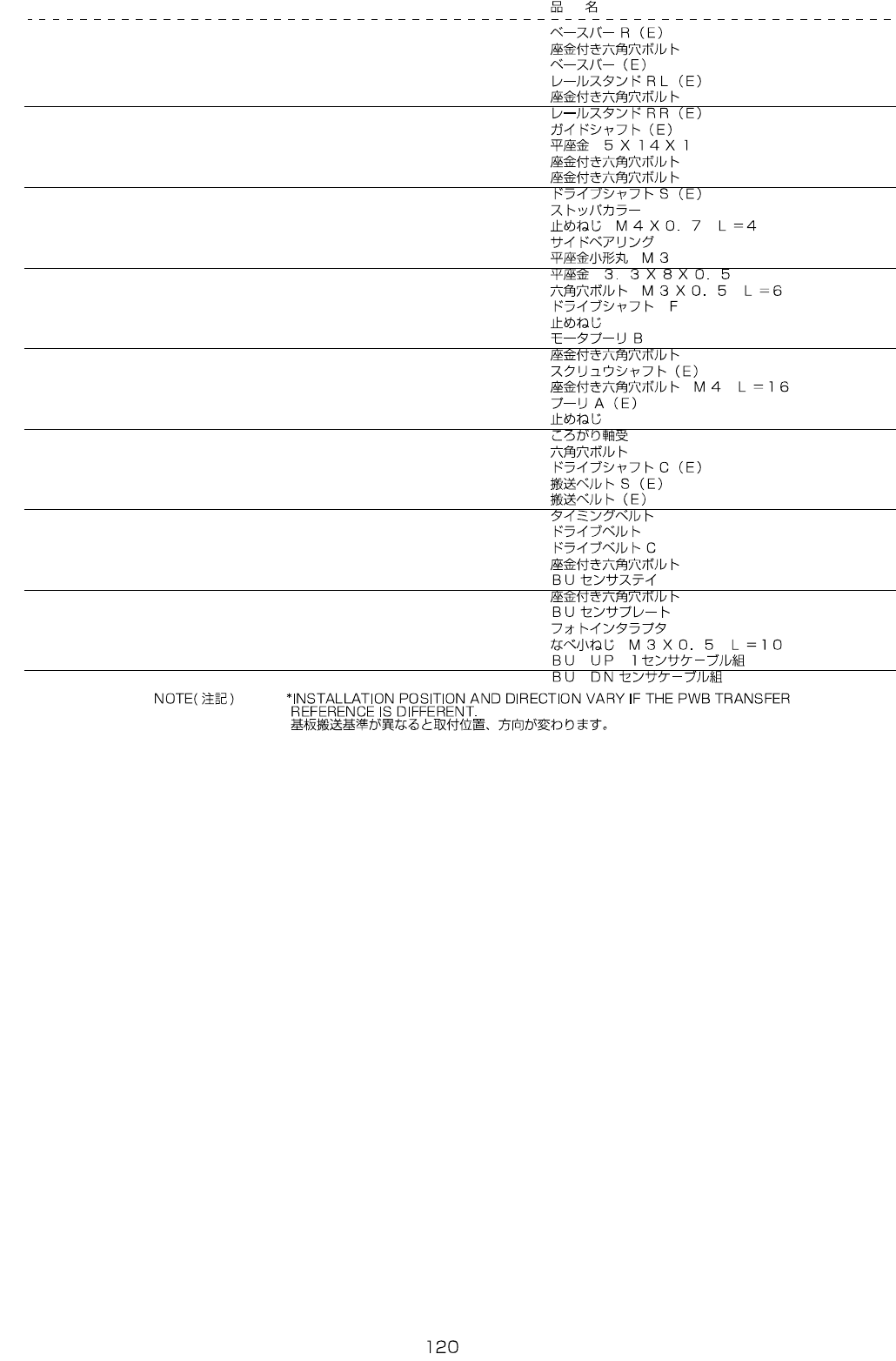

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E4002-725-000 BASE BAR R(E) 1
2 SL-6084092-TN BOLT 4
3 E4025-725-000 BASE BAR(E) 2
4 E4023-725-000 RAIL STAND RL 1
5 SL-6052092-TN SCREW 4
6 E4024-725-000 RAIL STAND RR(E) 1
7 E4009-725-000 GUID SHAFT(E) 4
8 WP-0501046-SC WASHER 5 X 13 X 1 8
9 SL-6051292-TN BOLT 4
10 SL-6052042-TN SCREW 4
11 E4051-725-000 DRIVE SHAFT S(E) 2
12 E2141-721-000 STOPPER COLLAR 5
13 SM-8040402-TP SCREW M4X0.7 L=4 10
14 SB-1080002-00 SIDE BEARING 10
15 WP-0320500-SF WASHER 3.2X7X0.5 20
16 WP-0330516-SC WASHER 3.3X8X0.5 10
17 SM-6030602-TN HEX SCREW M3 X 6 10
18 E2012-725-000 DRIVE SHAFT F 3
19 SM-8040602-TP SCREW M4X0.7 L=6 6
20 E2050-721-000 MOTOR PULLEY B 3
21 SL-6031642-TN SCREW 9
22 E4010-725-000 SCREW SHAFT(E) 2
23 SL-6041692-TN SCREW 8
24 E4085-725-000 PULLEY A(E) 2
25 SM-8040602-TP SCREW M4X0.7 L=6 4
26 SB-8200001-00 BEARING 4
27 SM-6041002-TN BOLT 16
28 E4004-725-000 DRIVE SHAFT C(E) 1
29 E4017-725-000 CONVEYOR BELT S(E) 4
30 E4016-725-000 CONVEYOR BELT(E) 2
31 E2146-721-000 TIMING BELT 1
32 E2051-721-000 DRIVE BELT 2
33 E2288-725-000 DRIVE BELT C 1
34 SL-6104042-TN BOLT 4
35 E2092-725-000 BU SENSOR STAY 1
36 SL-6051292-TN BOLT 2
37 E2093-725-000 BU SENSOR PLATE 4
38 HD-0007600-00 DETECTOR SWITCH 2
39 SM-4031001-SC SCREW M3X0.5 L=10 4
40 E9468-725-0A0 BU UP 1 SENSOR CABLE ASM. 1
41 E9469-725-0A0 BU DN SENSOR CABLE ASM. 1
- -

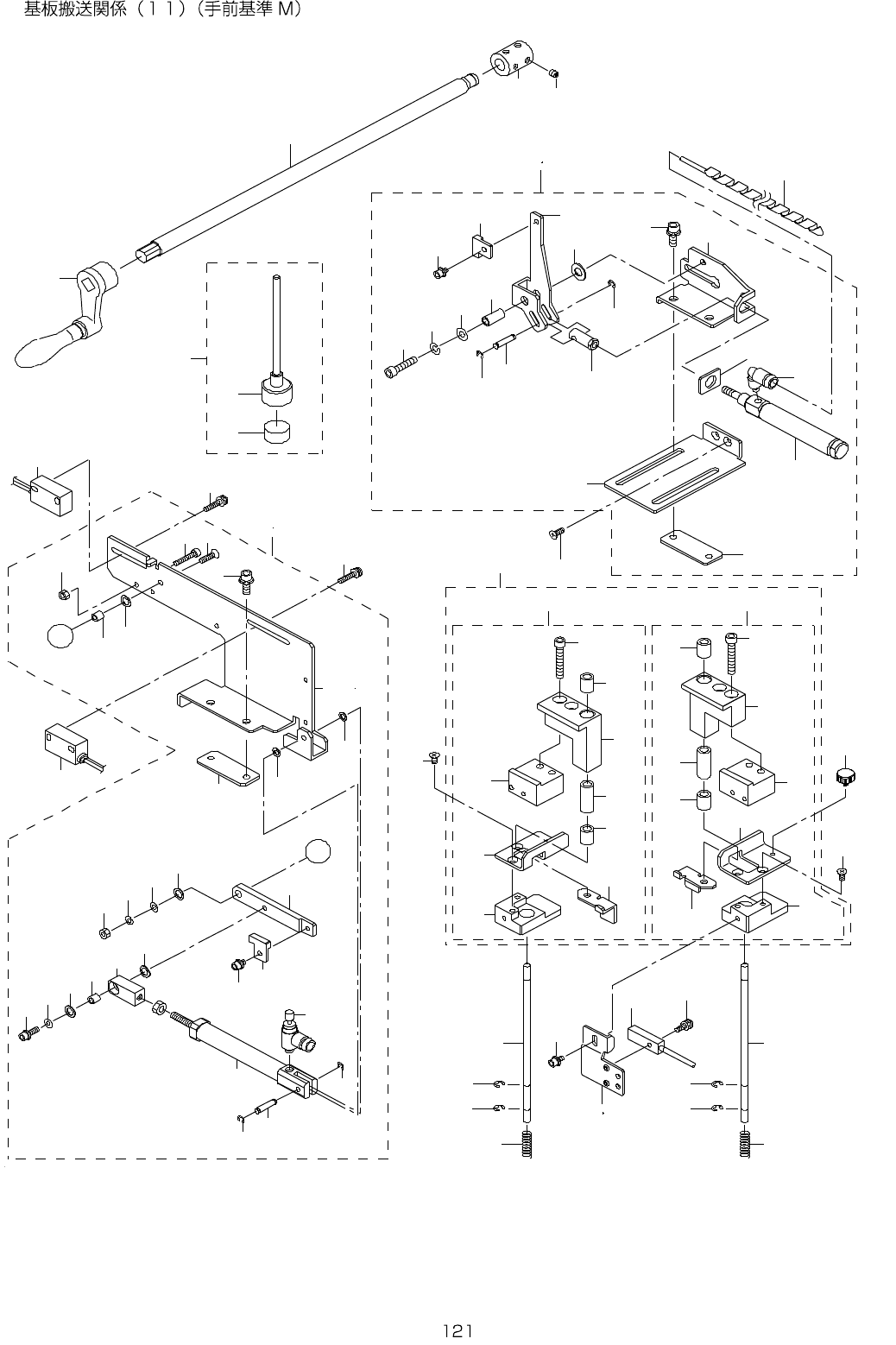

61.PWB CONVEYOR COMPONENTS (11)(FRONT REFERENCE M)
