KE-750_KE-760-Rev07PDF - 第126页
- - 61.P WB CON VE YOR COMPONENTS (11 ) ( FR O N T R E FEREN C E M ) 8 1 2 1 1 2 1 2 0 1 9 1 6 1 1 1 1 9 2 3 2 3 1 3 1 4 1 5 1 8 3 7 3 4 3 5 3 5 3 6 3 7 3 8 5 1 4 3 4 4 4 5 4 4 4 6 4 7 4 8 5 0 5 2 4 1 4 0 4 9 5 3 4 2 3…
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E4002-725-000 BASE BAR R(E) 1
2 SL-6084092-TN BOLT 4
3 E4025-725-000 BASE BAR(E) 2
4 E4023-725-000 RAIL STAND RL 1
5 SL-6052092-TN SCREW 4
6 E4024-725-000 RAIL STAND RR(E) 1
7 E4009-725-000 GUID SHAFT(E) 4
8 WP-0501046-SC WASHER 5 X 13 X 1 8
9 SL-6051292-TN BOLT 4
10 SL-6052042-TN SCREW 4
11 E4051-725-000 DRIVE SHAFT S(E) 2
12 E2141-721-000 STOPPER COLLAR 5
13 SM-8040402-TP SCREW M4X0.7 L=4 10
14 SB-1080002-00 SIDE BEARING 10
15 WP-0320500-SF WASHER 3.2X7X0.5 20
16 WP-0330516-SC WASHER 3.3X8X0.5 10
17 SM-6030602-TN HEX SCREW M3 X 6 10
18 E2012-725-000 DRIVE SHAFT F 3
19 SM-8040602-TP SCREW M4X0.7 L=6 6
20 E2050-721-000 MOTOR PULLEY B 3
21 SL-6031642-TN SCREW 9
22 E4010-725-000 SCREW SHAFT(E) 2
23 SL-6041692-TN SCREW 8
24 E4085-725-000 PULLEY A(E) 2
25 SM-8040602-TP SCREW M4X0.7 L=6 4
26 SB-8200001-00 BEARING 4
27 SM-6041002-TN BOLT 16
28 E4004-725-000 DRIVE SHAFT C(E) 1
29 E4017-725-000 CONVEYOR BELT S(E) 4
30 E4016-725-000 CONVEYOR BELT(E) 2
31 E2146-721-000 TIMING BELT 1
32 E2051-721-000 DRIVE BELT 2
33 E2288-725-000 DRIVE BELT C 1
34 SL-6104042-TN BOLT 4
35 E2092-725-000 BU SENSOR STAY 1
36 SL-6051292-TN BOLT 2
37 E2093-725-000 BU SENSOR PLATE 4
38 HD-0007600-00 DETECTOR SWITCH 2
39 SM-4031001-SC SCREW M3X0.5 L=10 4
40 E9468-725-0A0 BU UP 1 SENSOR CABLE ASM. 1
41 E9469-725-0A0 BU DN SENSOR CABLE ASM. 1
- -
61.PWB CONVEYOR COMPONENTS (11)(FRONT REFERENCE M)
8
1 2
1 1
2 1
2 0
1 9
1 6
1 1
1 1
9
2 3
2 3
1 3
1 4
1 5
1 8
3
7
3 4
3 5
3 5
3 6
3 7
3 8
5 1
4 3
4 4
4 5
4 4
4 6
4 7
4 8
5 0
5 2
4 1
4 0
4 9
5 3
4
2
3 9
3 3 4 2
3 2
1 2
1 1
A
A
5 6
2 2
1 0
2 2
2 4
2 8 2 9
2 5
5 8
5 9
3 0
2 6
2 7
3 1
1 7
6 6
6 2
6 0 6 1
6 3
5 7
5 7
6 4
5 7
6 5
5 7
6 8
7 3
7 5
7 4
7 6
7 7
7 8
8 3
8 5
8 0
8 7
7 1
7 1
8 4
8 6
8 2
7 2
7 9
6 7
8 1
1
6 9 7 0
6 4
6 5
8 8
5 4
5 6
5 5
- -

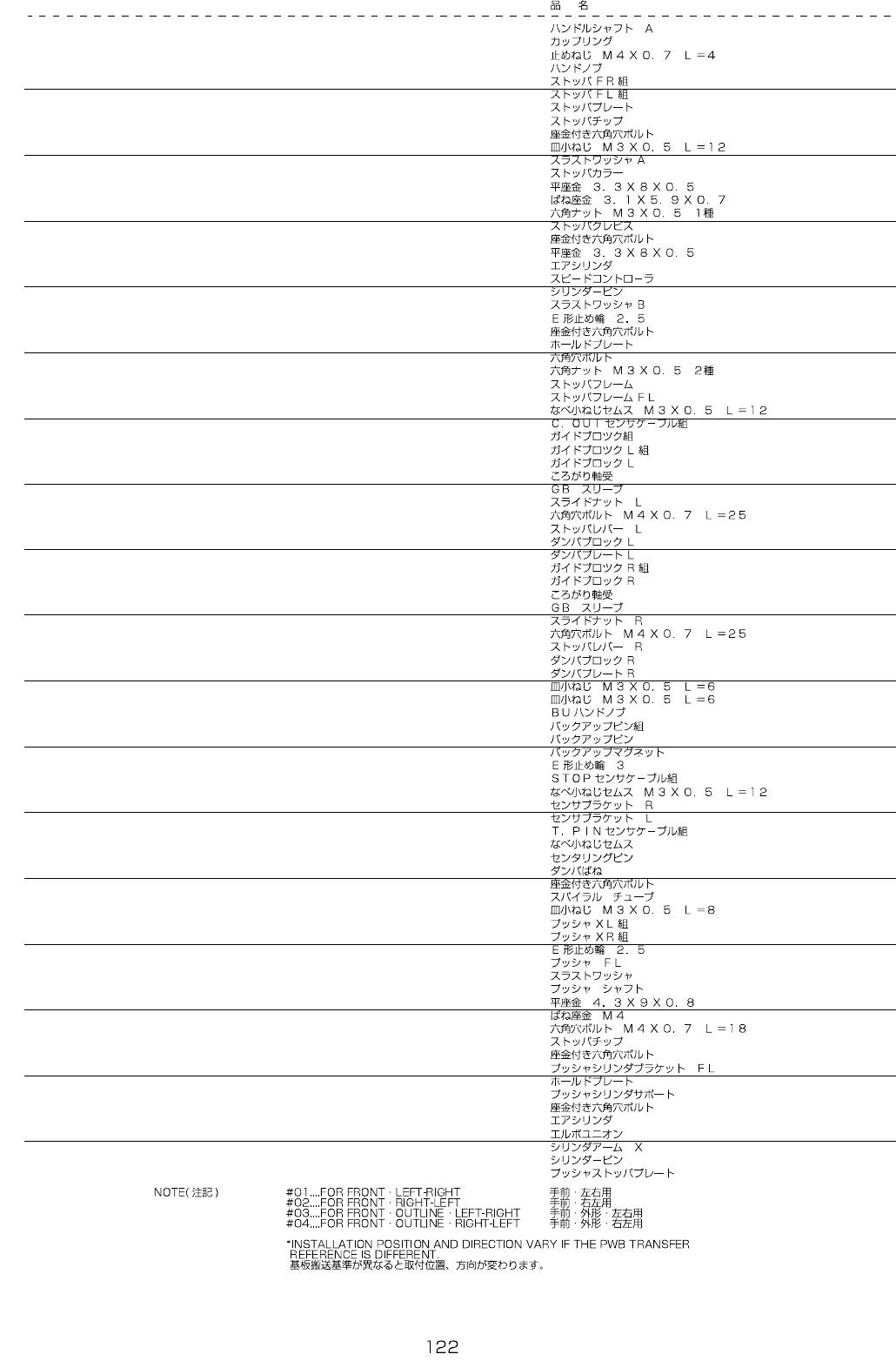

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E2057-721-000 HANDLE SHAFT A 1
2 E2058-721-000 COUPLING 1
3 SM-8040402-TP SCREW M4X0.7 L=4 4
4 E2206-700-000 HAND KNOB 1
5
#01
E2125-725-0A0 STOPPER FR ASM. 1
6
#02
E2126-725-0A0 STOPPER FL ASM. 1
7 E2143-721-000 STOPPER PLATE (1)
8 E2044-721-000 STOPPER CHIP (1)
9 SL-6030592-TN SCREW M3 L=5 (1)
10 SM-1031201-SC SCREW M3X0.5 L=12 (1)
11 E2039-721-000 WASHER A (4)
12 E2038-721-000 STOPPER COLLAR (2)
13 WP-0330516-SC WASHER 3.3X8X0.5 (1)
14 WS-0310002-KN SPRING WASHER M3 (1)
15 NM-6030001-SC NUT M3 (1)
16 E2040-721-000 STOPPER CLEVIS (1)
17 SL-6031042-TN SCREW (1)
18 WP-0330516-SC WASHER 3.3X8X0.5 (1)
19 PA-1003019-A0 AIR CYLINDER (1)
20 PC-0105070-00 SPEED CONTROLLER (1)
21 E4843-760-000 CYLINDER PIN (1)
22 E2041-721-000 WASHER B (2)
23 RE-0250000-K0 E-RING 2.5 (2)
24 SL-6041292-TN SCREW (2)
25 E2169-721-000 HOLD PLATE (1)
26 SM-6031602-TN SCREW M3 L=16 (1)
27 NM-6030002-SC NUT M3 (1)
28
#01
E2142-721-000 STOPPER FRAME (1)
29
#02
E2246-721-000 STOPPER FRAME FL (1)
30 SL-4031291-SC SCREW M3X12 1
31 E9466-725-0A0 C.OUT SENSOR CABLE ASM. 1
32 E2135-725-0A0 GUIDE BLOCK ASM. 1
33 E2140-725-0A0 GUIDE BLOCK L ASM. (1)
34 E2130-721-000 GUIDE BLOCK L (1)
35 SB-7040001-00 BEARING (1)
36 E2122-715-000 GB SLEEVE (1)
37 E2140-725-000 SLIDE NUT L (1)
38 SM-6042502-TN SCREW M4X0.7 L=25 (2)
39 E2195-721-000 STOPPER LEVER L (1)
40 E2238-721-000 DAMPER BLOCK L (1)
41 E2240-721-000 DAMPER PLATE L (1)
42 E2145-725-0A0 GUIDE BLOCK R ASM. (1)
43 E2131-721-000 GUIDE BLOCK R (1)
44 SB-7040001-00 BEARING (2)
45 E2122-715-000 GB SLEEVE (1)
46 E2145-725-000 SLIDE NUT R (1)
47 SM-6042502-TN SCREW M4X0.7 L=25 (2)
48 E2196-721-000 STOPPER LEVER R (1)
49 E2239-721-000 DAMPER BLOCK R (1)
50 E2241-721-000 DAMPER PLATE R (1)
51 SM-1030601-SC SCREW M3 L=6 2
52 SM-1030601-SC SCREW M3 L=6 2
53 E2076-721-000 BU HAND KNOB 1
54 400-34506 BACK UP PIN ASSEMBLY 8
55 400-34507 BACK UP PIN (1)
56 E2100-700-000 BACK UP MAGNET (1)
57 RE-0300000-K0 E-RING 3 4
58 E9465-725-0A0 STOP SENSOR CABLE ASM. 1
59 SL-4031291-SC SCREW M3X12 1
60
#01
E2148-721-000 SENSOR BRACKET R 1
61
#02
E2147-721-000 SENSOR BRACKET L 1
62 E9483-725-0A0 T.PIN SENSOR CABLE ASM. 1
63 SL-4031091-SC SCREW M3 X 10 2
64 E2145-721-000 CENTERING PIN 2
65 E2127-715-000 DAMPER SPRING 2
66 SL-6030692-TN BOLT 1
67 HX-0031400-00 SPIRAL TABE 0.5
68 SM-1030801-SC SCREW M3 L=8 2
69
#03
E2110-725-0A0 PUSHER XL ASM. 1
70
#04
E2115-725-0A0 PUSHER XR ASM. 1
71 RE-0250000-K0 E-RING 2.5 (2)
72 E2110-725-000 PUSHER FL (1)
73 E2173-715-000 THRUST WASHER (1)
74 E2172-715-000 PUSHER SHAFT (1)
75 WP-0430801-SC WASHER 4.3X9X0.8 (1)
76 WS-0410002-KN SPRING WASHER (1)
77 SM-6041802-TN SCREW M4X0.7 L=18 (1)
78 E2044-721-000 STOPPER CHIP (1)
79 SL-6030592-TN SCREW M3 L=5 (1)
80 E2112-725-000 PUSHER CYLINDER BRACKET FL (1)
81 E2169-721-000 HOLD PLATE (1)
82 E2111-725-000 PUSHER CYLINDER SUPPORT (1)
83 SL-6041292-TN SCREW (2)
84 PA-1002101-A0 AIR CYLINDER (1)
85 PJ-3040405-11 ELBOW UNION (1)
86 E2177-715-000 CYLINDER ARM X (1)
87 E4843-760-000 CYLINDER PIN (1)
88
#04
E2116-725-000 PUSHER STOPPER PLATE (1)
