- - REF.NO NOT E PART N O D E S C R I P T I O N Qty 1 E2057-721-000 H ANDLE S H AF T A 1 2 E2058-721-000 C O U PLING 1 3 SM-8040 4 0 2-TP SCR EW M 4X0.7 L=4 4 4 E2206-700-000 H AND KN O B 1 5 #01 E2231-725-0B 0 STOPPER…
- -

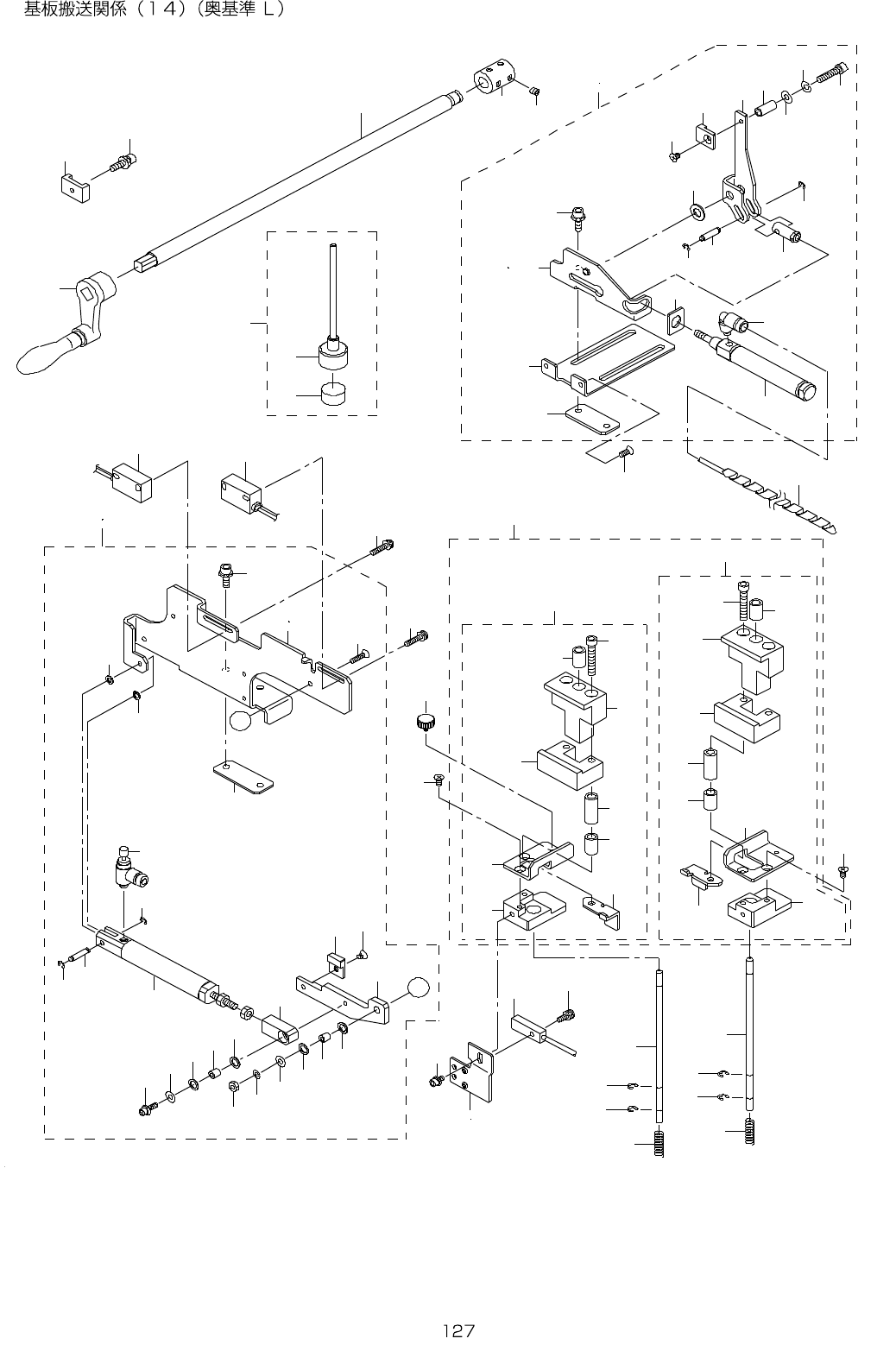

64.PWB CONVEYOR COMPONENTS (14)(REAR REFERENCE L)
3
1
4 3
4 4
3 5
3 6
4 7
5 1
4 5
4 4
4 8
5 0
5 2
4 1
4 0
4 9
5 3
4
2
3 9
3 3
4 2
3 2
5 6
1 7
1 4
2 9
5 9
2 8
6 8
6 5
3 1
3 0
3 1
6 5
3 1
3 0
3 1
1 0
9
3 4
3 5
3 7
3 8
4 6
2 6 2 7
A
A
7
9
1 0
1 0
1 0
1 2
1 2
1 8
1 9
2 0
2 1
2 2
2 5
6 2
6 0 6 1
6 3
6 4
6 6
6 7
1 1
1 5
1 6
2 3
1 3
2 3
2 4
8
7 3
8 2
8 4
8 6
8 0 8 1
8 9
8 5
8 7
8 3
7 2
5 8
5 7
6 9 7 0
7 4
7 6
7 8
8 8
8 9
7 9
7 1
7 7
7 5
5 4
5 6
5 5
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E2057-721-000 HANDLE SHAFT A 1
2 E2058-721-000 COU PLING 1
3 SM-8040402-TP SCREW M4X0.7 L=4 4
4 E2206-700-000 HAND KNOB 1
5
#01
E2231-725-0B0 STOPPER RR ASM . 1
6
#02
E2230-725-0B0 STOPPER RL ASM. 1
7 E2234-725-000 STOPPER (1)
8 E2233-725-000 STOPPER CHIP (1)
9 E2038-721-000 STOPPER COLLAR (2)
10 E2039-721-000 WASHER A (4)
11 E2040-721-000 STOPPER CLEVIS (1)
12 E2041-721-000 WASHER B (2)
13 E4843-760-000 CYLINDER PIN (1)
14 E2169-721-000 HOLD PLATE (1)
15 PA-1003019-A0 AIR CYLINDER (1)
16 PC-0105070-00 SPEED CONTROLLER (1)
17 SM-1031201-SC SCREW M3X0.5 L=12 (1)
18 NM-6030001-SC NUT M3 (1)
19 WS-0310002-KN SPRING WASHER M3 (1)
20 WP-0330516-SC WASHER 3.3X8X0.5 (1)
21 SL-6031042-TN SCR EW (1)
22 WP-0330516-SC WASHER 3.3X8X0.5 (1)
23 RE-0250000-K0 E-RING 2.5 (2)
24 SM-1030401-SE SCREW M3 L=4 (1)
25 SL-6041292-TN SCR EW (2)
26
#01
E2231-725-000 STOPPER FRAME RR (1)
27
#02
E2230-725-000 STOPPER FRAME RL (1)
28 SL-4031291-SC SCR EW M3X12 1
29 E9466-725-0A0 C.OUT SENSOR CABLE ASM. 1
30 E2127-715-000 DAMPER SPRING 2
31 RE-0300000-K0 E-RING 3 4
32 E2260-725-0B0 GUIDE BLOCK ASM. 1
33 E2260-725-0A0 GUIDE BLOCK ASM. (1)
34 E2260-725-000 GUIDE BLOCK (1)
35 SB-7040001-00 BEARING (2)
36 E2122-715-000 GB SLEEVE (1)
37 E2261-725-000 SLIDE NUT (1)
38 SM-6042502-TN SCREW M4X0.7 L=25 (2)
39 E2195-721-000 STOPPER LEVER L (1)
40 E2238-721-000 DAMPER BLOCK L (1)
41 E2240-721-000 DAMPER PLATE L (1)
42 E2260-725-AA0 GUIDE BLOCK R ASM. (1)
43 E2260-725-000 GUIDE BLOCK (1)
44 SB-7040001-00 BEARING (2)
45 E2122-715-000 GB SLEEVE (1)
46 E2261-725-000 SLIDE NUT (1)
47 SM-6042002-TN BOLT (2)
48 E2196-721-000 STOPPER LEVER R (1)
49 E2239-721-000 DAMPER BLOCK R (1)
50 E2241-721-000 DAMPER PLATE R (1)
51 SM-1030601-SC SCREW M3 L=6 2
52 SM-1030601-SC SCREW M3 L=6 2
53 E2076-721-000 BU HAND KNOB 1
54 400-34506 BACK UP PIN ASSEMBLY 12
55 400-34507 BACK UP PIN (1)
56 E2100-700-000 BACK UP MAGNET (1)
57 #05 HX-0031400-00 SPIRAL TABE 0.5
58 #05 SM-1030801- SC SCREW M3 L=8 2
59 SL-4031291-SC SCR EW M3X12 1
60 #01 E2147-721-000 SENSOR BRACKET L 1
61
#02
E2148-721-000 SENSOR BRACKET R 1
62 SL-6030692-TN BOLT 1
63 E9483-725-0A0 T.PIN SENSOR CABLE ASM. 1
64 SL-4031091-SC SCR EW M3 X 10 2
65 E2145-721-000 CEN TERING PIN 2
66
#01
HX-0029400-00 FIXED BASE 6
67
#01
SL-6041092-TN SCREW 6
68 E9465-725-0A0 STOP SENSOR CABLE ASM. 1
69
#03
E2282-725-0A0 USHER XR ASM. 1
70
#04
E2281-725-0A0 PUSHER XL ASM. 1
71 #03 E2116-725-000 PUSHER ST OPPER PLATE (1)
72 E2280-725-000 PUSHER X (1)
73 E2173-715-000 THRUST WASHER (1)
74 E2172-715-000 PUSHER SHAFT (1)
75 WP-0430801-SC WASHER 4.3X9X0.8 (1)
76 WS-0410002-KN SPRING WASHER (1)
77 SM-6041802-TN SCREW M4X0.7 L=18 (1)
78 E2233-725-000 STOPPER CHIP (1)
79 SM-1030401-SE SCREW M3 L=4 (1)
80
#03
E2282-725-000 PUSHER CYLINDER BRACKET XR (1)
81
#04
E2281-725-000 PUSHER CYLINDER BRACKET XL (1)
82 E2284-725-000 HOLD PLATE B (1)
83 E2283-725-000 PUSHER CYLINDER SUPPER (1)
84 SL-6041292-TN SCR EW (2)
85 PA-1002101-A0 AIR CYLINDER (1)
86 PJ-3040405-11 ELBOW UNION (1)
87 E2177-715-000 CYLINDER AR M X (1)
88 E4843-760-000 CYLINDER PIN (1)
89 RE-0250000-K0 E-RING 2.5 (2)
- -

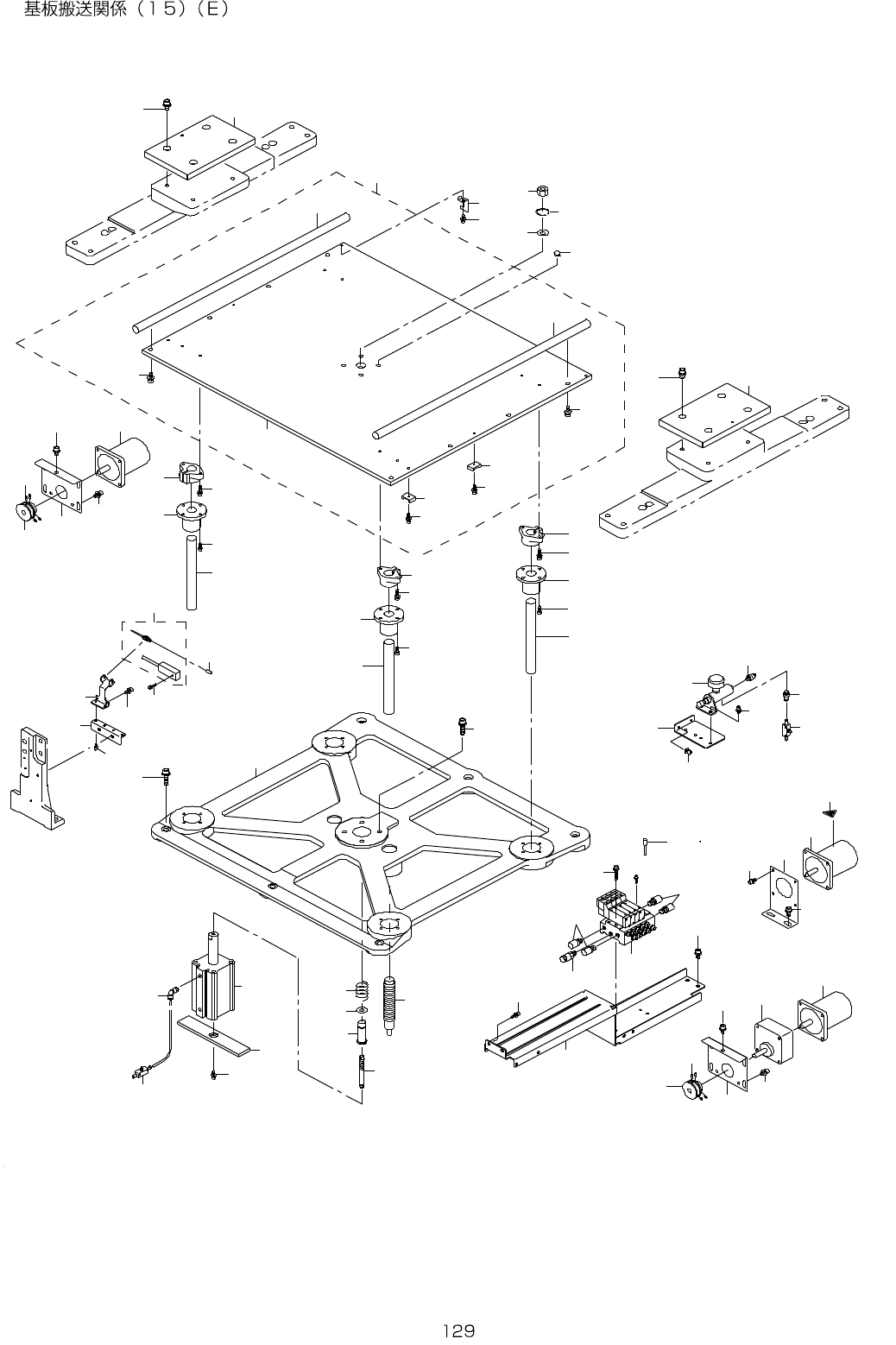

65.PWB CONVEYOR COMPONENTS (15)(E)
