65.PWB CONVEYOR COMPONENTS (15)(E)
1
5 9
6 3
6 2
6 4
6 3
6 4
6 0
2 7
3
7
6
2 2
1 5
1 4
1 6
1 5
1 4
4 2
2 3
2 3
4 4
5 1
3
5 1
4
6
5 1
4
2 0
6
8
1 0
1 3
1 1
1 2
1 3
1 3
1 2
1 3
1 7
5 0
3
5 0
5 0
1 8
4 9
2 6
4
5
4 6
2 4
3 4
3 5
2 9
3 6
3 0
3 1
3 3
3 9
3 7
3 8
3 3
3 2
1 9
4 1
4 0
2 8
4 5
4 3 6 1
2 5
4 8
4 8
5 5
5 3
5 4
5 5
5 6
5 6
5 7
5 8
5 8
5 7
9
2 1
4 7
2
4 9
5 2
- -

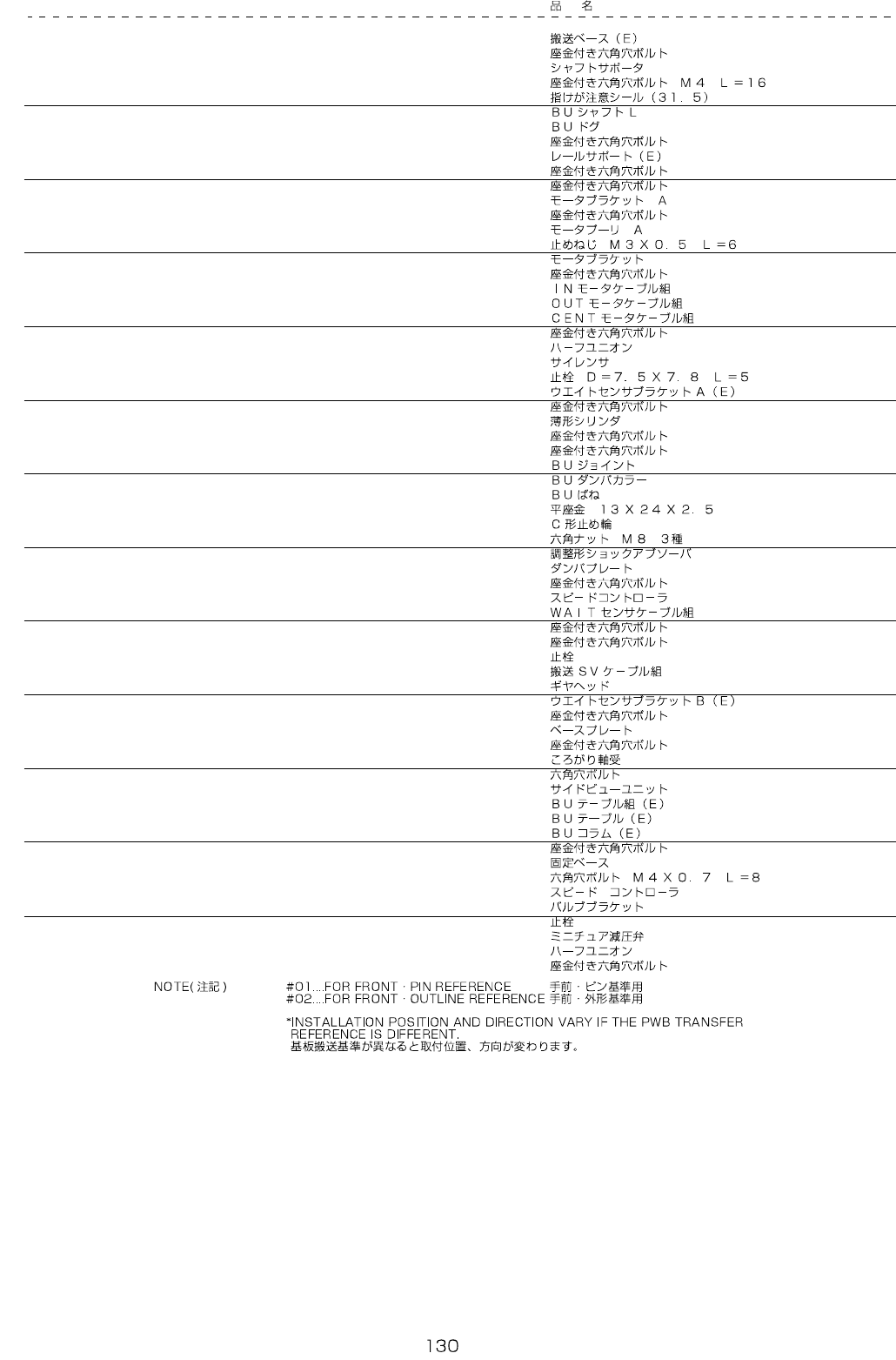

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E4020-725-000 CONVEYOR BASE(E) 1
2 SL-6062592-TN S CREW 6
3 E2014-715-000 SHAFT SUPPORTER 4
4 SL-6041692-TN S CREW 8
5 CM-3002000-03 A TTENTION LABEL 2
6 E2206-725-000 BU SHAFT L 4
7 E2008-725-000 BU DOG 1
8 SL-6041092-TN S CREW 1
9 E4018-725-000 RAIL SUPPORT(E) 1
10 SL-6041292-TN BOLT 2
11 SL-6051292-TN BOLT 2
12 E2171-721-000 MOTOR BRACKET 2
13 SL-6051092-TN BOLT 10
14 E2172-721-000 MOTOR PULLEY A 3
15 SM-8030602-TP SCREW M3X0.5 L=6 9
16 E2287-725-000 MOTOR BRACKET 1
17 SL-6051292-TN BOLT 2
18 E9480-721-0A0 IN MOTOR CABLE A SM. 1
19 E9482-721-0A0 OUT MOTOR CABLE ASM. 1
20 E9478-725-0A0 CENT MOTOR CABLE ASM. 1
21 SL-6041042-TN BOLT 4
22 PJ-3010651-03 HALF UNION 6XPT1/8 1
23 PX-0551040-00 SILENCER (PT1/8) 4
24 TA-0750501-R0 PLUG D=7.5X7.8 L=5 4
25 E4091-725-000 WEIGHT SENSOR BRACKE T A(E) 1
26 SL-6041092-TN SCREW 2
27 PA-4005301-00 CYLINDER 1
28 PJ-3040651-01 ELBOW UNION 6XP T1/8 2
29 SL-6061692-TN BOLT 4
30 E2113-721-000 BU JOINT 1
31 E2194-721-000 BU DAMPER 1
32 E2110-721-000 BU SPRING 1
33 WP-1302501-SC WASHER 13X24X2.5 2
34 RC-1200001-KP C-SHAPED SNAP RING 1
35 NM-6080003-SC NUT M8 1
36 PA-9000640-00 SHOCK ABSORBER 2
37 E2149-721-000 DAMPER PLATE 1
38 SL-6061292-TN SCREW 1
39 PC-0126010-00 SPEED CONTROLLER 3
40 E9464-725-0A0 WAIT SENSOR CABLE ASM. 1
41 SL-6030642-TN SCREW M3 L=6 2
42 SL-6042592-TN SCREW 4
43
#01
PX-5000140-00 PLUG 5
44 E9462-721-0A0 CONVEYOR SV CABLE ASM. 1
45 HM-0006900-10 GEAR HEAD 2
46 E4092-725-000 WEIGHT SENSOR BRACKE T B(E) 1
47 SL-6030892-TN SCREW 2
48 E2226-725-000 BASE PLATE 2
49 SL-6061242-TN BOLT 8
50 SB-8160002-00 B EARING 4
51 SM-6041002-TN BOLT 16
52 HD-0015200-20 SIDE VIEW UNIT 1
53 E4007-725-0A0 BU TABLE ASM.(E) 1
54 E4007-725-000 BU TABLE(E) (1)
55 E4019-725-000 BU COLUMN (2)
56 SL-6051492-TN BOLT (8)
57 HX-0029400-00 FIXED BASE (2)
58 SM-6040802-T N SCREW (2)
59
#02
PC-0124010-00 S PEED CONTROLLER 2
60
#02
E2297-725-000 V ALVE BRACKET 1
61 #02 PX-5000140-00 P LUG 3
62 #02 PC-0205010-A0 M INIATURE DECOMPRESS ION VALVE 2
63 #02 PJ-2100043-00 UNION 4
64 #02 SL-6041092-TN SCREW 6
- -
FOR SEPARATE USER'S UNIT
66.BAD MARK READER COMPONENTS
1
4
5
6
7
3
2
