- - REF.NO N OTE P ART N O D E S C R I P T I O N Qty 1 E3650-725 -A A0 HM S ASM . (750) 1 2 400-69924 HM S EXCHAN G E AS M (75 0 ) (1) 3 HX-0029400-0 0 F IXED BASE (2) 4 SL-403069 1 -SC SC REW M3X6 (2) 5 SL-604149 2 -T…
- -

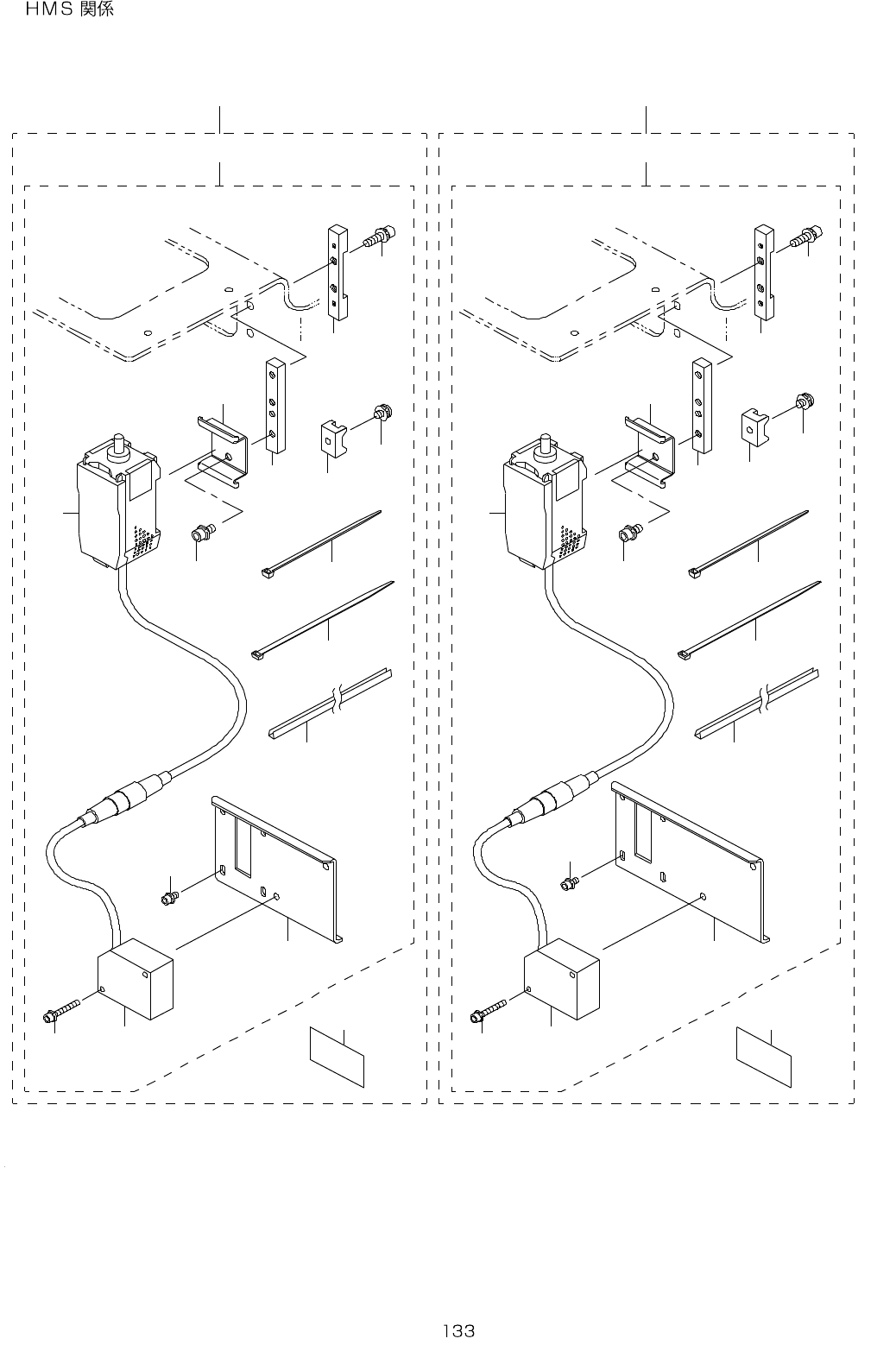

67.HMS COMPONENTS
1 7
1 3
1 2
1 1
1 1
8
7
1 4
1 5
1 0
9
2
1
3 4
2 8
1 9
2 7
3 1
1 8
3 0
2 9
2 9
2 6
2 5
3 3
3 2
6
1 6
5
2 4
2 0
2 3
3
4
2 2
2 1
- -

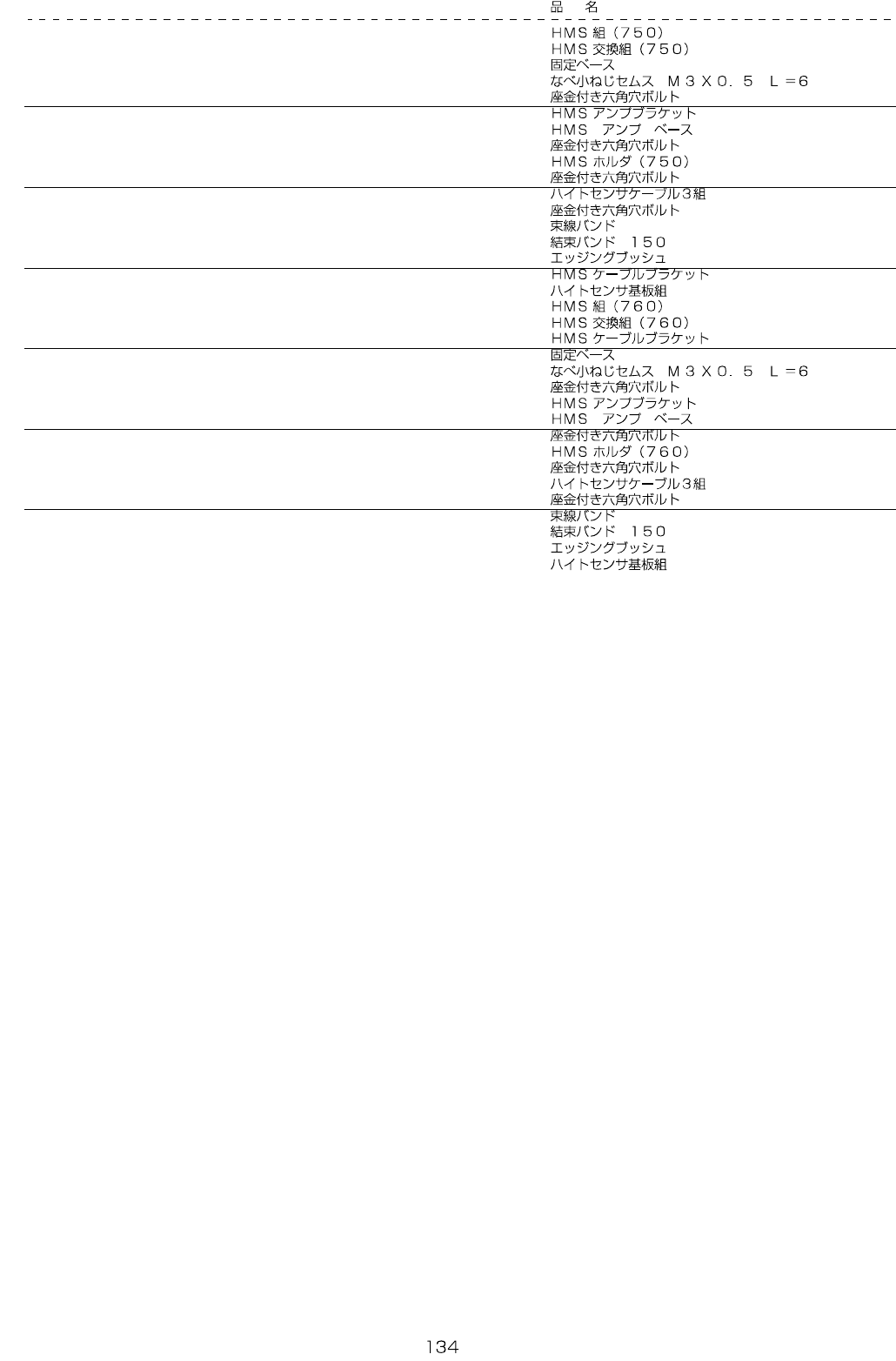

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E3650-725-AA0 HMS ASM.(750) 1
2 400-69924 HMS EXCHANGE ASM(750) (1)
3 HX-0029400-00 FIXED BASE (2)
4 SL-4030691-SC SCREW M3X6 (2)
5 SL-6041492-TN SCREW (2)
6 400-69804 HMS AMP BR (1)
7 L245E-021-000 HMS AMP BASE (1)
8 SL-6040892-TN BOLT (2)
9 E3651-725-000 HMS HOLDER(750) (1)
10 SL-6030692-TN BOLT (4)
11 400-69937 HEIGHT SENSOR CABLE 3 ASM (1)
12 SL-6032042-TN SCREW (2)
13 EA-9500B01-00 CABLE BAND (3)
14 EA-9500B02-00 CABLE BAND 150 (1)
15 HX-0009600-0A BUSH (1)
16 400-69803 HMS CABLE BR (1)
17 E8651-721-0A0 HIGHT SENSOR CIRCUIT BOARD ASM (1)
18 E3650-725-BA0 HMS ASM.(760) 1
19 400-69925 HMS EXCHANGE ASM(760) (1)
20 400-69803 HMS CABLE BR (1)
21 HX-0029400-00 FIXED BASE (2)
22 SL-4030691-SC SCREW M3X6 (2)
23 SL-6041492-TN SCREW (2)
24 400-69804 HMS AMP BR (1)
25 L245E-021-000 HMS AMP BASE (1)
26 SL-6040892-TN BOLT (2)
27 E3652-725-000 HMS HOLDER(760) (1)
28 SL-6030692-TN BOLT (4)
29 400-69937 HEIGHT SENSOR CABLE 3 ASM (1)
30 SL-6032042-TN SCREW (2)
31 EA-9500B01-00 CABLE BAND (3)
32 EA-9500B02-00 CABLE BAND 150 (1)
33 HX-0009600-0A BUSH (1)
34 E8651-721-0A0 HIGHT SENSOR CIRCUIT BOARD ASM (1)
- -

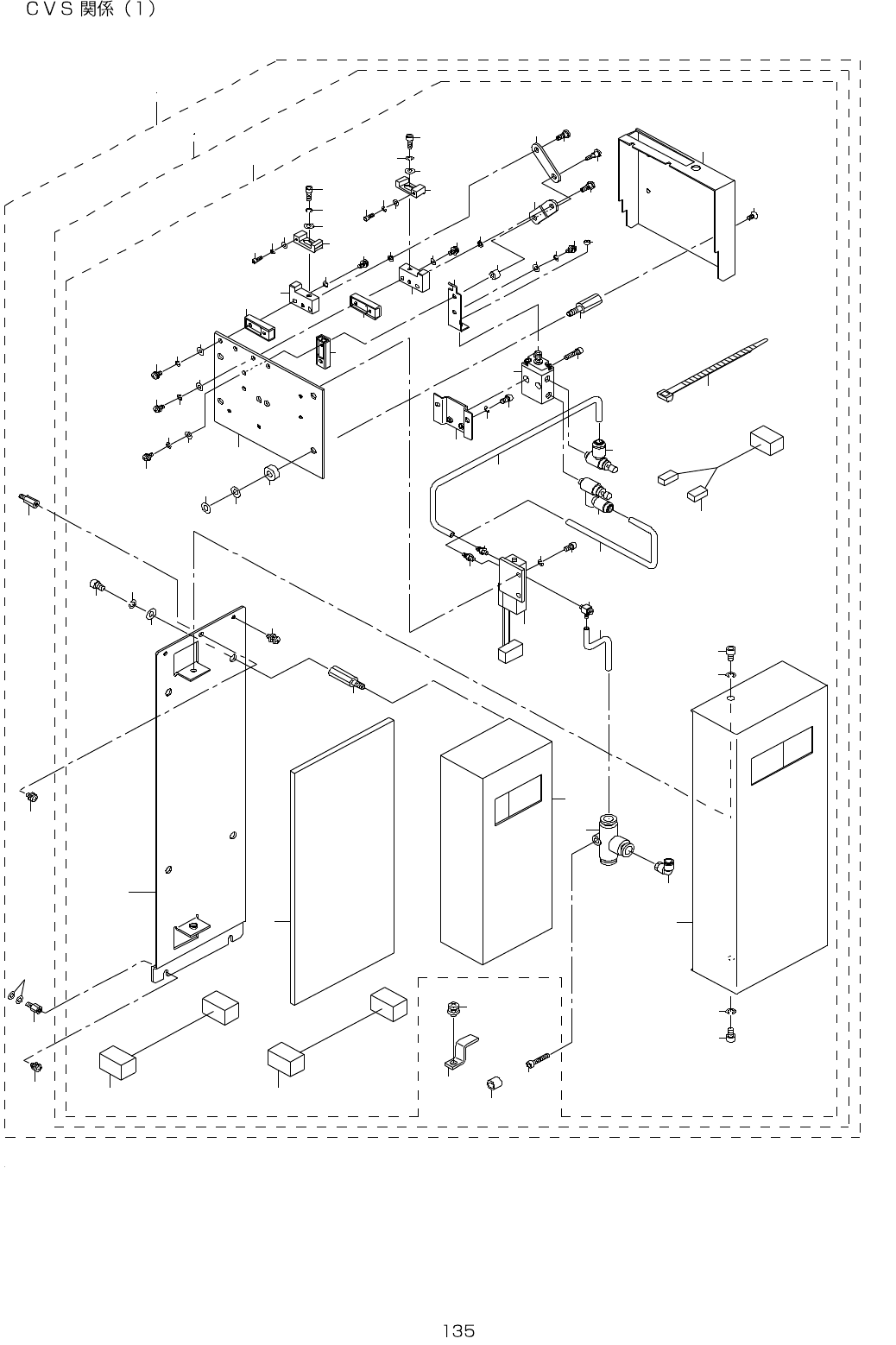

68.CVS COMPONENTS (1)
6 9
6 9
1 0
6
7 1
7 0
6
7 1
7 0
3 0
1 6
1 8
1 7
1 9
1 9
2 0
2 1
2 3
2 4
2 5
2 6
2 7
2 8
3 4
3 3
3 5
3 7
3 8
3 9
4 2
4 3
4 1
4 5
4 6
4 8
4 9
5 4
5 5
5 0
5 3
4 8
4 9
5 6
5 7
1 1
1 2
1 5
1 4
1 3
5 7
3 2
3 1
6 0
5 9
5 8
5 8
6 0
5 9
6 0
5 9
5 8
5 2
4 4
5 7
1 8
2 9
3 4
8
9
9
8
7
7
4 0
4 0
6 6
4 7
6 2
7 2
2 2
6 4
6 3
6 7
6 5
7 3
6 6
5
5 1
3 6 6 8
6 1
7 5
7 4
7 9
7 7
7 6
7 7
7 8
1 2
