KE-750_KE-760-Rev07PDF - 第141页
- - REF.NO N O TE PART NO D E S C R I P T I O N Q ty 1 #01 E36 7 0-725-CA0 CVS ASM. (75 0 )(ZC) 1 2 #02 E36 7 0-725-DA0 CVS ASM. (76 0 )(ZC) 1 3 #03 E36 7 0-725-AA0 CVS ASM. (7 5 0 ) (1) 4 #04 E36 7 0-725-BA0 CVS ASM. …
- -
68.CVS COMPONENTS (1)
6 9
6 9
1 0
6
7 1
7 0
6
7 1
7 0
3 0
1 6
1 8
1 7
1 9
1 9
2 0
2 1
2 3
2 4
2 5
2 6
2 7
2 8
3 4
3 3
3 5
3 7
3 8
3 9
4 2
4 3
4 1
4 5
4 6
4 8
4 9
5 4
5 5
5 0
5 3
4 8
4 9
5 6
5 7
1 1
1 2
1 5
1 4
1 3
5 7
3 2
3 1
6 0
5 9
5 8
5 8
6 0
5 9
6 0
5 9
5 8
5 2
4 4
5 7
1 8
2 9
3 4
8
9
9
8
7
7
4 0
4 0
6 6
4 7
6 2
7 2
2 2
6 4
6 3
6 7
6 5
7 3
6 6
5
5 1
3 6 6 8
6 1
7 5
7 4
7 9
7 7
7 6
7 7
7 8
1 2
- -

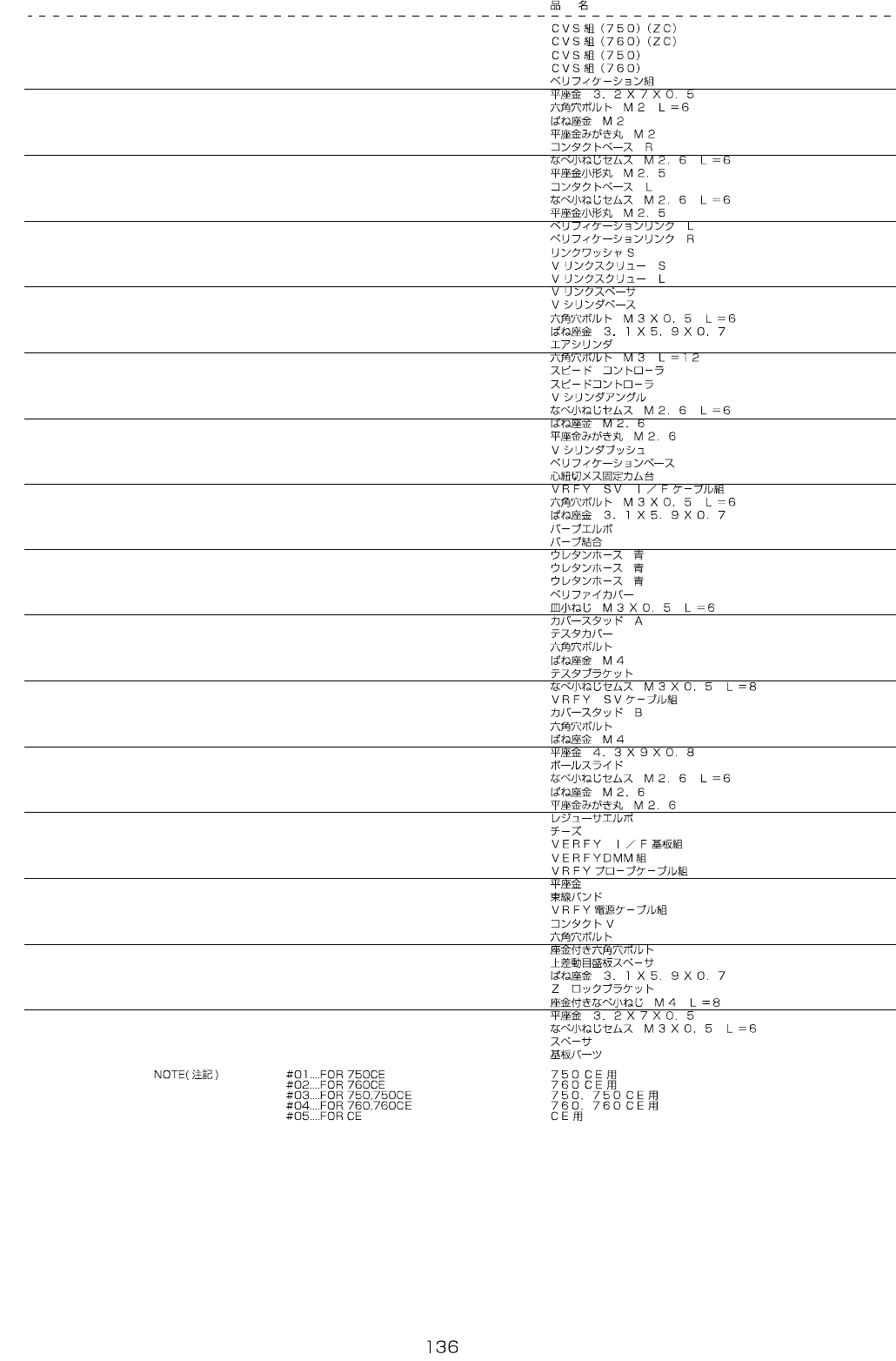

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
E3670-725-CA0 CVS ASM. (750)(ZC) 1
2 #02 E3670-725-DA0 CVS ASM. (760)(ZC) 1
3
#03
E3670-725-AA0 CVS ASM. (750) (1)
4
#04
E3670-725-BA0 CVS ASM. (760) (1)
5 E7600-725-0A0 VERFYCATION ASM. (1)
6 WP-0320501-SC WASHER M3 (2)
7 SM-6020602-TN SCREW M2 L=6 (2)
8 WS-0210002-KN SPRING WASHER M2 (2)
9 WP-0220301-SC WASHER M2 (2)
10 E7602-705-000 CONTACT BASE R (1)
11 SL-4860681-SC SCREW M2.6 X 6 (2)
12 WP-0280500-SC WASHER (2)
13 E7603-705-000 CONTACT BASE L (1)
14 SL-4860681-SC SCREW M2.6 X 6 (2)
15 WP-0280500-SC WASHER (2)
16 E7604-705-000 VERFYCATION LINK L (1)
17 E7605-705-000 VWRFYCATION LINK R (1)
18 E3210-700-000 LINK WASHER S (2)
19 E7606-705-000 V LINK SCREW S (2)
20 E7607-705-000 V LINK SCREW L (1)
21 E7608-705-000 V LINK SPACER (1)
22 E7609-705-000 V CYLINDER BASE (1)
23 SM-6030602-TN HEX SCREW M3 X 6 (2)
24 WS-0310002-KN SPRING WASHER M3 (2)
25 PA-0601013-A0 AIR CYLINDER (1)
26 SM-6031202-TN B0LT (2)
27 PC-0105190-00 SPEED CONTROLLER (1)
28 PC-0105080-00 SPEED CONTROLLER (1)
29 E7610-705-000 V CYLINDER ANGLE (1)
30 SL-4860681-SC SCREW M2.6 X 6 (1)
31 WS-0270002-KN SPRING WASHER M2.6 (1)
32 WP-0280501-SC WASHER M2.6 (1)
33 E7611-705-000 V CYLINDER BUSH (1)
34 E7612-705-000 VERFYCATION BASE (1)
35 D2063-772-B00 LOCKING CAM PLATE HOLDER (4)
36 E9588-705-0A0 VRFY SV I/F CABLE ASM. (1)
37 SM-6030602-TN HEX SCREW M3 X 6 (2)
38 WS-0310002-KN SPRING WASHER M3 (2)
39 PJ-0460390-01 ELBOW (1)
40 E2610-760-000 BARB COUPLING (2)
41 BT-0400251-EA TUBE HOSE, BLUE (0.5)
42 BT-0400251-EA TUBE HOSE, BLUE (0.12)
43 BT-0400251-EA TUBE HOSE, BLUE (0.06)
44 E7613-705-000 VERFY COVER (1)
45 SM-1030601-SN SCREW M3X0.5 L=6 (4)
46 E7614-705-000 COVER STUD A (4)
47 E7601-725-000 TESTER COVER (1)
48 SM-6040602-TN BOLT (2)
49 WS-0410002-KN SPRING WASHER (2)
50 E7602-725-000 TESTER BRACKET (1)
51 SL-4030881-SC SCREW M3X8 (4)
52 E9589-705-0A0 VRFY SV CABLE ASM. (1)
53 E7617-705-000 COVER STUD B (4)
54 SM-6040602-TN BOLT (4)
55 WS-0410002-KN SPRING WASHER (4)
56 WP-0430801-SC WASHER 4.3X9X0.8 (4)
57 E7618-705-000 BOLL SLIDE (3)
58 SL-4860681-SC SCREW M2.6 X 6 (6)
59 WS-0270002-KN SPRING WASHER M2.6 (6)
60 WP-0280501-SC WASHER M2.6 (6)
61 PJ-3040400-04 ELBOW (1)
62 PJ-3050600-04 TEE (1)
63 E8671-705-0A0 VERFY I/F BASE ASM. (1)
64 E9701-705-0A0 VERFYDMM ASM. (1)
65 E9591-705-0A0 CABLE ASM. (1)
66 WP-0430301-SC WASHER (8)
67 EA-9500B01-00 CABLE BAND (1)
68 E9595-725-0A0 VRFY POWER SOURCE CABLE ASM. (1)
69 E7601-705-000 CONTACT V (2)
70 SM-6031602-TN SCREW M3 L=16 (1)
71 SL-6030892-TN SCREW (2)
72 119-12706 SPACER (4)
73 WS-0310002-KN SPRING WASHER M3 (2)
74 E5001-721-000 Z LOCK BRACKET (2)
75 SL-4040891-SC SCREW M4 L=8 (2)
76
#05
WP-0320501-SC WASHER M3 (4)
77
#05
SL-4030691-SC SCREW M3X6 (3)
78
#05
HX-0005600-0B SPACER (1)
79 #05 HX-0035400-0C BASE PARTS (2)
- -
69.CVS COMPONENTS (2)
1 1
1 2
8
9
1 0
1 3
1 4
1 7
1 8
1 5
1 6
1 9
2
3
6
7
4
5
1
